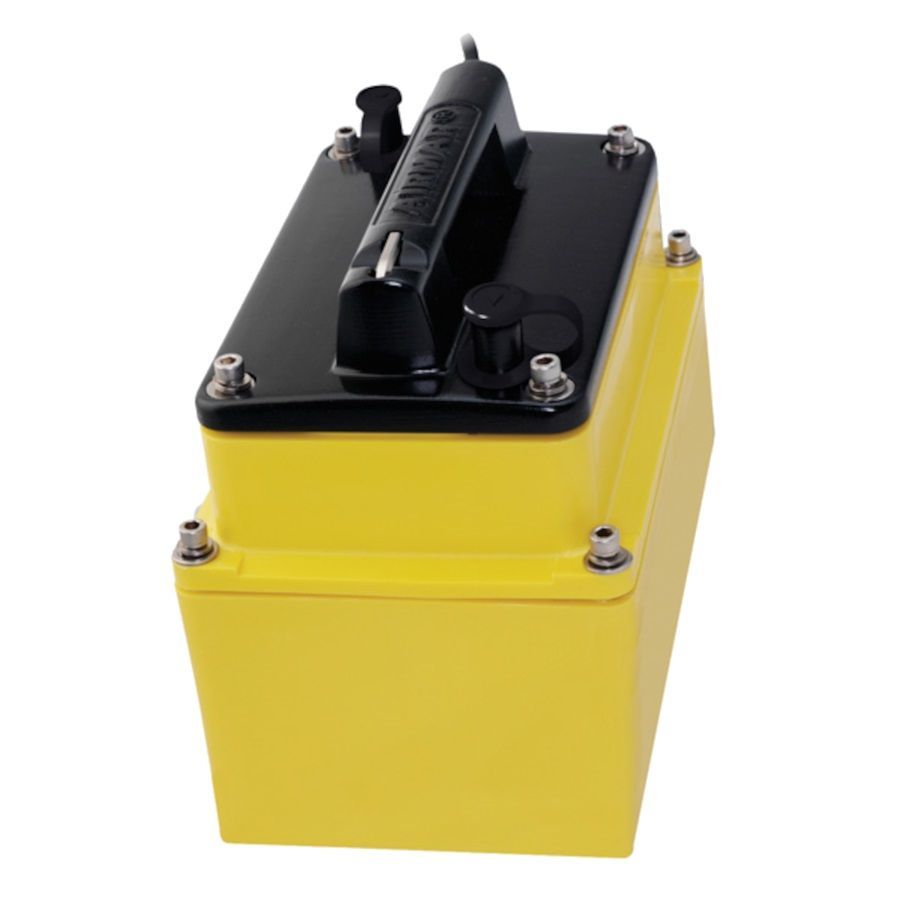

Airmar - M265C-LM 1kw Low Medium CHIRP Transducer

High-Performance In-Hull CHIRP Transducer for Deep and Mid-Depth Fishing

The Airmar M265C-LM 1kW CHIRP transducer is designed for serious anglers and marine professionals looking for exceptional deep and mid-depth performance without drilling through the hull. With a dual-frequency capability covering low and medium CHIRP bands, this in-hull transducer offers superior target separation, clear bottom discrimination, and enhanced fish detection at various depths.

Equipped with 1 kW of power, the M265C-LM is an ideal solution for vessels targeting deep-sea species while maintaining precise imaging in mid-depth ranges. Its low-frequency band (42-65 kHz) enables deep-water detection down to 914 meters (3,000 feet), while the medium-frequency band (85-135 kHz) enhances target resolution for fish suspended near structures and the seabed.

The transducer is housed within a plastic mounting tank that conforms to the hull’s deadrise angle, ensuring proper orientation for optimal performance. This in-hull installation method eliminates the need to penetrate the hull, making it a preferred choice for trailered and lifted boats.

Advanced CHIRP Technology for Superior Detection

• 1 kW CHIRP-ready transducer for precise target separation and deep-water performance.
• Low-frequency range (42-65 kHz) penetrates deep waters, ideal for offshore fishing.
• Medium-frequency range (85-135 kHz) enhances target resolution and structure identification.
• Covers key fishing frequencies including 50, 88, and 107 kHz.
• Patented Xducer ID® technology ensures seamless integration with compatible sonar systems.
• In-hull installation eliminates the need for drilling, preserving hull integrity.

Technical Specifications

• Power Output: 1 kW
• Frequency Bands: Low (42-65 kHz), Medium (85-135 kHz)
• Beamwidth: Low (25°-16°), Medium (16°-11°)
• Maximum Depth: Low frequency - 914 m (3,000’), Medium frequency - 457 m (1,500’)
• Mounting Style: In-hull (plastic housing and mounting tank)
• Deadrise Range: 0° to 22° (accommodates up to 30° with correct installation)
• Vessel Compatibility: Suitable for boats 11 m (36') and larger
• Cable Length: 9 m (30’)

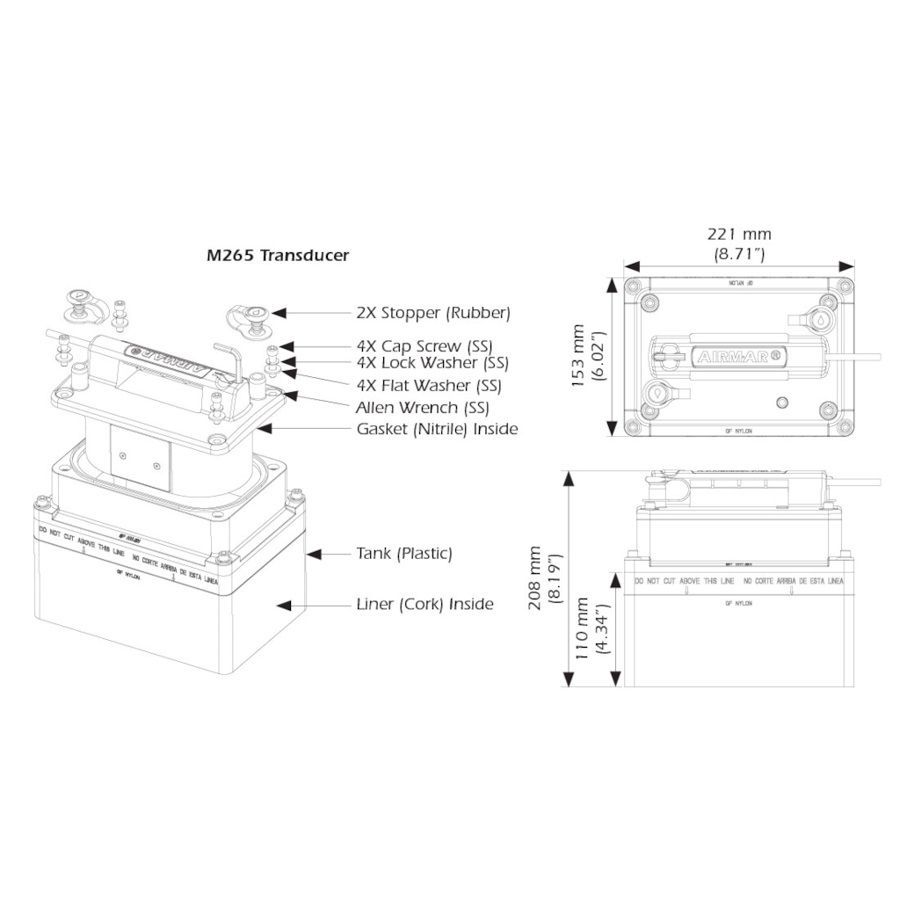

Product Dimensions

• Height: 8.19 in
• Length: 8.71 in
• Width: 6.02 in

Variants List

The Airmar M265C-LM is available in multiple configurations to suit different display systems:

• M265C-LM-21HB – Humminbird 21-Pin Connector
• M265C-LM-MM – MMC Connector
• M265C-LM-0 – MMC-0 Bare Wire Connector
• M265C-LM-9N2 – Navico 9-Pin Connector
• M265C-LM-BL2 – Navico Dual 7-Pin Connector
• M265C-LM-11R – Raymarine 11-Pin Connector

This versatile transducer is an excellent choice for anglers and marine enthusiasts who require reliable, high-quality sonar performance without compromising hull integrity.
