Xantrex - 808-8040-10 Remote Panel - For TC3 Chargers

Remote Monitoring and Control for TRUECharge3 Chargers

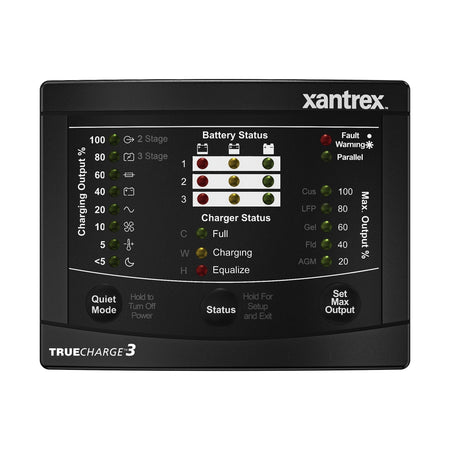

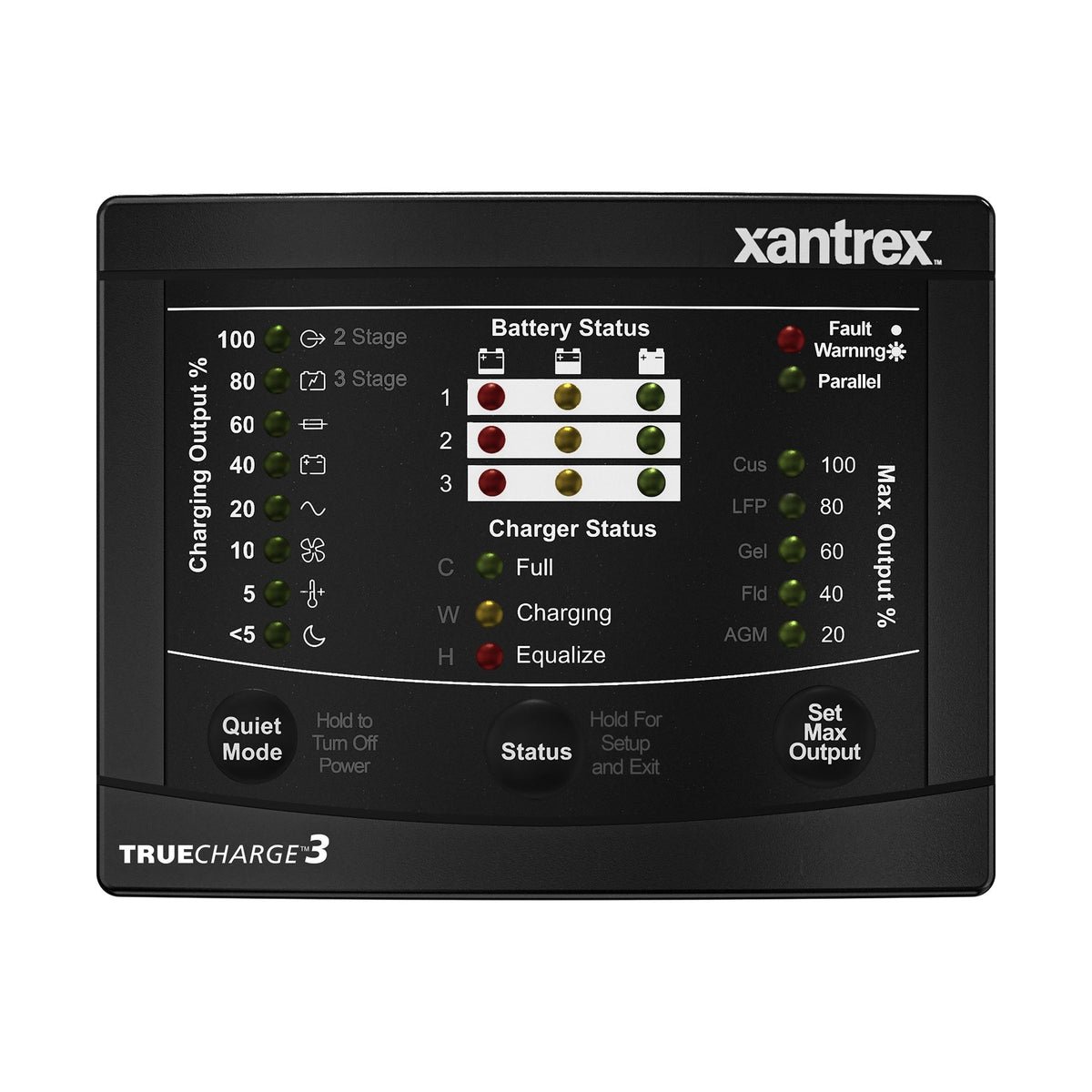

The Xantrex 808-8040-10 Remote Panel is a powerful and convenient solution for managing the performance of your TRUECharge3 battery chargers. Designed for marine applications, this full-function remote panel provides real-time monitoring and control, allowing you to adjust charger output, activate quiet mode, and read battery bank statuses with ease. Its intuitive interface, resembling a fuel gauge, ensures a user-friendly experience while offering enhanced accessibility beyond the onboard display of the charger. The remote panel connects seamlessly through the included telephone cable, ensuring a straightforward installation process.

Advanced Features and Performance

This remote panel is engineered to maximize the efficiency of your battery charging system. With the ability to parallel stack chargers and precisely control output, it enhances the flexibility and performance of your power setup. The LED display ensures clear visibility of critical charging information, even in challenging marine environments. Additionally, the remote panel complies with FCC Class B standards, making it a reliable choice for boat owners and marine professionals.

Technical Specifications

Electrical Specifications

• Display: LED
• Off-State Battery Drain: < 40 mA
• On-State Power Consumption: < 150 mA

Mechanical Specifications

• Dimensions (L x W x H): 4.56 x 1.75 x 3.5 inches (114.64 x 44.39 x 89.64 mm)
• Weight: 0.44 lb (200 g)

Environmental Specifications

• Operating Temperature Range: 32–140°F (0–60°C)
• Storage Temperature Range: -40–176°F (-40–80°C)

Key Highlights

• Enables remote monitoring and control of TRUECharge3 battery chargers
• Allows users to adjust charger output and activate quiet mode
• Displays battery bank statuses for enhanced monitoring
• LED interface for easy readability
• Parallel stack charging capability for improved performance
• Simple installation with included telephone cable
• FCC Class B compliance for reliability in marine environments

The Xantrex 808-8040-10 Remote Panel is an essential addition for those looking to optimize their marine power system with greater control and ease of use.
