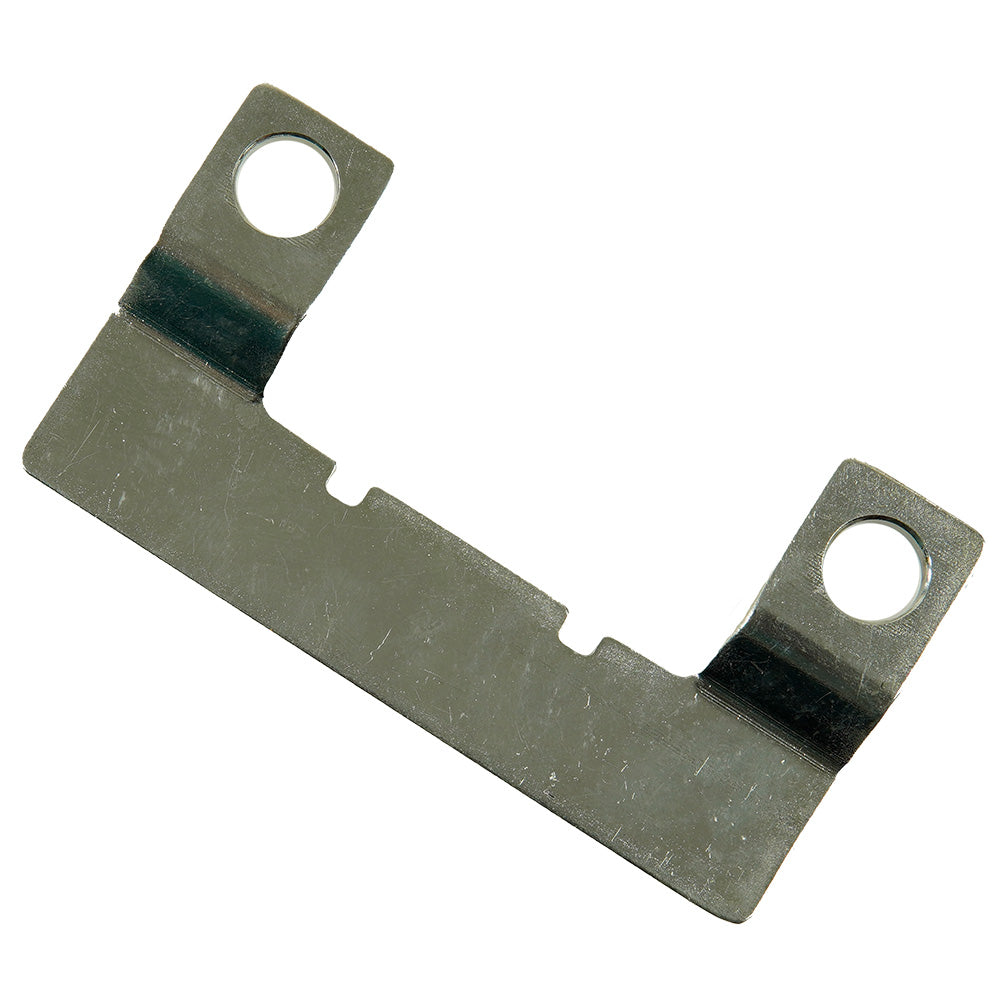

Egis Mobile Electric - XD Relay Cross-Over Bus Bar

Versatile and Robust Circuit Management Solution

The Egis XD Relay Cross-Over Bus Bar is an essential component for marine electrical systems, offering seamless integration and compact installation for enhanced circuit switching and battery management. Designed to link together Egis XD Single, Dual, and Triple XD Relays, as well as the Egis 8700 Mechanical Disconnect, this bus bar ensures reliable connectivity and long-term durability.

General Description

The XD Relay Cross-Over Bus Bar is engineered to provide robust circuit connectivity and efficient battery management in marine environments. By linking multiple relays together, it creates a compact and streamlined installation that simplifies wiring and enhances system reliability. The bus bar's tin-plated copper construction ensures excellent conductivity and corrosion resistance, making it ideal for the harsh marine environment.

Key Features and Advantages

• Tin-Plated Copper Construction: Ensures reliable circuit connectivity with anti-corrosive properties for long-term durability.
• Robust Protective Insulation: Prevents accidental contact shorts between XD relays, enhancing safety and reliability.
• Compact Design: Facilitates streamlined and space-saving installations, ideal for tight marine compartments.
• High Current Capacity: Supports up to 500 amps of continuous current, suitable for high-power marine applications.

Bullet Points Summary

• Tin-plated copper for excellent conductivity and corrosion resistance.
• Protective insulation to prevent contact shorts.
• Compact design for space-saving installations.
• High current capacity of 500 amps continuous.
• Seamless integration with Egis XD Single, Dual, and Triple XD Relays, and the Egis 8700 Mechanical Disconnect.

Specifications

• Continuous Current (Amps): 500
• Max Voltage (VDC): 72
• Material: Tin-plated copper
• Size (L x W): 90 x 47mm
• Thickness: 2.8mm (1/8")
• Terminal Stud Hole Size: 10.5mm (3/8")

Focal Features

Durable Construction

The tin-plated copper material provides excellent electrical conductivity and resists corrosion, ensuring long-lasting performance in harsh marine environments.

Protective Insulation

Robust insulation prevents accidental contact shorts between relays, enhancing the safety and reliability of your electrical system.

Compact Design

The bus bar's compact size allows for space-saving installations, making it ideal for marine applications where space is at a premium.

High Current Capacity

Capable of handling up to 500 amps of continuous current, the XD Relay Cross-Over Bus Bar is suitable for high-power applications, ensuring reliable performance under heavy loads.

The Egis XD Relay Cross-Over Bus Bar is the perfect solution for enhancing your marine electrical system. Its durable construction, high current capacity, and compact design make it an essential component for reliable and efficient circuit management and battery connectivity in demanding marine environments.

• 1264130_qbp939217.pdf
