Vimar EIKON 5-Module British Standard Cover Plate, 159.3 x 90 mm, Clamp Mounting
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

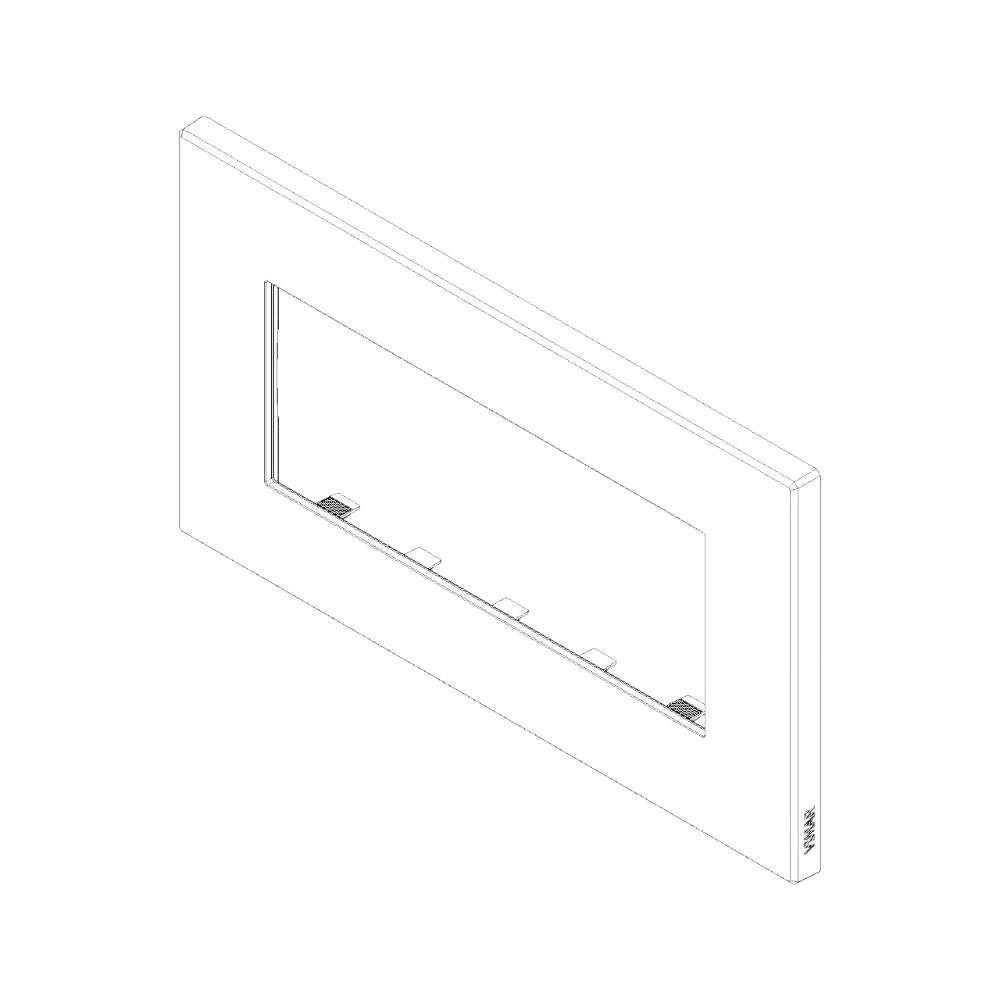

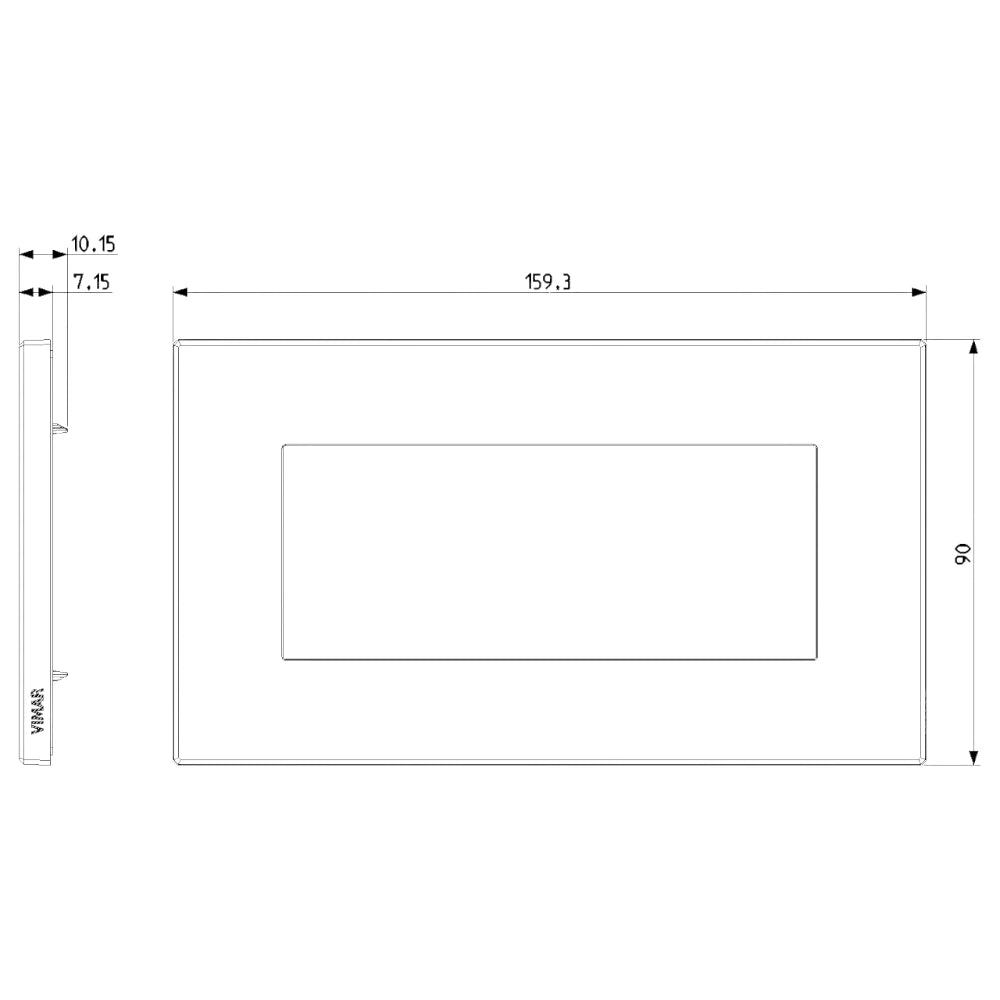

The Vimar EIKON Series is a 5-module British cover plate made to finish off a switch or outlet layout with a clean, flush look on a bulkhead or interior panel. It measures 159.30 mm wide by 90.00 mm high, with depth varying from 10.15 mm to 11.55 mm depending on the selected material.
It mounts horizontally or vertically and uses clamp mounting. With an IP00 rating, it is intended for dry interior locations where the cover plate is a trim piece, not a water barrier.
Key features
- 5-module cover plate for British standard layouts in the Vimar EIKON range

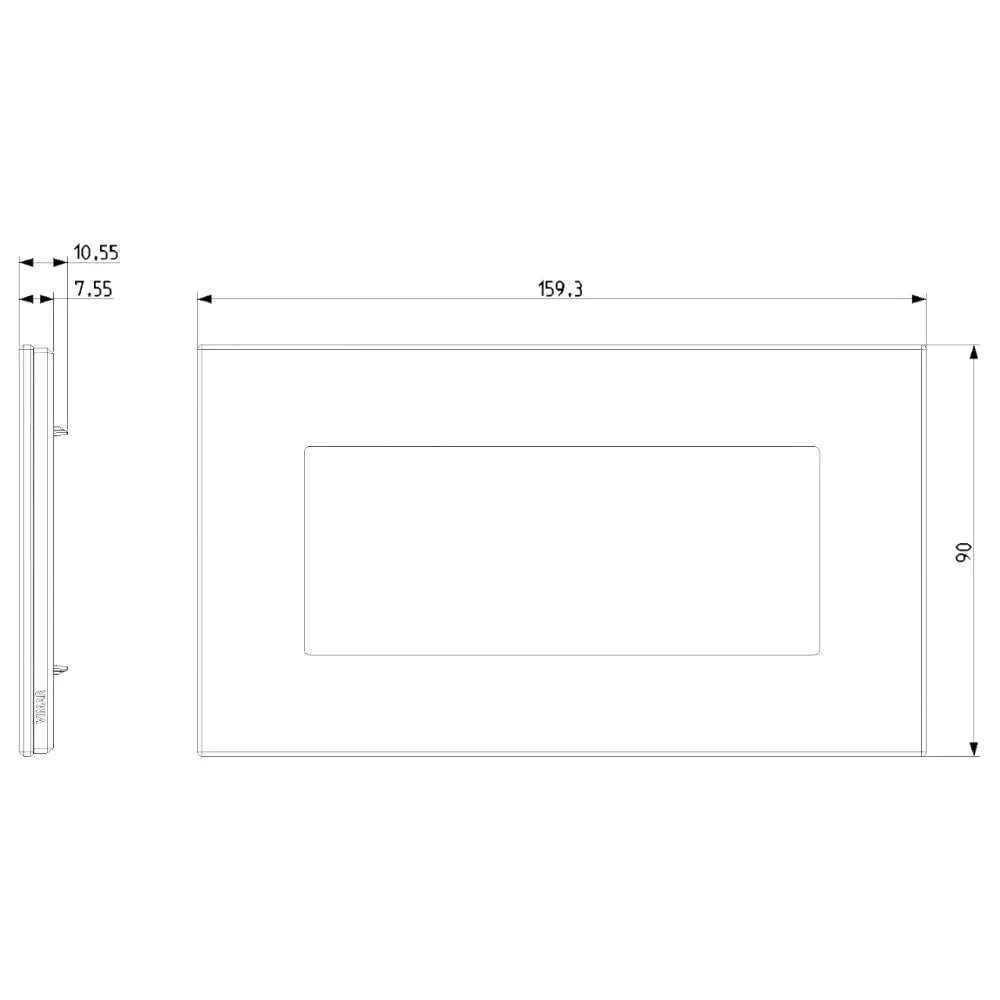

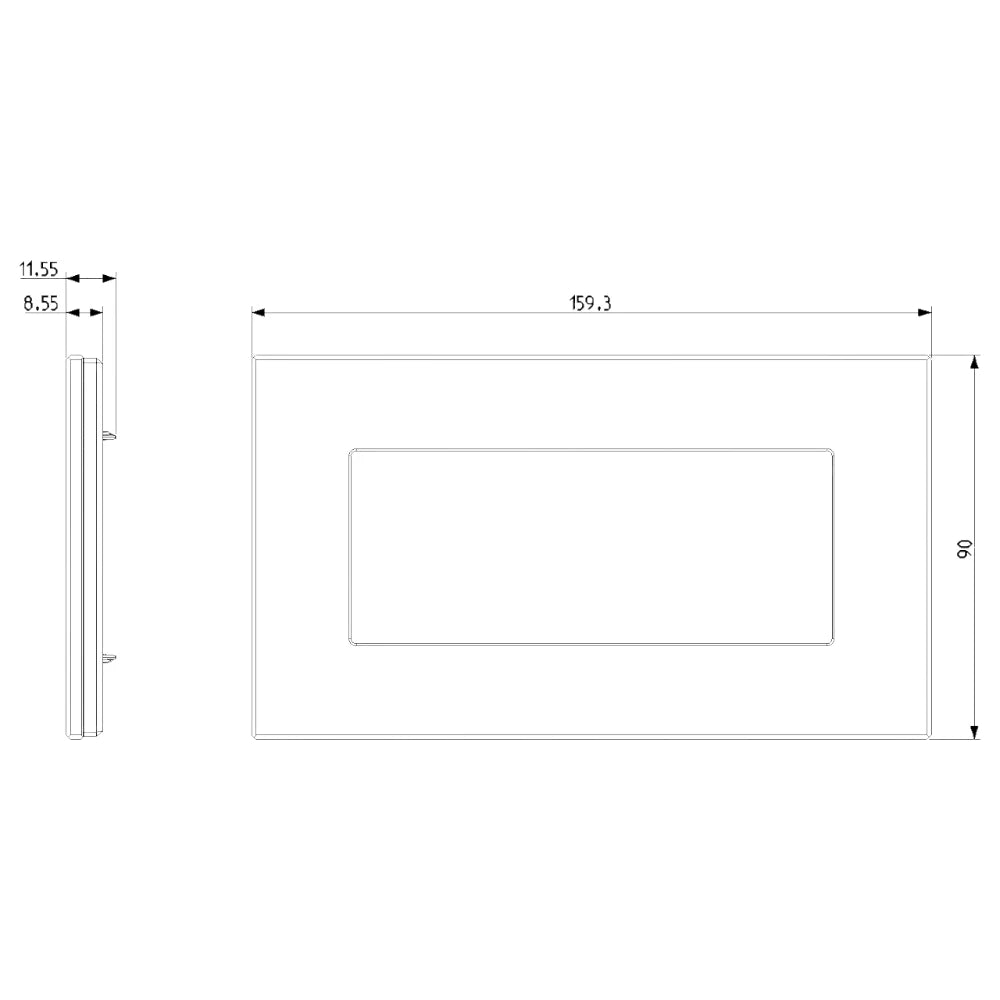

- Overall size: 159.30 mm wide x 90.00 mm high
- Depth varies by finish material from 10.15 mm to 11.55 mm for clearance planning around trim and panel cutouts
- Mounting direction supports horizontal or vertical orientation
- Clamp mounting fastening for a clean face on the finished surface
- IP00 rating for use in dry interior areas, not exposed spray or washdowns
Variants

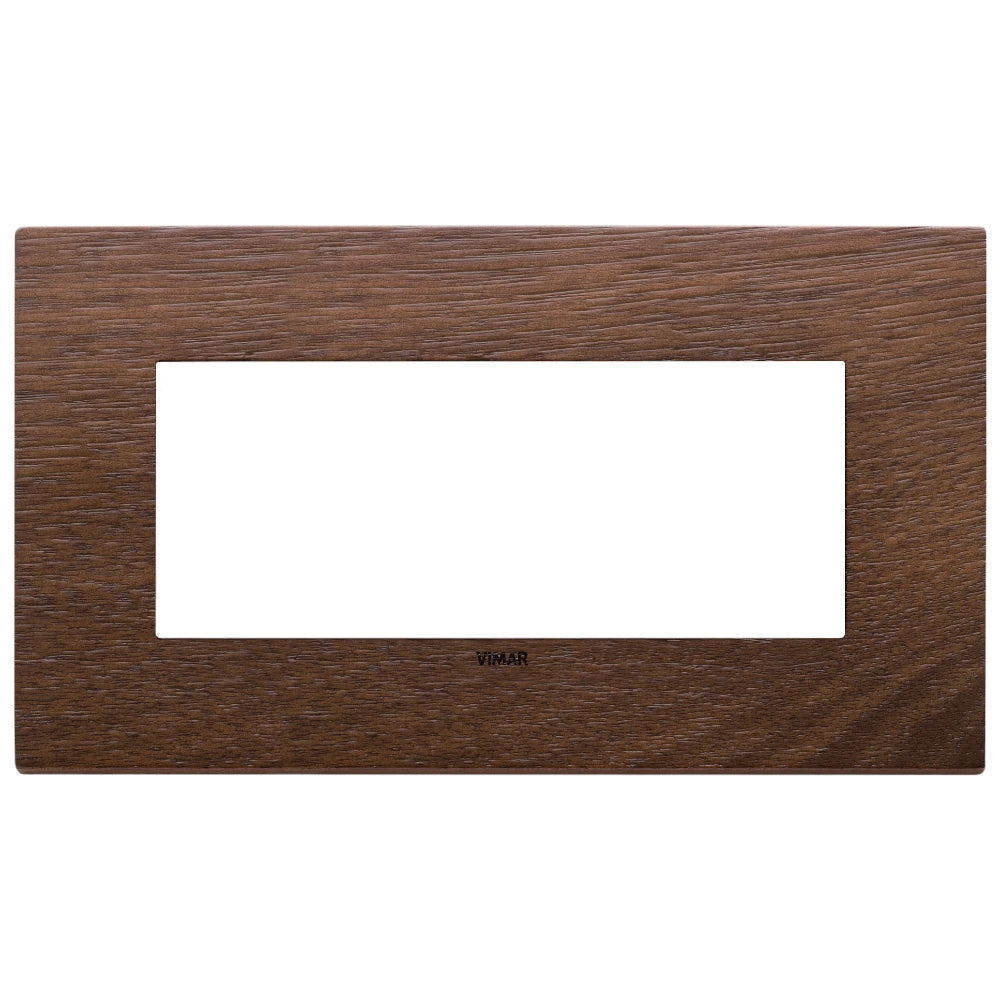

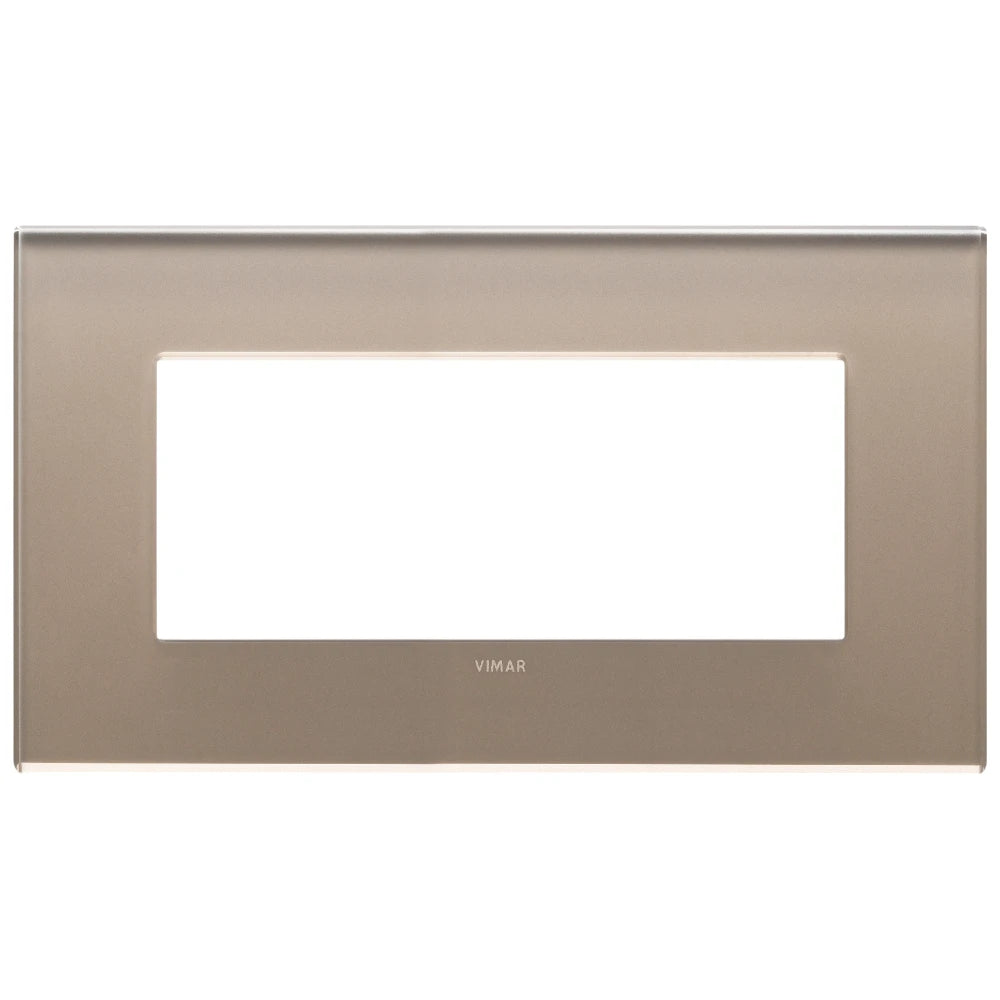

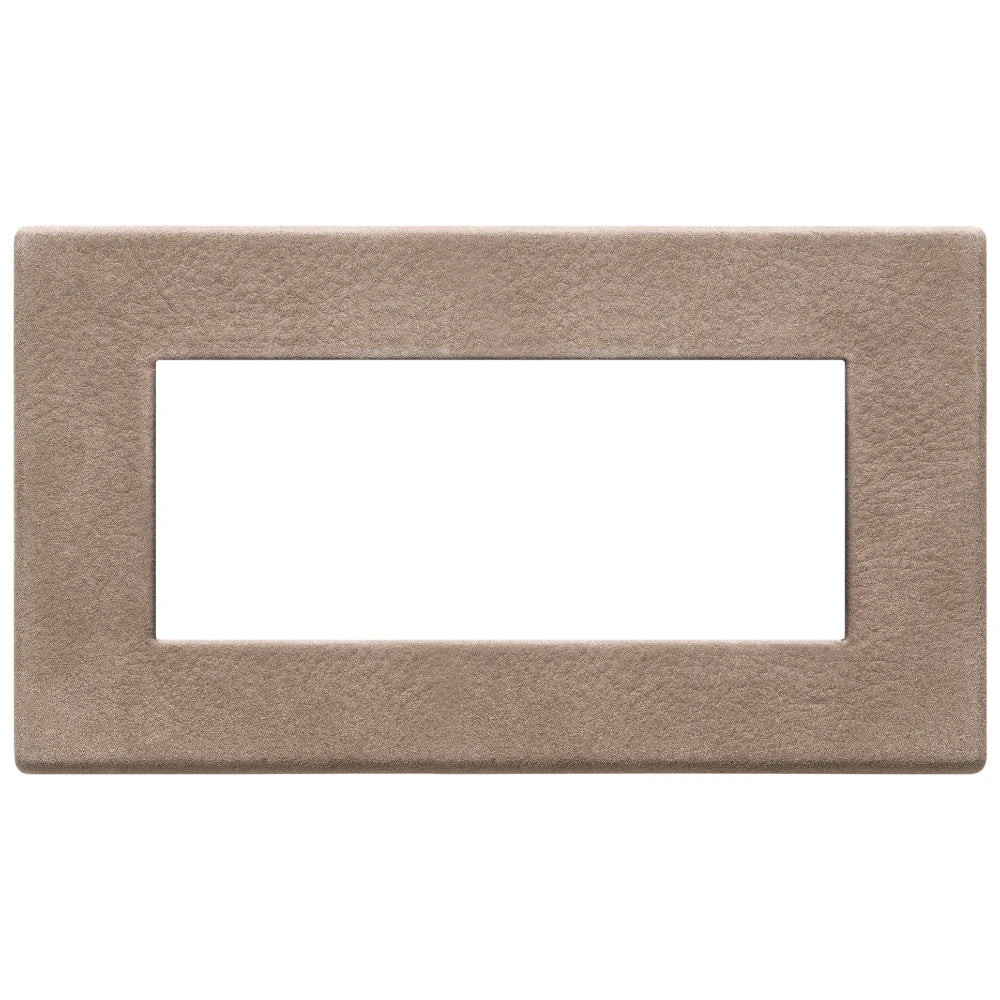

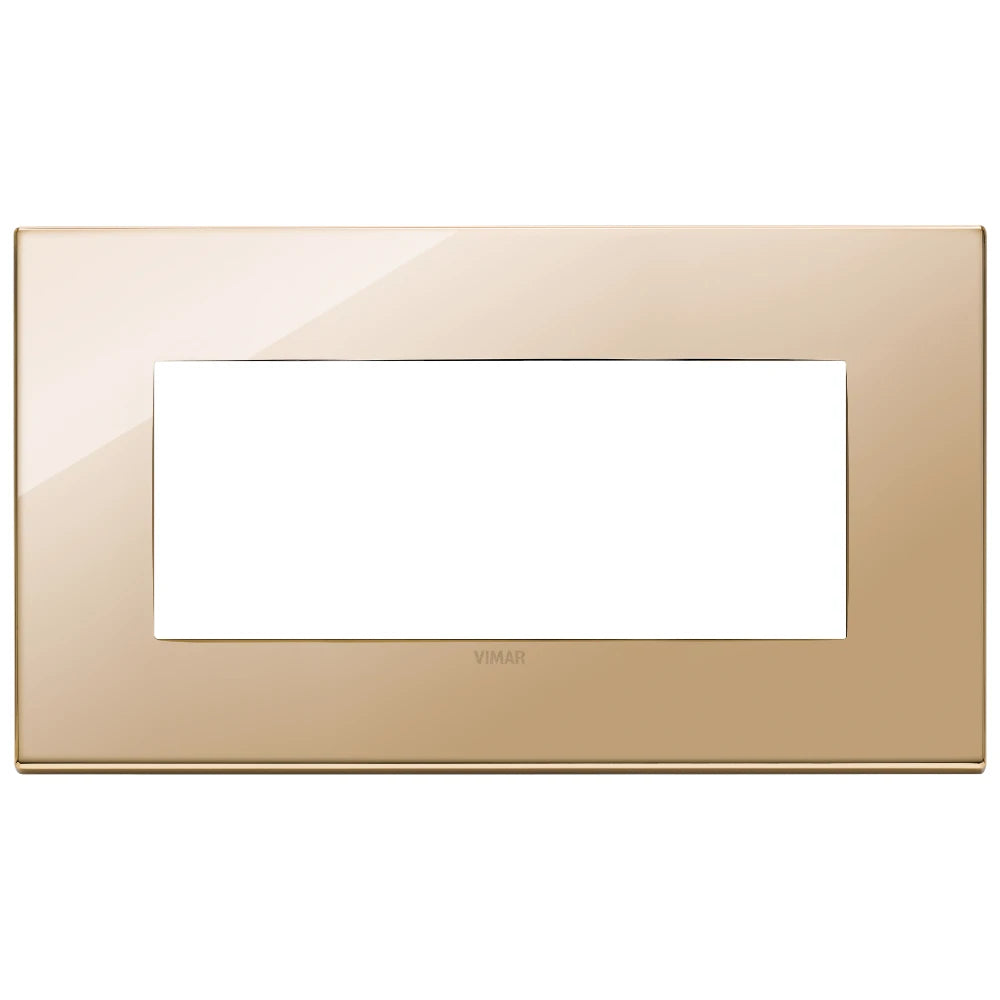

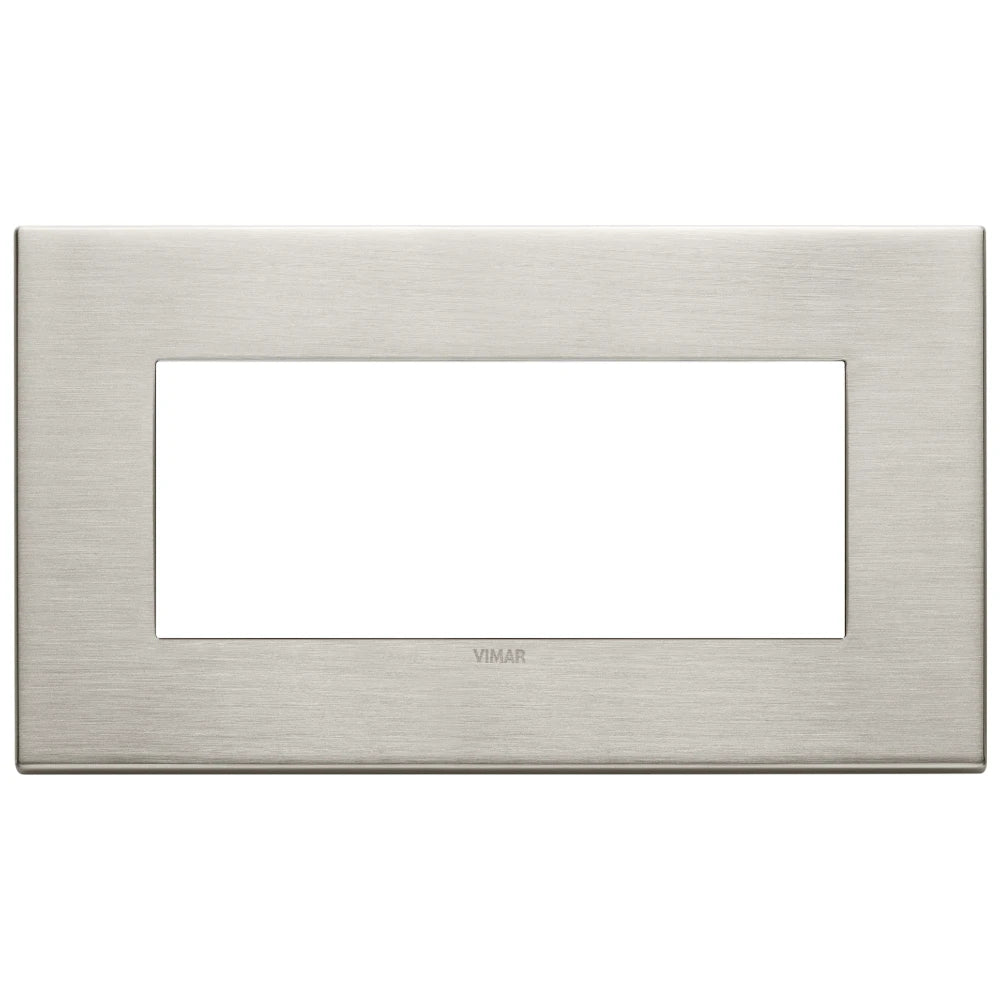

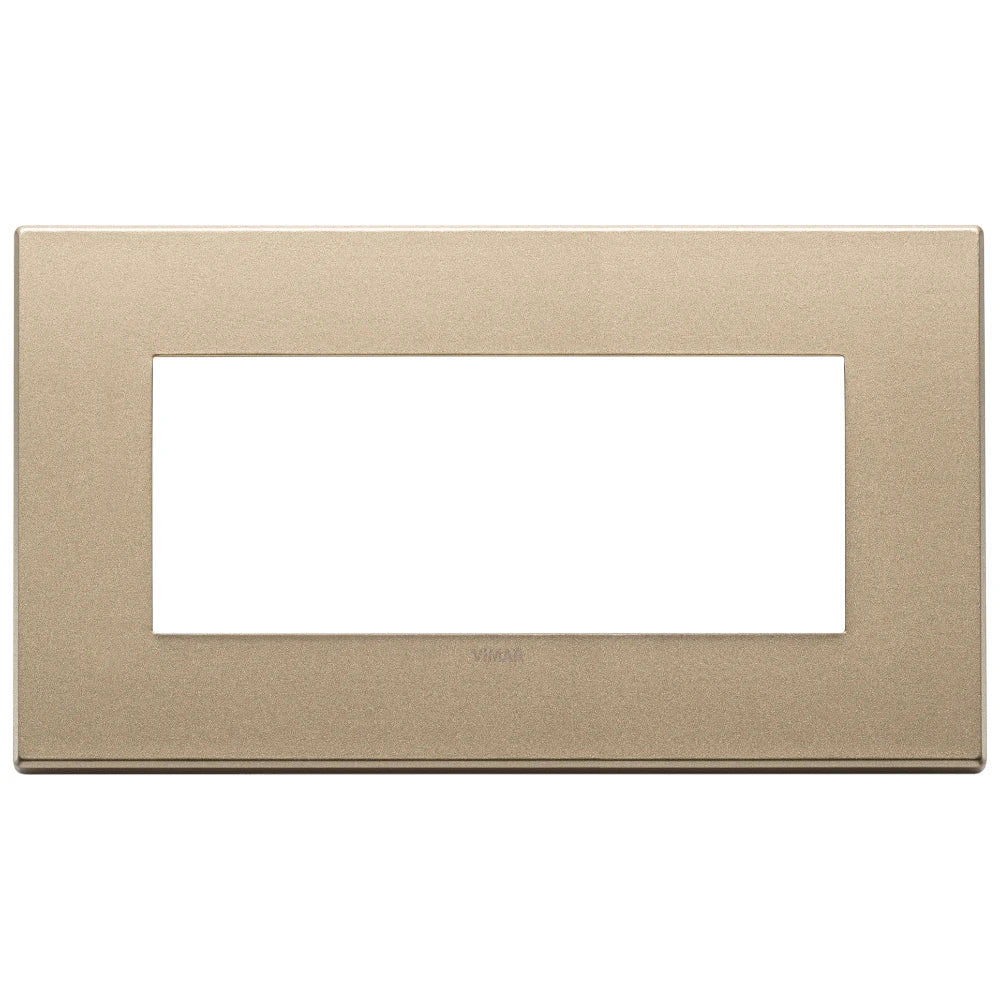

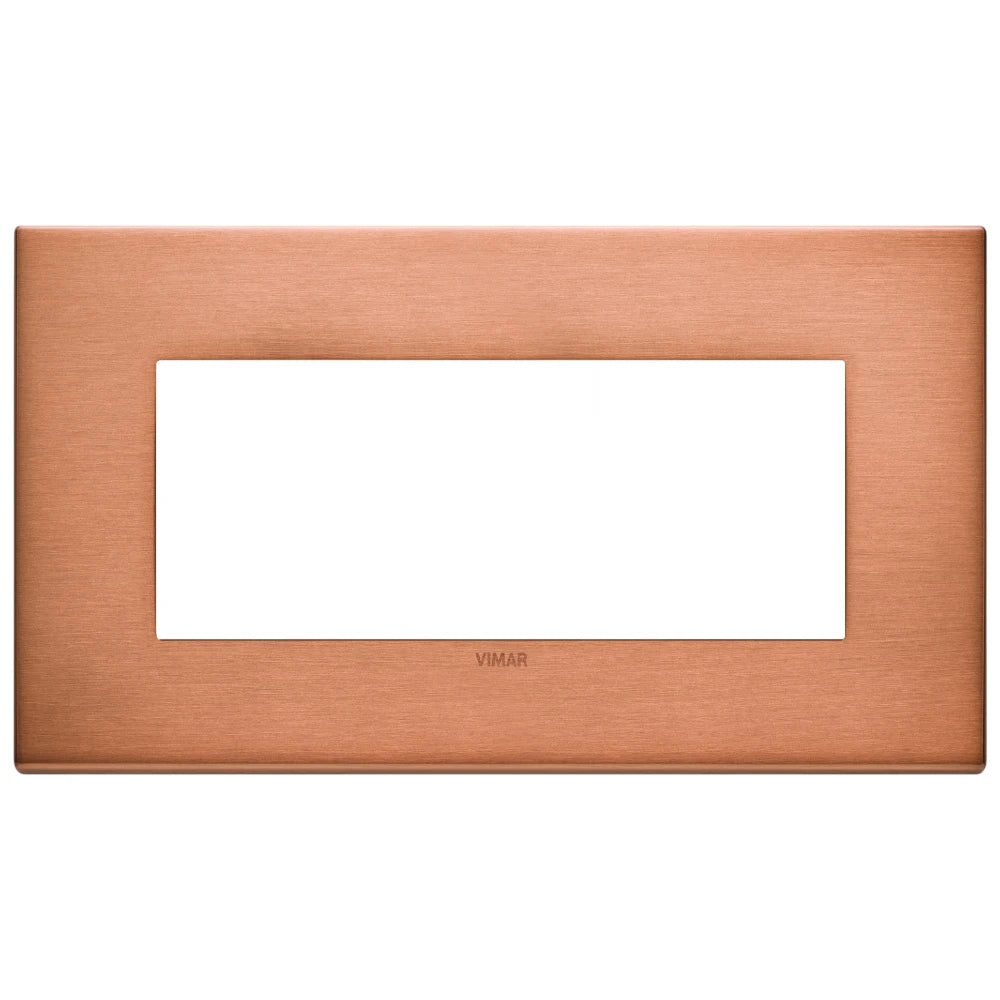

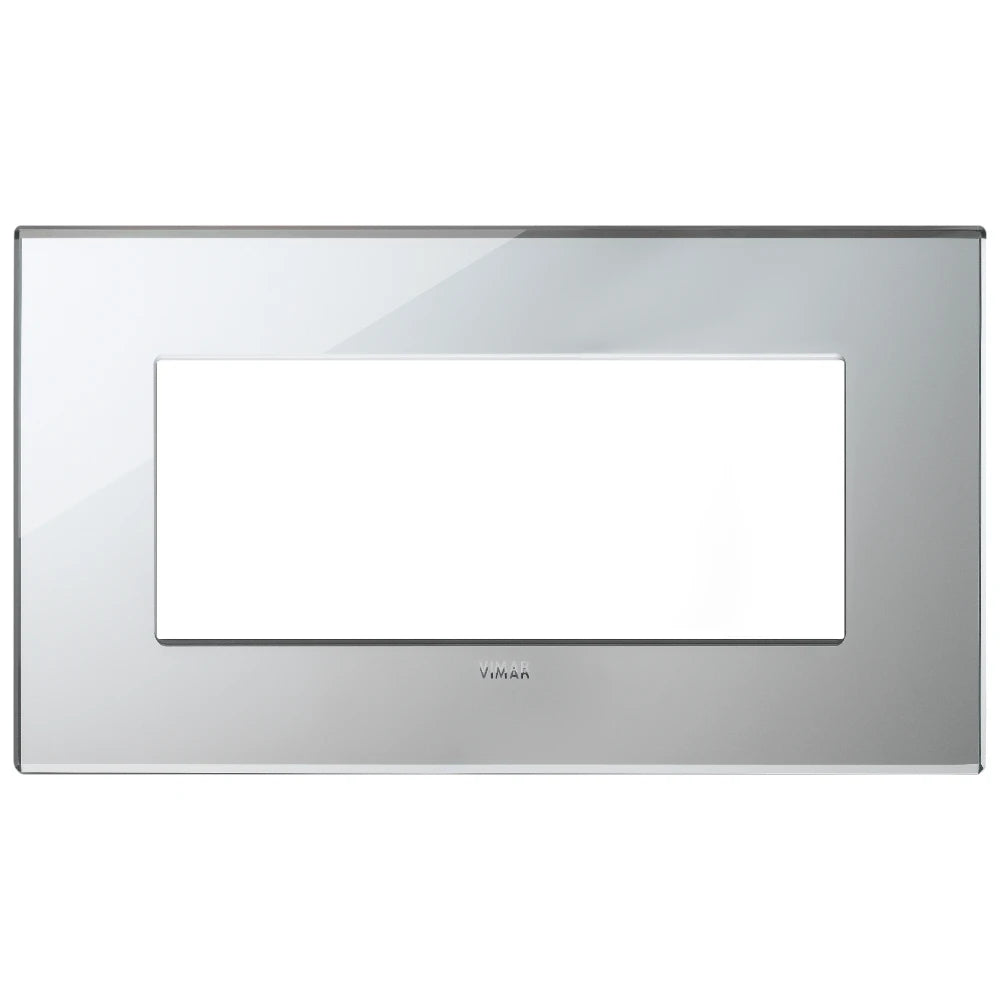

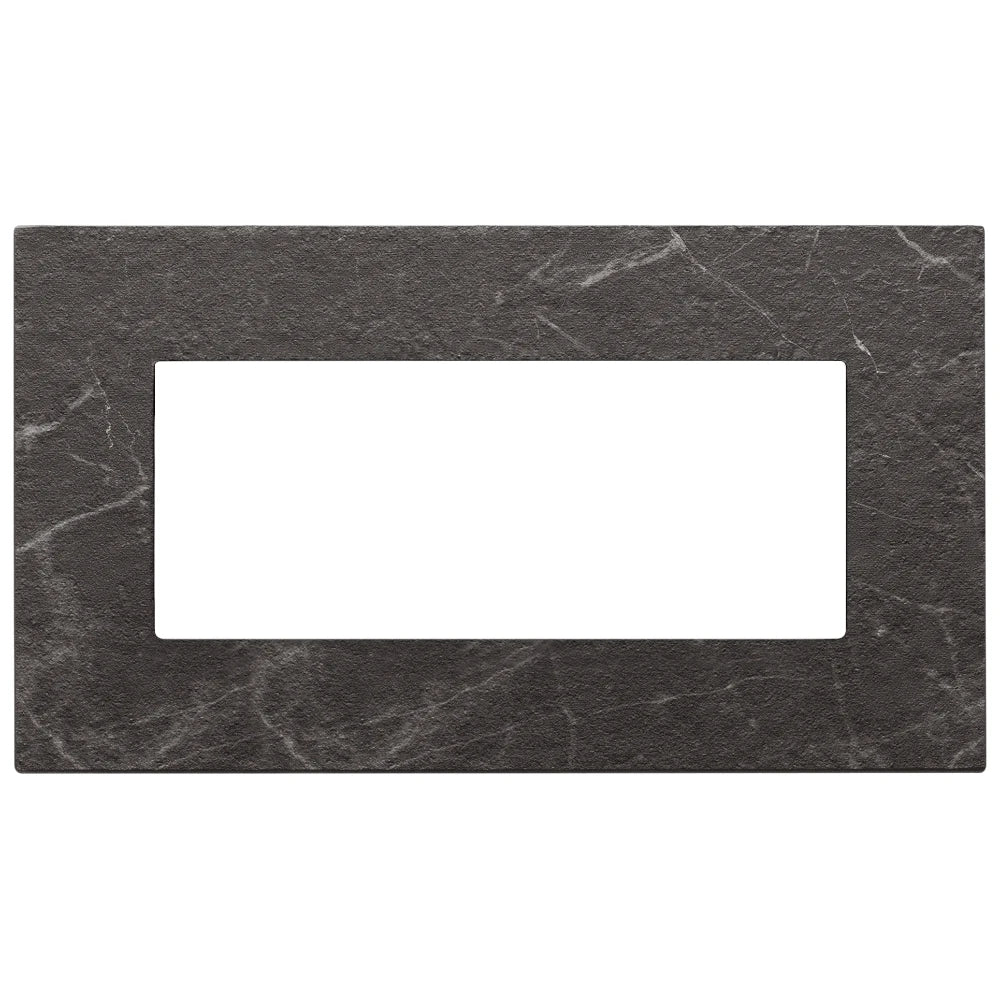

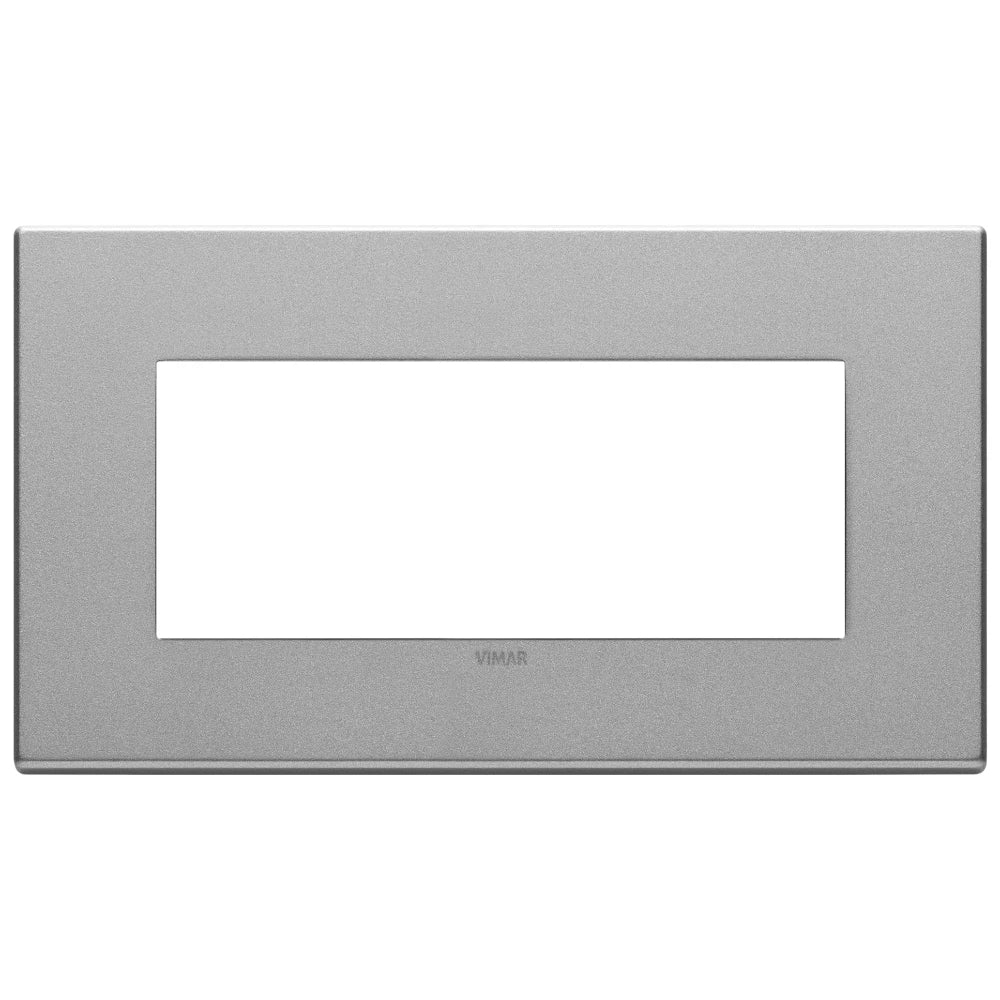

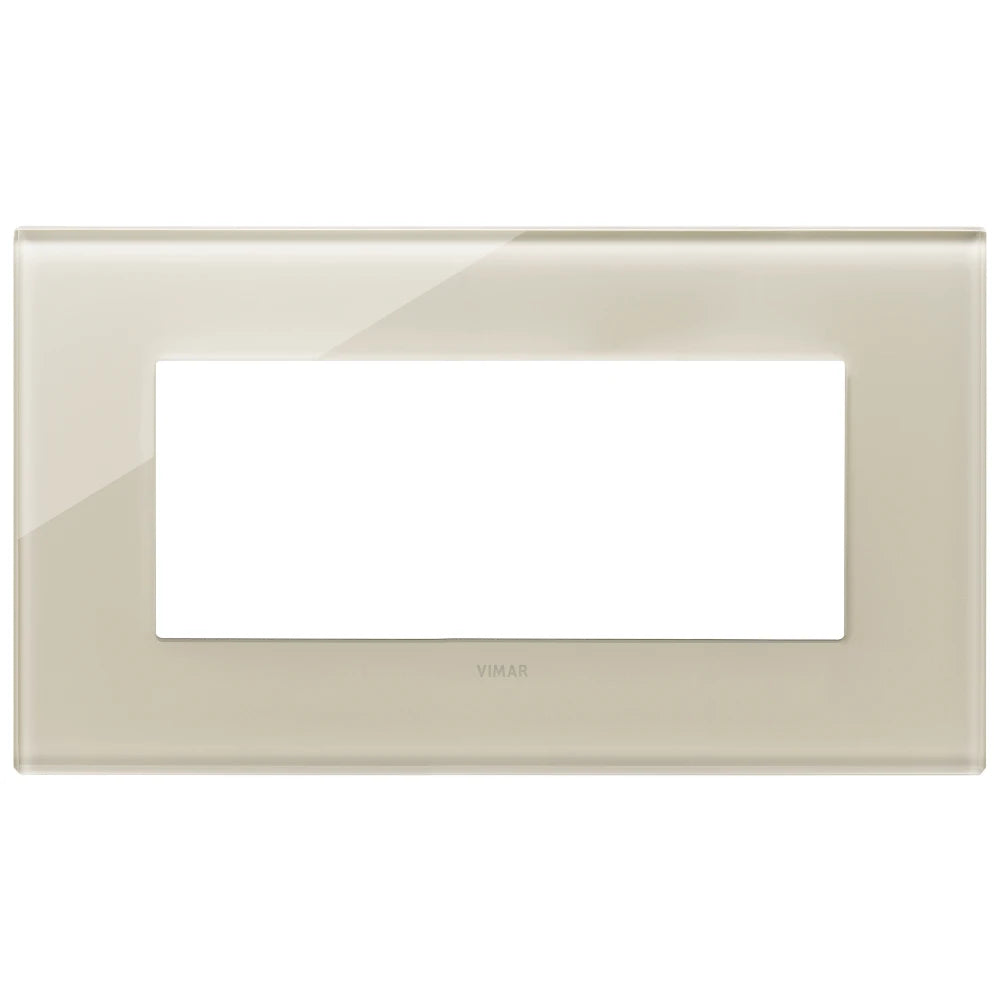

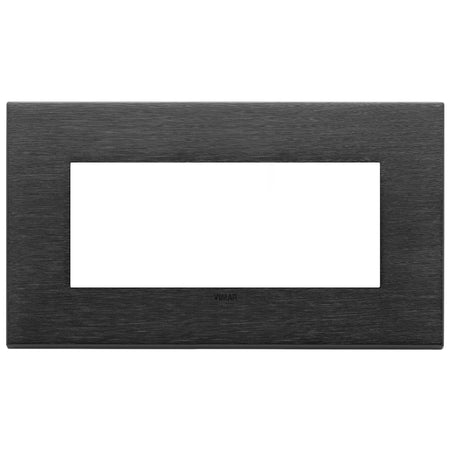

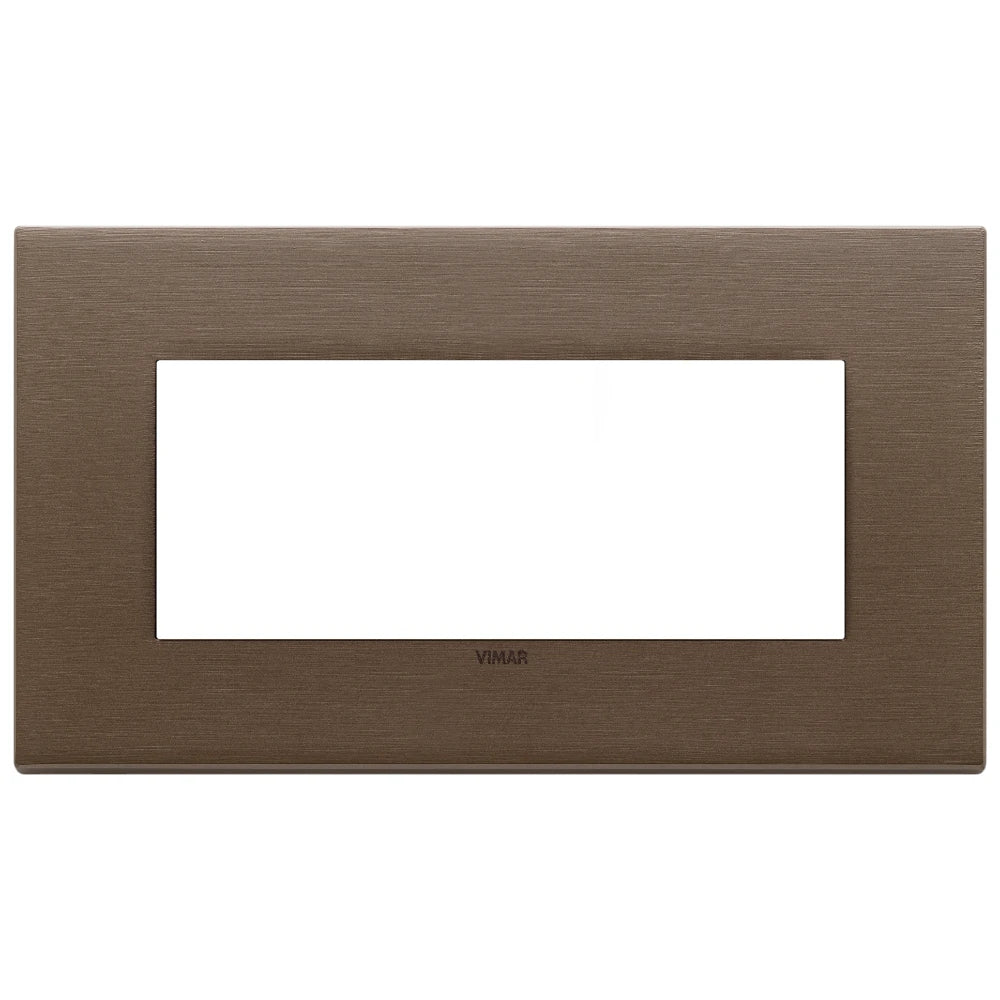

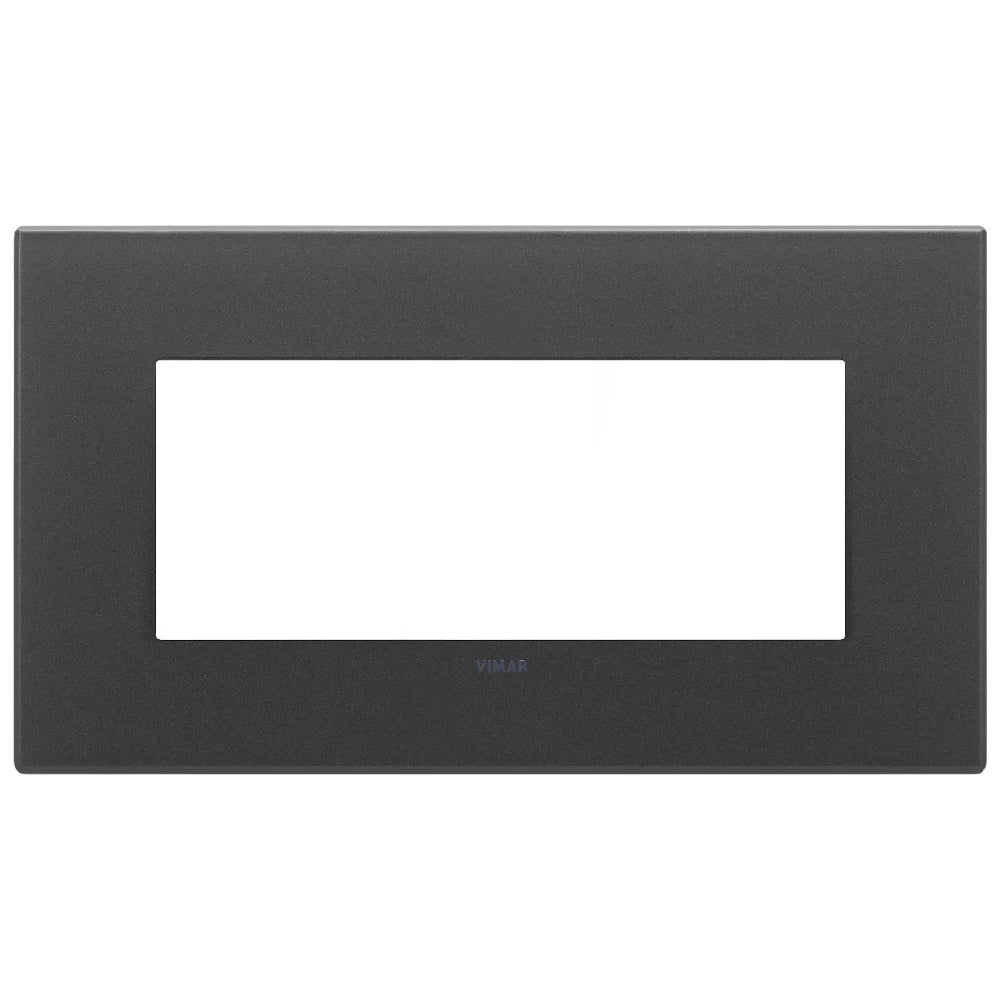

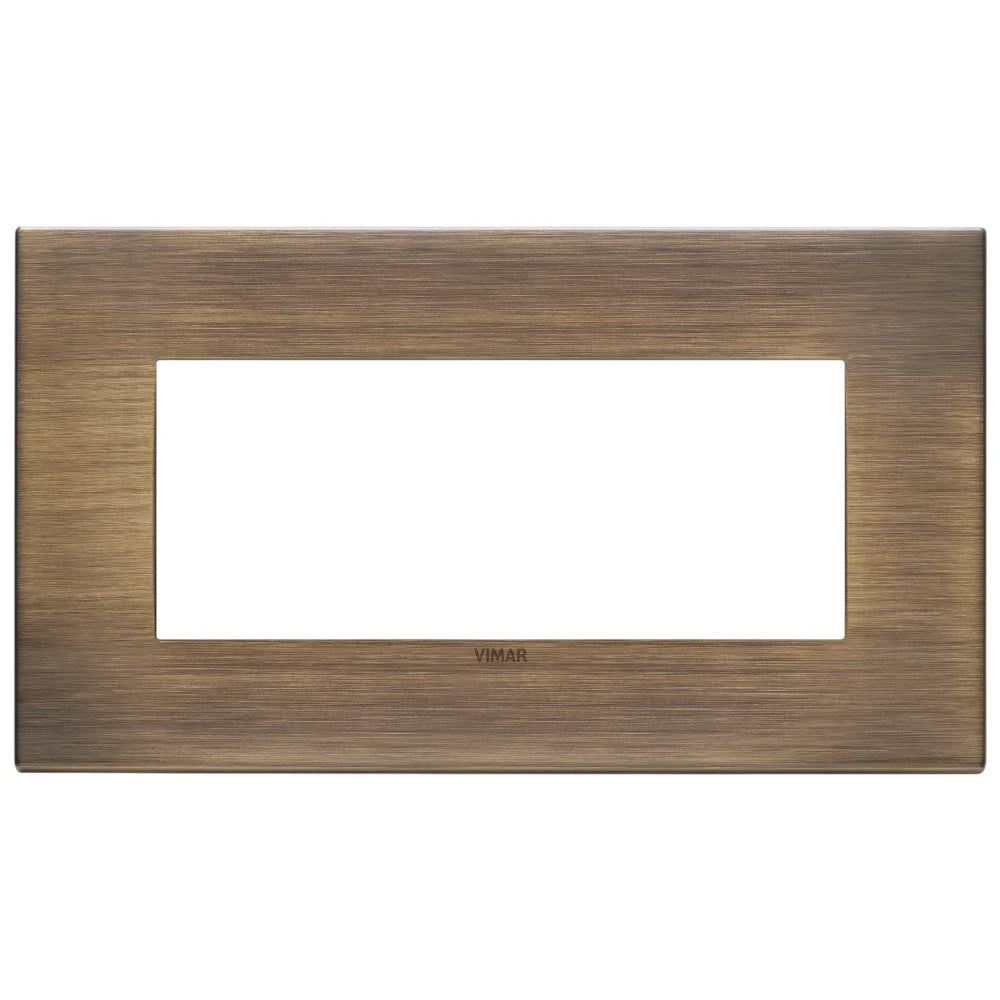

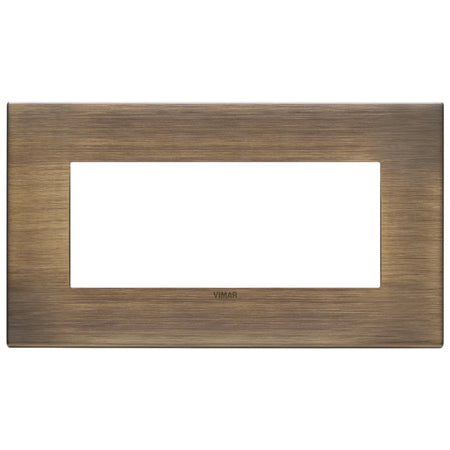

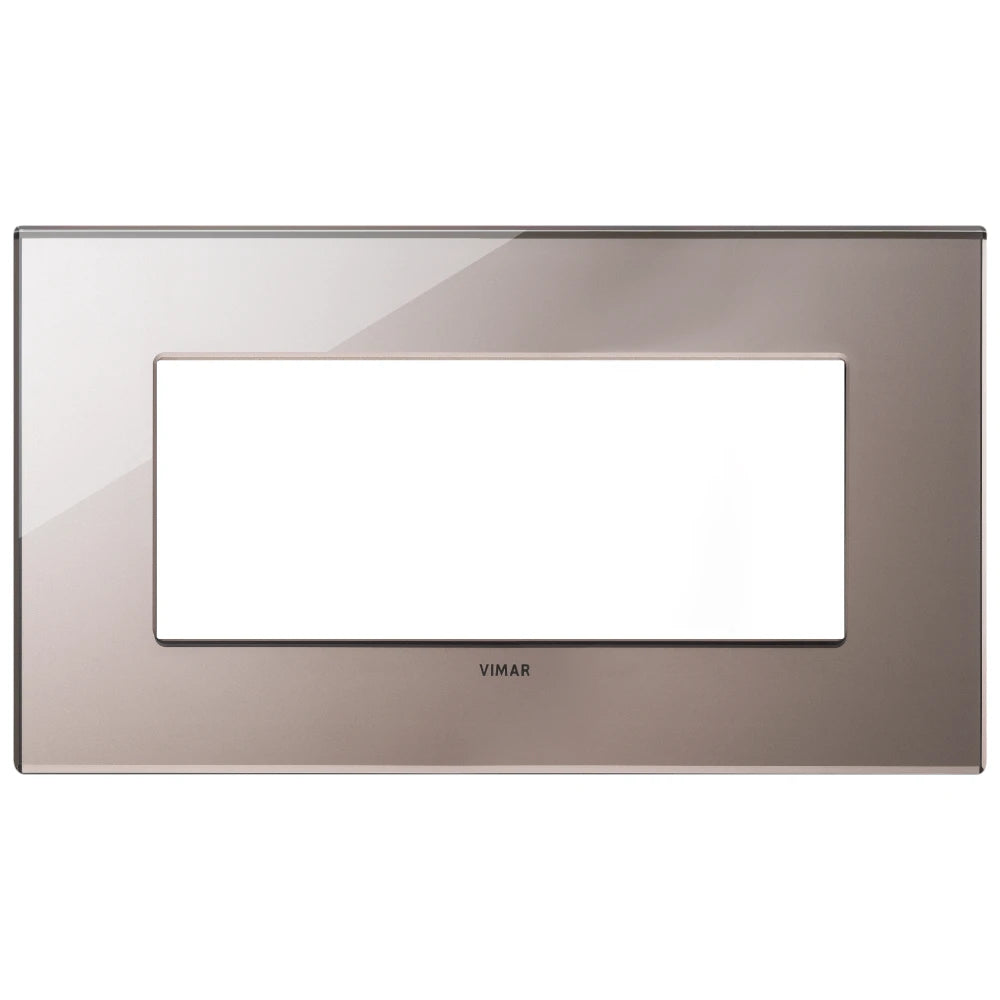

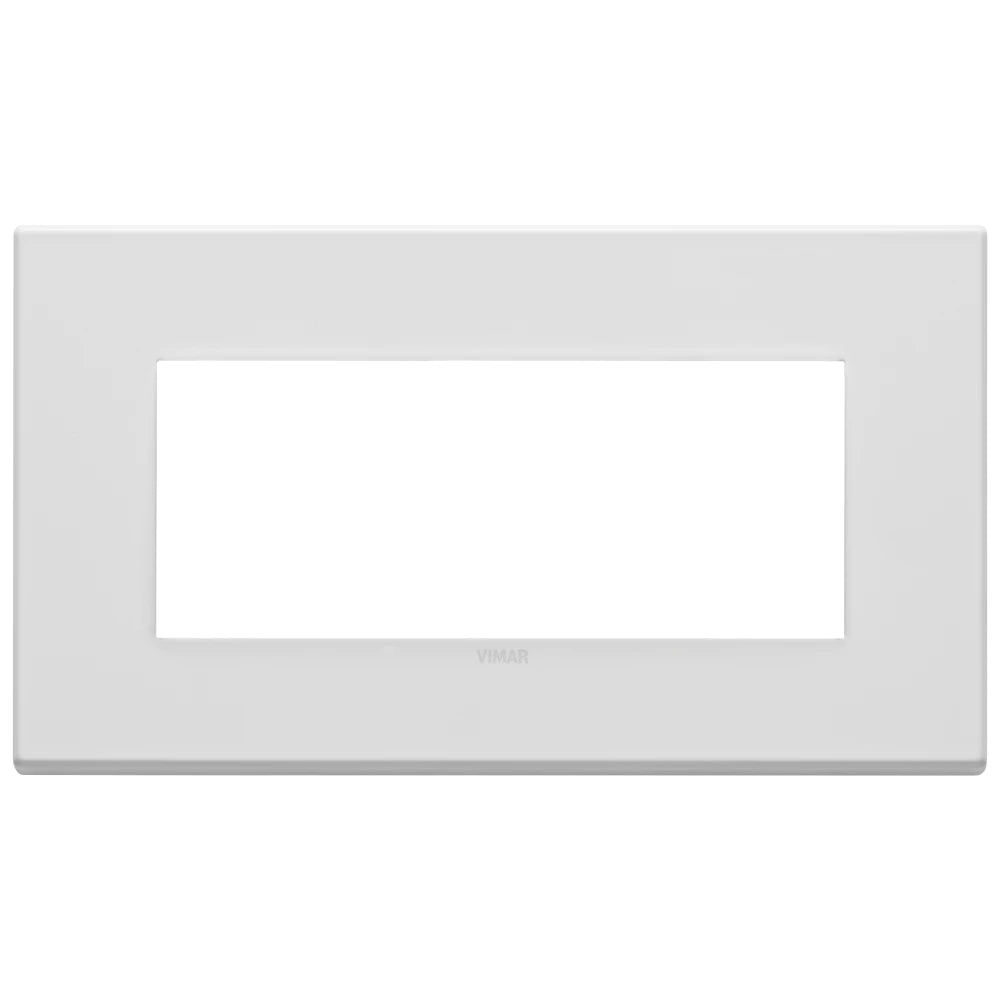

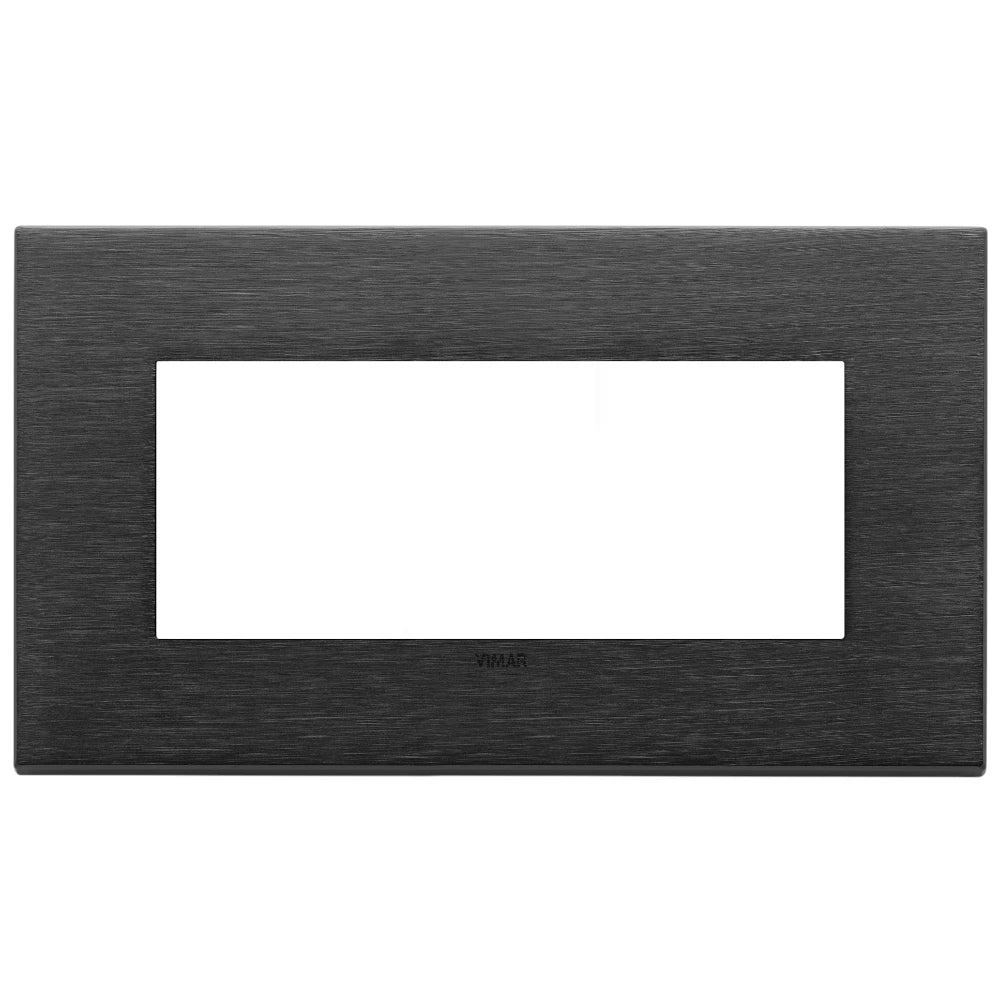

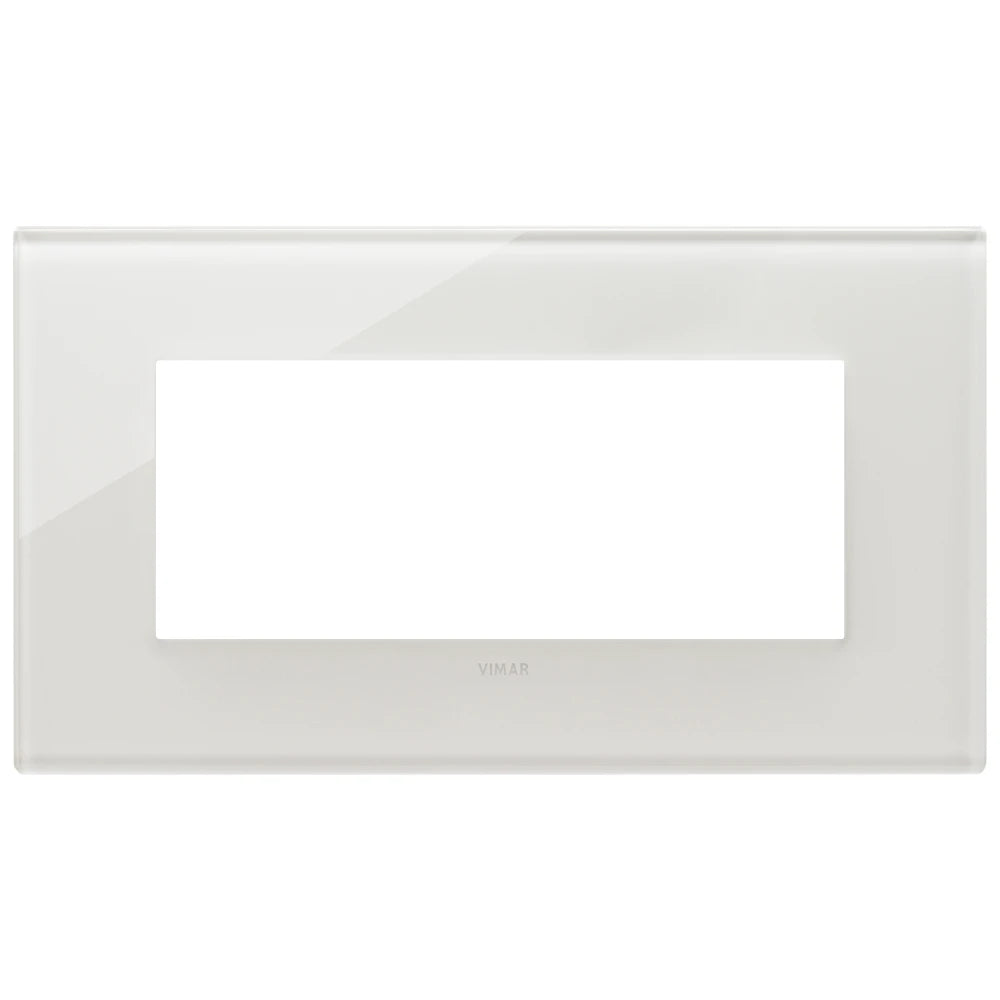

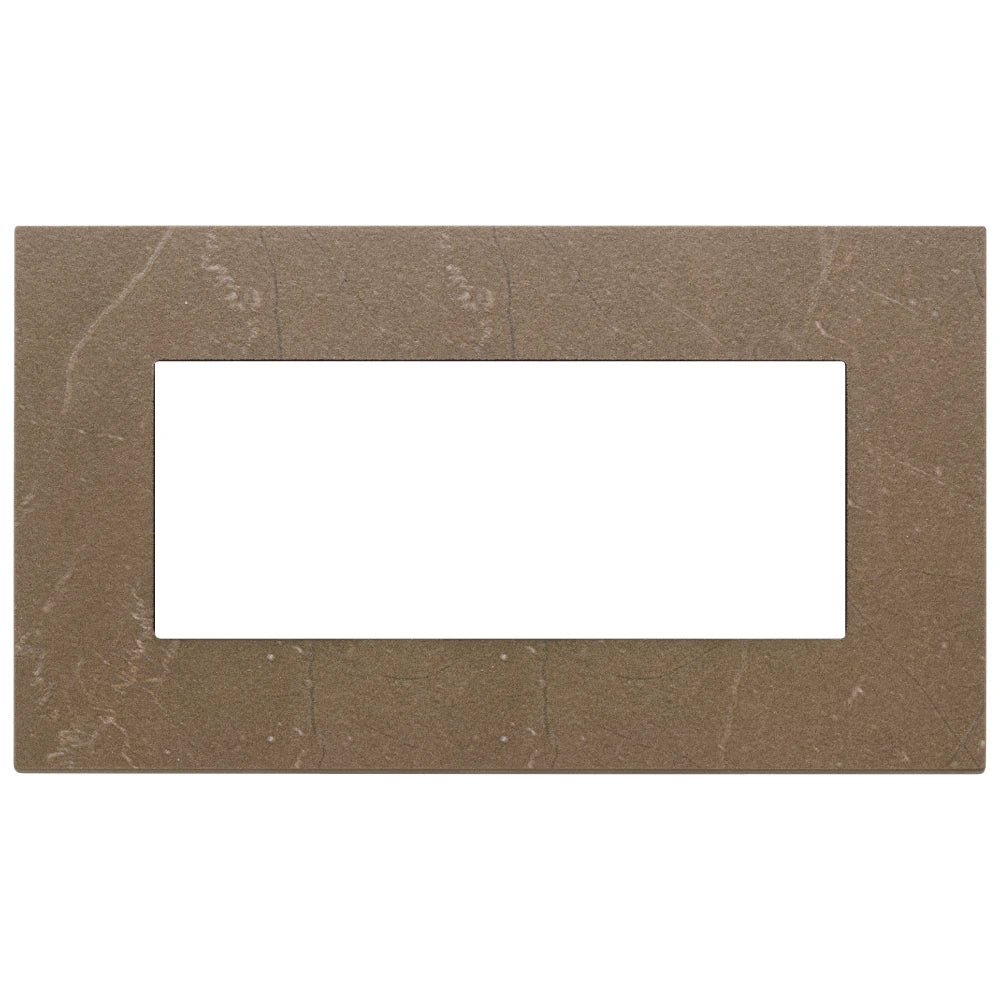

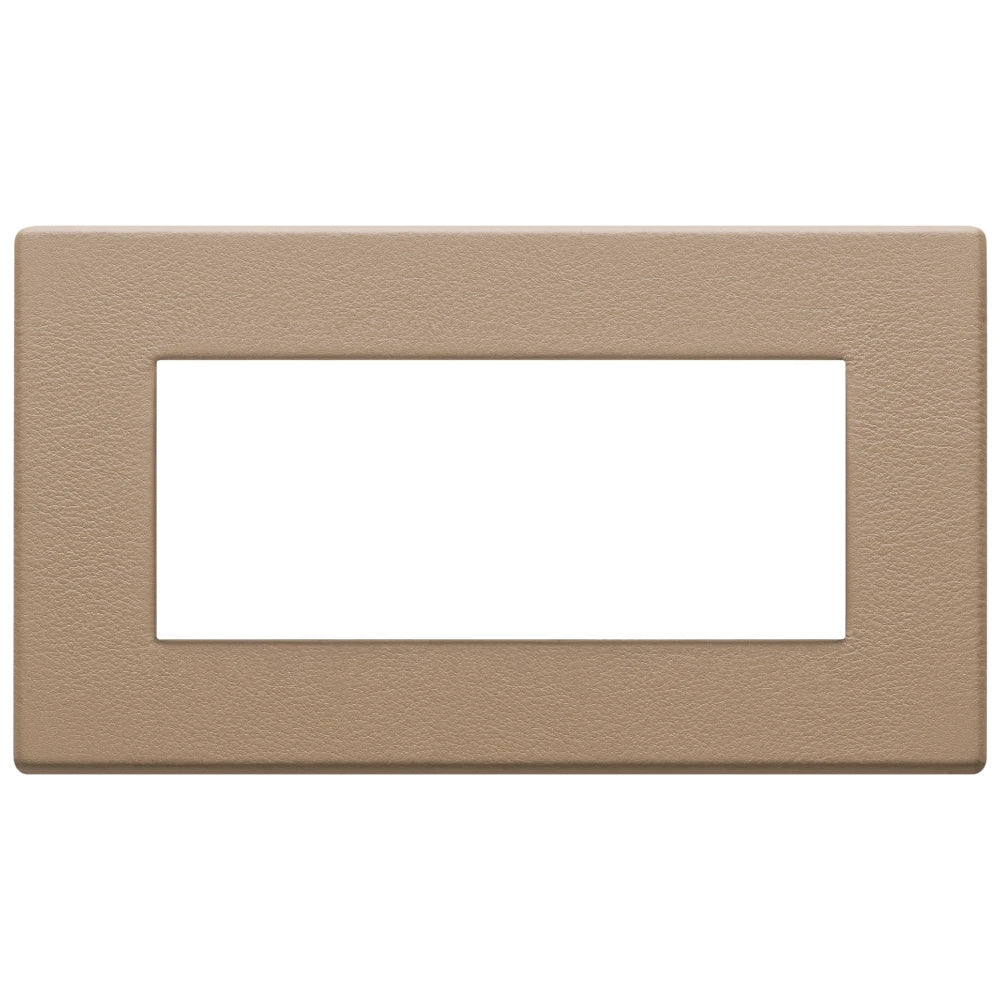

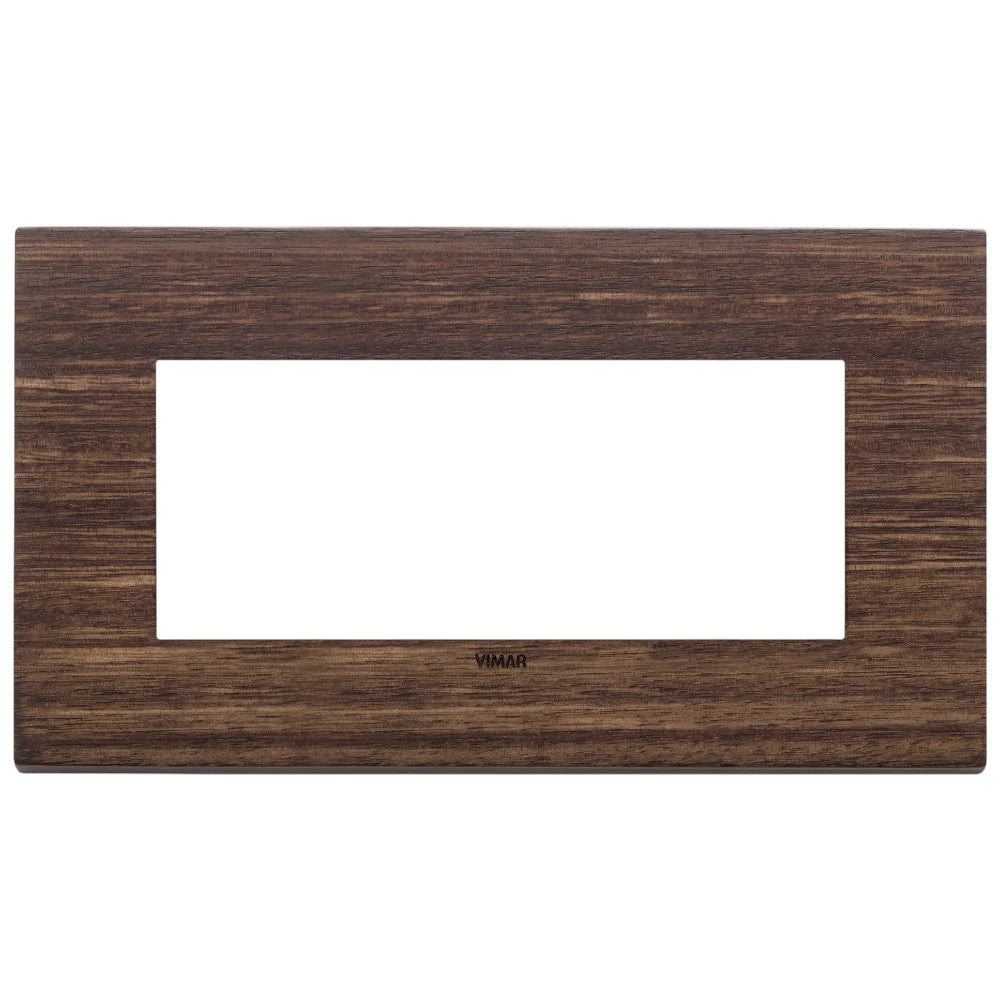

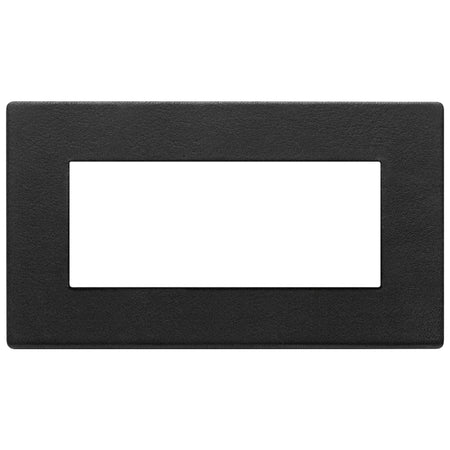

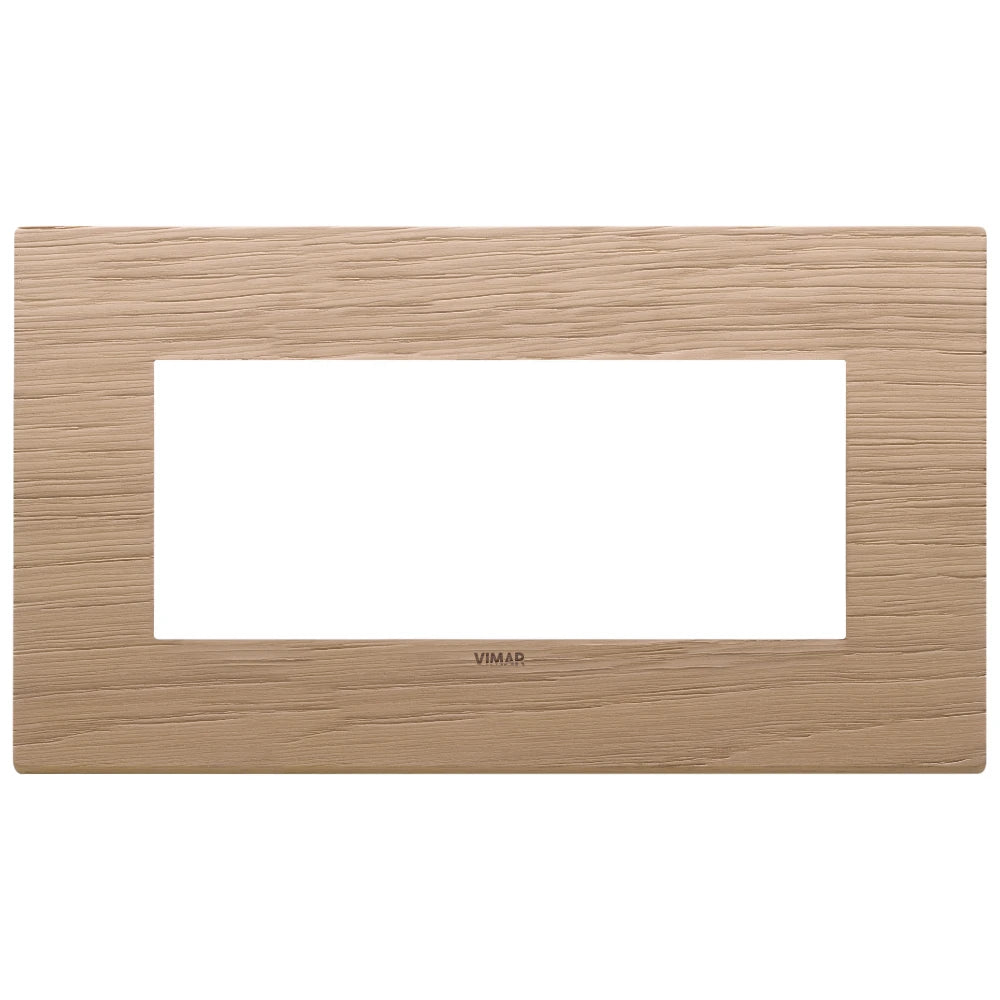

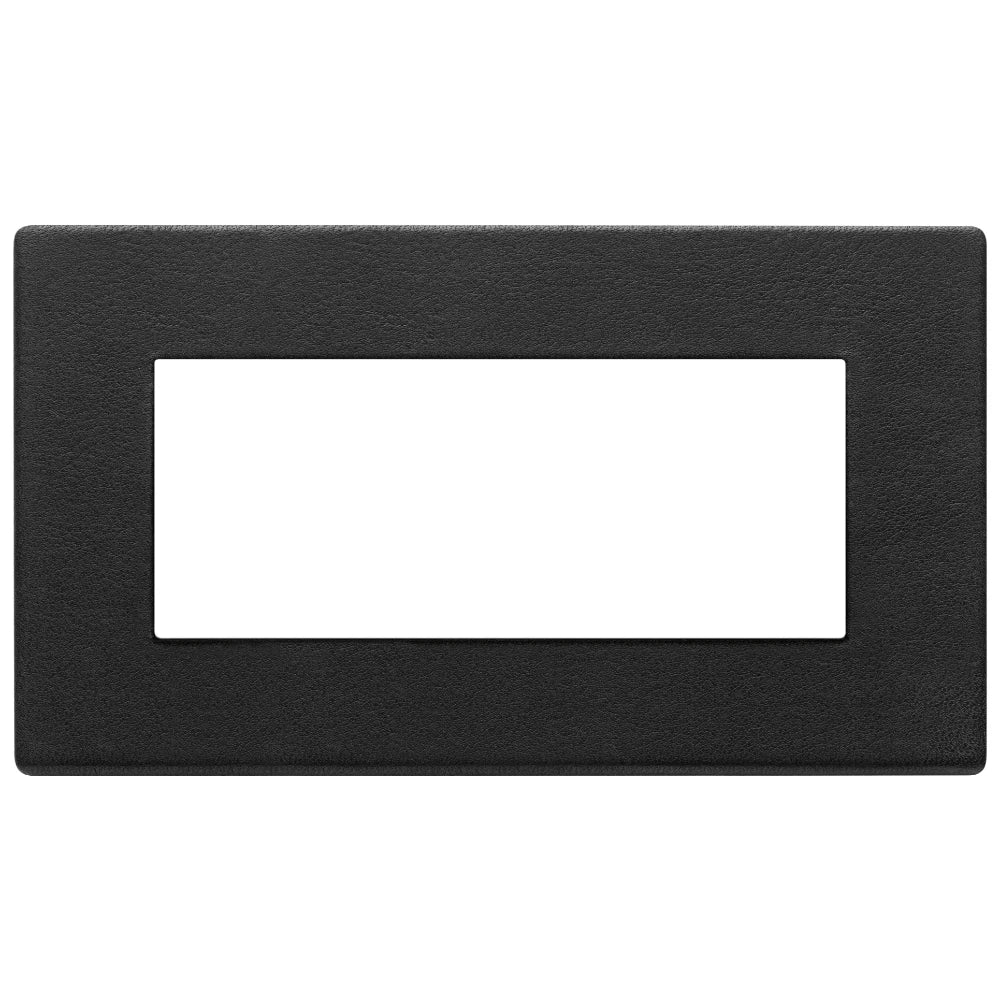

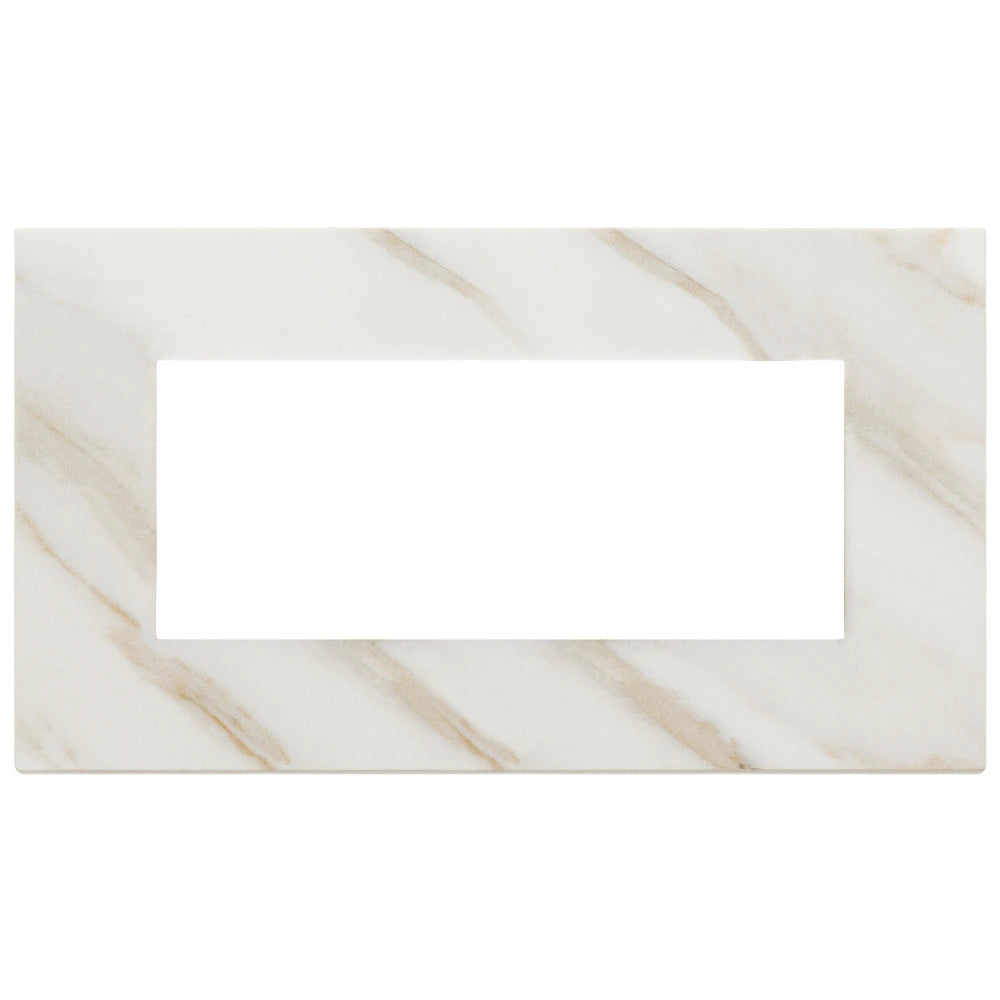

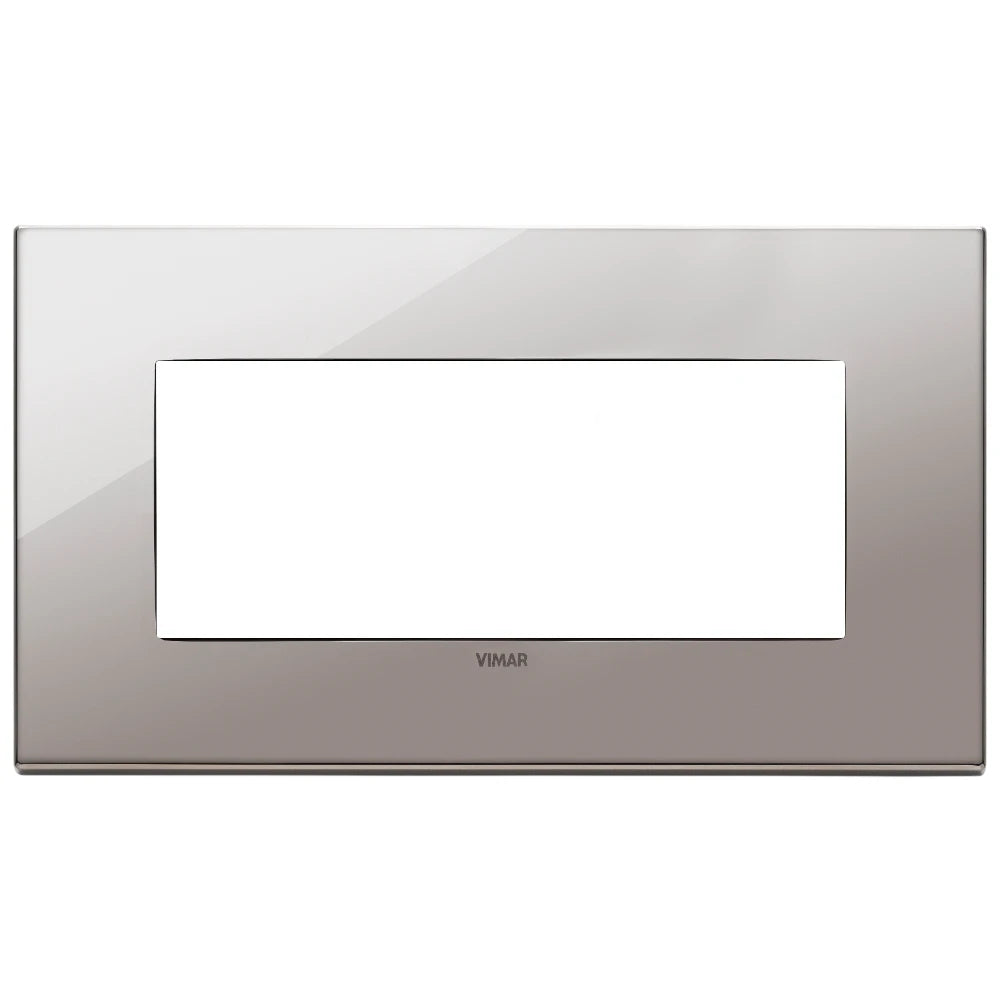

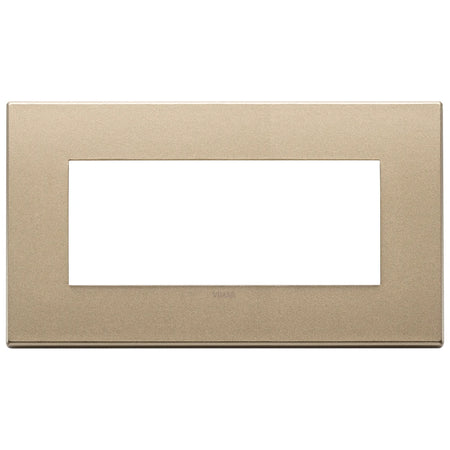

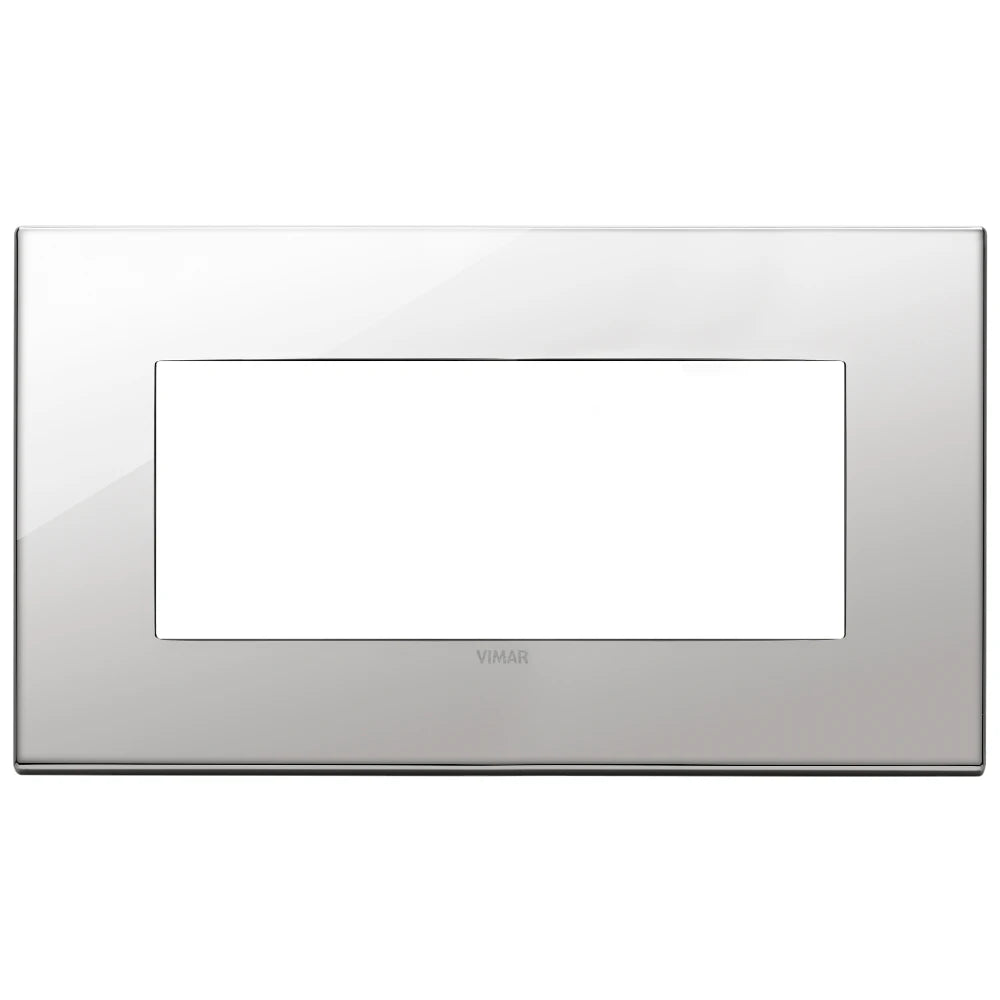

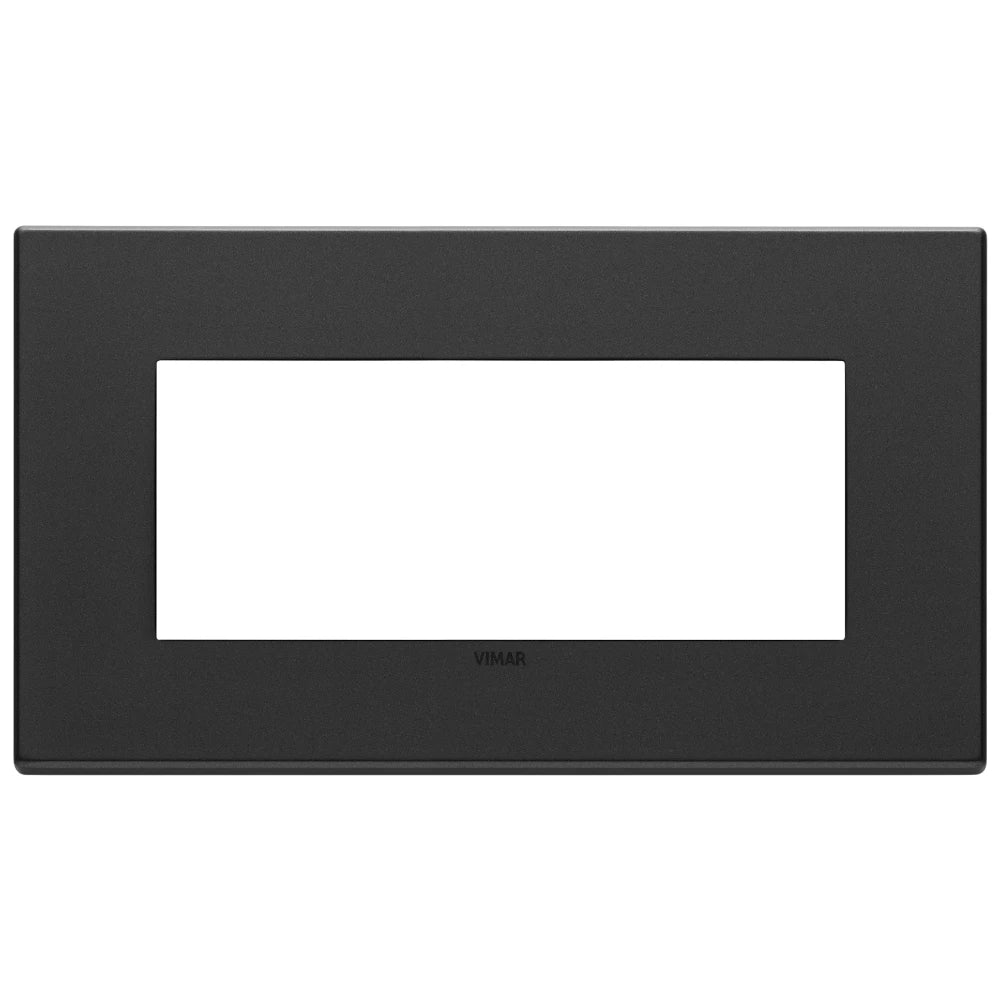

This cover plate is offered in a wide range of finishes where the material and color change across the lineup. Options include metal, solid wood, leather, worked stone, and crystal finishes, letting you match surrounding joinery, upholstery tones, or hardware finishes.
Across the range, the format remains a 5-module British cover plate, while the thickness can vary with the selected material.
Compatibility and fit
This is a 5-module British-format cover plate intended for EIKON Series installations. Confirm your module count and the British standard layout before ordering, and allow for the stated width and height when planning cutouts, joinery reveals, and spacing to adjacent panels.
Installation and setup
Plan the orientation first, then align the cover plate over the installed device layout and secure it using the clamp mounting method. On boats, it helps to keep wiring and mechanisms properly supported behind the panel so vibration does not transfer movement to the finished cover surface.
Use on board
This type of cover plate is typically used in cabins, saloons, nav areas, and other interior spaces where switches and outlets need a consistent finish across the vessel. It is a good match for refits where you are standardizing on a 5-module British layout and want the switching points to blend into the surrounding interior materials.
Maintenance and care
Clean the face with a soft cloth and mild cleaner appropriate to the chosen finish. Avoid abrasive pads and harsh solvents, especially on wood, leather, stone, and crystal finishes, and keep the area dry since the plate itself is not an ingress barrier.
