Vimar EIKON IR Relay Switch, Motion Sensor, Adjustable Dusk/Dawn, Time-Delay, 6A
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Vimar EIKON Series is an IR relay switch for automatic light control in a flush-mounted installation. It uses an infrared motion sensor with an adjustable dusk/dawn threshold and an adjustable time-delay cycle, and the range is built around a normally open 6 A relay output with 120 V~ or 230 V~ supply options at 50-60 Hz.
This is a 1-module EIKON device with snap engagement and a thermoplastic body. On board, it makes the most sense in protected interior spaces where hands-free lighting is useful, such as cabins, passageways, or heads, rather than in exposed exterior locations.
Key features
- Integrated infrared motion sensor for automatic light switching
- Adjustable dusk/dawn threshold and adjustable time-delay cycle
- Normally open 6 A relay output
- Available for 120 V~ or 230 V~ systems, both at 50-60 Hz
- 1-module flush-mounted format with snap engagement
- Thermoplastic construction with matte grey, silver, or white finishes depending on variant
Variants
This range varies by supply voltage and finish. The six configurations cover 120 V~ and 230 V~ versions, and each voltage is offered in grey, silver, and white.

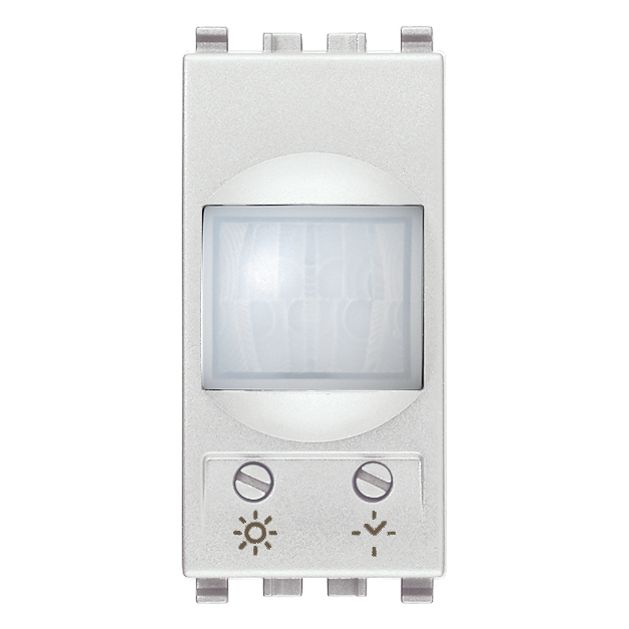

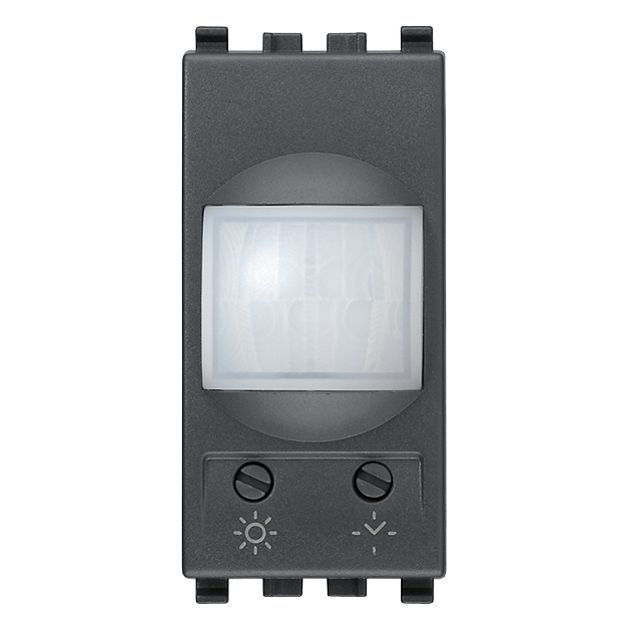

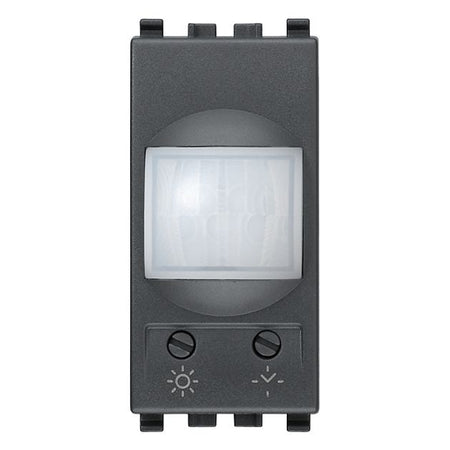

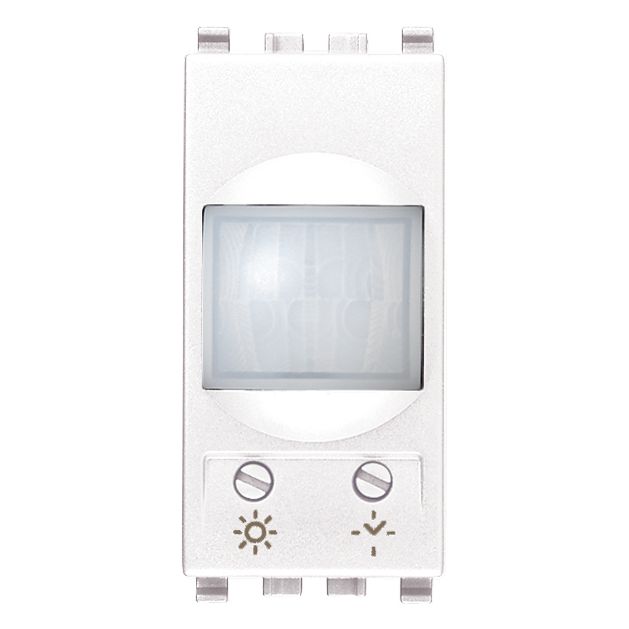

The silver versions use a lacquered matte surface in RAL 9022, while the grey and white versions use an untreated matte surface in RAL 7024 and RAL 9016. The sensing function, adjustable dusk/dawn threshold, adjustable timer cycle, 6 A normally open relay output, 1-module format, and flush-mounted installation style stay the same across the range.
Electrical and system fit
Check the vessel's lighting circuit before ordering. These are line-voltage devices, so the 120 V~ versions belong on 120 V~ systems and the 230 V~ versions belong on 230 V~ systems. They are not switches for 12 V or 24 V DC lighting circuits.
Because this is an EIKON 1-module insert, fit depends on using the matching modular support and cover components in that series. The flush-mounted body keeps the installation tidy in cabins and service spaces where a surface-mounted switch would stand out or take up more room.
