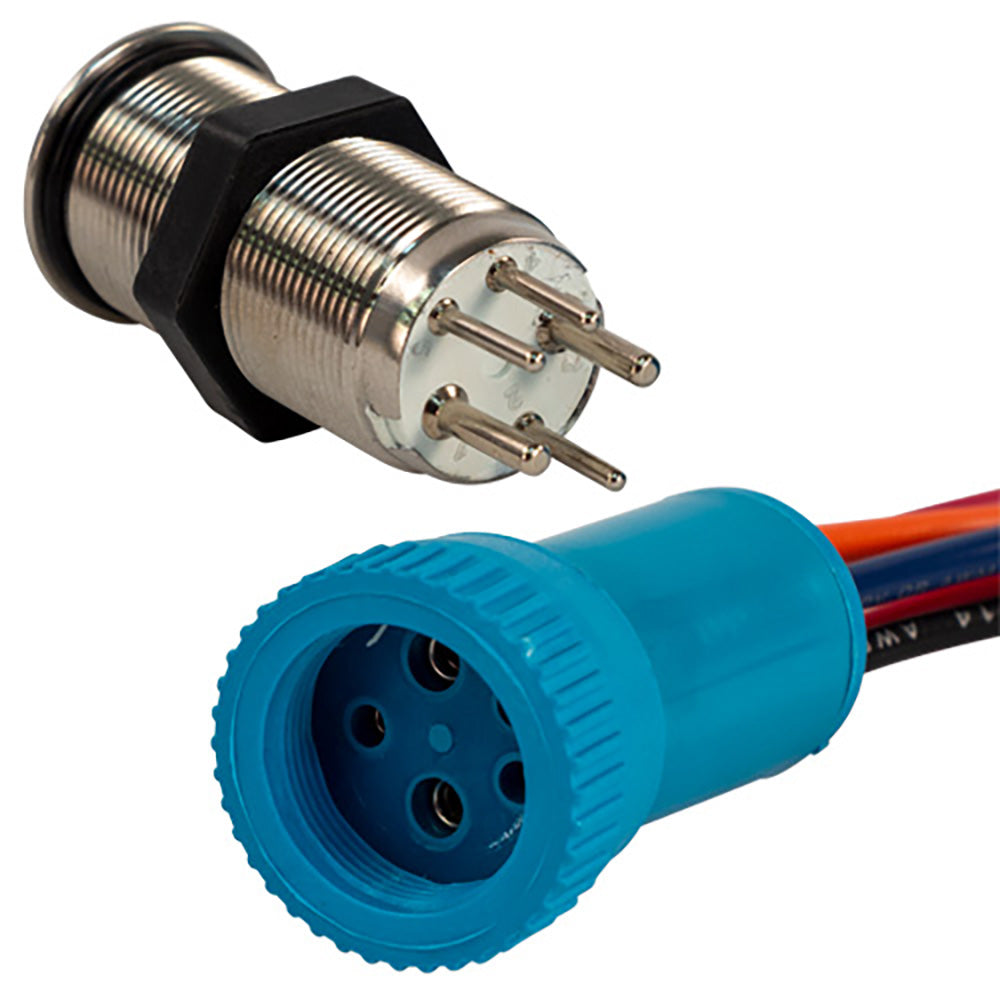

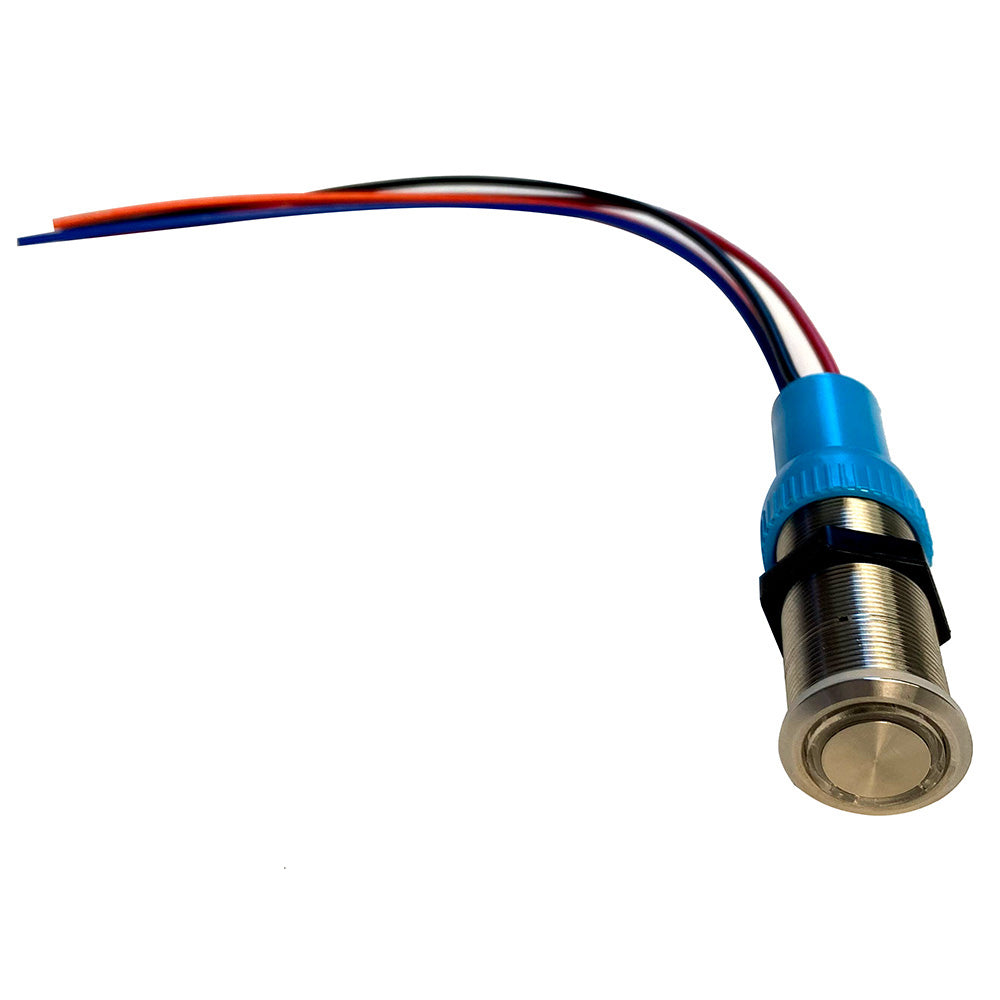

Bluewater - Push Button Switch - Off/(On)/(On) Double Momentary Contact, Blue/Green/Red LED, 4' Lead, 19mm

Sleek Design Meets Exceptional Functionality

Transform your marine vessel's dashboard with the Bluewater 19mm Push Button Switch, a perfect blend of modern aesthetics and reliable performance. This stainless-steel plated switch enhances the look of any control panel while providing robust functionality essential for marine environments. Designed with an Off/(On)/(On) double momentary contact, this switch ensures precise and efficient control of your vessel’s systems.

Superior Visibility and Control

The Bluewater Push Button Switch is equipped with advanced LED backlighting that ensures unparalleled visibility, even in low-light conditions. The switch illuminates with a blue LED when off, transitions to green, and then changes to red when activated, offering a clear indication of its status. This intuitive color-coding makes it easy to understand the operational state at a glance.

• LED Backlighting: Blue when off, green for the first on position, and red for the second on position.
• IP69K Waterproof Rating: Ensures full protection against water and dust ingress.
• Stainless Steel Construction: Designed to withstand harsh marine environments.

Key Features for Enhanced Performance

Enhance your marine operations with the Bluewater Push Button Switch, designed for straightforward installation and dependable performance.

• 4 ft. Lead: Provides ample length for flexible installation.
• Stainless Steel Material: Guarantees durability and longevity.
• High Mechanical and Electrical Life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
• Easy Configuration: Suitable for various marine systems and easy to install.

Technical Specifications

Engineered to meet rigorous standards, the Bluewater Push Button Switch offers consistent performance and long-lasting durability.

• Function: Off-(On)-(On) (double momentary contact)
• Switch Rating: 15A/12-24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Compact and Durable Design

The Bluewater Push Button Switch is designed to fit into a standard 19mm hole and can be installed in materials up to 6mm thick, making it versatile for various applications.

• Dimensions: Fits a 19mm hole, suitable for materials up to 6mm thick.

Sleek and Durable Finish

The stainless-steel finish not only enhances the aesthetic appeal of your dashboard but also provides excellent resistance to corrosion, ensuring longevity and reliability.

• Finish: Stainless steel for a modern and durable appearance.

Simple Installation

Installing the Bluewater Push Button Switch is quick and safe, thanks to color-coded contacts that ensure correct and convenient connections.

• Installation Steps:
• Drill a 19mm hole into any material up to 6mm thick.
• Connect the three contacts for the button (color-coded).
• Connect the two contacts for the LED.

Upgrade Your Marine Dashboard Today

The Bluewater 19mm Push Button Switch is the ideal upgrade for any marine vessel, offering a sleek design, robust construction, and reliable performance. Its easy installation and intuitive LED indicators ensure your boat's control systems are both stylish and functional. Trust Bluewater to enhance your marine experience with superior quality and design.
