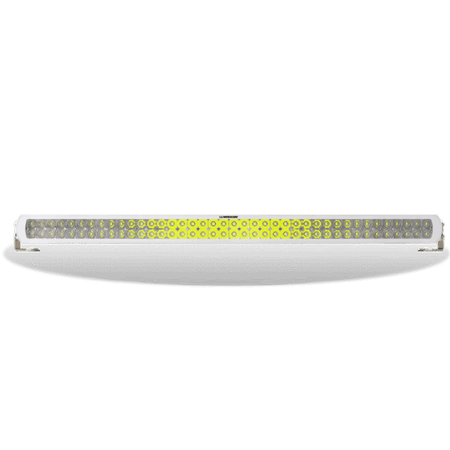

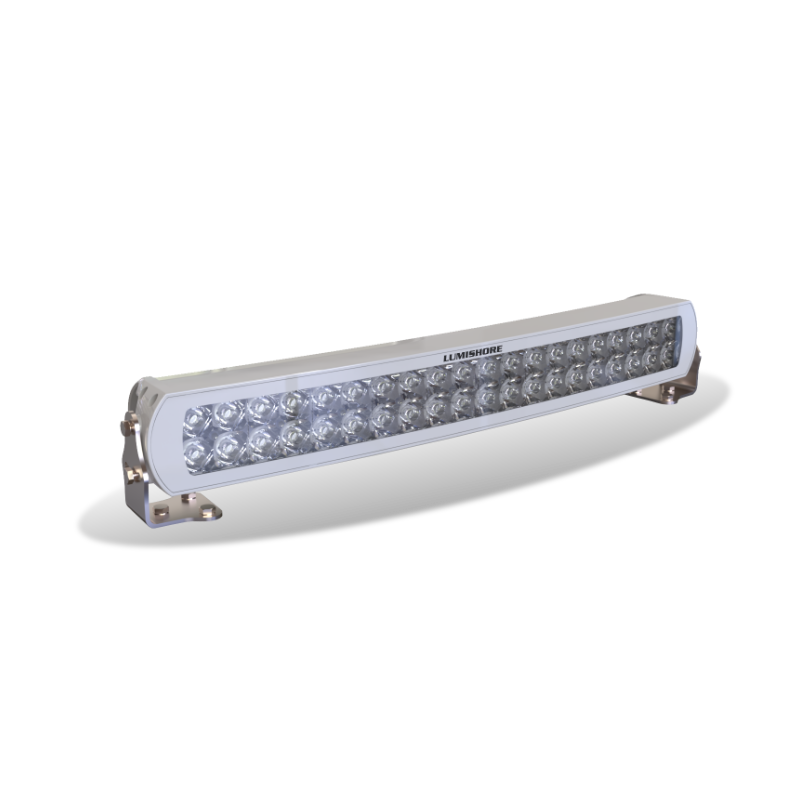

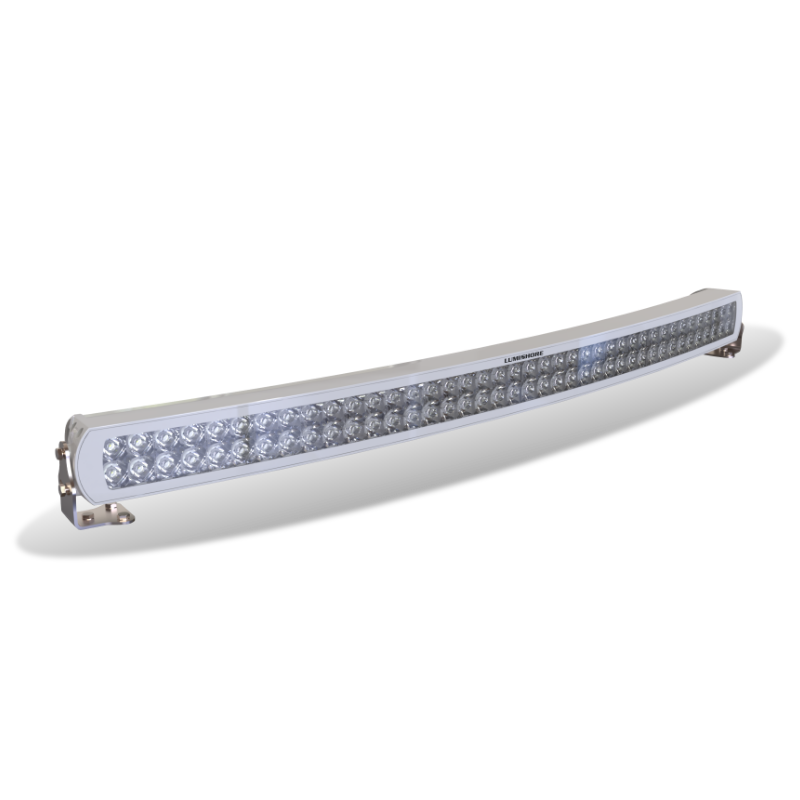

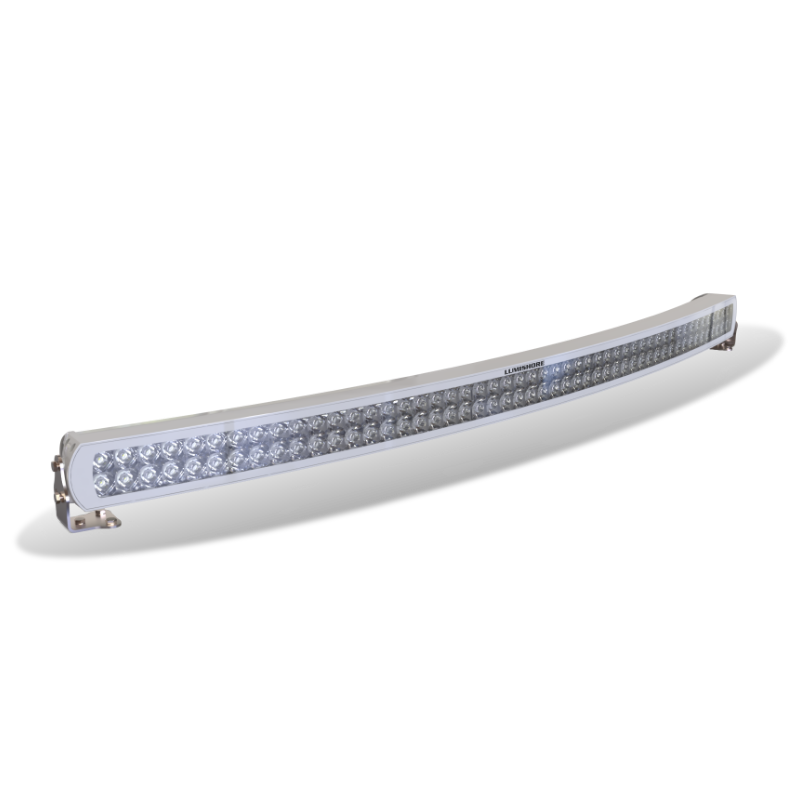

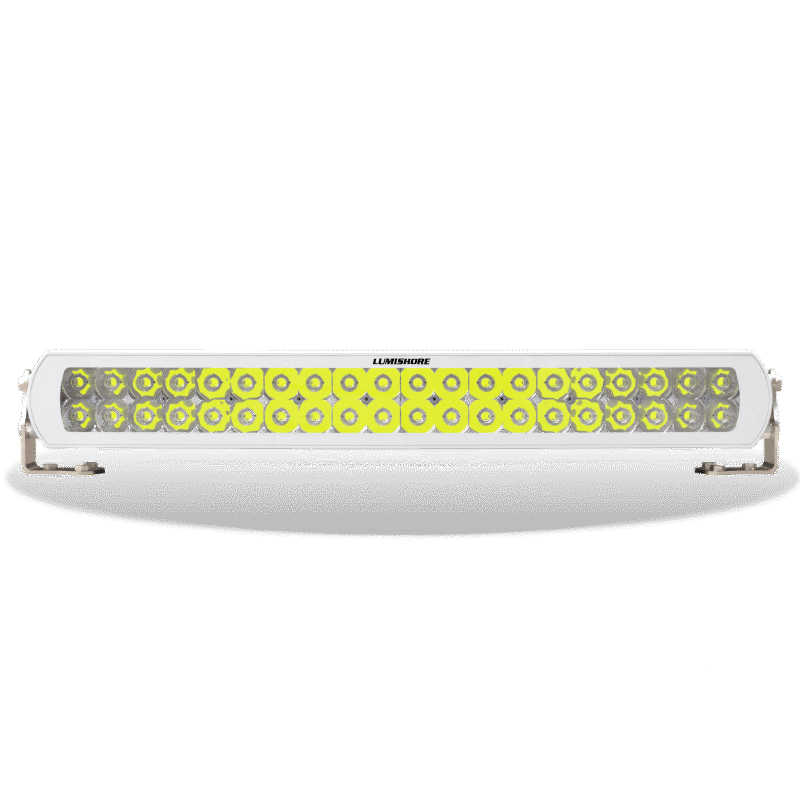

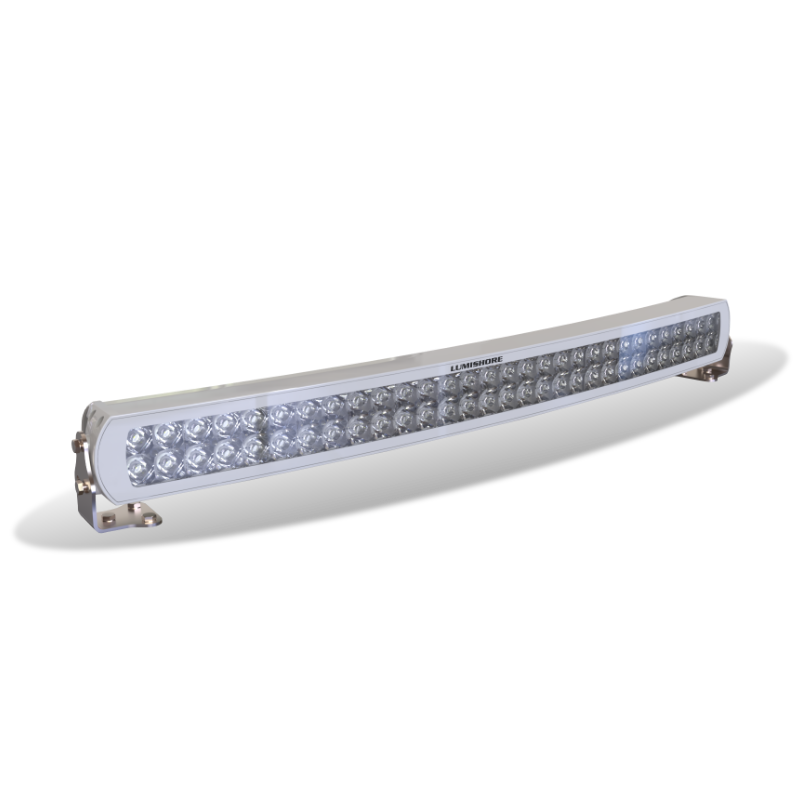

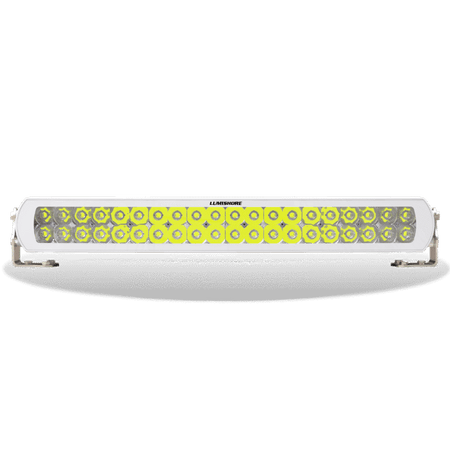

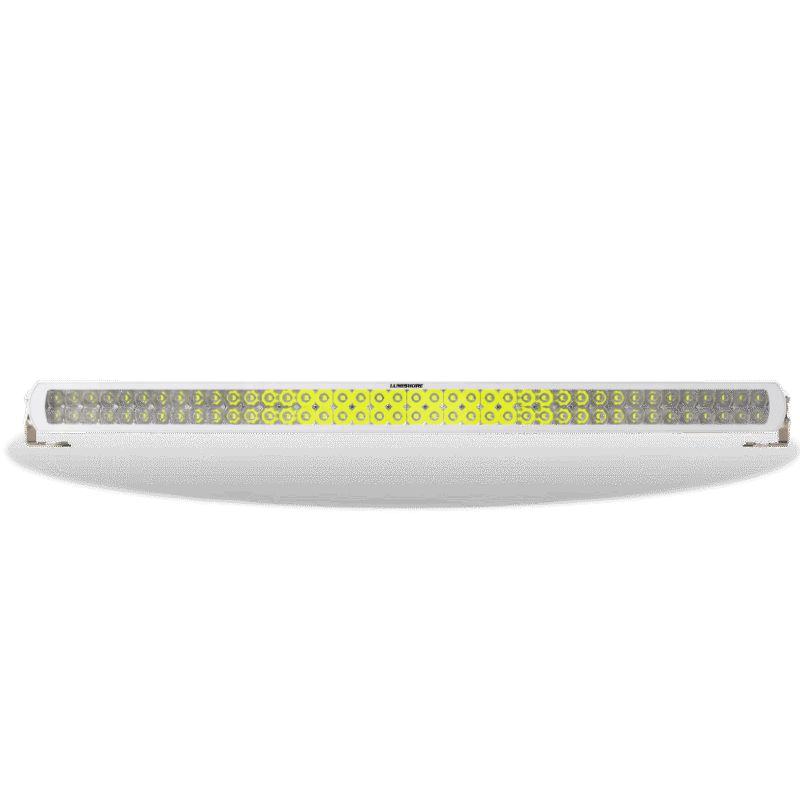

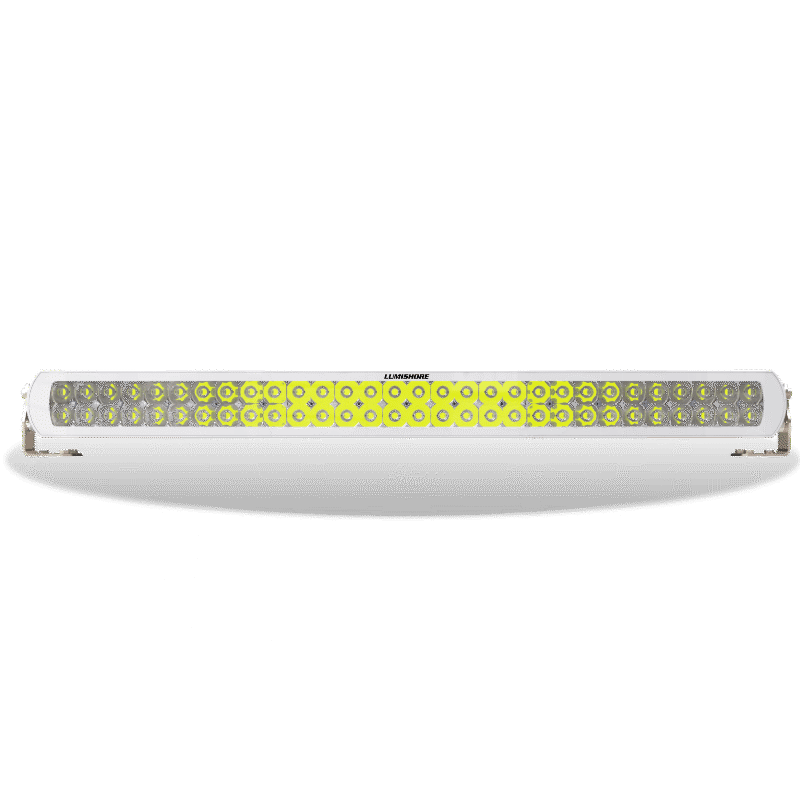

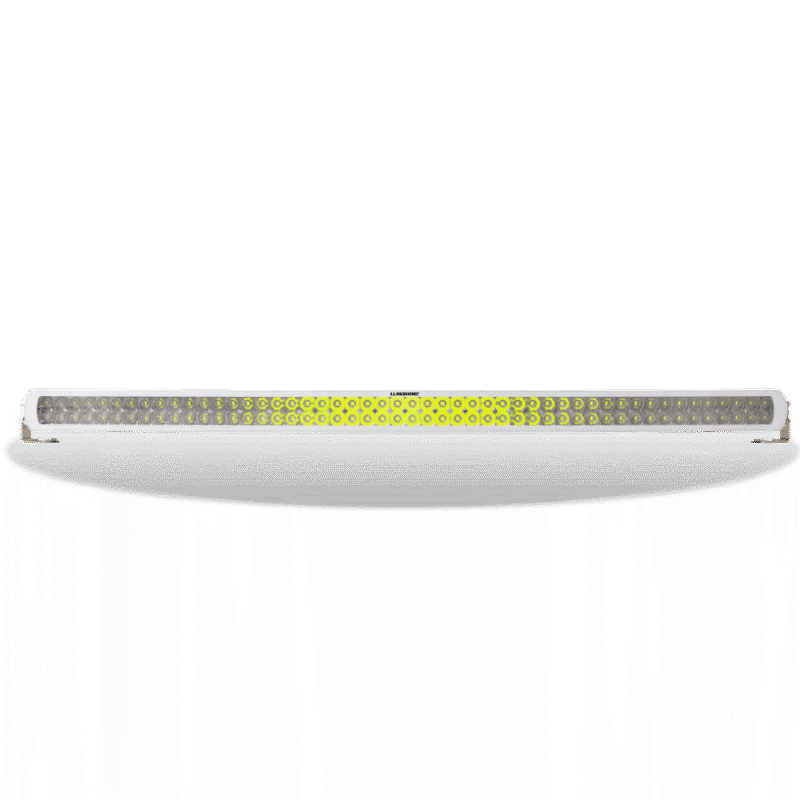

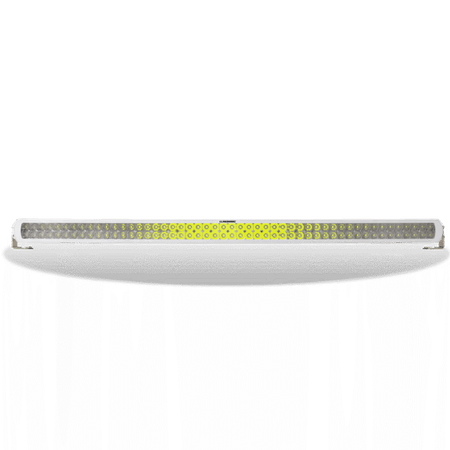

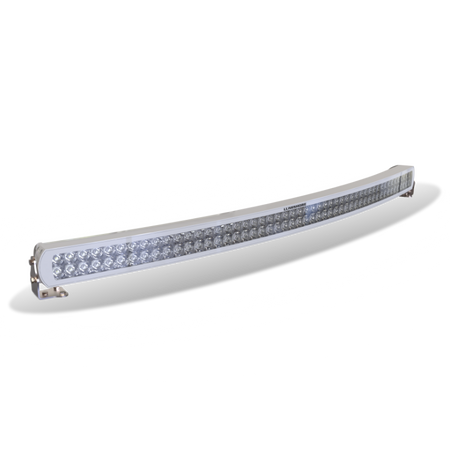

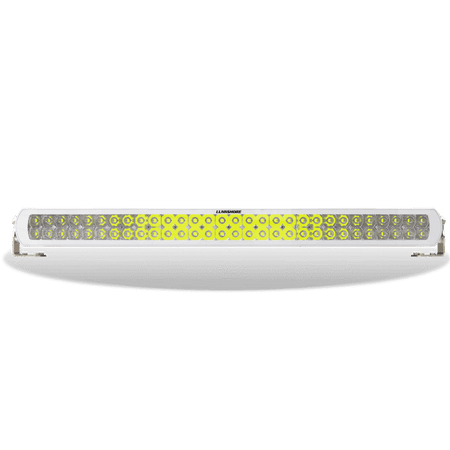

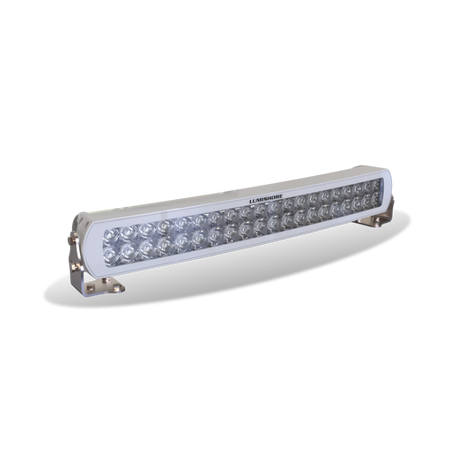

Lumishore - Single Color Light Bar - White LED, 15000 Fixture Lumens
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Powerful Illumination for Marine Applications
Lumishore's Light Bars are designed to deliver exceptional illumination for a wide range of marine environments. Constructed with marine-grade powder-coated aluminum, these light bars are built to withstand harsh conditions while offering sleek, low-profile aesthetics. With beam angles ranging from 9° to 50°, these versatile lights ensure a wide and effective spread of crisp, white light. Whether installed on T-tops, helm roofs, fishing towers, or bow platforms, Lumishore Light Bars enhance both functionality and style.
Advanced LED Technology for Maximum Brightness
Each light bar utilizes a high-output HICOB LED array, generating fixture lumens ranging from 15,000 to an impressive 39,600, depending on the model. Designed with a long lifespan of over 50,000 hours, these lights offer exceptional durability and reliability for prolonged use.
Technical Specifications
- Available Colors: White (5500K)
- Fixture Lumens:20": 15,000
- 30": 23,760
- 40": 31,680
- 50": 39,600
- Beam Angle:20": 9°-20°
- 30": 9°-32°
- 40": 9°-45°
- 50": 9°-50°
- Number and Type of LEDs:20": 40 x 10W
- 30": 60 x 10W
- 40": 80 x 10W
- 50": 100 x 10W
- Voltage Range: 10.5–31 V DC
- Max Current Draw (12V/24V):20": 12.8 A/6.4 A
- 30": 19.3 A/9.6 A
- 40": 25.7 A/12.8 A
- 50": 32 A/16 A
- Housing Material: Powder-coated aluminum body with Makrolon lens
- Waterproof Rating: IP68
Product Dimensions
- 20" (60 cm)
- 30" (80 cm)
- 40" (100 cm)
- 50" (130 cm)
Highlights
- Single-color, crisp white light (5500K) for excellent visibility.
- Durable and sleek marine-grade aluminum construction.
- Controllable via an on/off switch, ECLIPSE Command Center, or EOS-LUX Command Center.
- IP68 waterproof rating for reliable performance in marine environments.
- Long-lasting LED lifespan exceeding 50,000 hours.
Variations List
- 20" (LM600524): 15,000 lumens, 9°–20° beam angle.
- 30" (LM600517): 23,760 lumens, 9°–32° beam angle.
- 40" (LM600525): 31,680 lumens, 9°–45° beam angle.
- 50" (LM600526): 39,600 lumens, 9°–50° beam angle.
Enhance your marine experience with Lumishore’s premium Light Bars, designed to provide unparalleled brightness and durability in every corner of your vessel.
