Vimar EIKON TV-FM-SAT Coaxial Socket Outlet, Single Connection, 3 Outputs, 5-2400 MHz, 1 dB, 2 Modules

Overview

The Vimar EIKON TV-FM-SAT single-connection socket outlet is a 2-module end socket with three dedicated outputs for TV, FM radio, and satellite signals. It works across 5-2400 MHz, uses a demixed single connection, and keeps connection attenuation to 1 dB, which makes it a neat way to terminate one coax line at an onboard entertainment point.

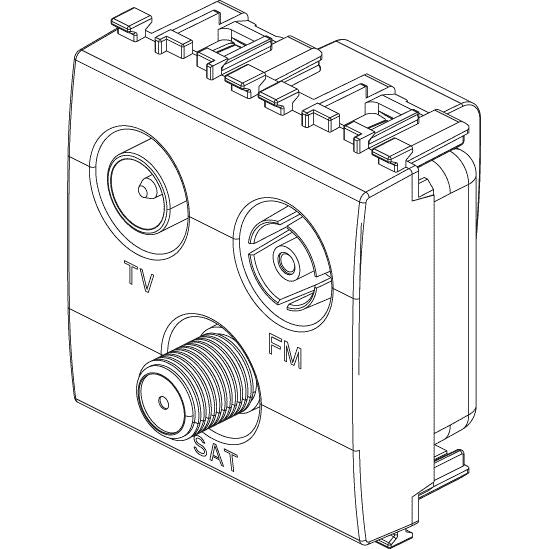

The front connections are a TV male connector, an FM radio female connector, and an F-type SAT connector. It also allows d.c. current and control-signal pass-through up to 24 V and 500 mA through the female connector, which matters when the antenna system needs remote power.

On board, this type of outlet fits best in protected interior spaces such as a cabin, saloon, or enclosed helm where the boat already has TV, radio, or satellite distribution and the goal is a fixed wall outlet instead of loose splitters and adapters.

Key features

• 5-2400 MHz operating range for TV, FM radio, and satellite distribution on one outlet point.
• Three front outputs: TV male, FM radio female, and F-type SAT.
• 1 dB connection attenuation, with tap loss of 1.80 dB at 860 MHz and 1.30 dB at 2150 MHz.
• Pass-through for d.c. current and control signals up to 24 V, 500 mA max through the female connector.

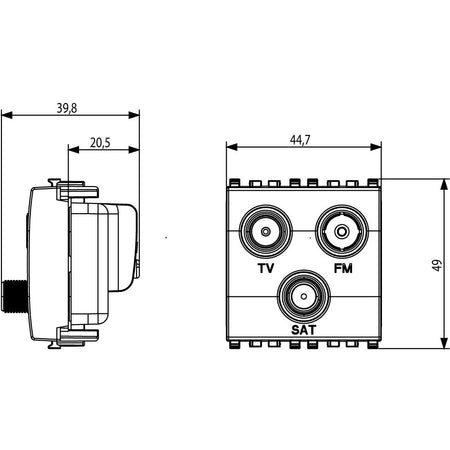

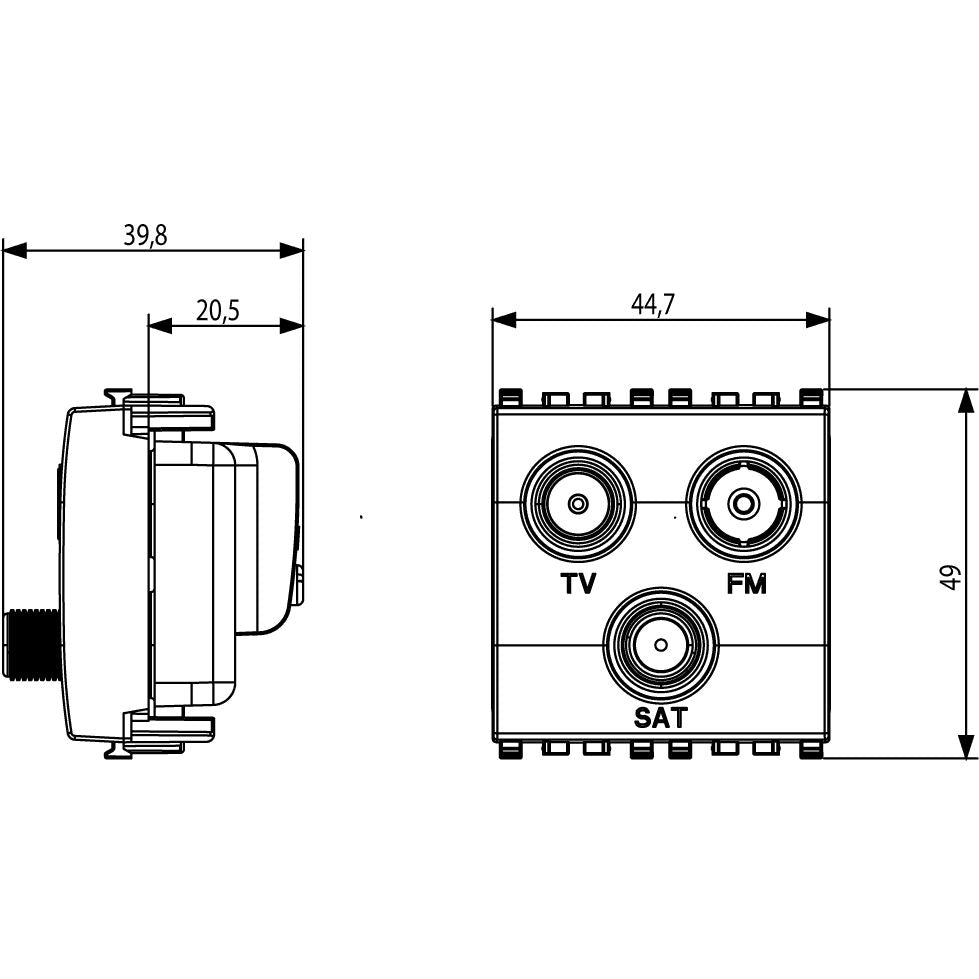

• 2-module format with snap mounting for Vimar EIKON installations.

Variants

This outlet is offered in three finish options.

Across the listed versions, the connector layout, frequency range, attenuation values, module size, and mounting format remain the same. The visible finish is what changes between variants.

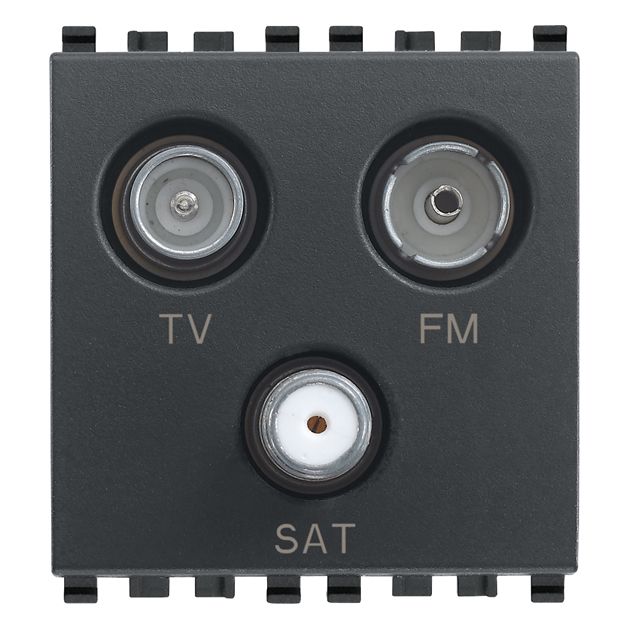

• VM20303: Grey, RAL 7024. This finish sits well with darker trim and panel schemes.

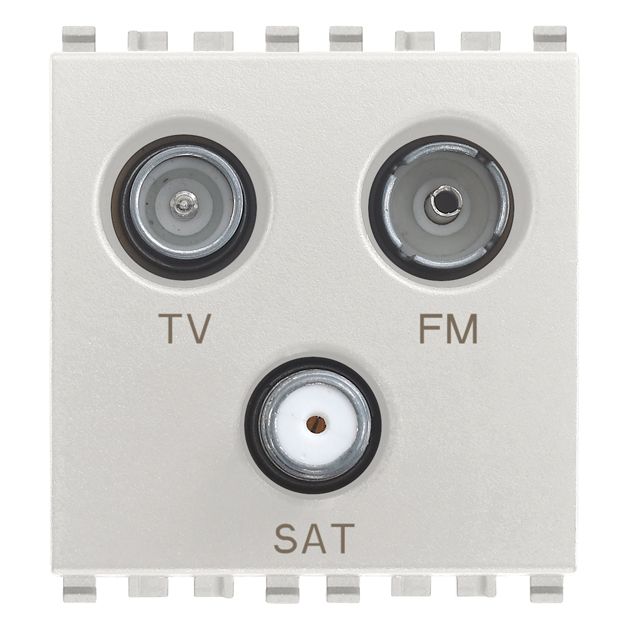

• VM20303.N: Silver, RAL 9022, with a lacquered surface. It gives the outlet a metallic look without changing the connection format.

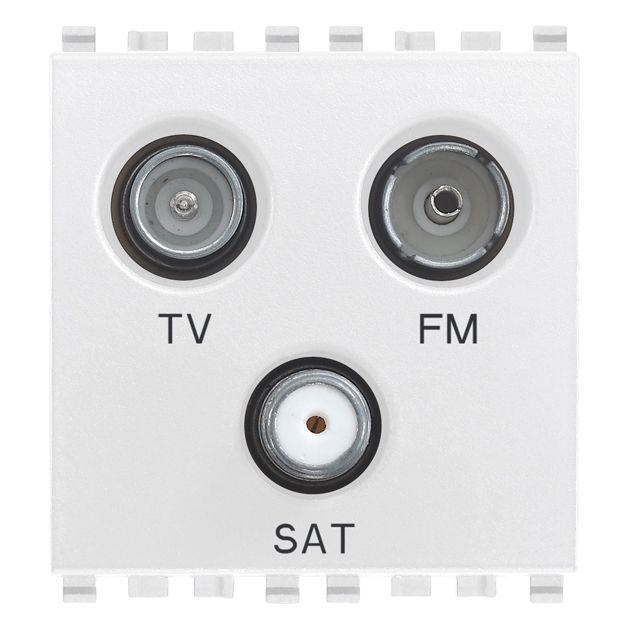

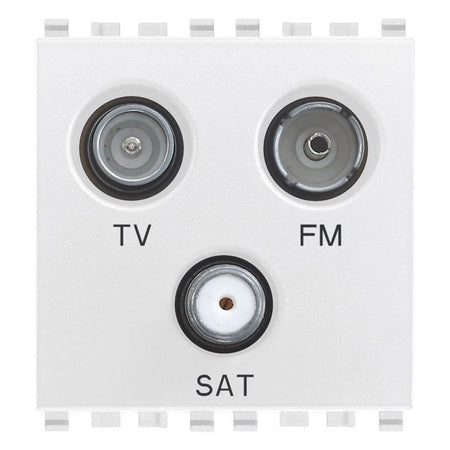

• VM20303.B: White, RAL 9016. This version blends more easily into light interior panels and cabin furniture.

Compatibility and fit

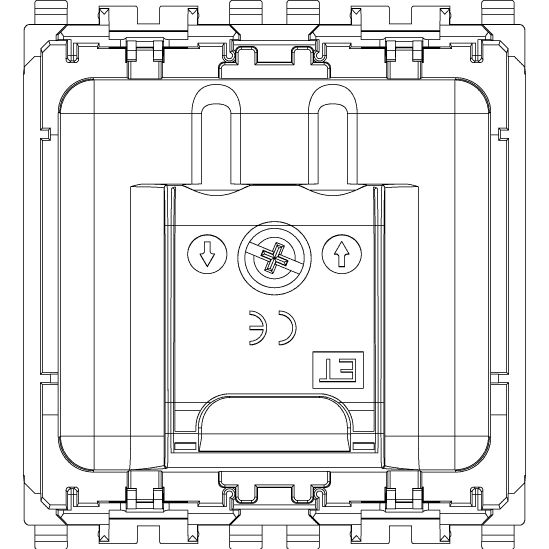

This is an end socket, so it belongs at the final outlet position of a coax run rather than at a mid-run distribution point. Fit depends on using the matching Vimar EIKON support and cover components, since the insert is built in a 2-module format with snap engagement.

Before ordering, check that your onboard system is set up for a demixed TV/FM/SAT outlet and that the connected equipment matches the three connector types on the front. If the system uses remote-powered antenna equipment or control pass-through, confirm that the required feed stays within 24 V and 500 mA.

• 1321172_qbp925357.pdf
