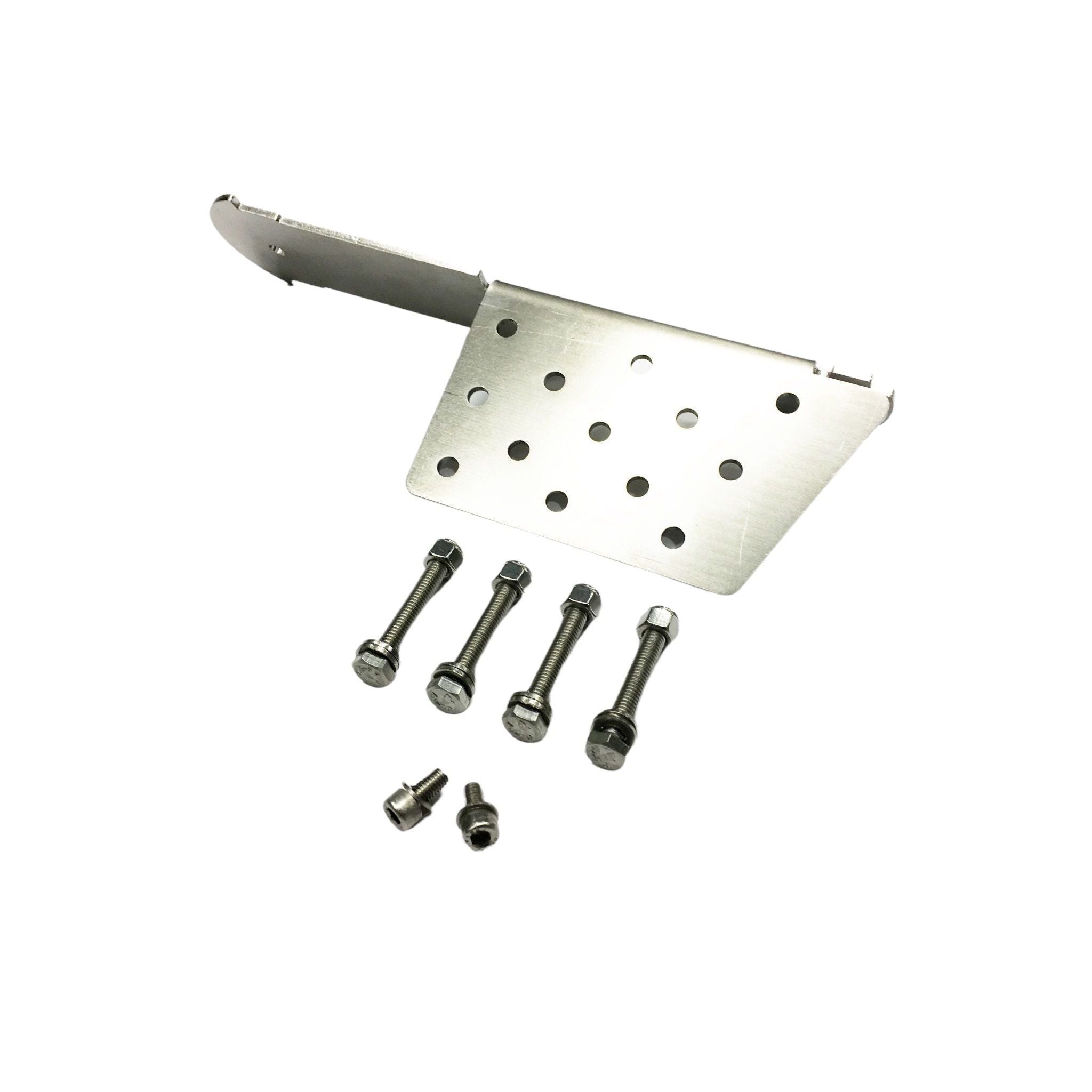

Raymarine Jack Plate Mounting Kit, For RV-100 RealVision 3D Transducer, Stainless Steel

Overview

The Raymarine A80480 is a jack plate mounting kit for the Raymarine RV-100 RealVision 3D transducer. It gives outboard-powered boats a clean way to mount the transducer on a jack plate instead of relying on a standard transom position, which can be useful on bass boats, flats boats, skiffs, and other shallow-draft hulls where transducer placement is tight.

The bracket is made from marine-grade stainless steel and is pre-drilled to suit a wide range of jack plate models. Once installed, it helps keep the RV-100 in a steady working position so sonar readings stay consistent while the boat is running, fishing, or moving through shallow water.

Key features

• Made for the Raymarine RV-100 RealVision 3D transducer.
• Mounts the transducer to a jack plate on compatible outboard-powered boats.
• Marine-grade stainless steel bracket for use in freshwater and saltwater environments.
• Pre-drilled bracket layout supports installation on many jack plate models.
• Helps place the transducer in a steady position for consistent sonar performance.
• Well suited to bass boats, flats boats, skiffs, and other shallow-draft boats that use a jack plate.

Installation and fit

This mount is intended for boats already using a jack plate and an RV-100 RealVision 3D transducer. Before drilling or final tightening, the mounting location should allow the transducer to sit where it can read clean water flow and stay clear of steering, trim, and engine movement.

Because jack plate shapes and hole patterns vary, the pre-drilled bracket should be checked against the specific plate on the boat before installation. A dry fit also helps confirm cable routing and transducer clearance through the full trim and steering range.

Use cases on board

This kit is a practical match for anglers and boat owners who want RV-100 sonar on a high-speed, shallow-draft outboard boat without forcing the transducer into an awkward transom location. It is especially relevant where a jack plate is already part of the setup and a more protected, stable mounting position is needed.

What's included

• Jack plate mounting bracket for RV-100 RealVision 3D transducer
• Bolts
• Washers
• Nylock nuts
• Installation instructions
