SI-TEX - T2040A 10.4" Color Radar - With 4Kw 4.5' Open Array
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Marine Radar for Precision Navigation
The Si-Tex T2040A-4 10.4" Color Radar is a powerful and versatile solution designed to enhance marine navigation with high-performance radar technology. Featuring a 4kW open array system with a 4.5-foot antenna, this radar delivers superior target detection and tracking capabilities for professional and recreational mariners. The split-screen function allows simultaneous viewing of both long- and short-range targets, while the dual-speed antenna (48 RPM) ensures optimal performance in high-speed and river operations. With advanced interference rejection, true-trail functionality, and automatic tracking options, this system provides precise situational awareness on the water.

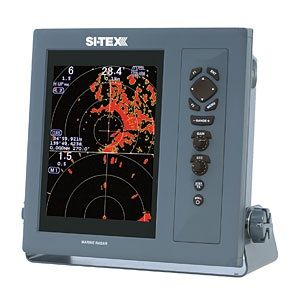

High-Resolution Display for Enhanced Visibility
Equipped with a 10.4" TFT color LCD, the radar display offers clear and detailed visuals, ensuring that mariners can easily interpret navigational data. The 480 x 640 resolution provides crisp target representation, while multiple display modes—including Heads Up, North Up, Course Up, and WPT Up—offer customizable viewing options to suit different navigational needs.
Powerful and Reliable Performance
- Peak Power Output: 4kW
- Output Frequency: 9410 +/- 30 MHz
- Beam Width: 1.8° Horizontal, 22° Vertical
- Rotation Speeds: 24 or 48 RPM
- Pulse Widths: 0.08, 0.15, 0.3, 0.5, 1 µsec
- IF Frequency: 60 MHz
- Range Accuracy: Better than 8m or 1% of range scale selected
Compact Yet Rugged Design
- Display Unit Dimensions: 12 19/32" x 12 19/32" x 5 39/64"
- Power Supply: 10.8 - 31.2V DC
- Power Consumption: 80 watts or less
Advanced Tracking and Targeting Features
The Si-Tex T2040A-4 is engineered with high-precision tracking tools to improve navigation safety and efficiency:
- True-Trail Function: Identifies moving targets for enhanced situational awareness
- AIS Interface Module: Capable of tracking up to 200 targets
- Optional 50-Target Automatic Tracking Aid (ATA): For enhanced collision avoidance and monitoring
- Parallel Index and True/Relative Bearing Features: For precise navigational plotting
Complete System Package
The radar system comes with everything needed for installation and operation, including:
- MRD-104 Display

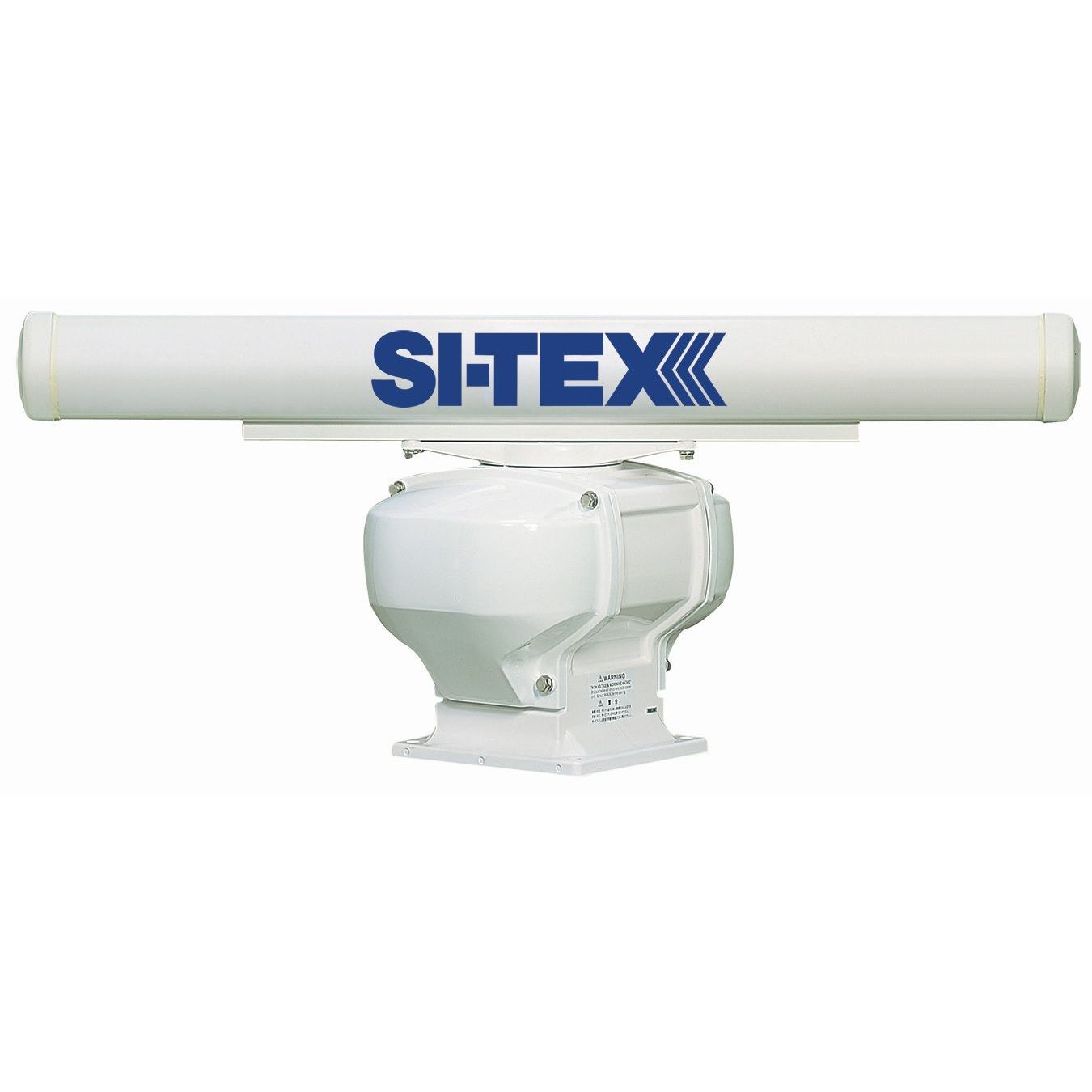

- RB716A Pedestal (4kW)
- RW701A-04 4.5' Antenna
- 10M Cable (242J159098A)
- DC Power Cable
- Quick Reference Guide
- Operation Manual
Ideal for marine professionals and serious boaters, the Si-Tex T2040A-4 ensures superior radar performance with advanced features tailored for reliable navigation in all conditions.
