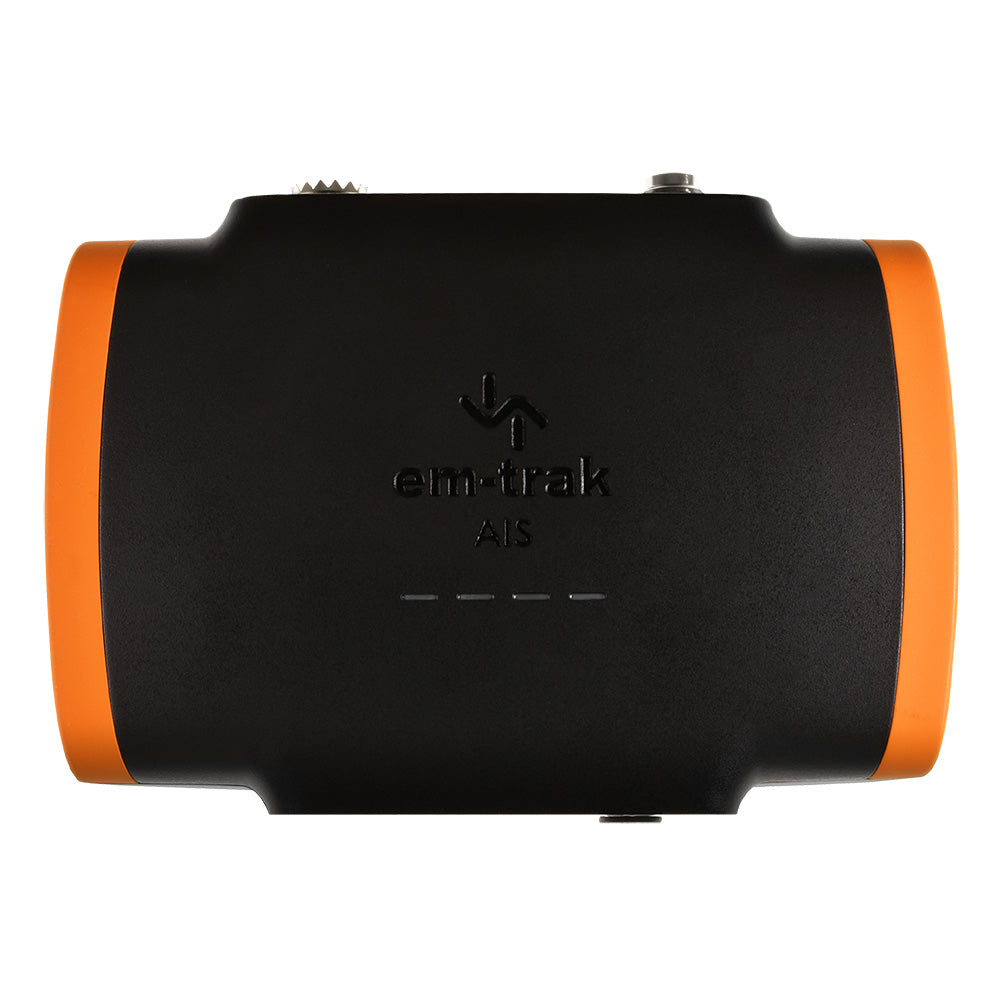

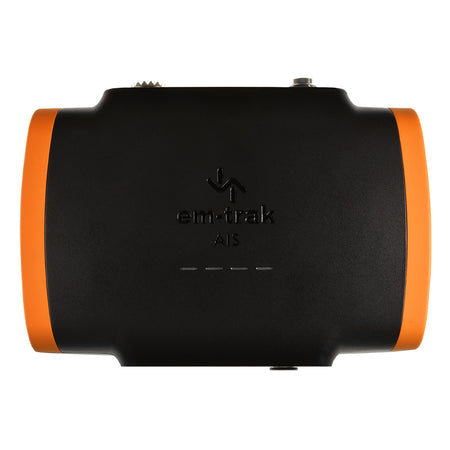

em-trak B921 Class B AIS Transceiver - 2W CSTDMA 430-0001

B921 Class B AIS Transceiver - 2W CSTDMA

As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.

Click here to download form.

The B921 is a 2W CSTDMA Class B AIS transceiver, delivering em-trak's advanced performance and reliability through next-gen technology. Small and durable, this trusted transceiver processes all AIS transmissions in real-time, even at the range limit, so you always have the complete picture and the time to respond.

em-trak's intelligent connectivity means the B921 can be connected to any chart-plotter and comes equipped with integrated GPS technology and best-in-class, ultra-low power consumption. Installation is also simplified with our unique FLEXI-FIT® bracket system to have you up and running in no time at all.

Features:

• Certified AIS Class B – 2W CSTDMA
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 375kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 135mA
• Peak current: 2A
• Average power consumption (at 12V): 1.6W
• Galvanic isolation: NMEA 0183, NMEA 2000, VHF antenna port

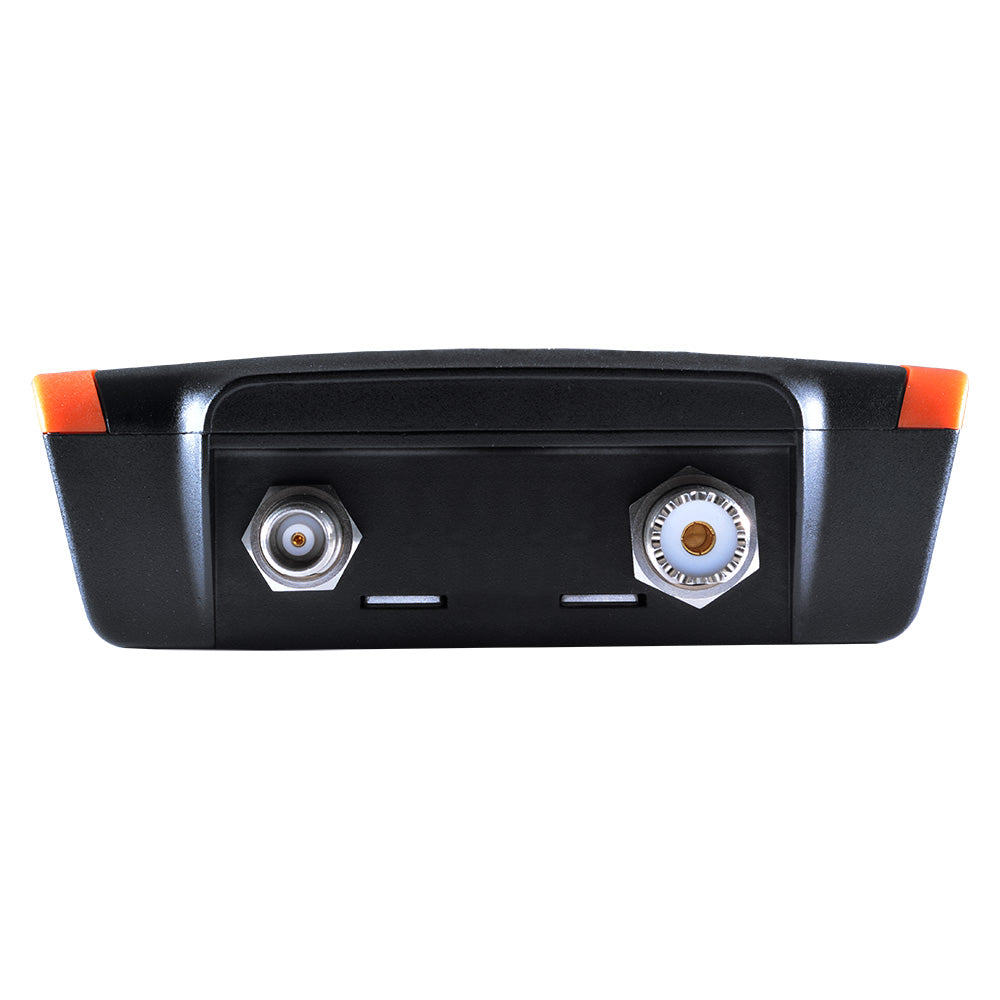

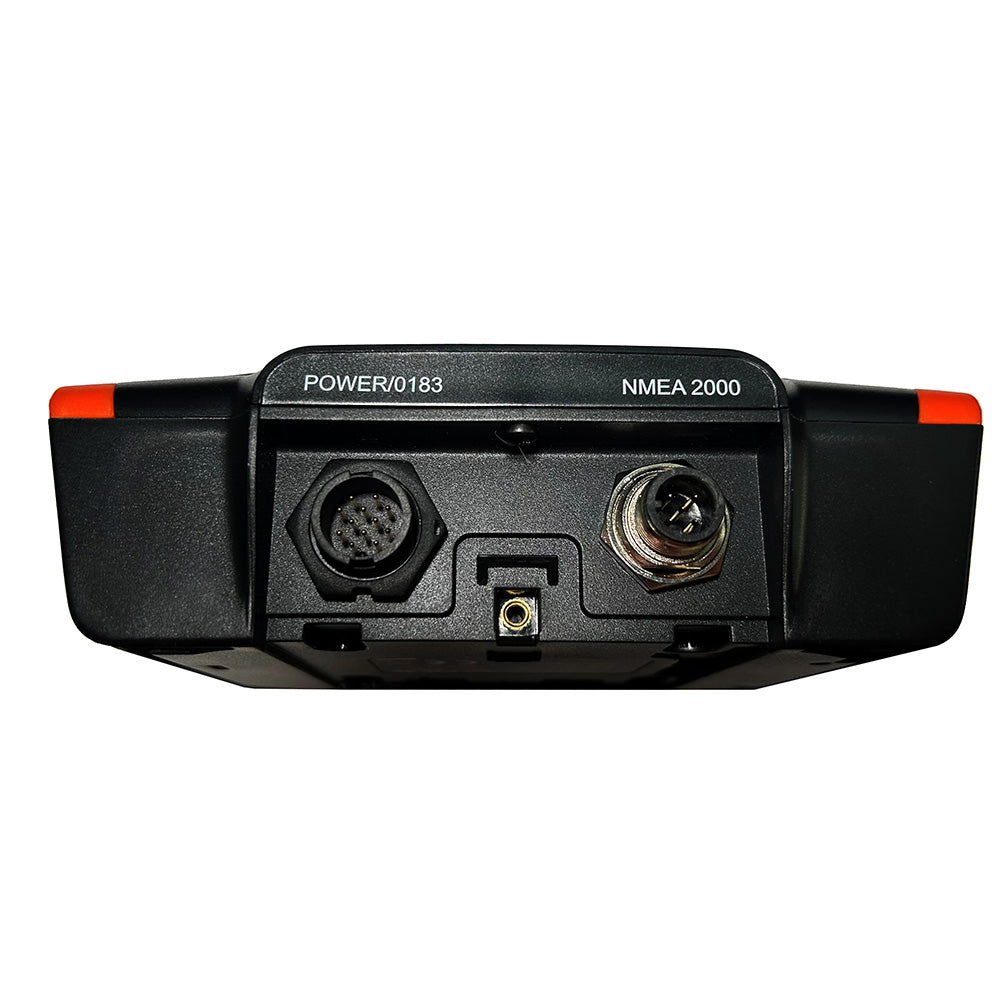

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: CSTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 2W (+33dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape
