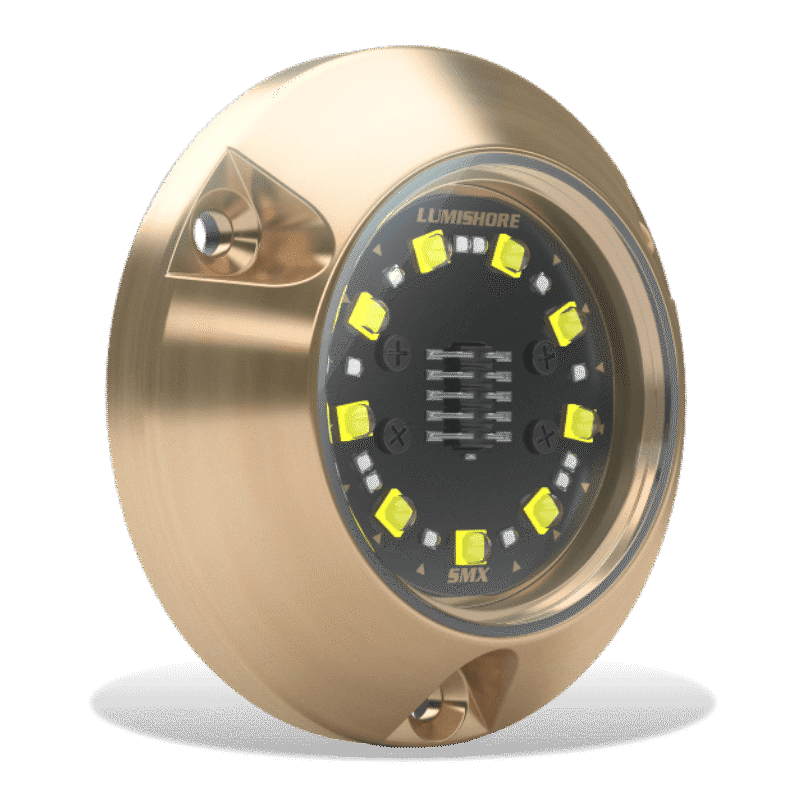

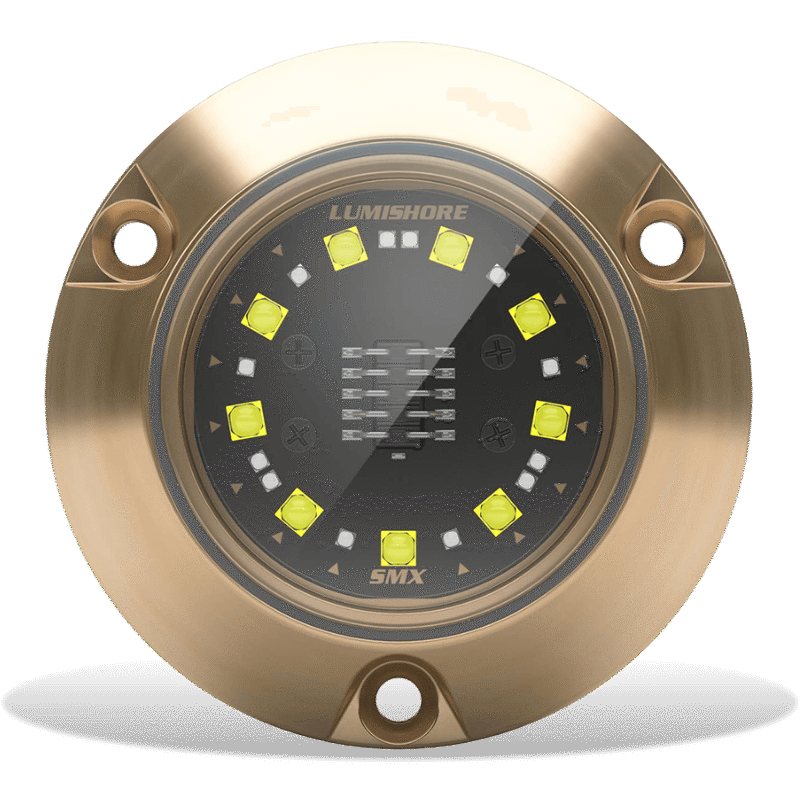

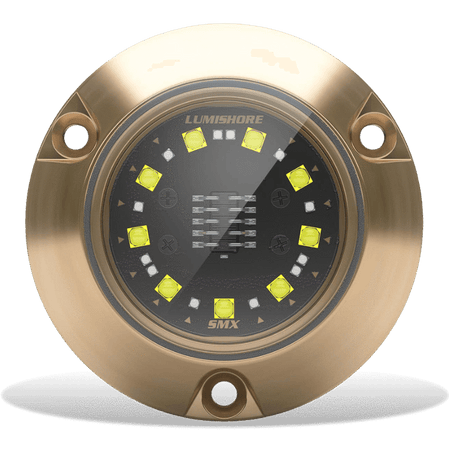

Lumishore - ORA SMX24 Underwater Light - 3100 Fixture Lumens, 12V
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Exceptional Illumination for Smaller Boats
The Lumishore ORA SMX24 offers unparalleled performance in a compact and durable design, specifically crafted for smaller vessels. With its sleek surface-mount installation, this marine-grade lighting solution provides exceptional light output and optics, flooding the water with vibrant illumination. Whether installed on transoms, hull sides, or stepped hulls, the SMX24 combines simplicity with efficiency. Its built-in driver and 2-wire connection ensure easy installation, while the option to control it via a standard ON/OFF switch or the advanced ECLIPSE Command Center enhances convenience and functionality.
Advanced Technical Specifications
- Available LED Colors: Blue, White
- Fixture Lumens: 3,100
- Beam Angle: 90°
- LED Array Details:Blue: 12×3W LEDs
- White: 9×5W LEDs
- LED Power – HiCOB Array: Yes
- Typical LED Life: 50,000+ hours
- Driver: Multi-channel internal driver
- Supply Voltage: 10.5–14.5 V DC (12 V DC only)
- Max Current Draw: 2.5A
- Housing Type: Marine bronze body with glass lens
- Dimming Control: Yes
- User Control Options: Standard ON/OFF switch or ECLIPSE Command Center
Compact Design with Clear Dimensions
While exact measurements are not provided, the SMX24’s compact design ensures it is suitable for smaller vessels without compromising on performance or durability. Its marine-grade bronze body and glass lens provide exceptional durability for all marine environments.
Durable and Attractive Marine Finishes
The SMX24 is encased in a premium marine bronze housing with a glass lens, ensuring durability against harsh marine conditions while maintaining a polished, professional appearance.
Key Features and Benefits
- Single-color illumination (Blue or White) for versatile marine applications.
- Compact surface-mount design, ideal for smaller boats.
- Exceptional brightness with 3,100 fixture lumens and a 90° beam angle for wide underwater coverage.
- Long-lasting LED performance with over 50,000 hours of typical use.
- Easy installation with built-in driver and simple 2-wire connections.
- Dimming control for customized lighting.
- Durable marine-grade construction for reliable performance in harsh conditions.
- Compatible with both a standard ON/OFF switch or ECLIPSE Command Center for user-friendly operation.
Product Variations
- LM600531: Blue light variant, featuring 12×3W LEDs for a striking underwater glow.
- LM600532: White light variant, powered by 9×5W LEDs, offering brilliant and crisp illumination.
With its unmatched performance, user-friendly installation, and durable design, the Lumishore ORA SMX24 is the ideal choice for enhancing the aesthetics and functionality of smaller boats.
