Vimar PLANA 2-Module Mounting Frame, For Ø 60 mm Mounting Boxes, 71 mm Centers, With Claws

Overview

The Vimar PLANA mounting frame is a 2-module support frame with claws for flush-mounted modular device installations in ø 60 mm mounting boxes with 71 mm centre spacing. It accepts front-side module insertion, supports horizontal or vertical mounting, and uses a thermoplastic body with a honeycomb structure.

In a boat refit or new build, this is the support piece that sits behind the modular device assembly and keeps the layout aligned in a standard round-box footprint. The corner slots allow panel fixing, and the hooking teeth help when several modules are installed in series.

Key features

• 2-module mounting frame with claws for ø 60 mm mounting boxes and 71 mm centre spacing
• Front-side insertion for modular devices
• Can be mounted horizontally or vertically to suit the available space
• Thermoplastic construction with a honeycomb structure for added rigidity
• Corner slots support panel fixing, and hooking teeth help with series installation of multiple modules
• Suitable for flush-mounted installation
• Not specified for subfloor installation duct boxes, wall ducts, or 35 mm DIN-rail mounting

Variants

This frame is offered in two color configurations.

Across both versions, the fit and mounting layout stay the same: 2-module format, claws for ø 60 mm boxes, 71 mm centre spacing, front insertion, and horizontal or vertical orientation. The listed difference is color.

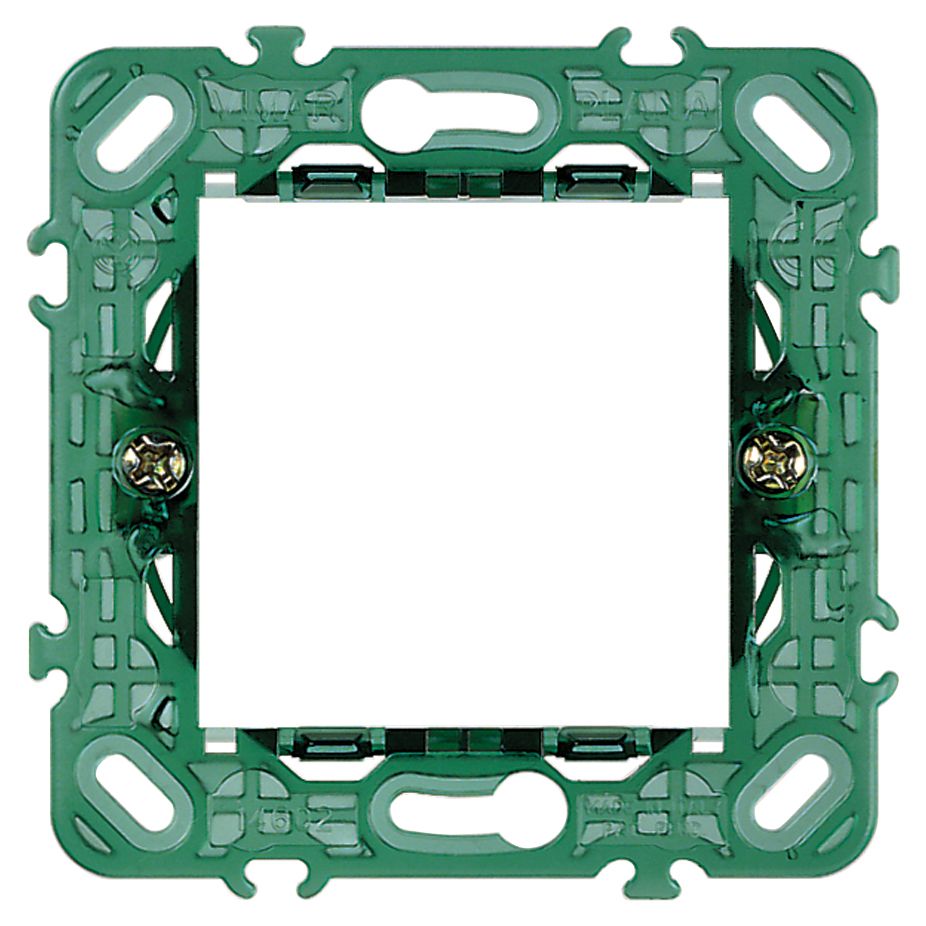

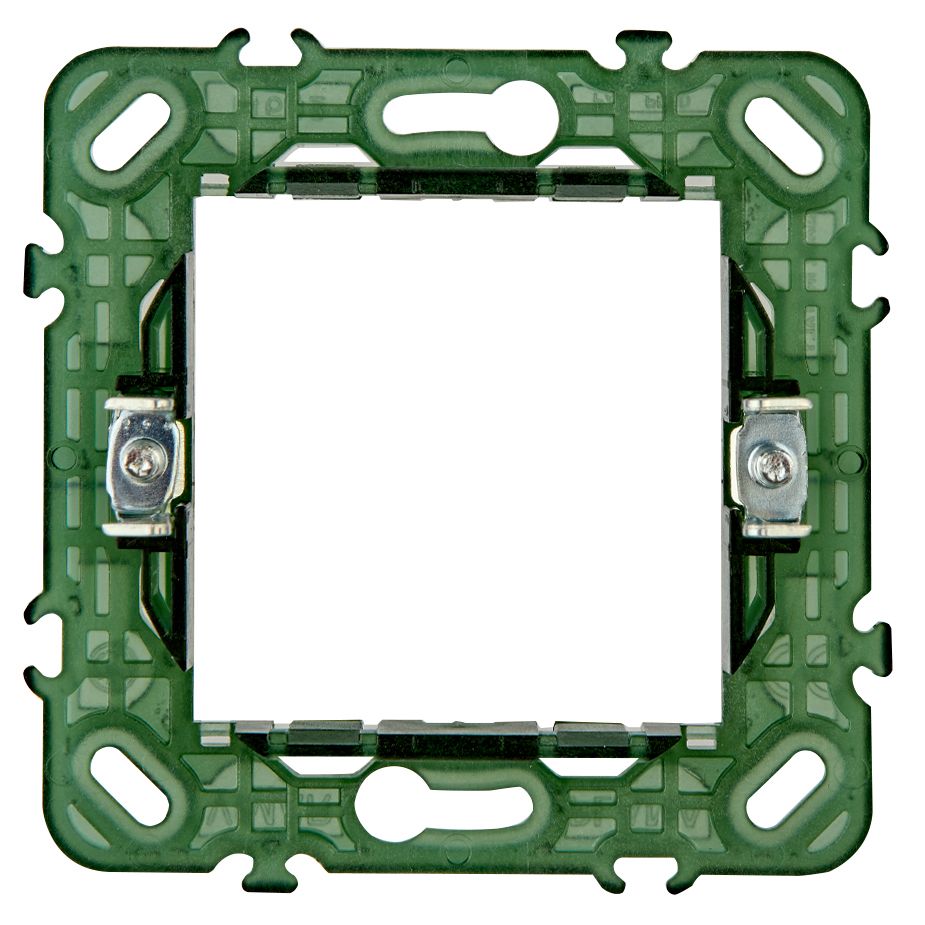

• VM14602: Green. This version keeps the same mounting format and changes the visible frame color.
• VM14602.G: Grey. This version keeps the same mounting format and uses a grey finish.

Compatibility and fit

This frame is intended for Vimar PLANA modular device layouts that use a flush-mounted round box standard. It is a practical match for panel and bulkhead installations where the device set needs a 2-module support frame with claw fixing rather than screw fixing.

Before ordering, confirm the box format and centre distance in the existing installation. This frame is specified for ø 60 mm mounting boxes with 71 mm centres, and it is not intended for wall duct systems, subfloor duct boxes, or 35 mm DIN rails.

Installation and setup

Horizontal and vertical mounting options help when space around liners, furniture, or console cutouts is limited. Front-side module insertion also makes service work easier in places where rear access is restricted.

For onboard use, this frame suits cabin, galley, berth, or control-panel installations where Vimar modular devices are being fitted into a flush-mounted box or fixed to a panel. It is a good fit for installers standardizing around the PLANA system across more than one location on the boat.
