Vimar Plana USB Socket Connector, 1 Module, IP20, Flush-Mounted, Screw Terminals

Overview

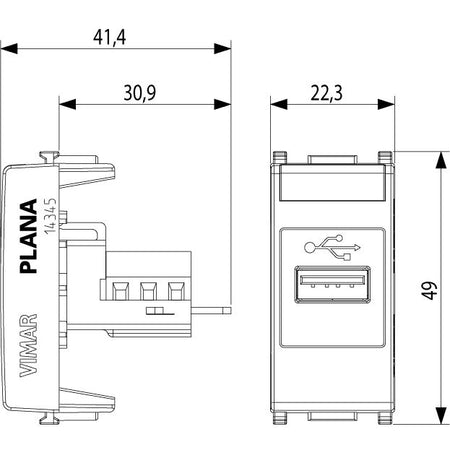

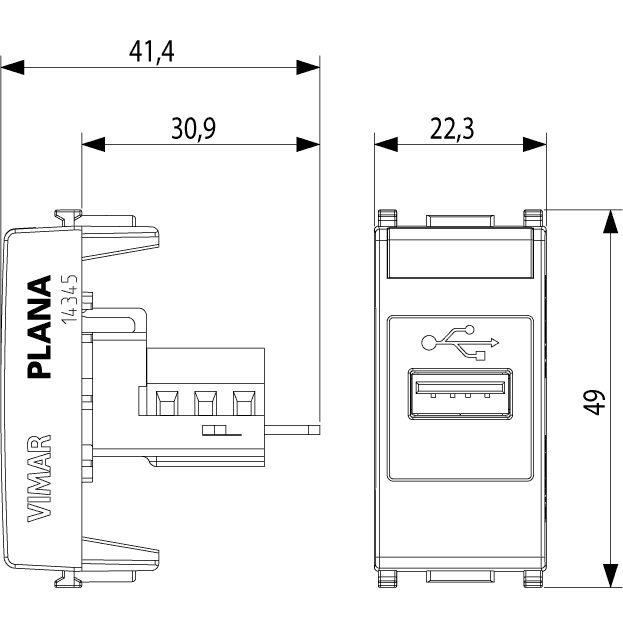

The Vimar Plana Series is a flush-mounted USB socket connector for 1-module Plana installations where you need a clean USB connection point in a protected interior space on board. The body is halogen-free thermoplastic, the connection uses screw terminals, and the insert measures 22.3 x 49.0 x 41.4 mm with IP20 protection.

On a boat, this type of insert makes sense at cabin panels, enclosed helm areas, chart tables, and other dry locations where modular Vimar devices are already being used. It does not have a dust cover or hinged lid, so it is better matched to sheltered mounting positions than exposed deck or washdown areas.

Key features

• 1-module Plana insert with a 22.3 x 49.0 x 41.4 mm body size
• Flush-mounted format for built-in panel installation

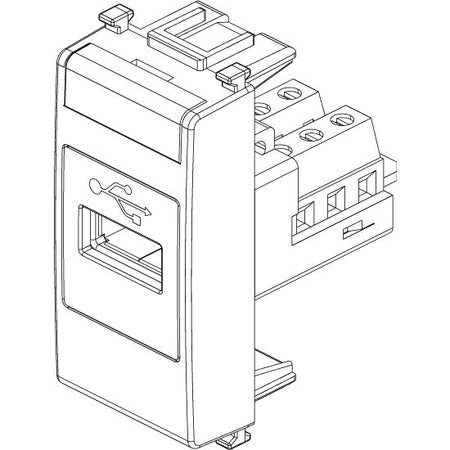

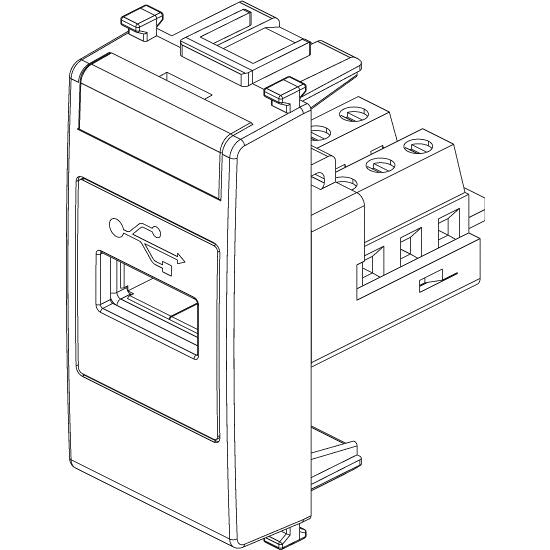

• Screw-terminal connection with strain relief at the rear
• Halogen-free thermoplastic body with a glossy visible finish
• IP20 rating for protected interior locations
• Available in white or silver to match surrounding Plana switchgear

Variants

This product is offered in two finish options within the same Plana USB socket connector format.

Across both variants, the mounting method, 1-module size, dimensions, screw-terminal connection, strain relief, and IP20 protection stay the same. The visible change is the front finish and color.

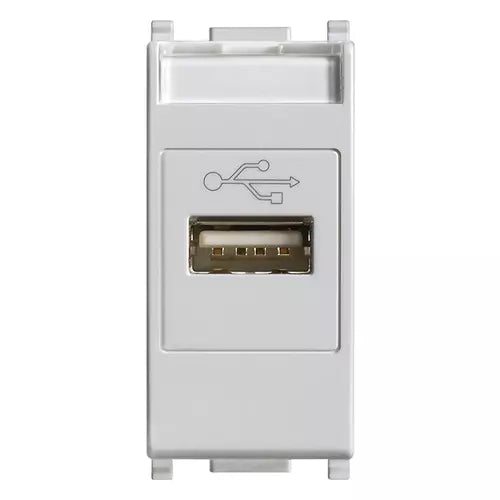

• VM14345.SL: Color Silver with a glossy lacquered finish. It changes the appearance of the insert while keeping the same installation footprint behind the panel.

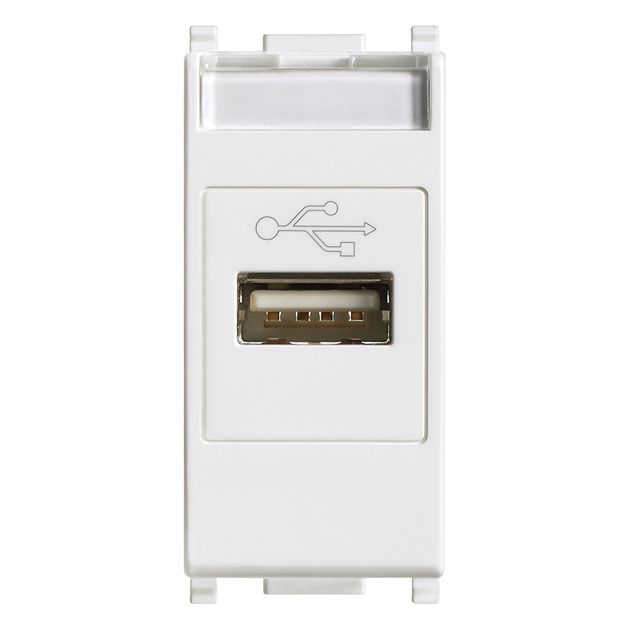

• VM14345: Color White with a glossy finish. It suits panels where the rest of the Plana trim and electrical accessories are already in white.

Compatibility and fit

This insert belongs to the Vimar Plana range and uses a 1-module layout. It is a practical match when the surrounding panel or switch frame is already based on Plana modular devices and you want the USB connection to sit flush with the rest of the installation.

Because the unit is rated IP20 and has no protective cover, it is better suited to cabins, salon bulkheads, enclosed helm consoles, and other dry interior mounting positions. For open cockpits, exposed dashboards, or places that see regular spray, a weather-protected alternative is the safer fit.

Installation and use on board

The rear screw terminals and built-in strain relief help keep wiring controlled in compact panel spaces. Check the available clearance before ordering, as the device depth is 41.4 mm.

This is a good match for refit work or new interior panels on boats that already use Vimar Plana devices and need a USB connection point that looks integrated rather than added later.

• 1321157_qbp917331.pdf
