Vimar Plana S-Video Socket Connector, 4-Pin, Flush Mount, IP20

Overview

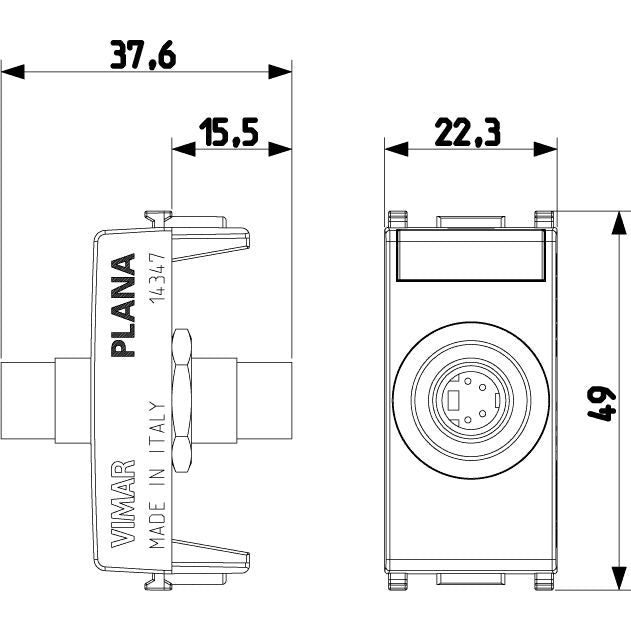

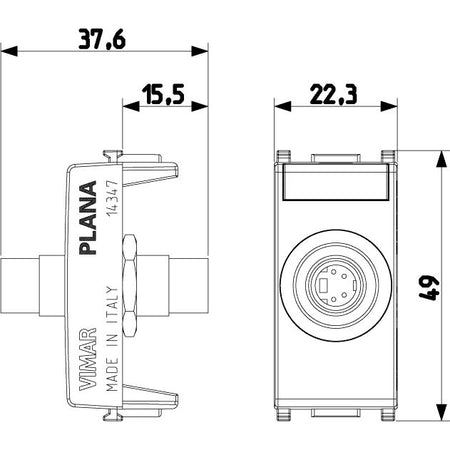

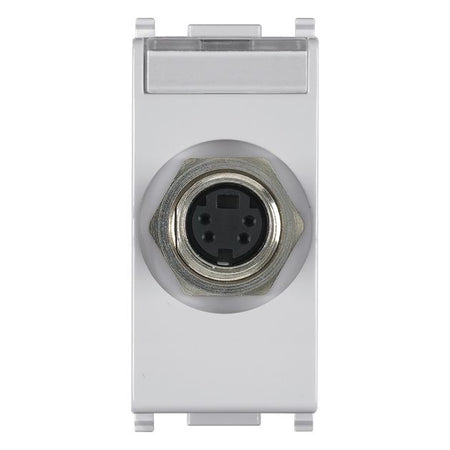

The Vimar PLANA S-Video socket connector is a 4-pin modular insert for bringing an S-Video connection into a flush-mounted panel. It uses a one-module format and measures 22.3 mm wide, 49 mm high, and 37.6 mm deep.

For boat refits or interior AV panels, this is the kind of insert that keeps an older video connection fixed and tidy instead of leaving a loose lead at the helm, in the cabin, or at a media point. The body is thermoplastic and halogen-free, and the IP20 rating places it in dry interior spaces rather than exposed areas that see spray, washdowns, or direct weather.

Key features

• 4-pin S-Video socket for legacy analog video connections
• Flush-mounted PLANA insert that sits neatly in a modular switch or outlet layout
• One-module body size for compact panel integration
• Thermoplastic construction that is halogen-free
• IP20 protection rating for protected interior locations
• Compact dimensions of 22.3 x 49 x 37.6 mm when rear clearance matters behind a bulkhead or console

Variants

This product is offered in two finish options.

The listed difference between the two versions is the visible front color and surface treatment. Both are presented as PLANA 4-pin S-Video inserts for flush-mounted installation.

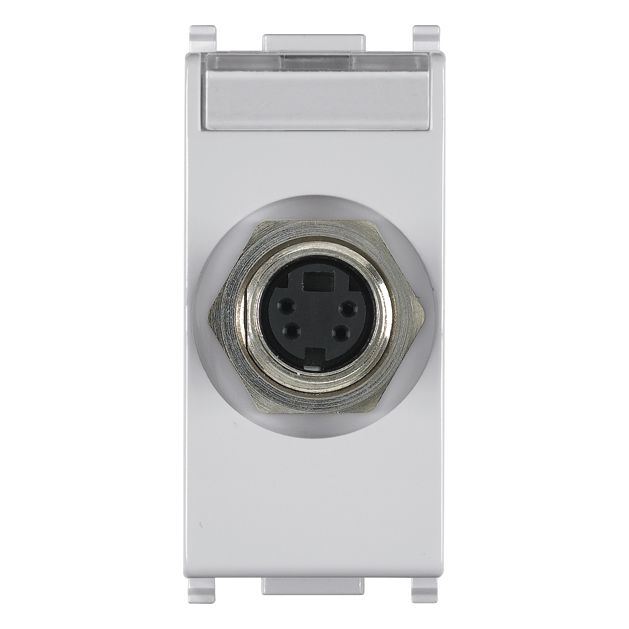

• VM14347.SL: Silver front with a glossy lacquered finish. It keeps a closer visual match with silver PLANA trim and panels where a metallic look is already used.

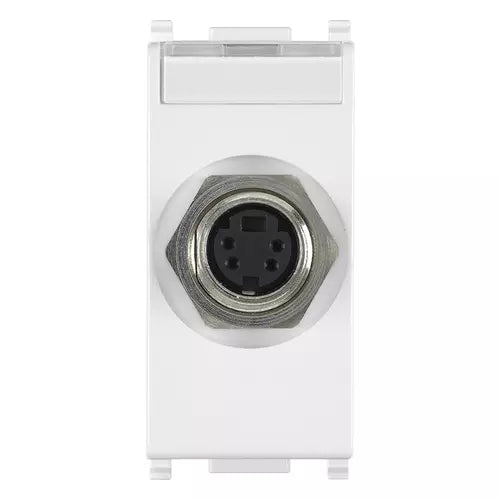

• VM14347: White front with a glossy untreated finish. It keeps a closer visual match with white PLANA trim and lighter interior panels.

Compatibility and fit

Check that your support, frame, and cover plate belong to the Vimar PLANA system and that the onboard source and display equipment use a 4-pin S-Video connection. This insert is meant for a built-in connection point, so it suits a finished panel installation rather than a loose adapter-style setup.

Installation and placement

Because the unit is flush-mounted, rear clearance matters as much as the front opening. The 37.6 mm body depth is the number to confirm behind the panel, especially where cable bends are tight or where several modules share the same console or bulkhead space.

Use on board

This socket makes the most sense on boats that still carry S-Video in a cabin entertainment system, an enclosed helm console, or another protected interior electronics area. It is a straightforward match for owners who want a clean built-in finish and need the connection to stay accessible without leaving cabling exposed.
