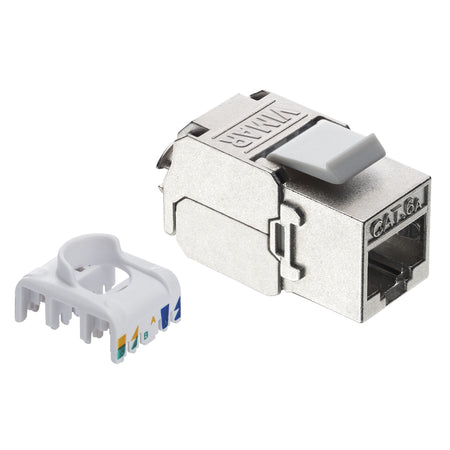

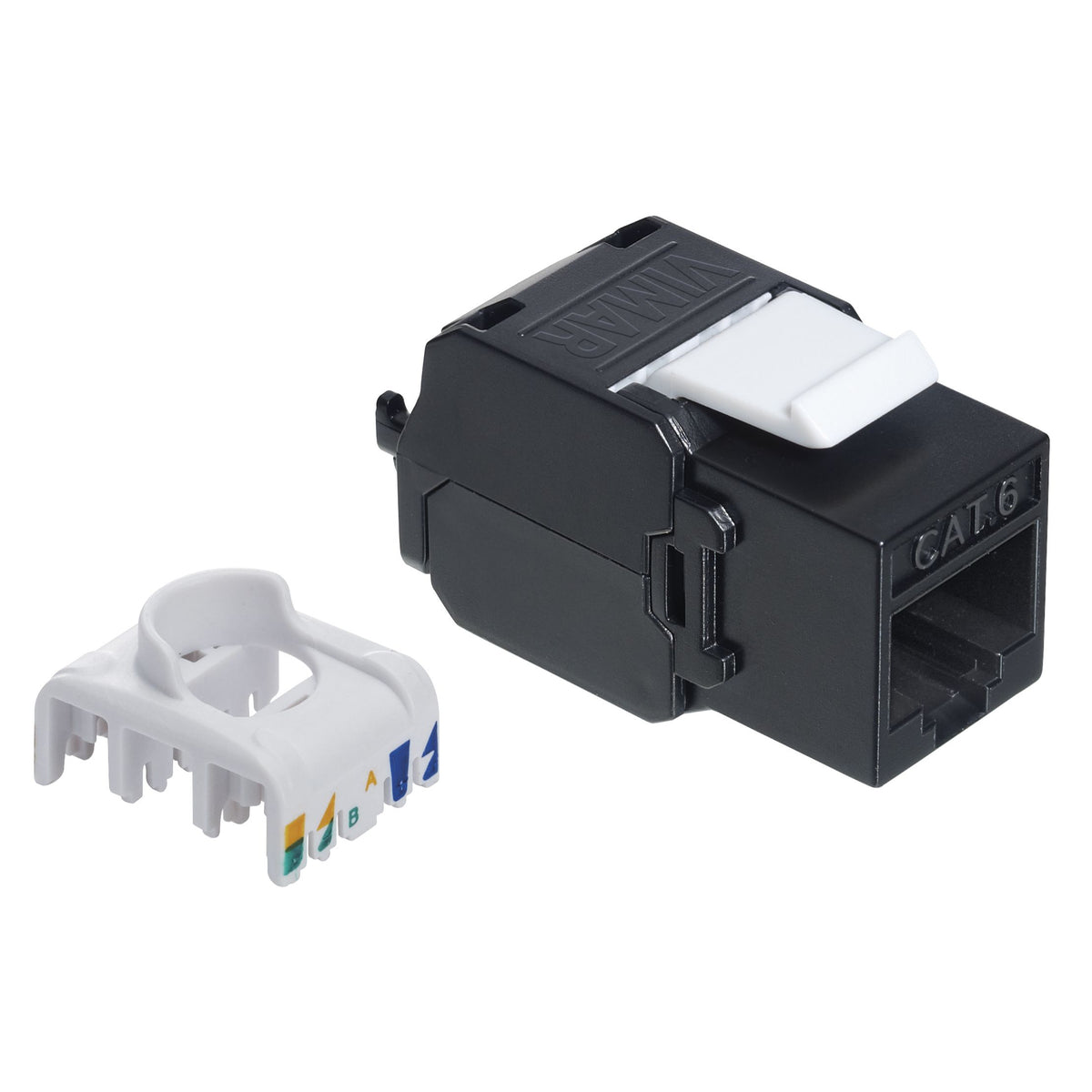

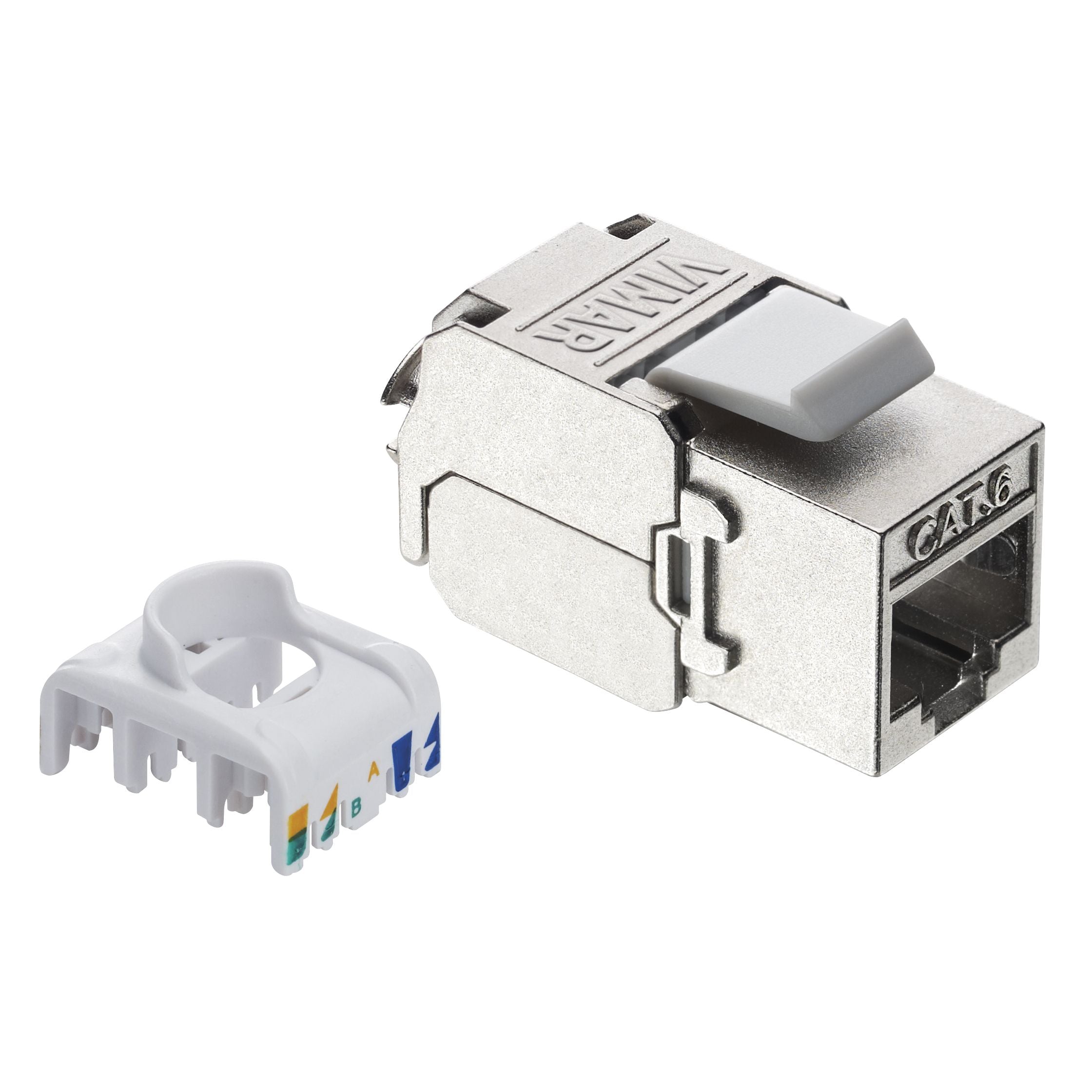

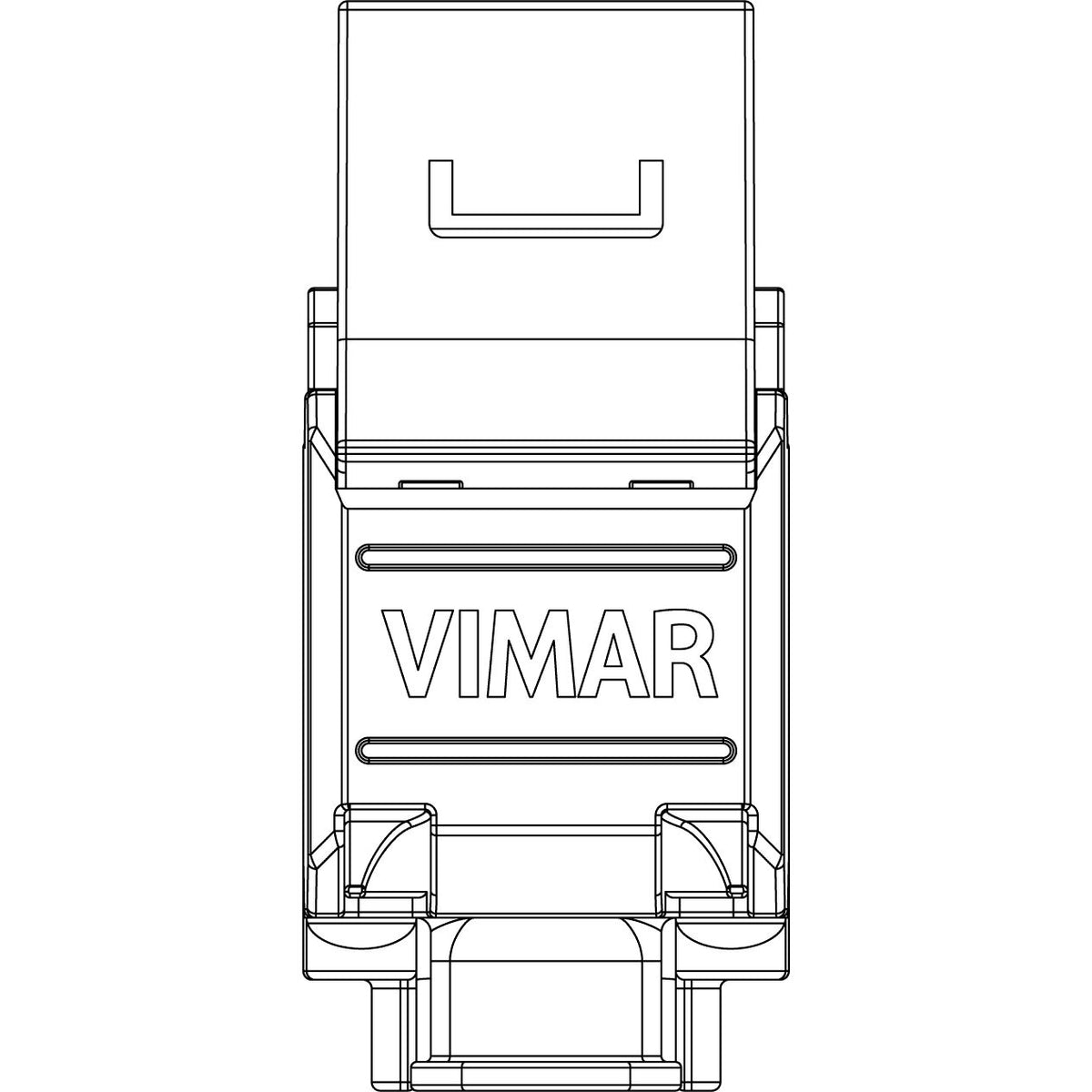

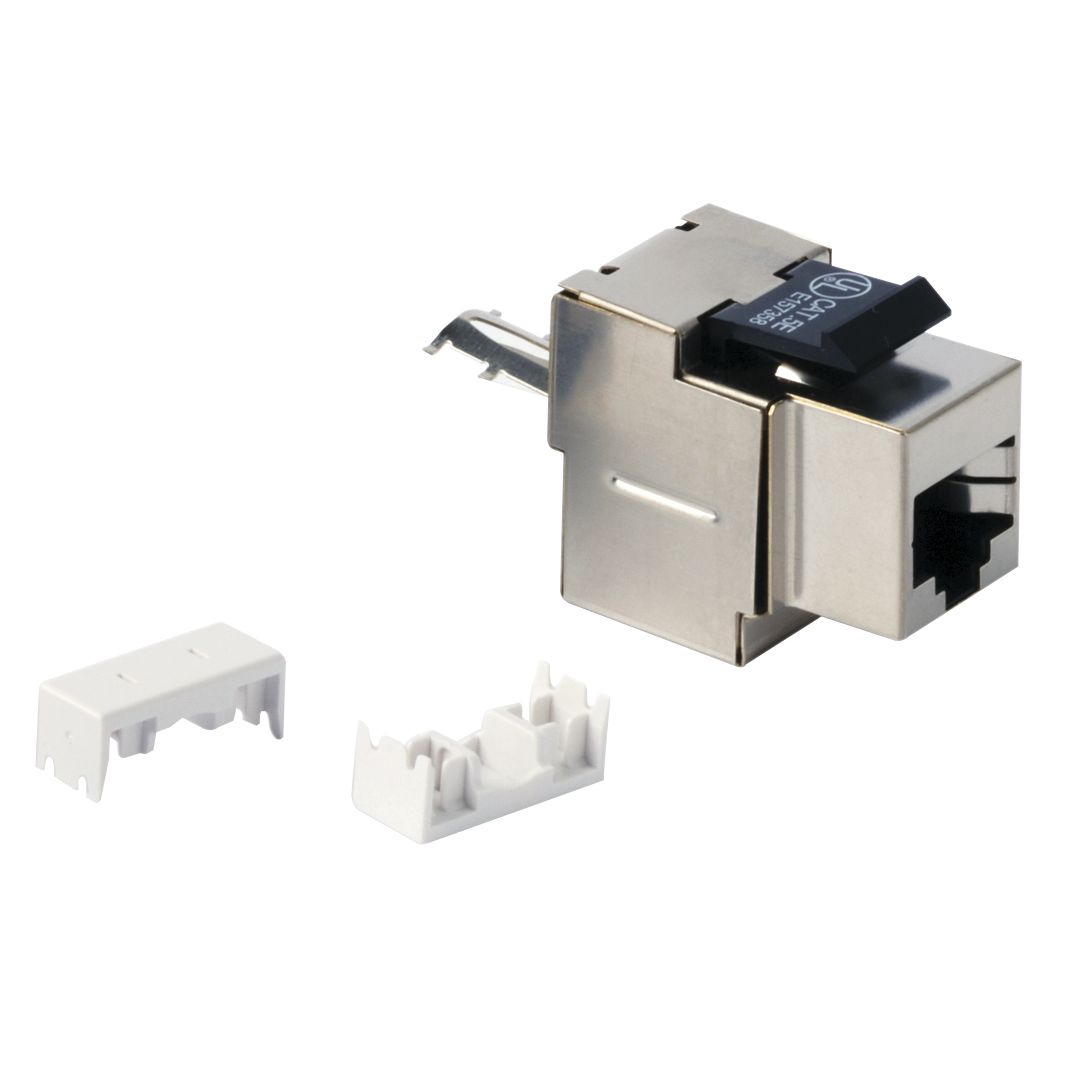

Vimar Netsafe RJ45 Connector, For 03024.E and 03303.E Patch Panels, T568A/B Universal Wiring, 8 Contacts, Insulation-Piercing Terminals
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Vimar RJ45 Netsafe Connector is a range of RJ45 data connectors for Netsafe structured cabling, built to terminate Ethernet runs on Vimar patch panels 03024.E and 03303.E with T568A/B universal wiring. Across the range, the connectors use an 8-contact RJ45 format and cover Cat5e, Cat6, and Cat6A network categories, with both UTP and FTP versions available.
For a boat build or refit, this matters when the network backbone runs between helm stations, cabins, nav desks, or equipment lockers and the panel side of the installation needs to match the cable category and shielding already selected. The range gives you a straightforward way to keep panel terminations aligned with the rest of the onboard data run instead of mixing connector types or network grades.
Key features

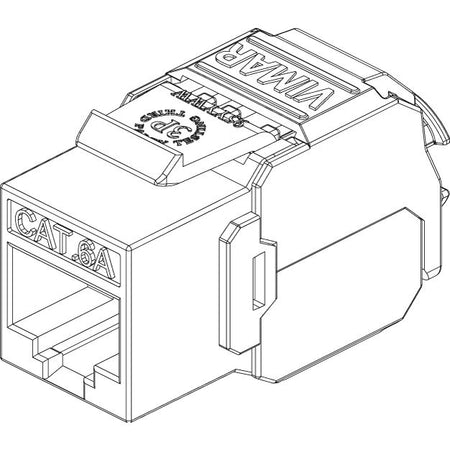

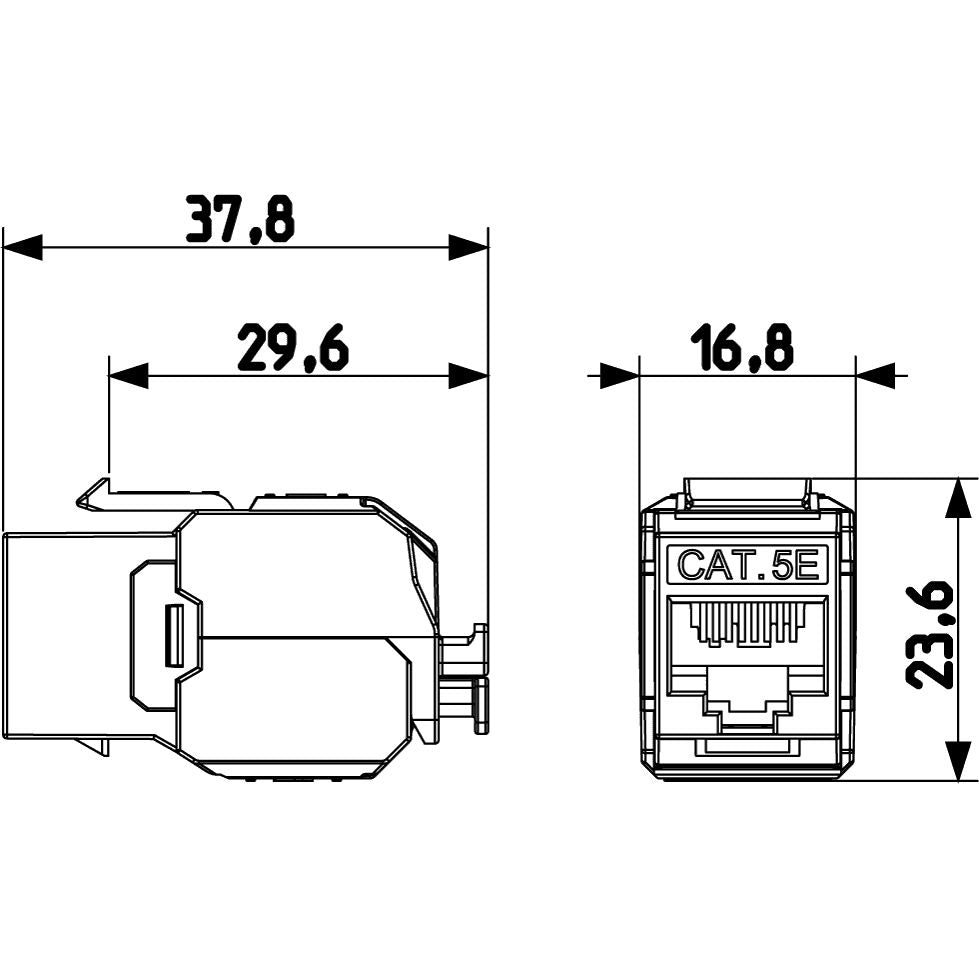

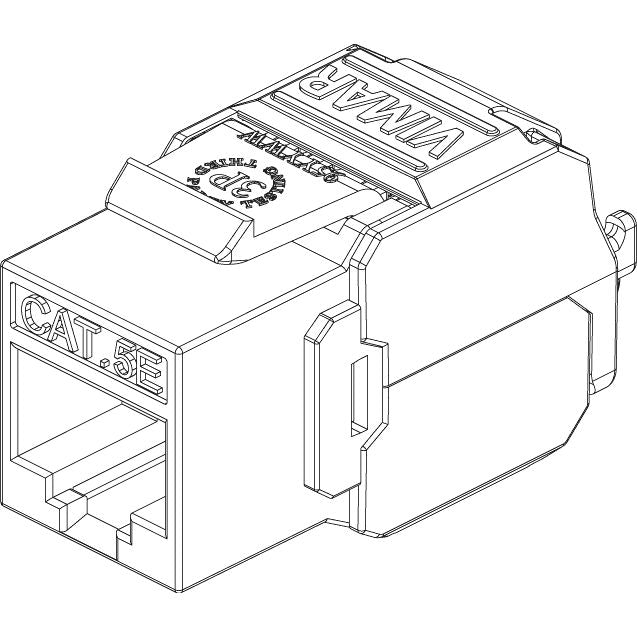

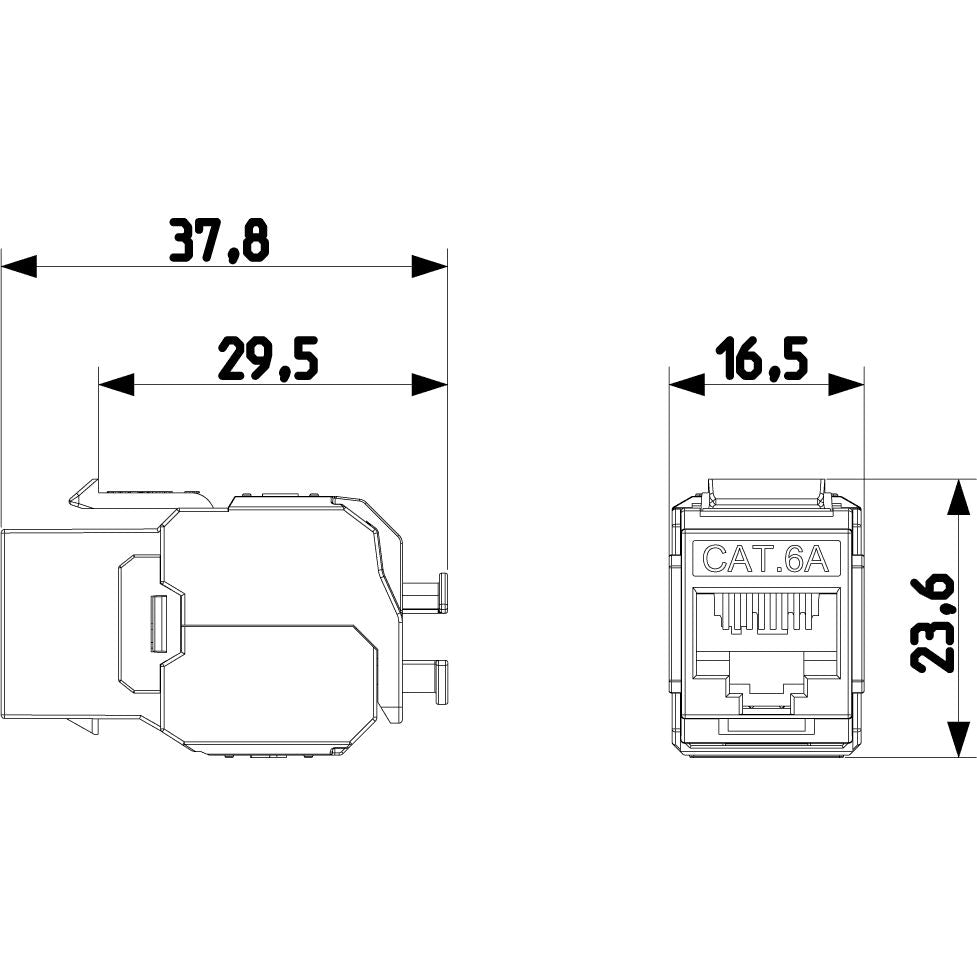

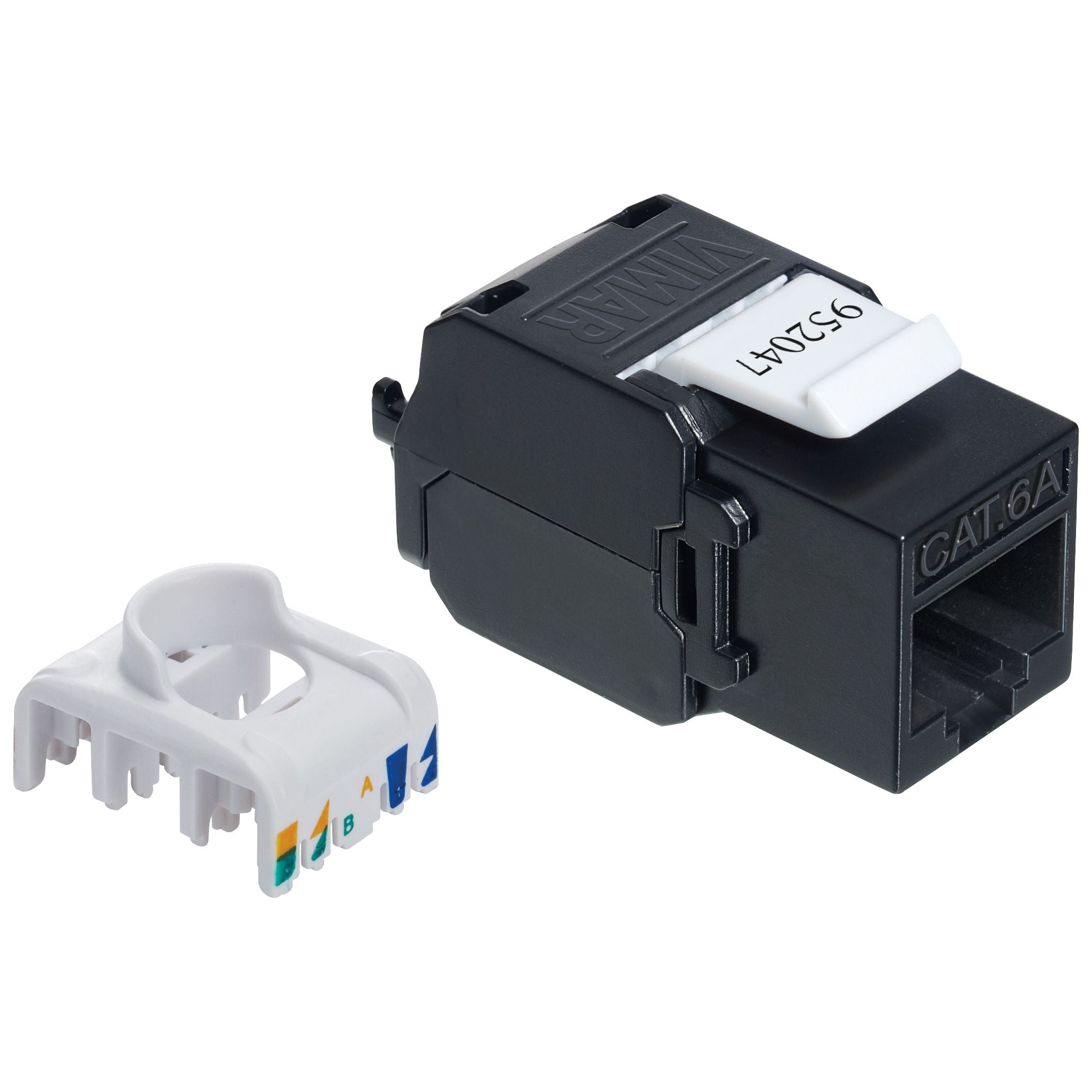

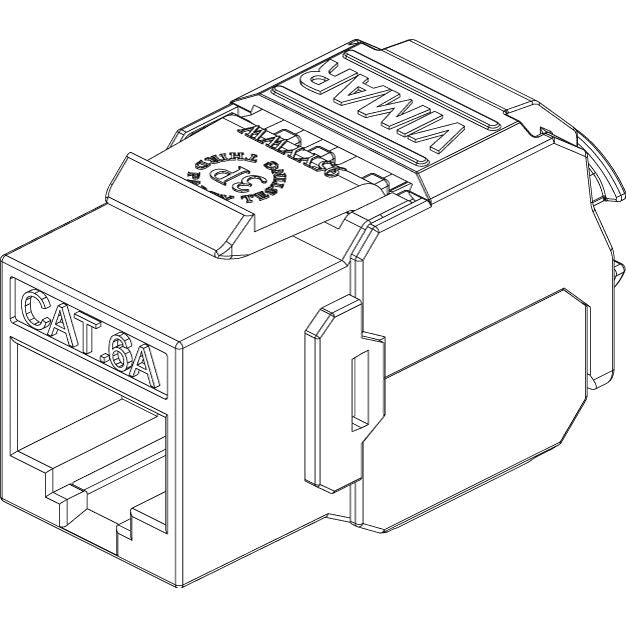

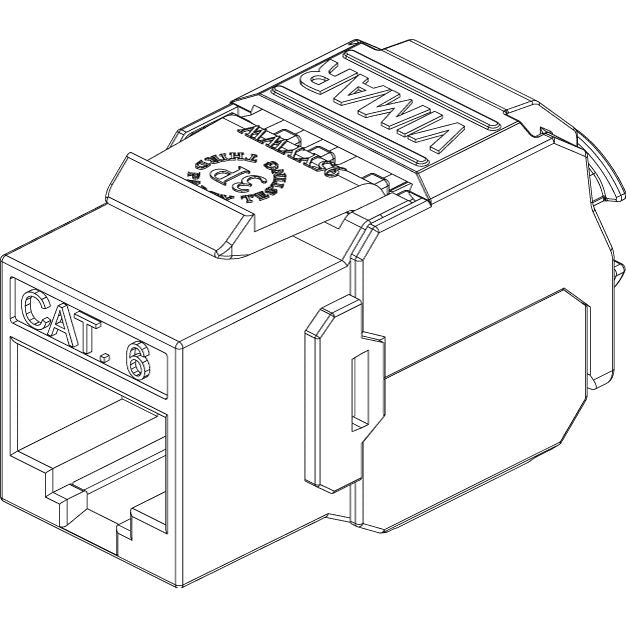

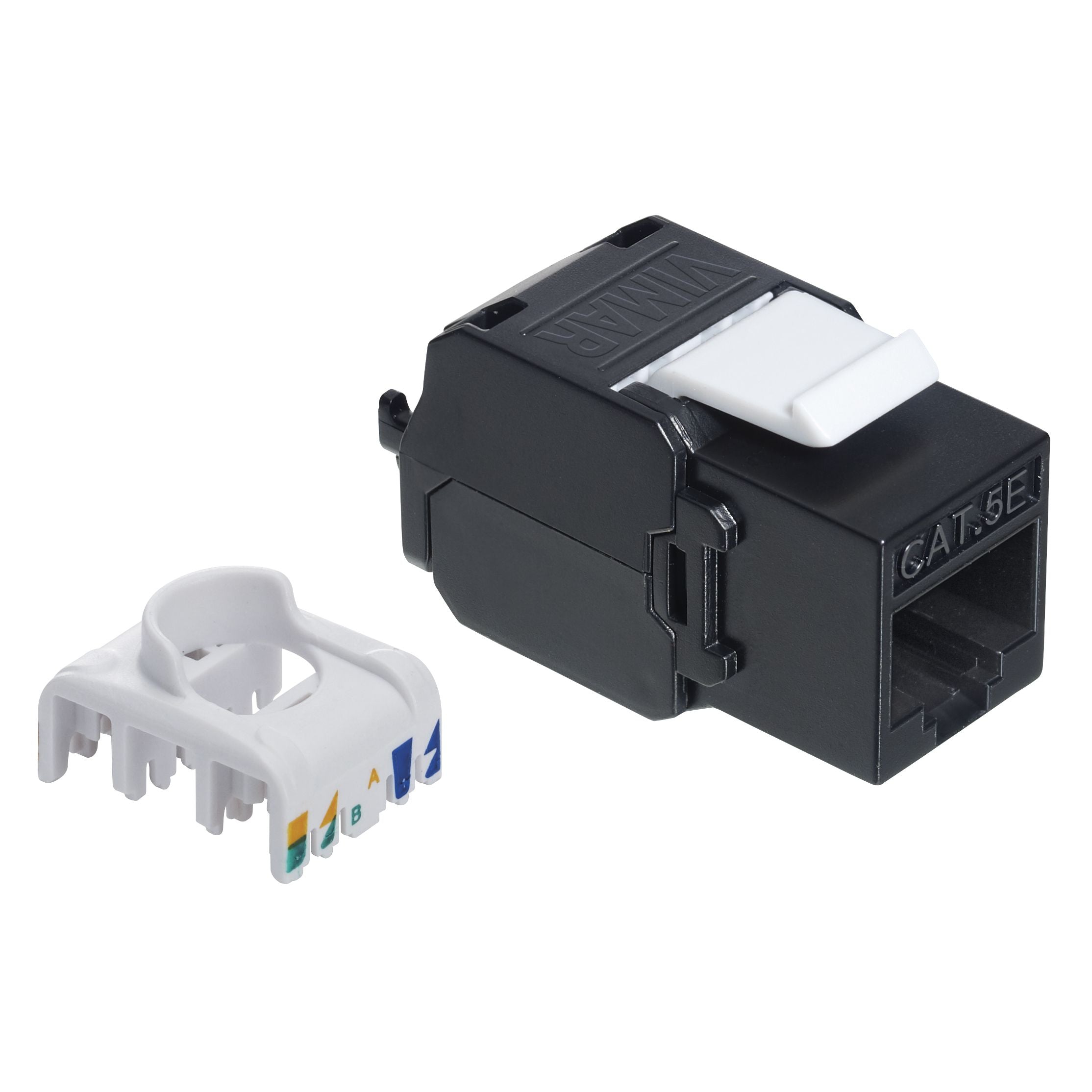

- Range includes Cat5e, Cat6, and Cat6A RJ45 connectors for Netsafe structured cabling.

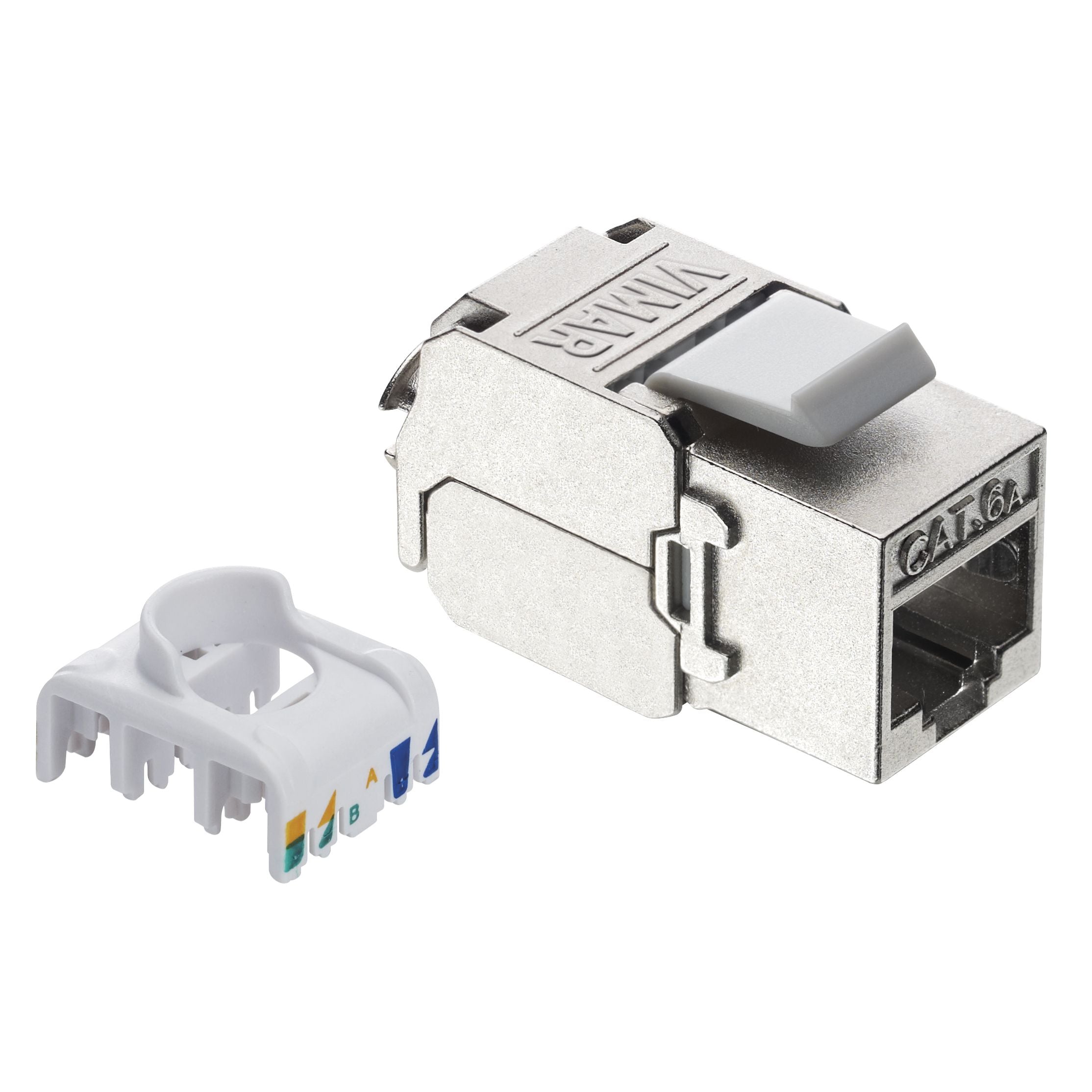

- UTP and FTP versions are available, plus one Cat5e FTP 110 version for installations that use 110-type insulation-piercing termination.
- T568A/B universal wiring supports standard structured cabling layouts.
- Built for use with Vimar patch panels 03024.E and 03303.E.
- RJ45 8-contact format keeps the panel termination matched to standard Ethernet hardware.

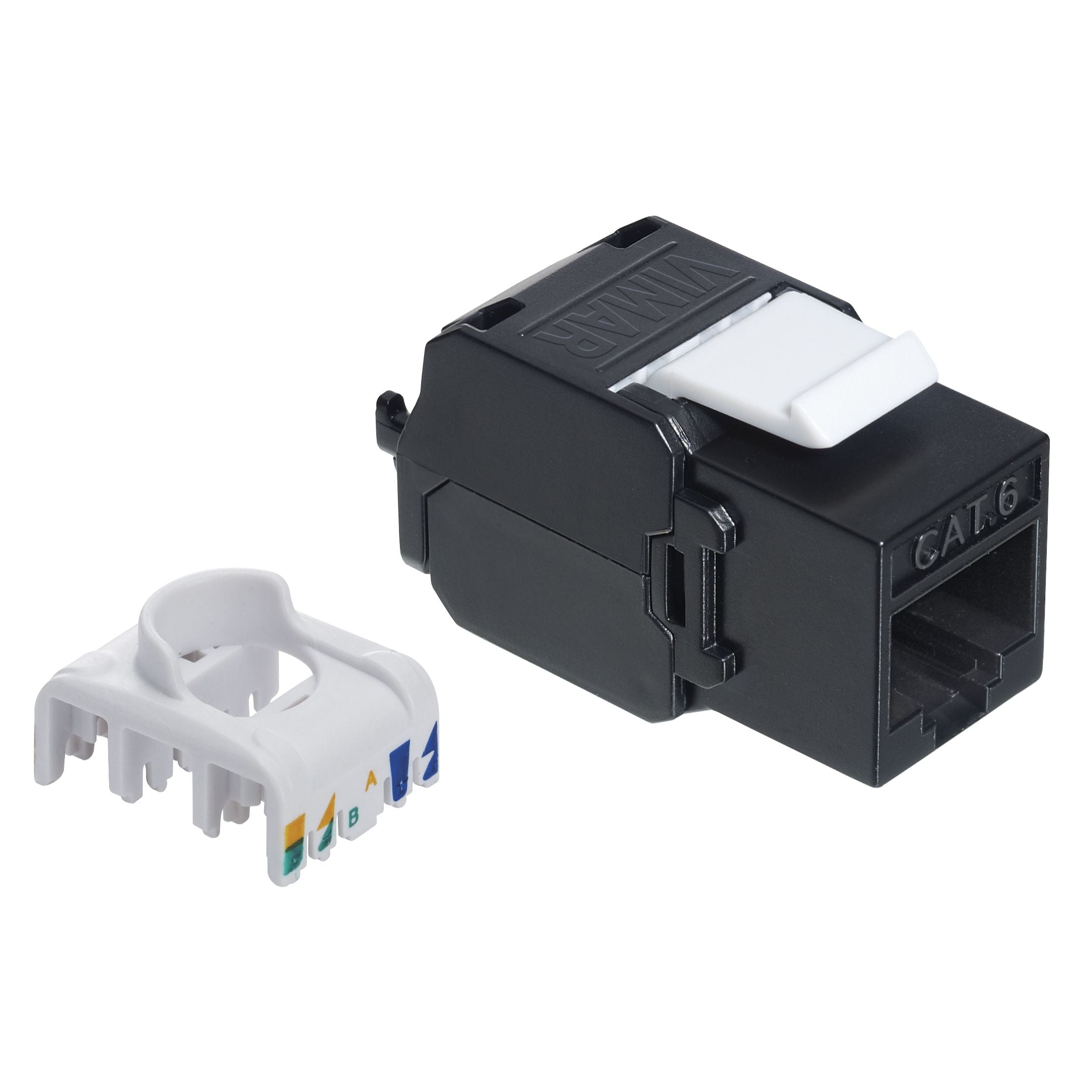

- Most variants in the range use insulation-piercing terminals without the need for a special tool.
Variants
This range varies by network category, shielding, and termination style. It includes Cat5e, Cat6, and Cat6A versions, with both unshielded UTP and shielded FTP options, plus one Cat5e FTP 110 connector for installations that use 110-type insulation-piercing termination.
The common thread across the range is the RJ45 format, T568A/B universal wiring, and compatibility with Vimar Netsafe patch panels 03024.E and 03303.E. The practical difference between variants is choosing the connector that matches the cable specification and shielding scheme already planned for the installation.
Compatibility and fit
This product family is meant for fixed panel terminations rather than loose patch leads. Before ordering, match the connector category to the cable run you are installing and keep UTP and FTP components consistent through the same link. On boats where network cabling passes near chargers, inverters, switchgear, or other sources of electrical noise, the FTP versions make sense when the rest of the run is also shielded.
Installation and setup
T568A/B universal wiring helps when you are working to an existing pinout or expanding a panel that is already in service. Most versions in this range use insulation-piercing terminals without a special tool, which is useful when access behind a panel is tight. The Cat5e FTP 110 version is the outlier in the line, so it should be selected only where that termination style is already part of the job.
Use on board
This range is a good match for new installations and refits where fixed Ethernet cabling is routed between compartments and terminated cleanly on a patch panel. It suits yards, installers, and owners who want the connector at the panel to match the network grade and shielding of the cable run already chosen for the boat.
