Vimar Supernova 2P+E 15A USA+SASO Plug, 127V, IP20, Axial Cable Entry

Overview

The Vimar Supernova is a 2P+E plug for 127V portable electrical connections that follow American and Saudi Arabian standards. Across the range, it is rated 15A and uses a straight body with axial cable entry, so the cable exits in line with the plug.

The housing is thermoplastic and the conductors terminate on screw terminals, which makes it a practical option for replacing a worn plug end or assembling a cord set that needs a firm connection. With an IP20 rating, this plug is suited to dry interior spaces on board rather than exposed deck areas or washdown zones.

Key features

• 15A, 127V rating for equipment and cord sets built around this electrical standard
• 2P+E configuration for American and Saudi Arabian standard connections
• Straight plug body with axial cable entry to keep the cable aligned with the housing
• Screw terminal connection for secure conductor termination during assembly or service
• Thermoplastic construction with IP20 protection for protected interior use
• Available in black or white with no change to the core electrical specification

Variants

This product is offered in two finish options.

The verified difference between variants is color. The electrical format, 15A and 127V rating, straight axial cable entry, screw terminals, thermoplastic housing, and IP20 protection remain the same across both versions.

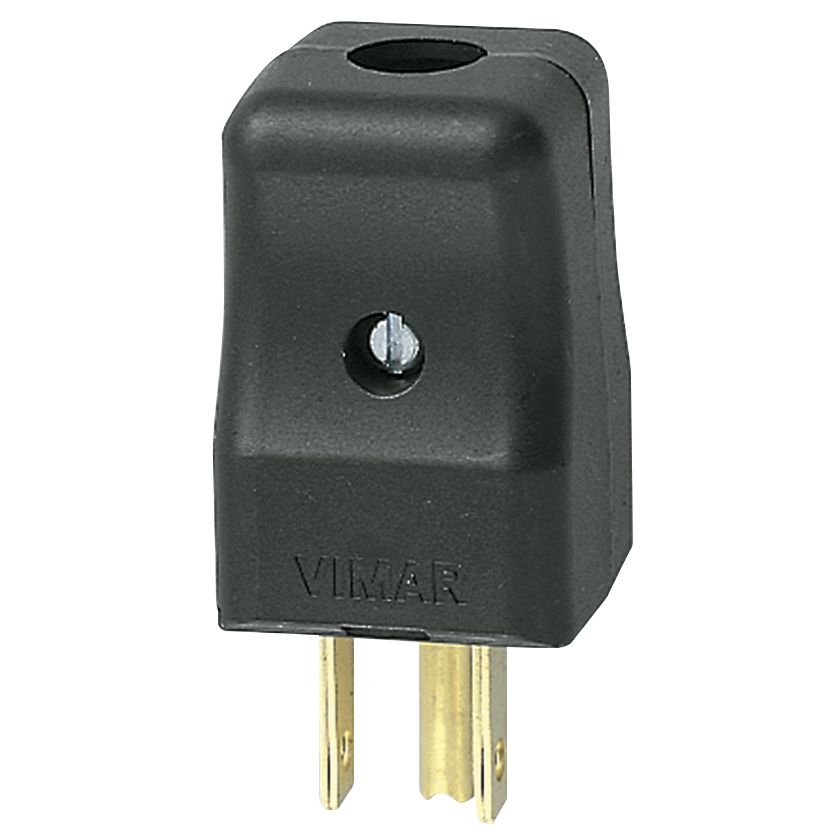

• VM01096: Black. This finish blends in more easily with dark panels, utility areas, and black cord sets.

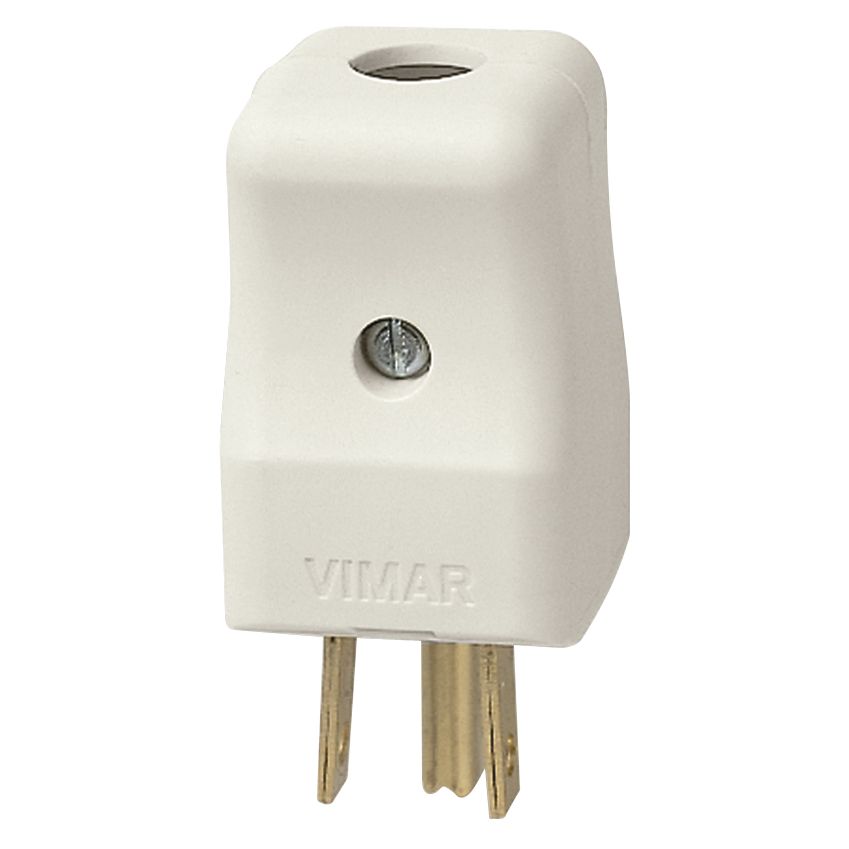

• VM01096.B: White. This finish sits more naturally in light interiors, accommodation spaces, and white accessories.

Compatibility and fit

This plug is for 127V systems that use American and Saudi Arabian standard connections. Before fitting it, check the plug pattern, circuit rating, and cable specification of the equipment or lead you are terminating. Because it is IP20, it should be used where the connector stays dry and protected.

Installation and setup

The axial cable exit is useful where side clearance is limited behind portable equipment or where you want the cord to run straight out of the plug without an immediate bend. Screw terminals also make retermination more straightforward during service, but the plug should still be fitted with the correct wire preparation and local electrical practice in mind.

Use on board

This is a good match for portable appliances, detachable leads, and replacement plug ends used inside the boat where 127V service is already part of the system. It also suits refit work where finish color matters but the electrical specification stays the same.
