Vimar Plana 2P+E USA SICURY Outlet, 15A, 127V, IP20, Flush-Mounted

Overview

The Vimar Plana Series is a 2P+E USA SICURY outlet for 127 V AC circuits with a 15 A rating and 50 to 60 Hz operation. It is a flush-mounted, 1-module device with screw-terminal wiring and enhanced contact protection, which makes it a practical choice for boats and yachts fitted with Vimar Plana wiring devices.

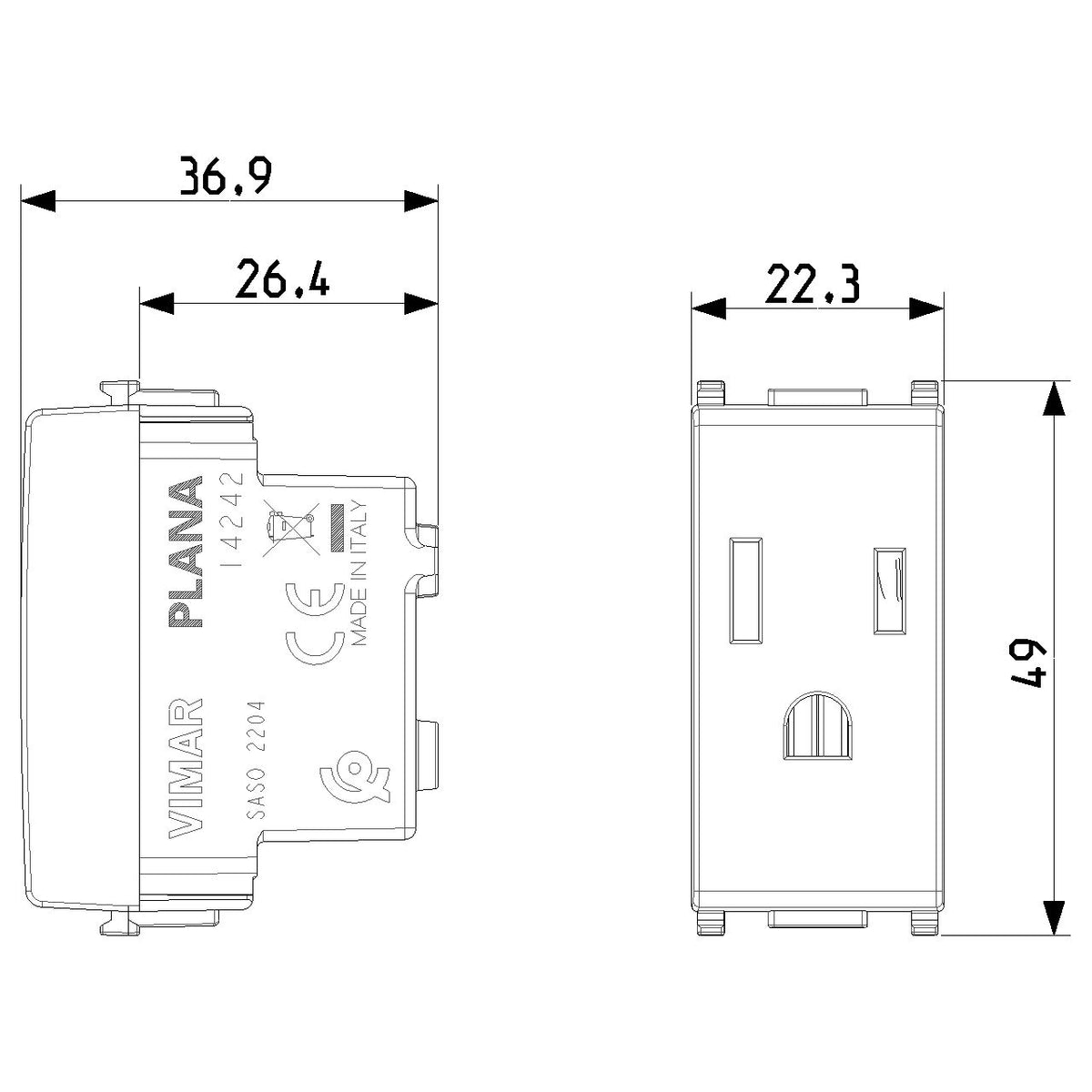

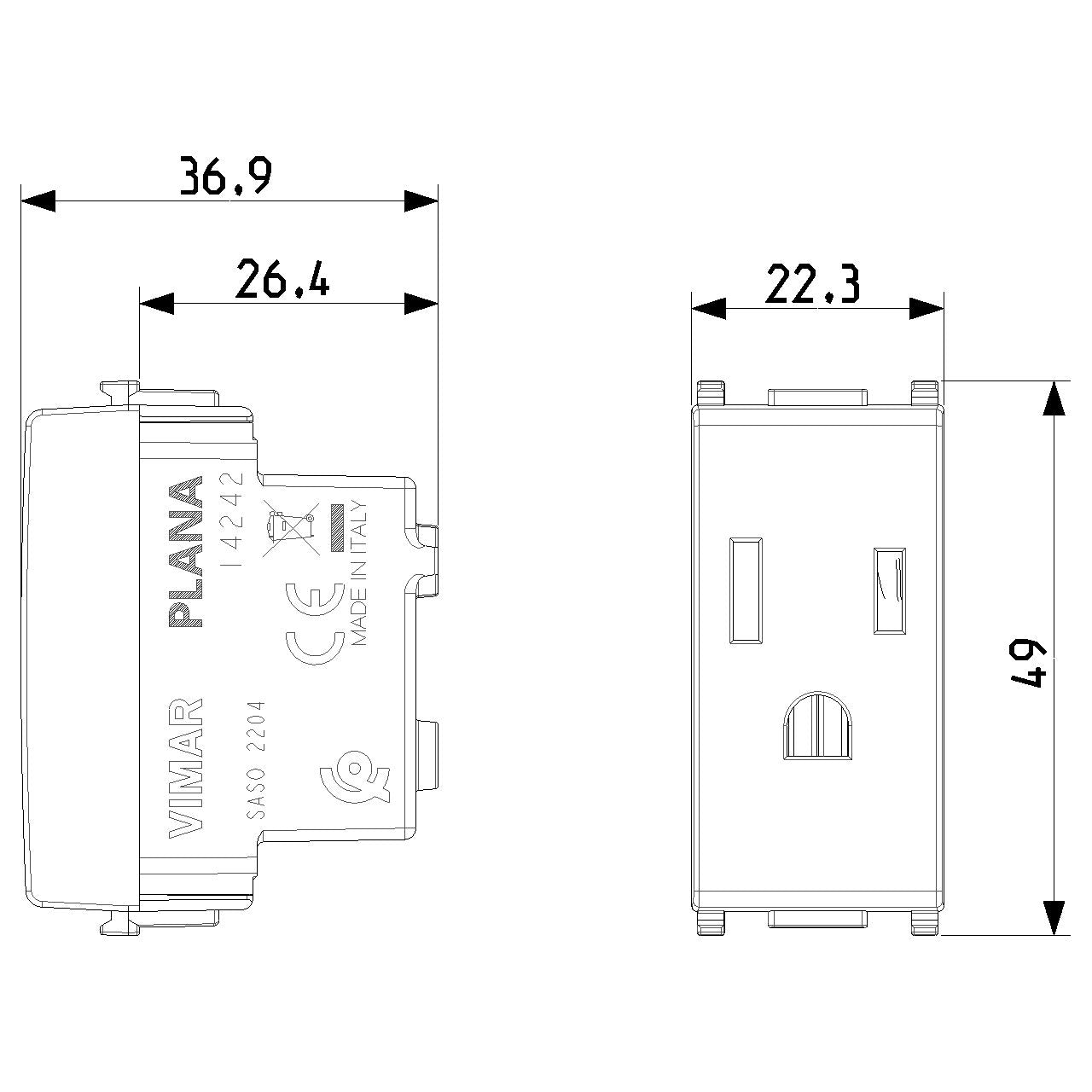

The body is made from halogen-free thermoplastic and the visible surface is glossy. Its IP20 rating means it belongs in protected interior spaces rather than exposed deck or washdown areas. The compact body measures 22.3 mm wide, 49 mm high, and 36.9 mm deep, which helps when panel depth is limited.

For marine refits, this outlet makes sense in cabins, galleys, nav stations, and other enclosed living spaces where the AC system is set up for 127 V receptacles to American and Saudi Arabian standards. It is a straightforward replacement or new-install option when the vessel already uses the Plana platform and a clean flush fit is part of the finish work.

Key features

• 2P+E outlet rated at 15 A and 127 V AC for 50 to 60 Hz service.
• Flush-mounted 1-module format for Plana installations where panel space is limited.
• Screw-terminal connection for fixed wiring.
• Enhanced contact protection built into the outlet.
• Halogen-free thermoplastic body with a glossy visible finish.
• IP20 protection for protected interior mounting locations.
• Compact dimensions of 22.3 x 49 x 36.9 mm.

Variants

This outlet is offered in two finish options within the Plana range.

The electrical and mounting format stays the same across both versions: 2P+E, 15 A, 127 V, 50 to 60 Hz, flush-mounted, 1 module, screw terminals, enhanced contact protection, IP20 protection, and the same 22.3 x 49 x 36.9 mm body. What changes between variants is the visible color and the surface treatment.

• VM14242: White, RAL 9003, untreated surface. This keeps the visible outlet face white for lighter interior panels and trim layouts.
• VM14242.SL: Silver, RAL 9006, lacquered surface. This changes the visible finish to silver while keeping the same electrical and mounting format.

Compatibility and mounting

This is a flush-mounted outlet for protected interior mounting points. Because it is rated IP20, it suits dry cabin spaces, enclosed helm areas, and other locations shielded from spray, washdowns, and weather.

Before ordering, check that your vessel uses 127 V AC service and that the installation is built around Vimar Plana 1-module devices. The screw-terminal connection suits fixed wiring, and the compact depth can help when the wall box or interior partition does not leave much room behind the device.

Use on board

This outlet is a good match for boats that need a clean interior receptacle for cabin power, galley use, or general onboard AC access in protected spaces. It also fits refit work where the rest of the switch and outlet line is already based on the Plana system and the visible finish needs to stay consistent.
