Vimar Plana 2P+E 10A Brazilian Standard SICURY Socket Outlet, 250V, IP20, Flush-Mount, Screw Terminal, Halogen-Free Thermoplastic
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

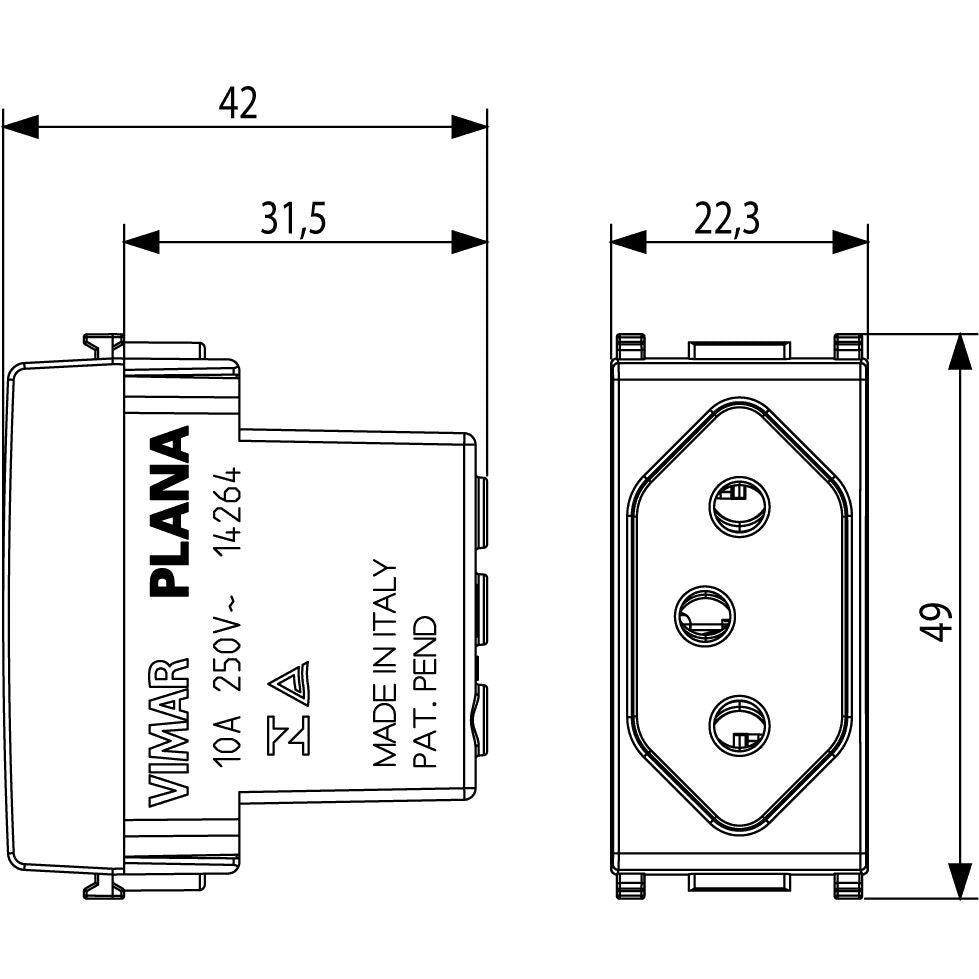

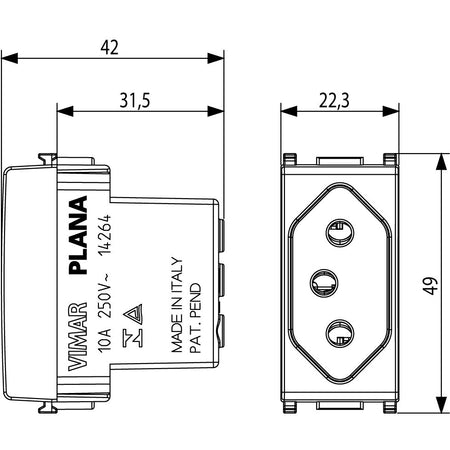

The Vimar Plana Series is a 2P+E Brazilian SICURY outlet for 10 A, 250 V AC circuits in flush-mounted installations. It uses a screwed terminal connection, fits a 1-module layout, and measures 22.3 x 49 x 42 mm, which helps when space is limited inside switch panels and interior fittings.
This outlet suits dry interior areas on board where a Brazilian-standard receptacle is needed and a flush finish keeps the installation tidy. The body is made from halogen-free thermoplastic with a glossy surface, and the SICURY contact protection adds a safer interface in living spaces and other crew-access areas. Its IP20 rating means it belongs in protected locations rather than open deck, washdown, or other wet zones.
Key features
- 2P+E Brazilian standard outlet rated for 10 A, 250 V AC, 50 to 60 Hz
- SICURY contact protection for safer use in onboard interior spaces
- Flush-mounted 1-module format for compact panel integration

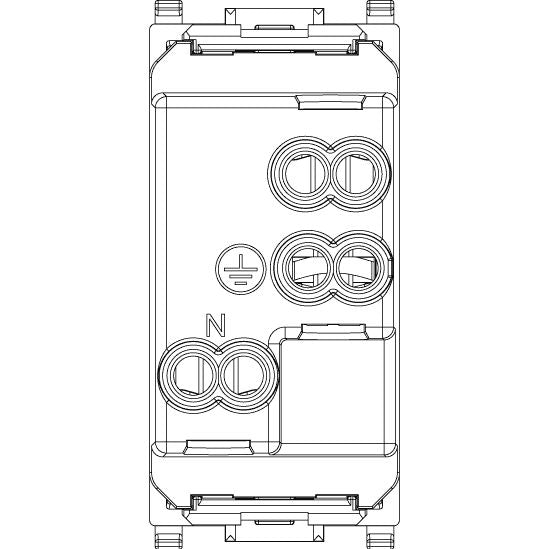

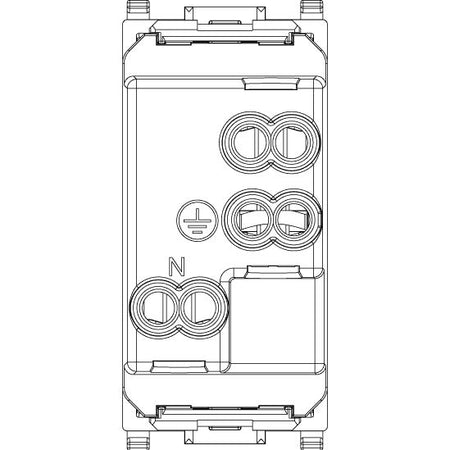

- Screwed terminal connection for fixed wiring installations
- Halogen-free thermoplastic body with glossy surface finish
- IP20 protection for dry, enclosed mounting locations
- Body size of 22.3 x 49 x 42 mm
Variants
This product is offered in two finish options within the same outlet format.
Across the listed variants, the electrical rating, terminal type, flush-mounted format, IP20 protection, and body dimensions remain the same. The change is the finish and surface treatment.

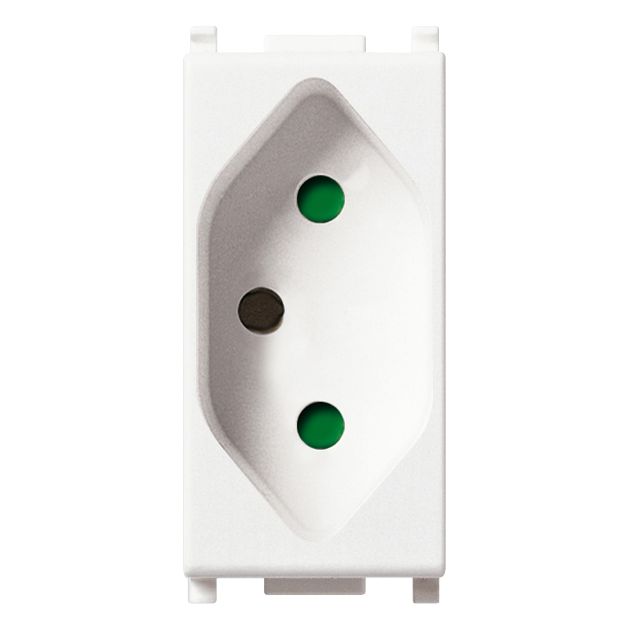

- VM14264: White finish with an untreated glossy surface. This keeps the look simple and works well with white trim and light interior panels.

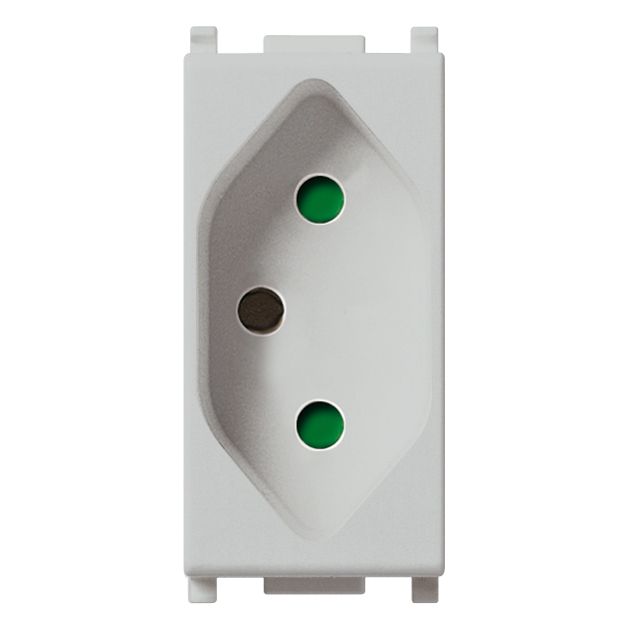

- VM14264.SL: Silver finish with a lacquered glossy surface. This gives the outlet a silver-toned face that suits interiors using grey or metallic-look hardware.
Installation and fit
This is a fixed-wiring outlet for flush mounting in a compatible Plana assembly. Before ordering, check that the vessel uses the Brazilian 2P+E plug pattern, that the surrounding support and cover parts match the Plana range, and that the circuit rating is appropriate for a 10 A outlet.
Because the connection is by screw terminal, it is better suited to permanent interior wiring than quick-swap accessory mounting. On board, it makes the most sense in protected cabins, saloons, enclosed helm areas, or other dry accommodation spaces where AC sockets are part of the interior fit-out.
Use on board
This outlet is a sensible match for refit and new-build projects that need a Brazilian-standard receptacle in guest spaces, cabins, galleys, or chart areas with a clean flush finish. It is not the right choice for exposed exterior locations or spaces that need a sealed outlet against spray, condensation, or washdowns.
