Vimar Plana MINI-COM Panduit Adaptor, Label Space, 22.3 x 49 x 20.5 mm

Overview

The Vimar Plana Series MINI-COM Panduit adaptor is a modular insert for structured wiring points that use Panduit MINI-COM modules in Plana installations. It gives the module a dedicated place in the outlet position while keeping the opening aligned with the rest of the plate layout.

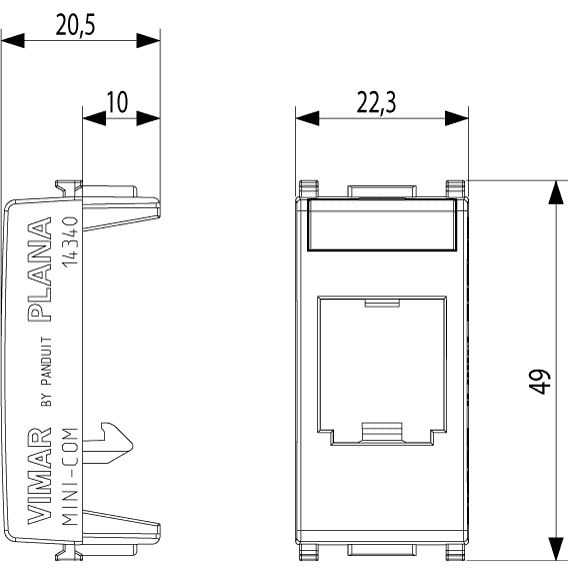

The adaptor measures 22.30 mm wide, 49.00 mm high, and 20.50 mm deep. It includes a front label space and uses an open face without a hinged lid, which helps when the connection point needs to stay visible for identification and routine access.

On board, this type of adaptor fits best in interior locations such as helm panels, nav stations, cabins, and service areas where structured cabling needs a neat finish inside a Vimar Plana setup.

Key features

• Made for Panduit MINI-COM modules in Vimar Plana structured wiring positions
• Compact 22.30 x 49.00 x 20.50 mm format for tight panel layouts
• Front label space helps identify network or signal runs at the outlet point
• Open face without a hinged lid keeps the module accessible for inspection and use
• Available in white RAL 9003 or silver RAL 9006 to match surrounding trim

Variants

This range is offered in two finish options for the same MINI-COM Panduit adaptor format.

The finish changes between variants. The overall dimensions, front label space, and open face without a hinged lid stay the same across both listed versions.

• VM14340.C.SL: Silver finish, RAL 9006. This version matches Plana installations that use silver trim and keeps the outlet point visually consistent across the panel.

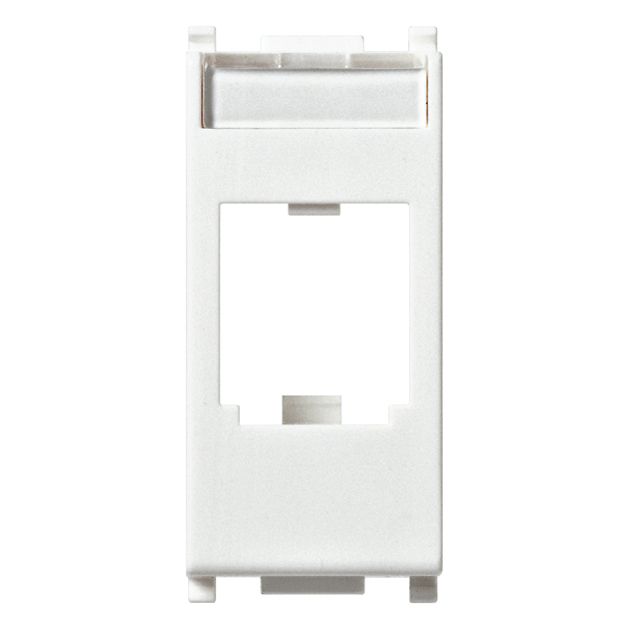

• VM14340.C: White finish, RAL 9003. This version suits Plana installations with white trim for a lighter look in cabins, nav stations, and other interior mounting points.

Compatibility and fit

This adaptor is intended for installations built around Vimar Plana devices and Panduit MINI-COM modules. It is the adaptor itself rather than the communication module, so it fits projects where the required MINI-COM insert is already specified for the vessel.

Before ordering, check that the surrounding support and cover plate family on board belong to the Plana range and that the finish matches the rest of the outlet position.

Use on board

This adaptor is a good match for refits and new builds that already use Vimar Plana accessories and want structured wiring points to stay consistent across the boat. The label window is especially useful where several low-voltage lines terminate in the same console, cabin, or service panel.
