Vimar Plana 1P NC Push Button, 10A, 250V, Lightable, Flush Mount
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

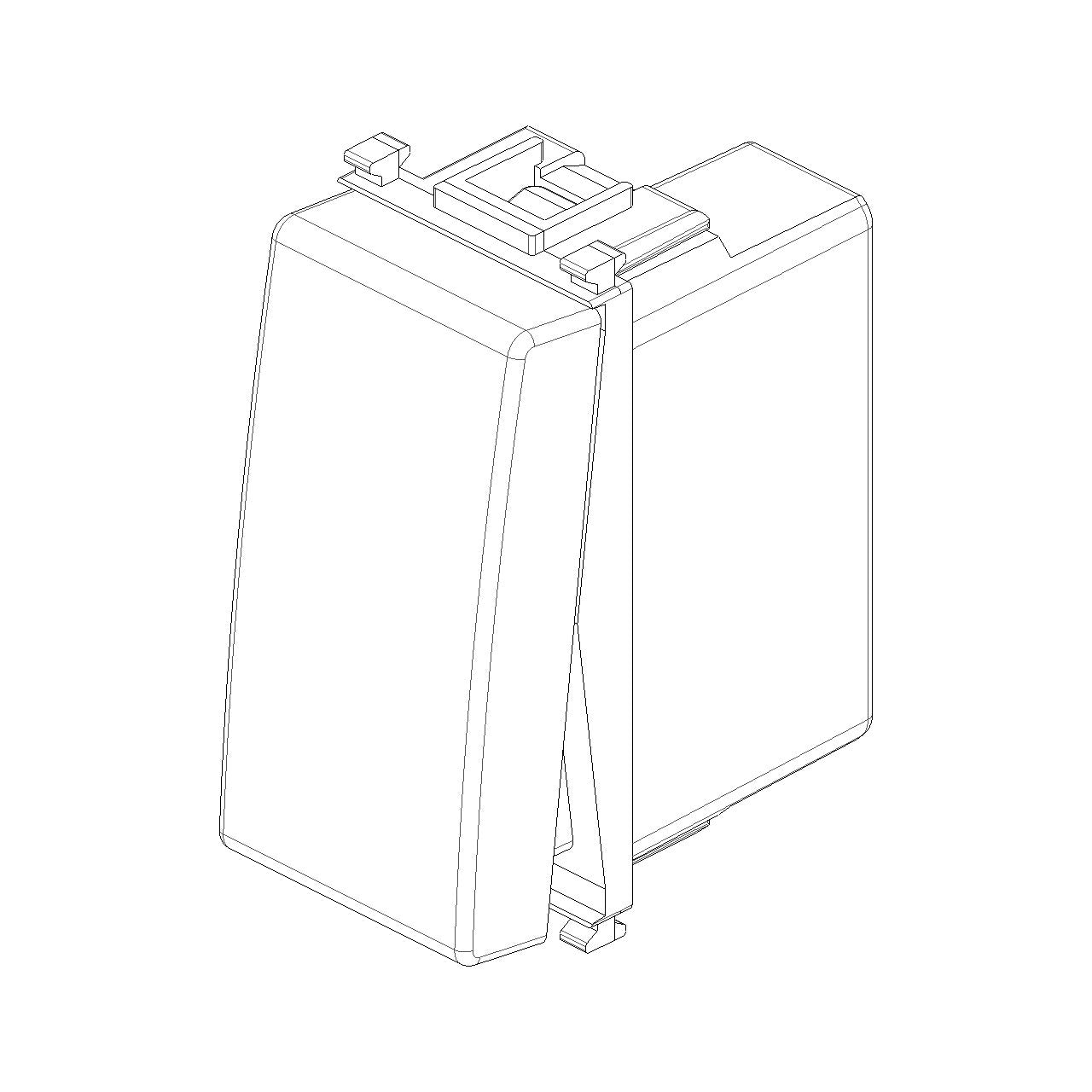

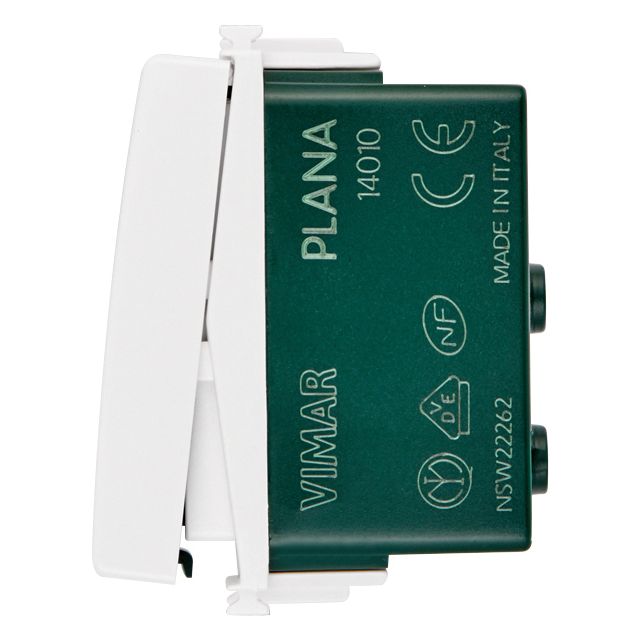

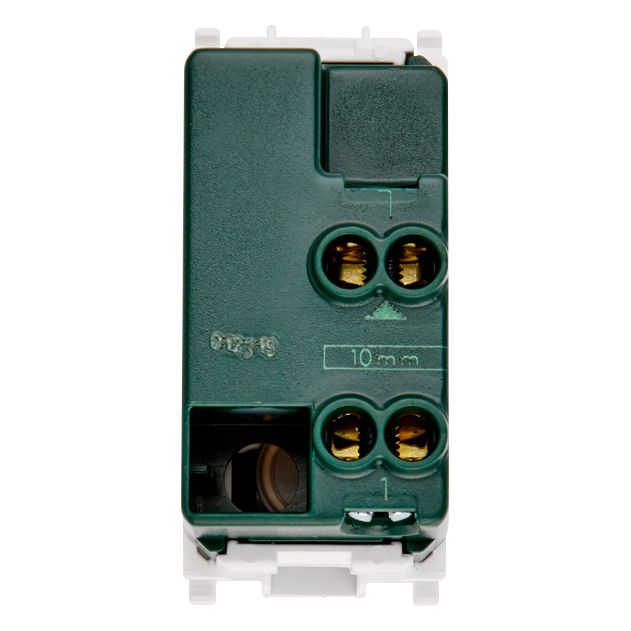

The Vimar Plana Series is a 1P NC push button for flush-mounted installations in the Plana modular range, rated at 10 A and 250 V with a lightable, replaceable button. It uses built-in mounting with snap fastening and carries an IP40 protection rating.

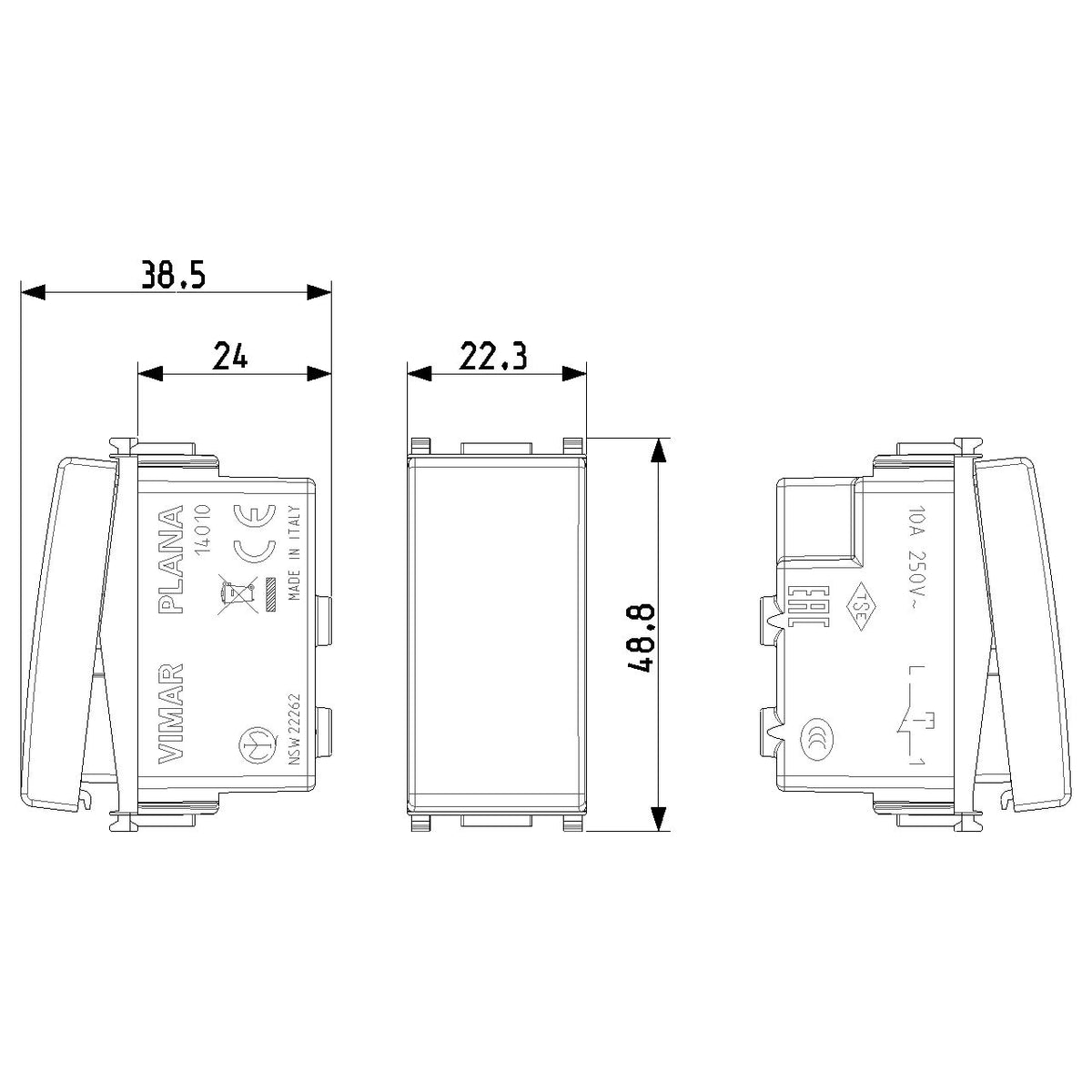

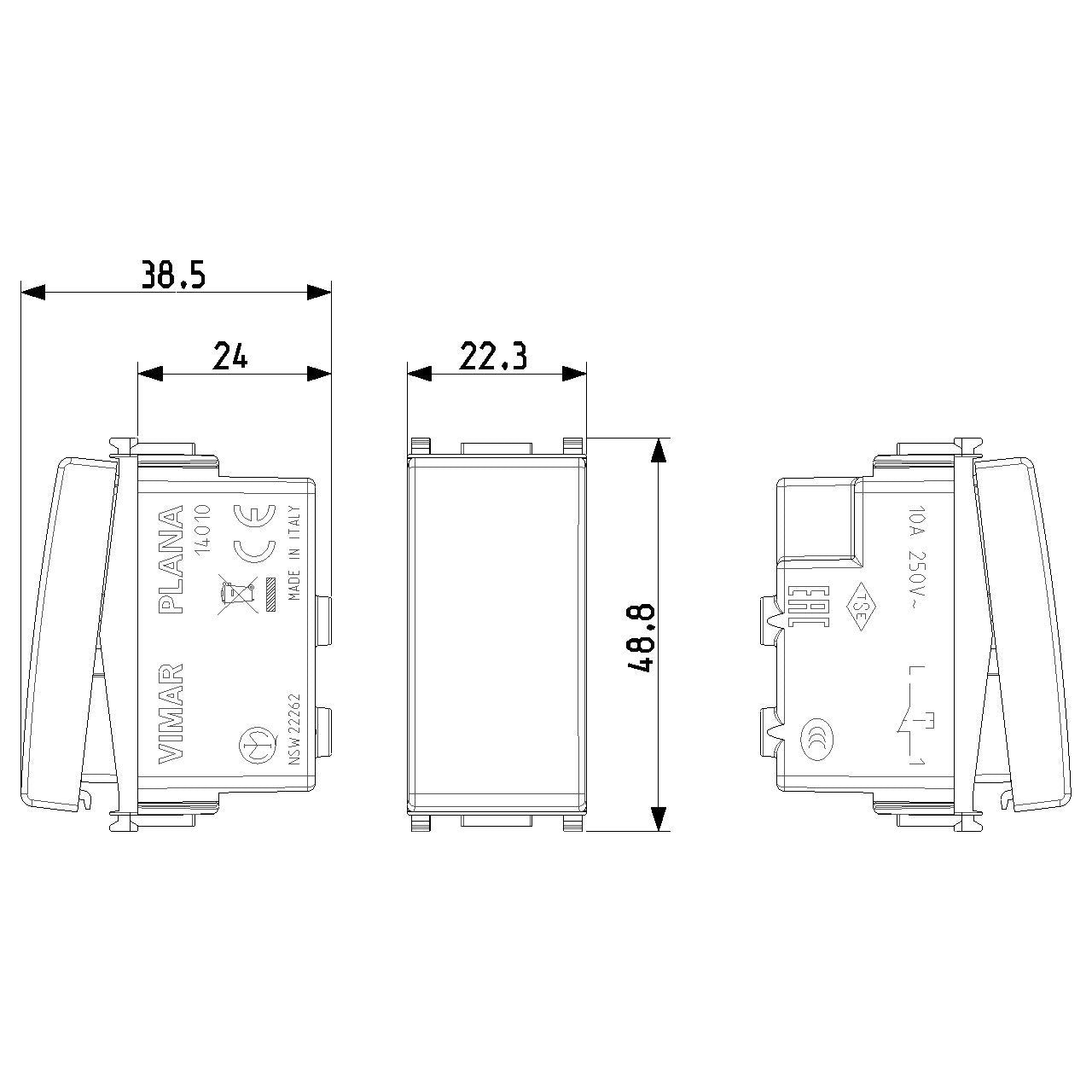

On board, it suits protected interior switch points where a momentary push action and a clean modular finish matter, such as cabin panels, enclosed helm consoles, or utility spaces. The body is made from halogen-free thermoplastic and stays compact at about 22.3 mm wide, with overall height and depth varying slightly by finish.
Key features
- 1P NC push button rated at 10 A and 250 V
- Lightable, replaceable button for circuits that need a visible locator or status light
- Built-in flush-mount format with engage snap fastening for Plana modular installations
- Halogen-free thermoplastic body with glossy finish and label space
- IP40 rating for protected interior locations
Variants
This product is offered in two color configurations within the same Plana push button format.
The finish, color, surface treatment, and outer dimensions change slightly between variants. The 10 A and 250 V rating, lightable replaceable button, thermoplastic construction, snap fastening, and IP40 protection rating stay the same across both versions.
- VM14010.SL: Silver, glossy lacquered surface, RAL 9006. This version matches silver Plana trim and keeps a metallic look across interior panels.
- VM14010: White, glossy untreated surface, RAL 9003. This version matches white Plana devices and keeps switch banks visually uniform in cabins and enclosed spaces.
Installation and fit

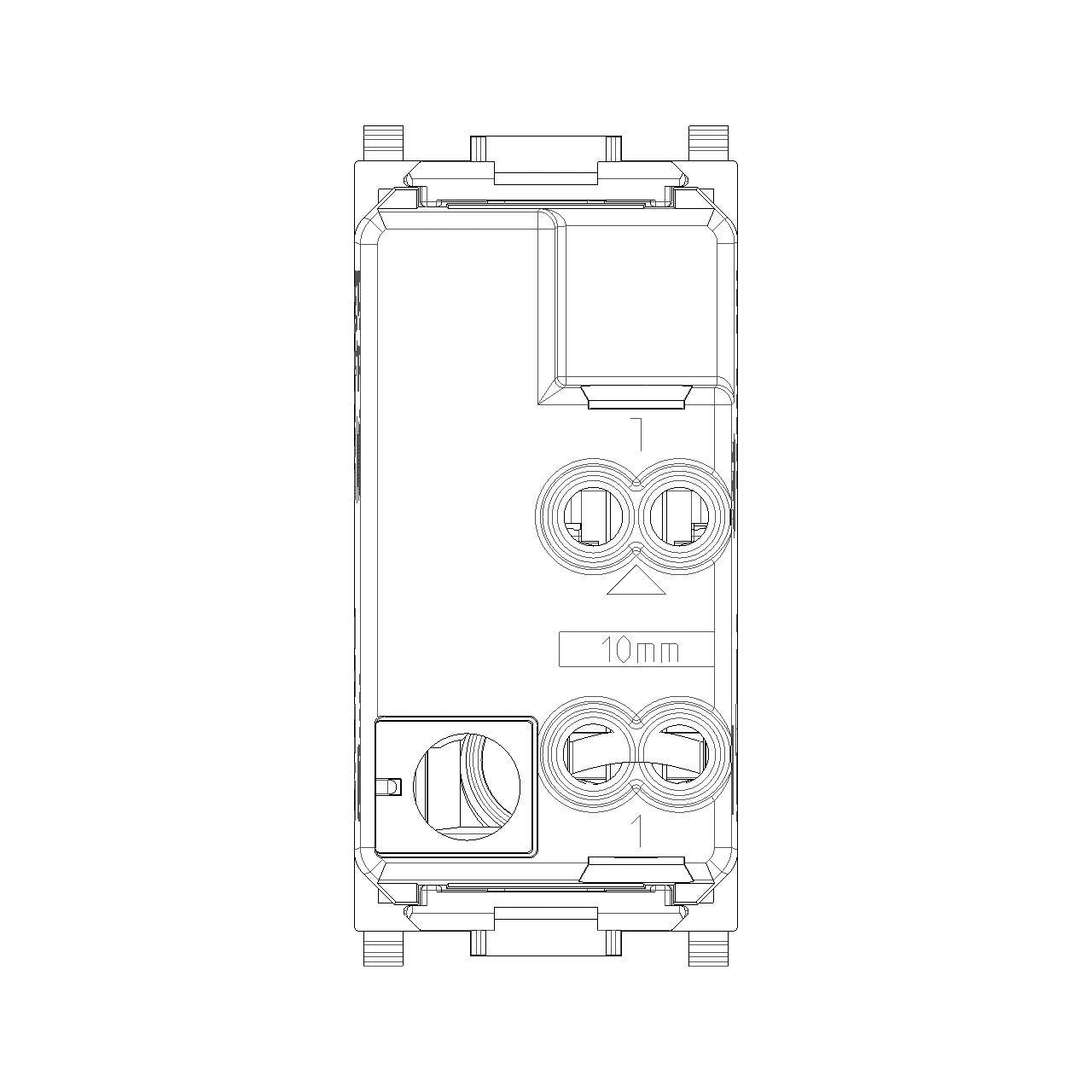

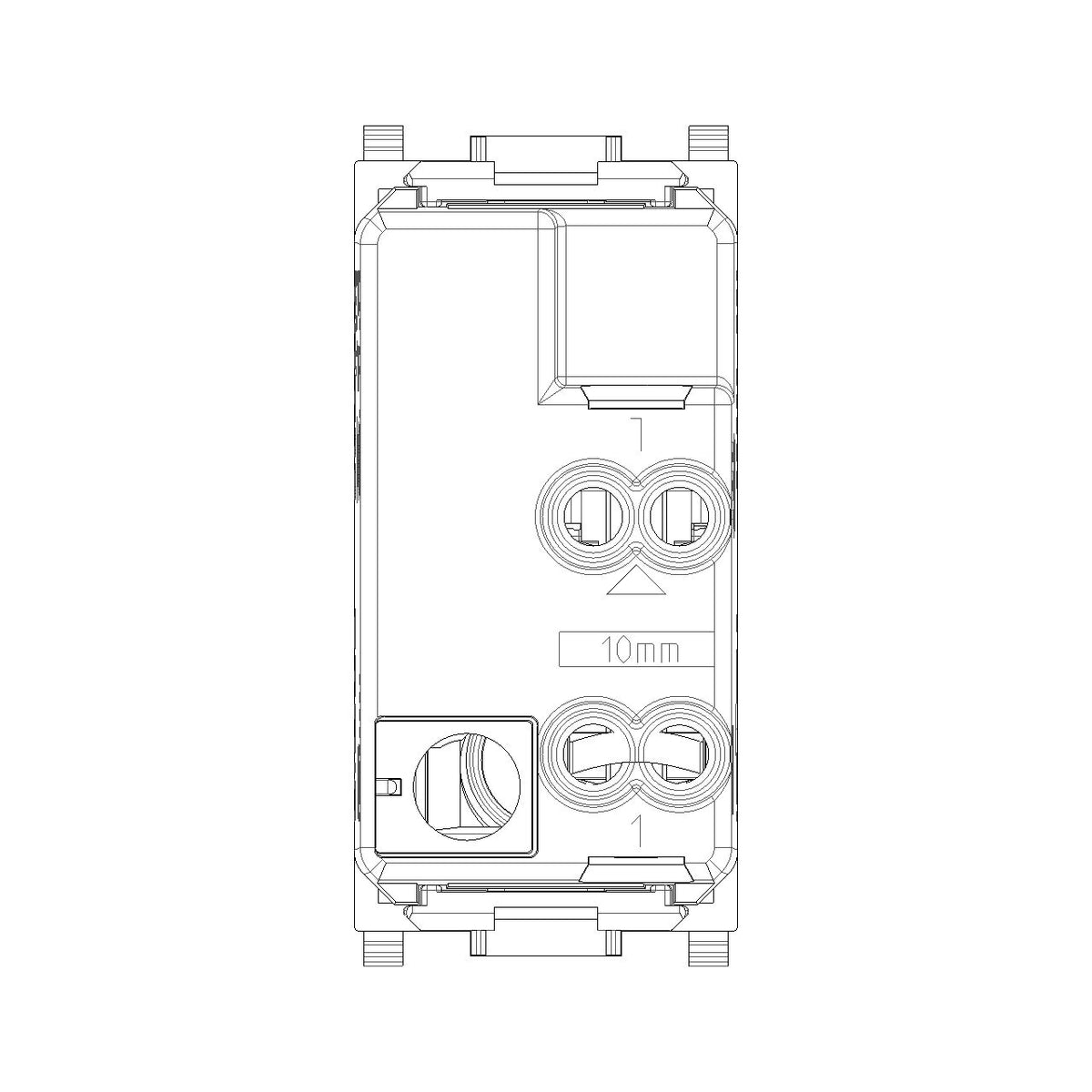

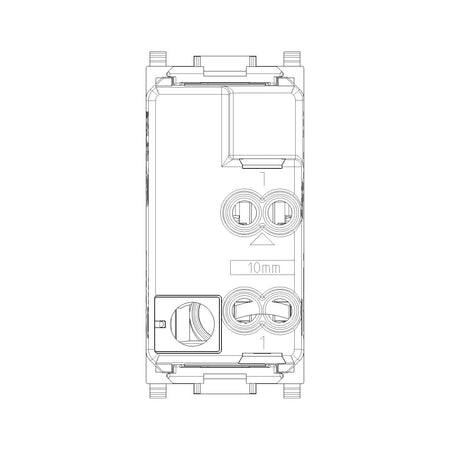

The module is intended for flush installation in compatible Plana support hardware. Before ordering, match the finish to the rest of the Plana devices already on the panel and confirm there is room for a body depth of roughly 38.4 to 38.7 mm.
Because the protection rating is IP40, it is better suited to dry, protected locations than exposed deck or washdown areas. It is a good match for boats that already use European-style modular wiring devices and need a momentary push button instead of a maintained switch.
