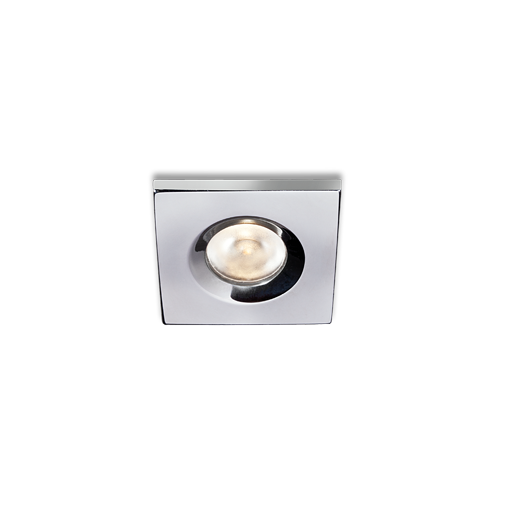

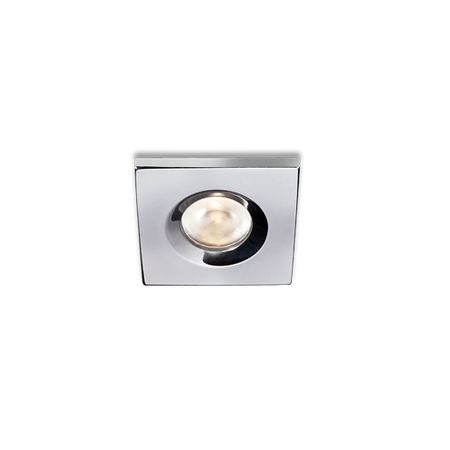

BCM - Sarasota 40 Downlight - Polished Stainless Steel, 1.5W, Screw Mount, Red LED, 8-32V, IP66
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Engineered Illumination for Marine Applications
The BCM Sarasota 40 is a polished stainless steel LED fixture designed to elevate marine lighting. With a focus on courtesy step lighting and indirect applications, this precision-engineered light utilizes the latest LED technology for efficient, reliable, and long-lasting performance. Lightweight and compact, it minimizes power consumption, emits less heat than traditional lighting, and ensures years of dependable operation when installed correctly.
Exceptional Durability and Performance
Designed for the demands of marine environments, the Sarasota 40 boasts an impressive IP66 ingress protection rating, ensuring resistance against dust and powerful water jets. It also includes advanced electrical protections such as reverse polarity, transient, and spike protection for added safety and reliability. The product complies with key certifications, including CE, EMC, RoHS, and REACH, ensuring adherence to high-quality and environmental standards.
Compact and Functional Design
This recessed LED light is engineered for versatility, featuring a medium beam and a trim ring with a polished stainless steel finish. It is compact yet powerful, making it suitable for both courtesy and general lighting applications. The lightweight frame is crafted from durable stainless steel, while the recessed body is made from a high-tech compound, ensuring a robust and stylish design.
Technical Specifications
- Max Wattage: 1.5W
- Voltage Range: 8–32 VDC (driver on board)
- Lifetime Hours: 50,000 hours
- Light Technology: LED
- Output Color: Red
- Dimmable Compatibility: DMS dimming system
- Beam Type: Medium
- Electrical Protections: Reverse polarity, transient, and spike protection
- Certifications: CE, EMC, RoHS, REACH
Product Dimensions
- Cut-Out Dimensions: 27mm (1.06 in)
- Trim Ring Dimensions: 40mm x 16mm (1.57 in x 0.63 in)
- Recessed Depth: 20mm (0.79 in)
Finishes
The Sarasota 40 is available in a polished stainless steel finish, ensuring a sleek and professional appearance.
Highlights
- Compact and lightweight design ideal for marine applications
- Red LED output for step and courtesy lighting
- Advanced IP66-rated protection for marine environments
- Energy-efficient with minimal heat emission
- Durable materials with polished stainless steel frame
- Certified to meet CE, EMC, RoHS, and REACH standards
