BCM - Phoenix 95 Downlights - With Switch, Polished Stainless Steel, Spring mount, 3000K, 8-32VDC
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Precision-Engineered Lighting for Marine Applications
BCM Phoenix 95 downlight fixtures are expertly designed to meet the unique demands of marine lighting environments. This advanced LED lighting solution combines precision engineering with cutting-edge technology to deliver exceptional performance, durability, and efficiency. The Phoenix 95 series offers lightweight construction, low power consumption, superior reliability, and reduced radiated heat compared to traditional lighting options. Designed for long-lasting use, the Phoenix 95 downlight ensures dependable performance in even the most challenging marine conditions.
Technical Specifications
- Light Source: Power LED
- Power Consumption: Max 4W
- Input Voltage: 8–32 VDC (driver on board)
- Luminous Flux: 323 lumens
- Color Temperature: 3000K (Warm White)
- Lifetime Hours: 50,000 hours
- Dimmable Compatibility: DMS
- Beam Angle: Wide
- Screen Material: Frosted glass (Opal Screen O)
- Ingress Protection Rating: IP65+ (up to IP66)
- Electrical Protections: Reverse Polarity, Transient, and Spike Protection

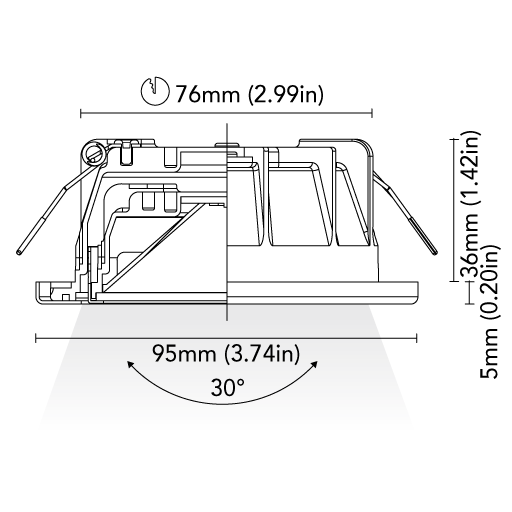

Product Dimensions
- Trim Ring (Bezel) Dimensions: 95mm (3.74 inches) diameter
- Cut-Out Dimensions: 76mm (2.99 inches)
- Recessed Depth: 36mm (1.42 inches)
- Light Size: 3.74 inches
Finishes
The Phoenix 95 features a polished stainless steel trim ring, offering a sleek and durable finish ideal for marine applications.
Highlights
- Precision-engineered for marine environments
- Lightweight and durable construction
- Minimal power consumption and superior reliability
- Reduced heat emission compared to traditional lights
- Adjustable downlight with polished stainless steel spring mounting system
- Designed to withstand challenging conditions with an IP66 rating
