BCM - Evia 3-35H Triple Adjustable Downlight - 2700-6000K, Tunable White, 24VDC
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Superior Illumination with Versatile Design

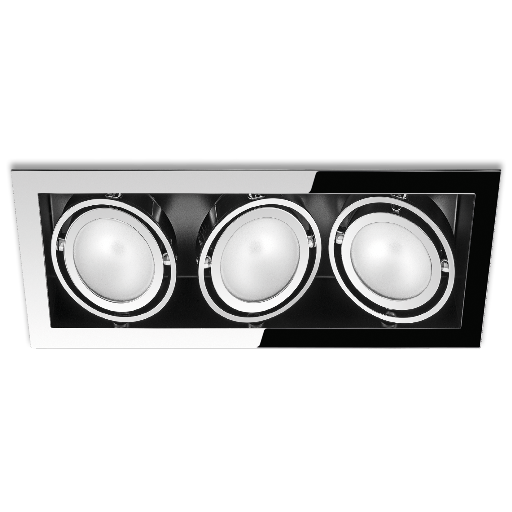

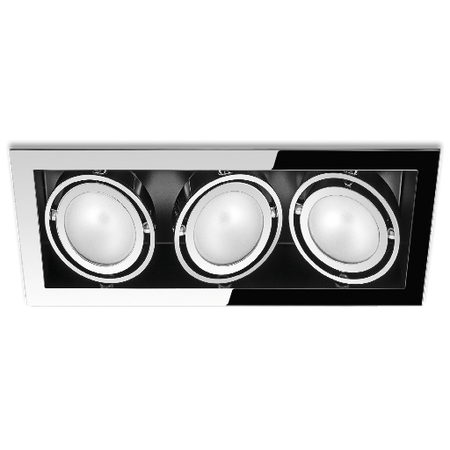

The Evia 3-35H Triple Adjustable Downlight is a recessed rectangular fitting designed to deliver precise, high-quality lighting for interior marine applications. With its triple adjustable downlights, this unit provides excellent adaptability for targeted illumination. Its compact frame, measuring 250x100mm with a recess depth of only 35mm, ensures it blends seamlessly into ceilings, making it ideal for stylish and functional lighting in cabins, lounges, or corridors.
Equipped with tunable white technology, the Evia 3-35H offers a customizable color temperature range from 2700K to 6000K, allowing you to create the perfect ambiance for any setting. The integrated driver with electrical protections ensures smooth operation, even in demanding marine environments.
Key Technical Features for Marine Applications
- Light Source: Power LED
- Power: Maximum 4.0W
- Input Voltage: 8-32 VDC
- Dimmable: Yes
- Beam Angle: Wide
- Ingress Protection Rating: IP20 (Interior Use)
- Electrical Protections: Transient and reverse polarity
Compact and Durable Construction
- Body Materials: Rectangular brass body with aluminum heatsink and brass adjustable reflectors
- Mounting System: Stainless steel springs for secure and easy installation
- Lens Material: Satin screen for diffused, glare-free lighting

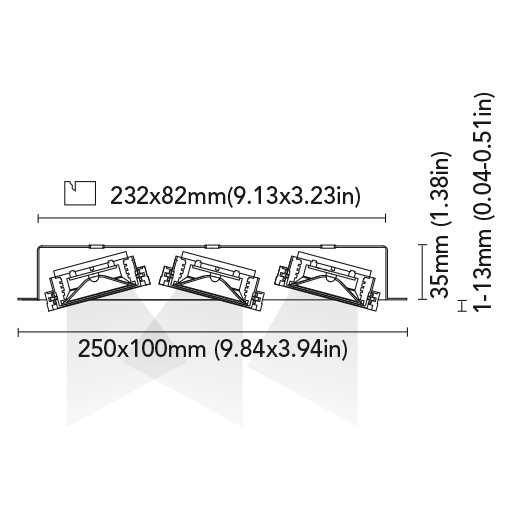

Product Dimensions for Seamless Integration
- Trim Ring (Bezel) Dimensions: 9.84" x 3.94" (250mm x 100mm)
- Cut-Out Dimensions: 9.13" x 3.23" (232mm x 82mm)
- Recessed Depth: 1.38" (35mm)
Elegant Polished Finish
The Evia 3-35H features a polished stainless steel finish, adding a sleek and modern touch to interior spaces. This durable finish resists corrosion, making it well-suited for marine applications.
Highlights
- Triple adjustable downlights for customizable lighting angles
- Tunable white technology (2700K-6000K) for ambiance control
- Compact and low-profile design with high-quality materials
- Dimmable for enhanced versatility
- Easy installation with robust stainless steel spring mounts
