Garmin Flush Mount Kit, For echoMAP Plus/UHD 9-Inch Chartplotters

Overview

The Garmin 010-12673-01 is a flush-mount hardware kit for Garmin echoMAP Plus and echoMAP UHD 9-inch chartplotter and fishfinder displays, including 9xsv models.

It lets the display sit tight to a flat helm panel so the unit looks built-in instead of sitting on a surface bracket. This is a mounting accessory only, intended for dash and console installations where you want the screen in a fixed position.

The kit includes a cutout template along with the mounting pieces needed to secure the unit once the opening is made.

Key features

• Flush-mount installation for compatible Garmin echoMAP Plus 9-inch displays and echoMAP UHD 9-inch displays
• Mounts the display against most flat console surfaces for a built-in helm layout
• Cutout template helps lay out the opening and fastener locations accurately
• Mounting hardware is included for fastening the display to the panel
• Fixed installation keeps the unit steady when running in chop and frees up space on busy helm tops
• Front of the unit sits close to the panel, which helps reduce snag points compared with a bail mount

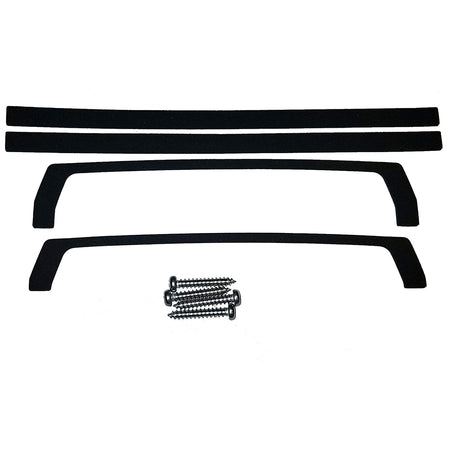

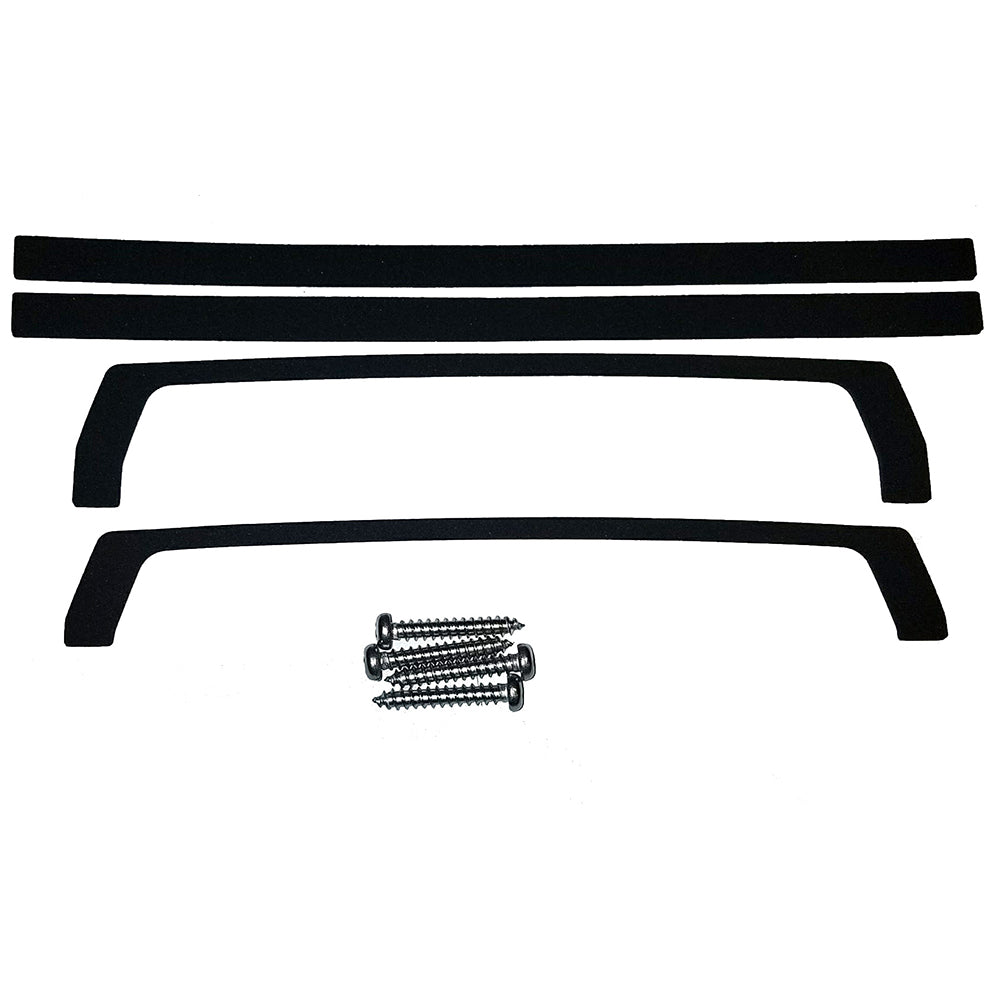

What's included

• Flush-mount hardware
• Cutout template
• Installation instructions

Compatibility and fit

This kit is intended for Garmin echoMAP Plus and echoMAP UHD 9-inch displays. Confirm your display is the 9-inch size before ordering, since the cutout and fastener pattern are specific to that footprint.

Flush mounting needs a flat area large enough for the unit and enough room behind the panel for connectors and cable bend radius. If your mounting surface is curved, uneven, or too thin to support the unit securely, a standard bracket mount may be the better fit.

Installation and setup

Use the supplied template to lay out the cutout, then do a dry fit before final fastening. Plan cable routing before you tighten everything down, and leave enough slack to unplug the unit later for service.

On open boats that see spray or regular washdowns, sealing the raw edge of the cutout in the panel helps protect the core material and keeps water from wicking into the dash.

Who it's a good match for

This mount style suits center consoles, bass boats, and cruisers where the display stays on the boat and you want a clean helm face with fewer protruding brackets.
