Vimar By-me Plus DIN-Rail Master Dimmer, 230V, Universal/LED Retrofit Loads, IP20
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

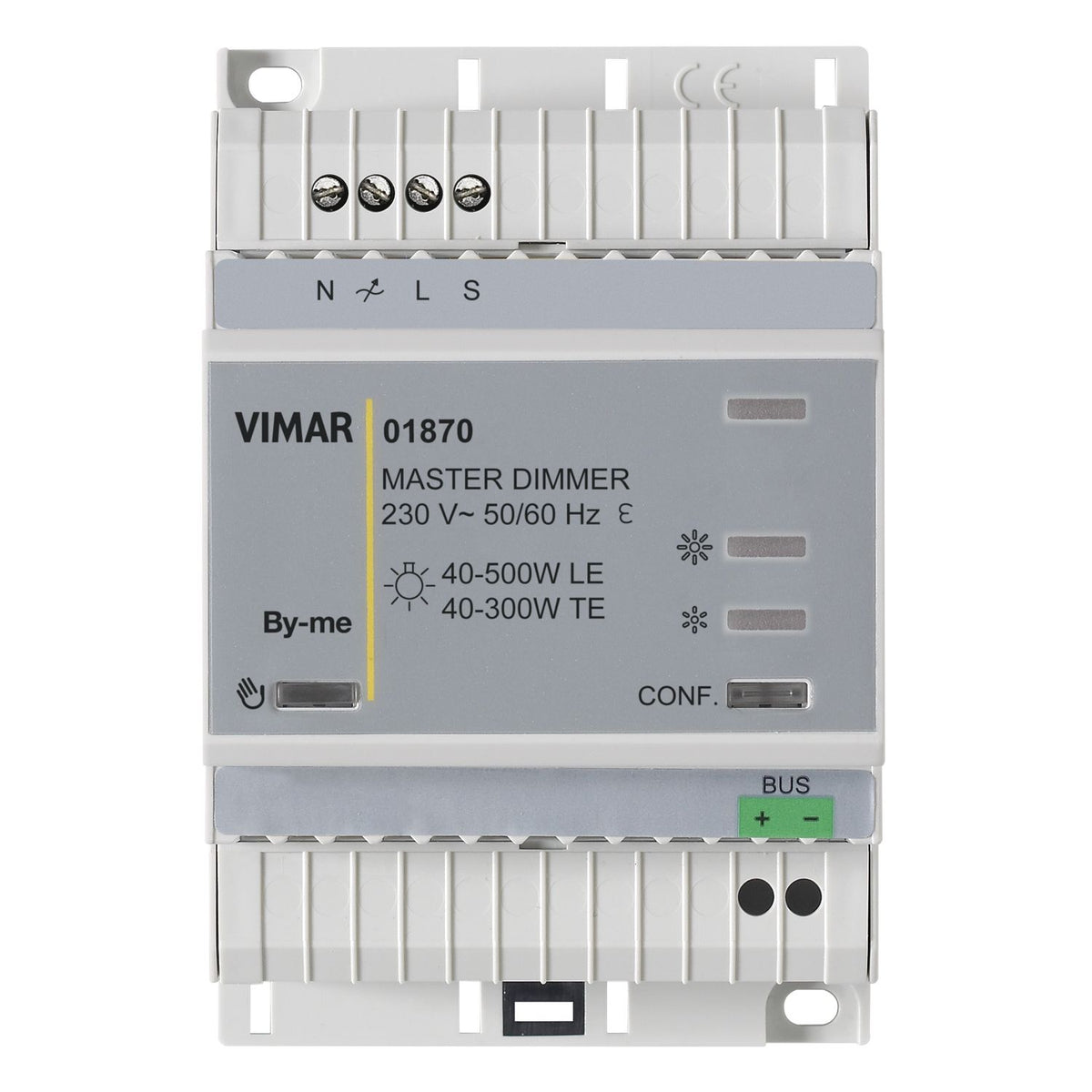

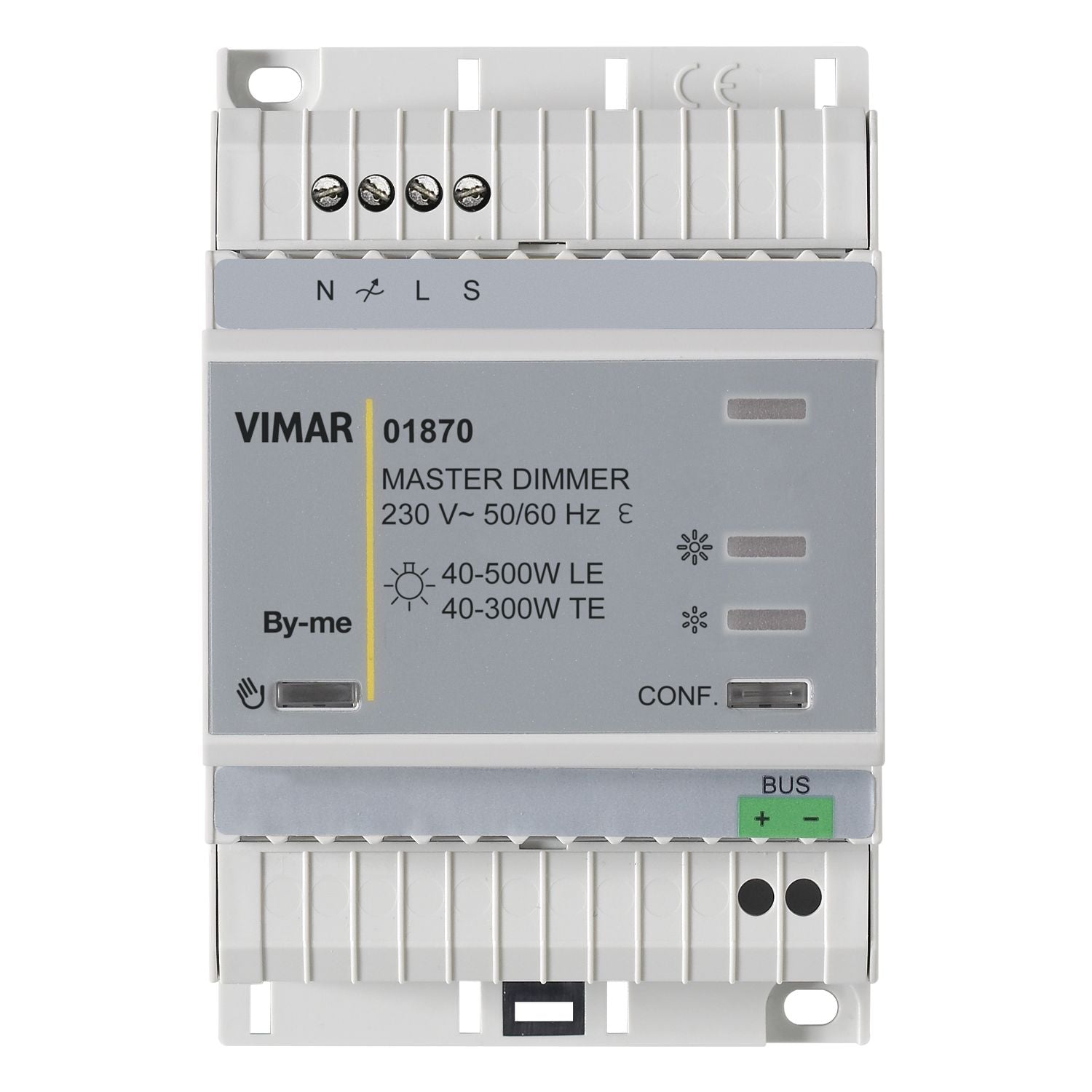

The Vimar VMR01870 is a 230 V AC MASTER dimmer module for DIN-rail electrical panels, used to dim a single lighting output inside a Vimar By-me Plus installation. It handles common mixed loads you see on boats with shore power or inverter-fed AC lighting, including 40 to 500 W incandescent, 40 to 300 VA electronic transformers, 10 to 200 W CFL, and 3 to 200 W LED loads.
It mounts on a 60715 TH35 DIN rail and takes up 4 standard modules (17.5 mm each), so it fits cleanly in a structured AC distribution cabinet. The front LED indicator helps with quick status checks during commissioning, and an internal protection fuse adds a layer of protection if a fault develops on the circuit.
Key features
- 230 V AC, 50/60 Hz dimming module for one lighting output in a bus-controlled installation
- Load support range covers incandescent (40 to 500 W), electronic transformers (40 to 300 VA), CFL (10 to 200 W), and LED (3 to 200 W), including LED electronic power supply units
- DIN-rail installation on 60715 TH35, with a 4-module footprint (4 x 17.5 mm)
- IP20 protection rating for installation inside a protected electrical enclosure
- Onboard LED indication and an integrated protection fuse for service troubleshooting
Compatibility and fit
This is a 230 V device, so it belongs on vessels with 230 V AC distribution (shore power, generator, or a 230 V inverter system). It is not a 12 V or 24 V dimmer, and it is not meant for low-voltage LED strip circuits unless those strips are driven from a suitable 230 V dimmable power supply that stays within the listed load range.
Before ordering, match the connected load type and total wattage to the ranges above, and confirm the lamps or drivers are intended for dimming. When LED loads flicker or drop out at low levels, the cause is usually the driver or lamp, not the module, so compatibility checks up front save time during install.
Installation and setup
Plan for a dry, protected mounting location in the AC panel or automation cabinet, since the housing is rated IP20. Leave room for wiring bend radius and panel airflow, and keep it away from areas that regularly see spray, washdown, or condensation.
Because this is mains voltage equipment, installation should follow marine electrical practices for AC systems, including correct upstream protection and enclosure grounding. If the protection fuse opens, replace it only with the same type and rating specified for the unit.
Use on board
This module makes sense on yachts and larger boats where cabin or saloon lighting is run on 230 V and controlled from a centralized automation panel. It is also a practical spare for maintaining an existing By-me Plus installation, where matching the original module footprint and load behavior matters during a refit or service call.
Product lifecycle
This item is listed as a spare part and is marked to be discontinued, which is worth factoring in if you maintain a boat with a standardized automation spares kit.
