Vimar Linea 4-Module Mounting Frame, Flush Mount, With Screws, Thermoplastic

Overview

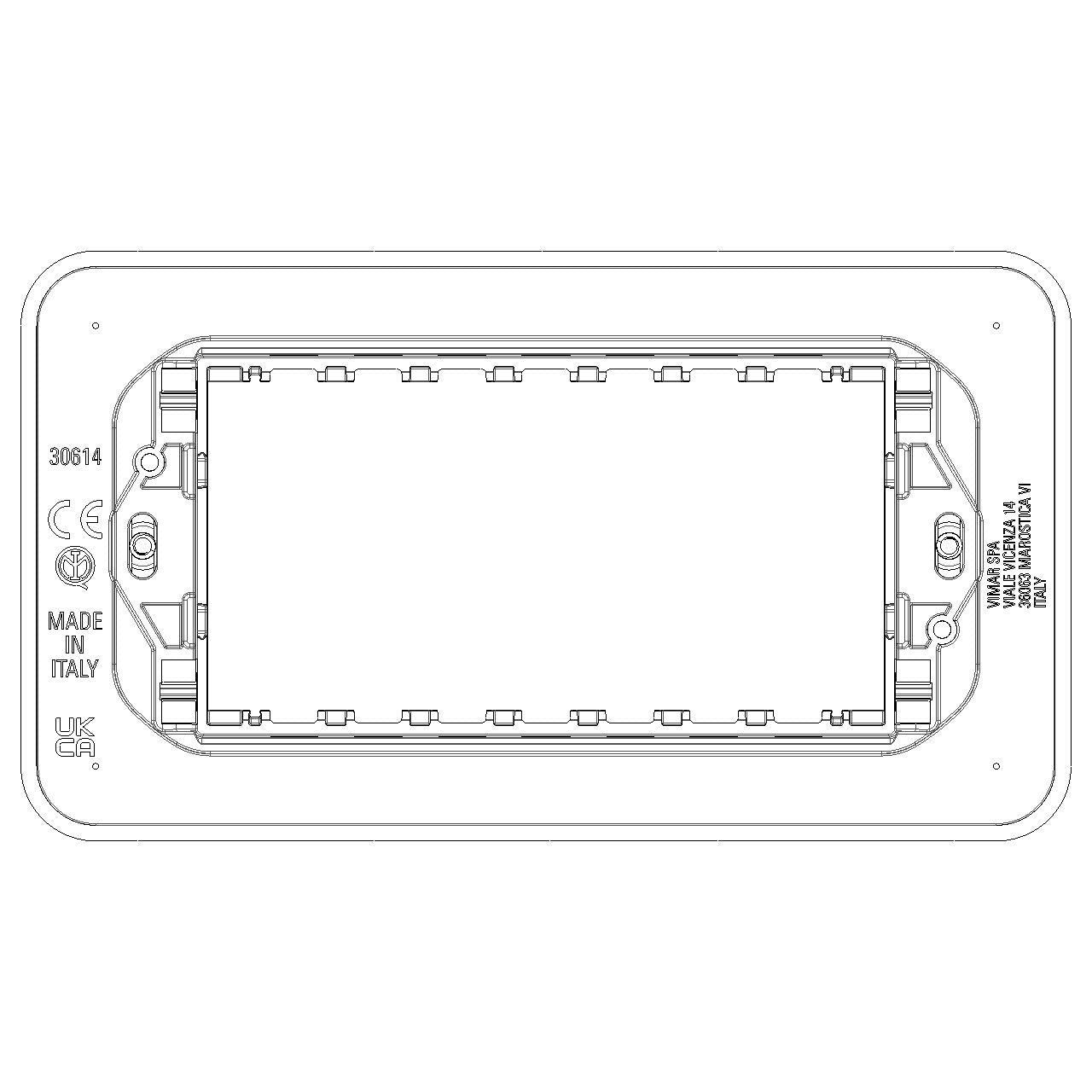

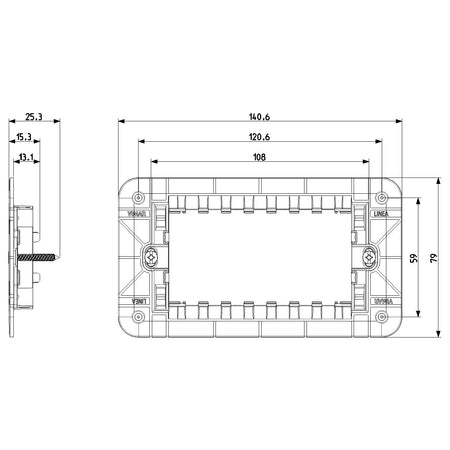

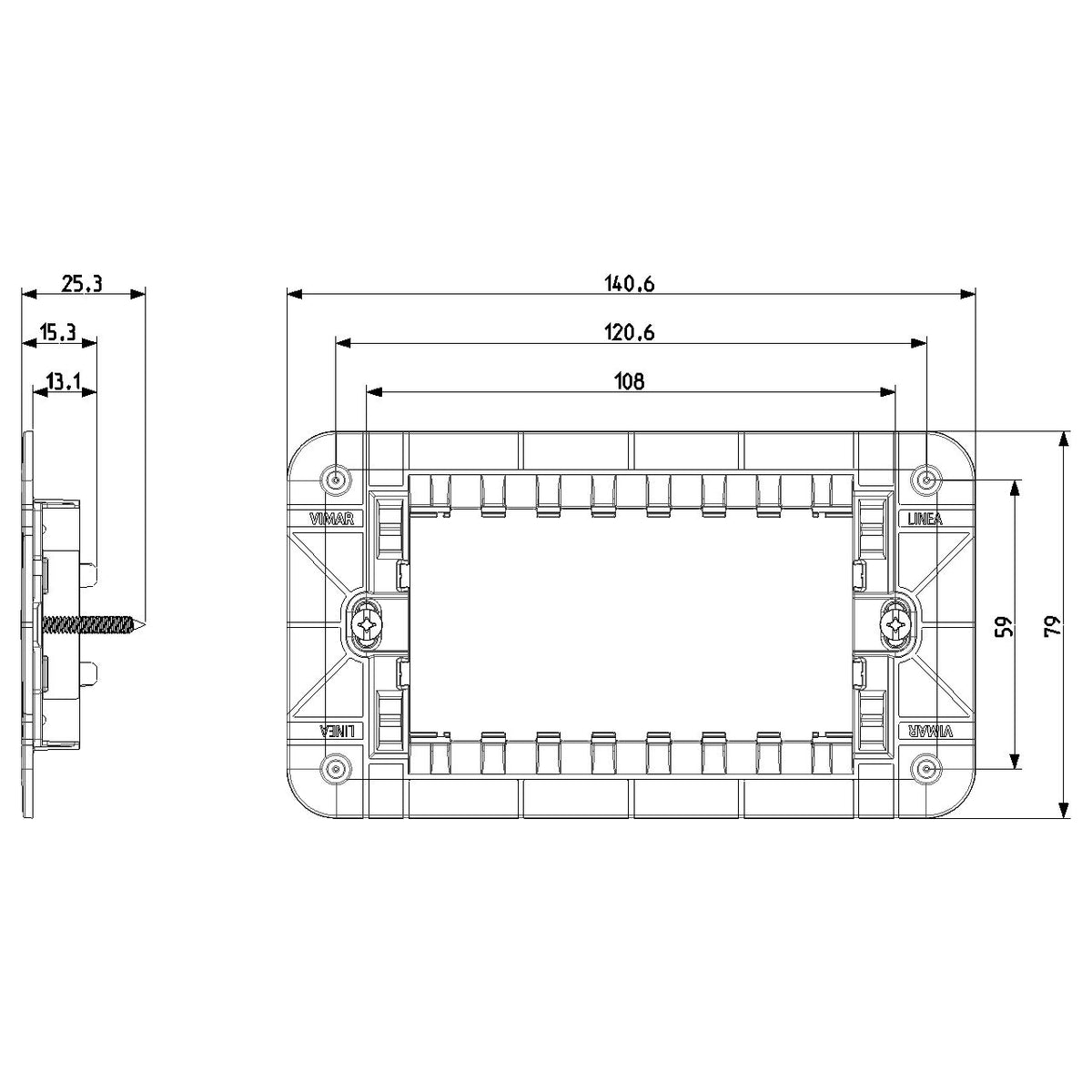

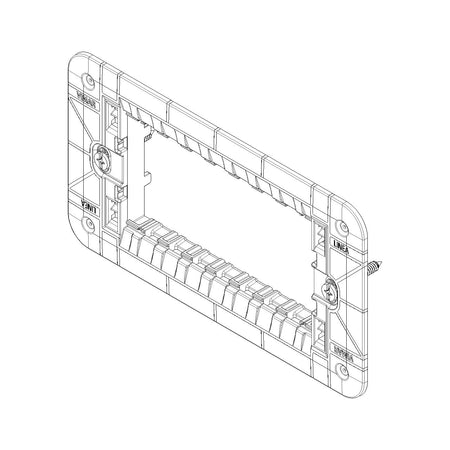

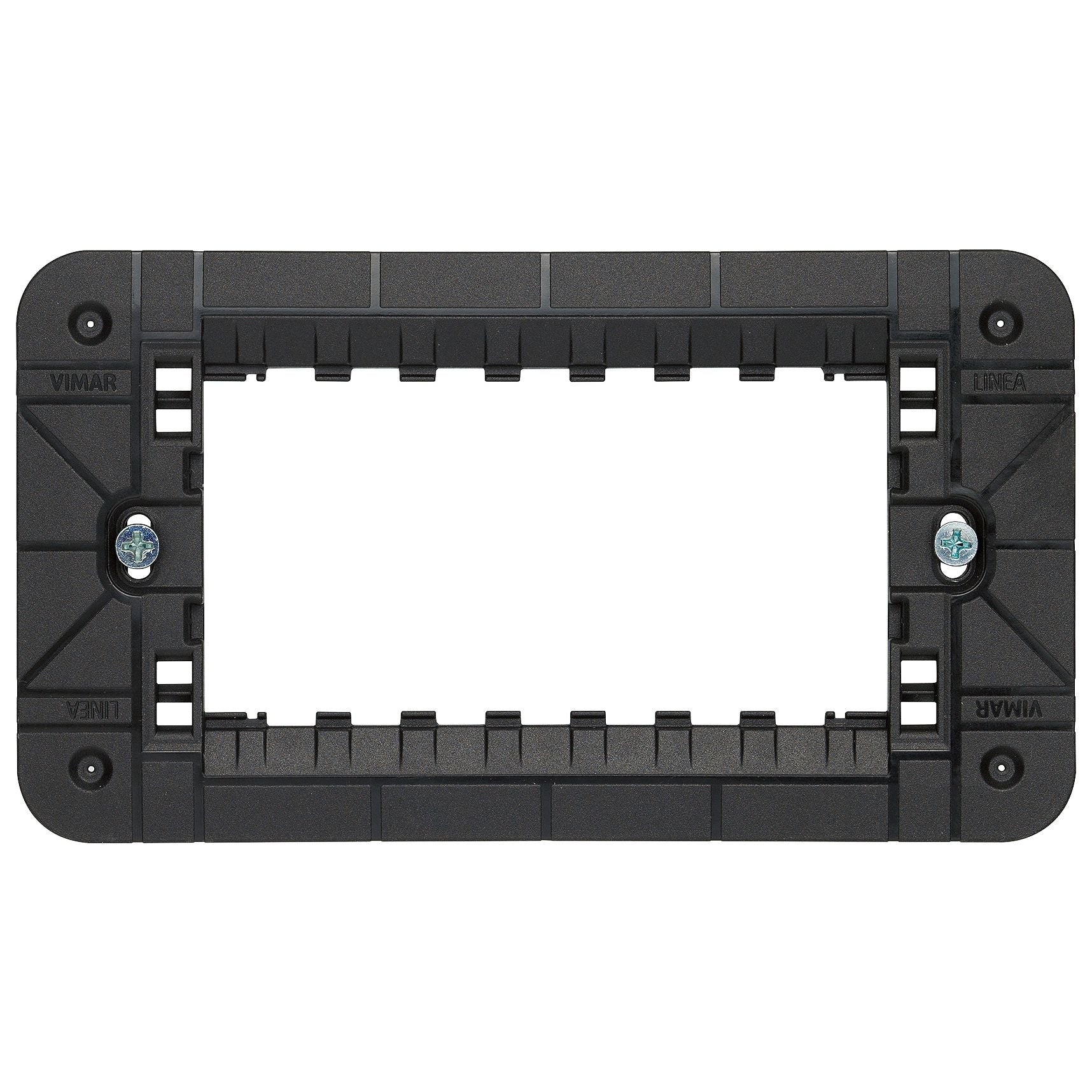

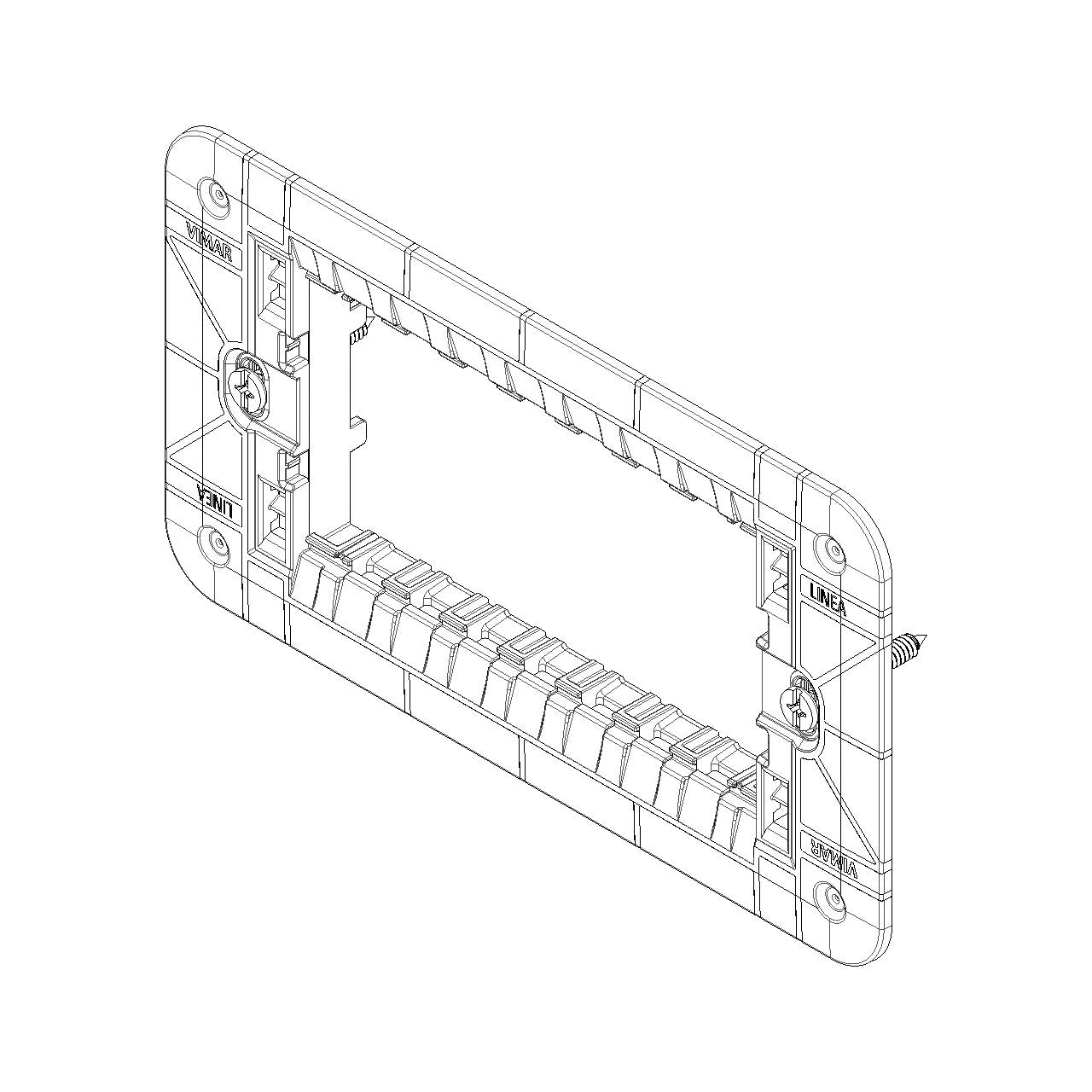

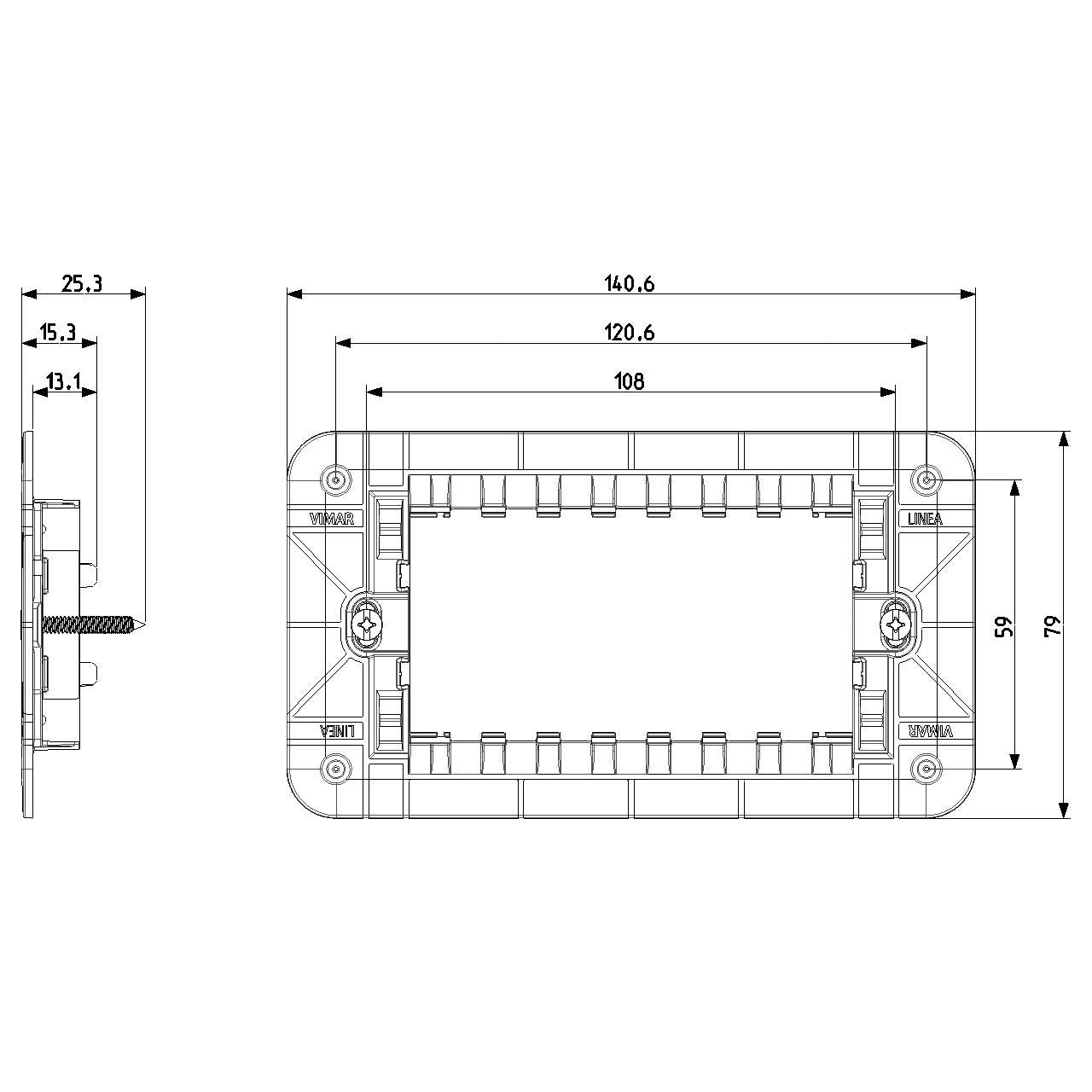

The Vimar VM30614 is a 4-module mounting frame with screws for Vimar Linea 4-module flush-mounted boxes.

It gives Linea modular inserts a solid fixing point so controls stay seated and aligned once installed in a bulkhead, liner, or console panel. Modules insert from the front, and the frame can be oriented horizontally or vertically to match the way your box is set.

The frame is made from thermoplastic with an untreated surface, which suits protected interior locations on board such as cabins, the nav station, or inside a dry console where you want a clean flush finish.

Key features

• 4-module mounting frame for the Vimar Linea modular system
• Flush-mounted support with screw fixing
• Front-side module insertion for easier assembly and servicing
• Horizontal or vertical mounting orientation
• Thermoplastic body with an untreated surface
• Not intended for 60 mm round boxes or DIN-rail mounting

What’s included

• 4-module mounting frame
• Fixing screws

Compatibility and fit

This is a mechanical support for the Linea range and a 4-module flush-mounted box. It does not change electrical ratings, which come from the Linea modules you install in the frame.

Before ordering, confirm your back box is a 4-module type and that your chosen Linea inserts match the layout. For refits, it also helps to check that existing mounting points line up and that wiring has enough slack to pull inserts forward for inspection.

Installation and setup

Fix the frame to the flush box using the supplied screws, then mount the Linea inserts from the front. On boats, support conductors so the back of the modules is not taking strain and avoid tight bends that can work loose with vibration.

If the location can see damp air or frequent wipe-downs, focus on how the faceplate area is sealed and keep the box cavity as dry as practical.

Who it suits on board

It is a good match for builds and refits using Vimar Linea modular devices in cabins, galleys, and control panels where you need a flush look and flexibility to mount the box either way.

Maintenance and care

During periodic checks, make sure the frame screws stay snug and that inserts sit evenly. If modules are removed for service, pull straight from the front to avoid stressing surrounding trim and to keep alignment clean when reinstalled.
