Vimar Arké 3-Module Mounting Frame, Flush-Mounted, With Screws
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

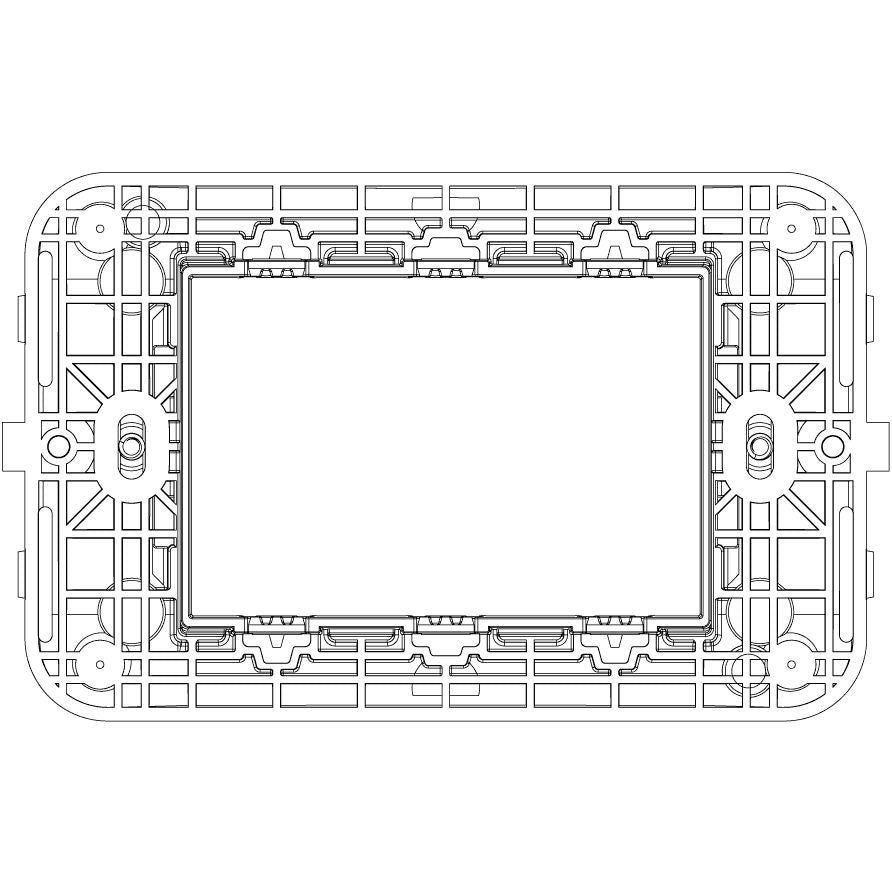

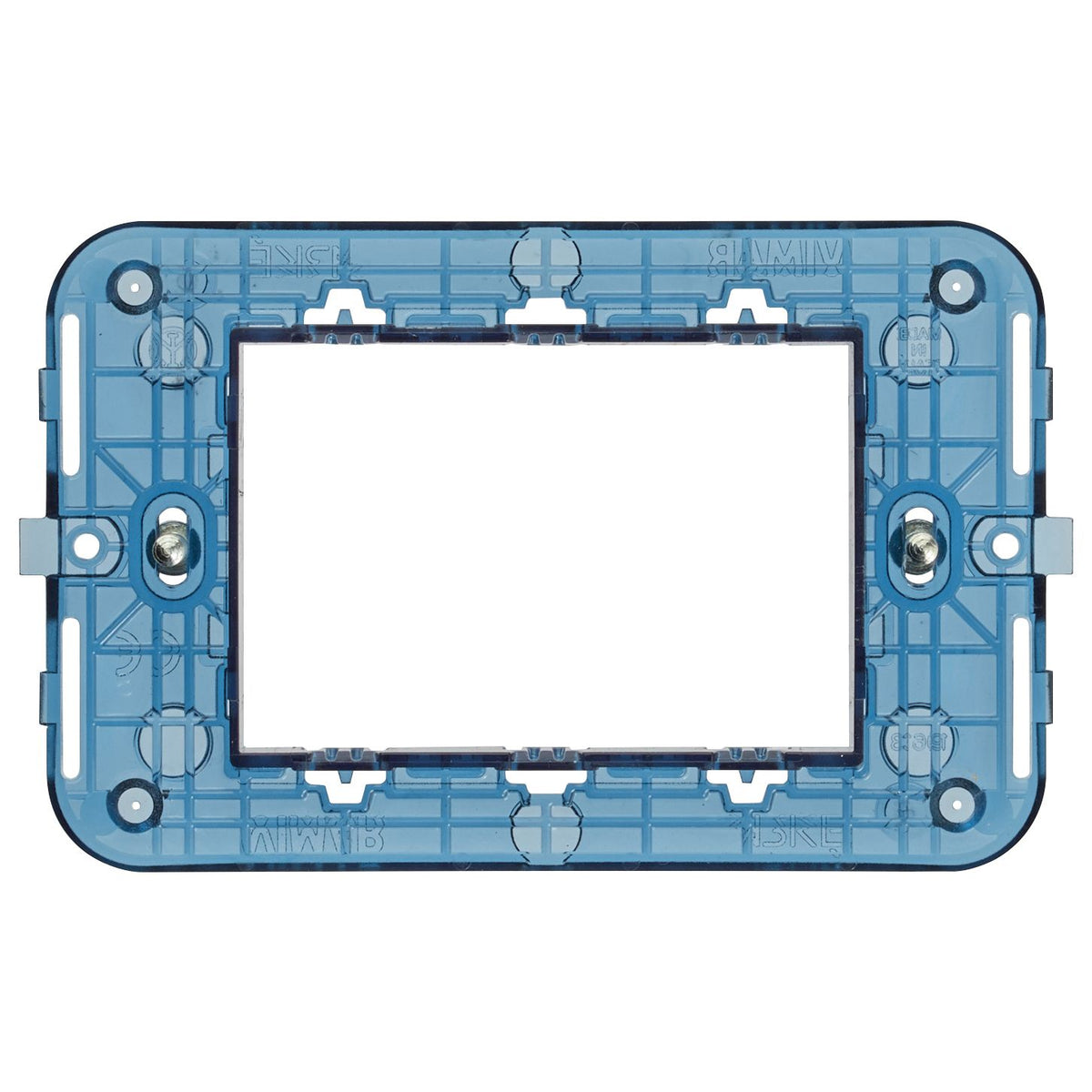

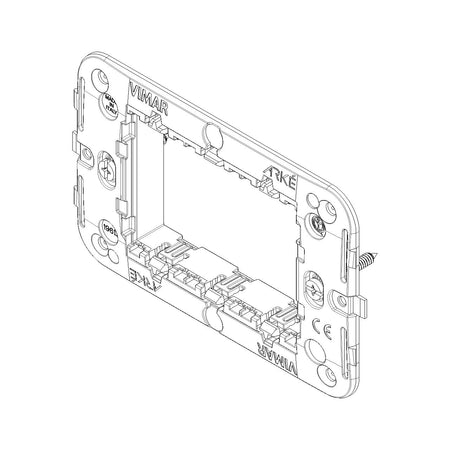

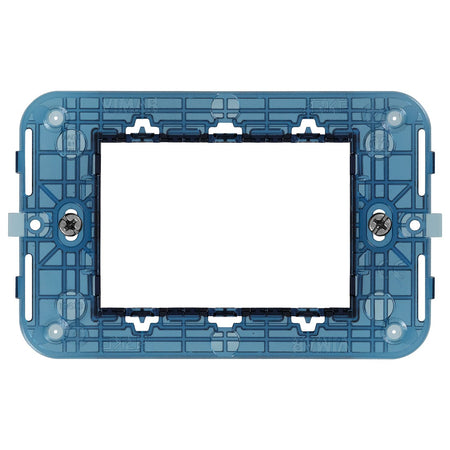

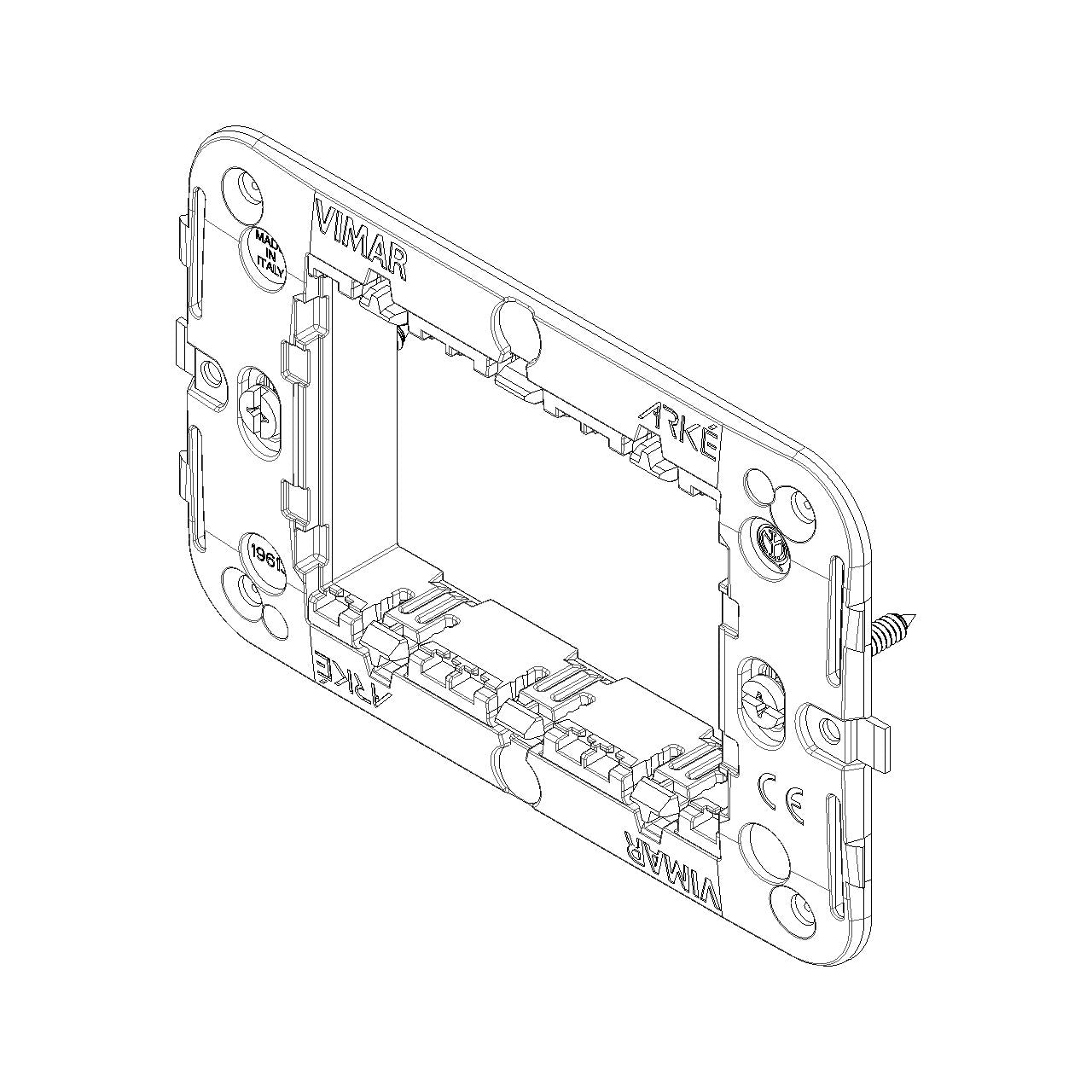

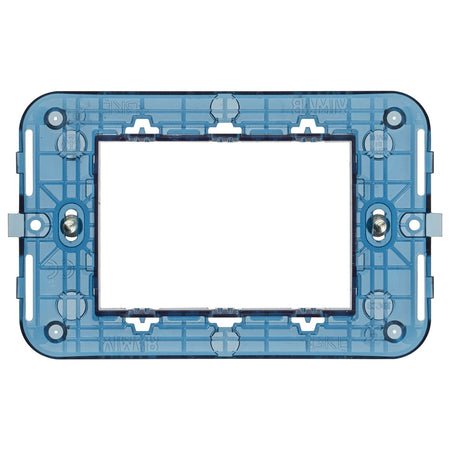

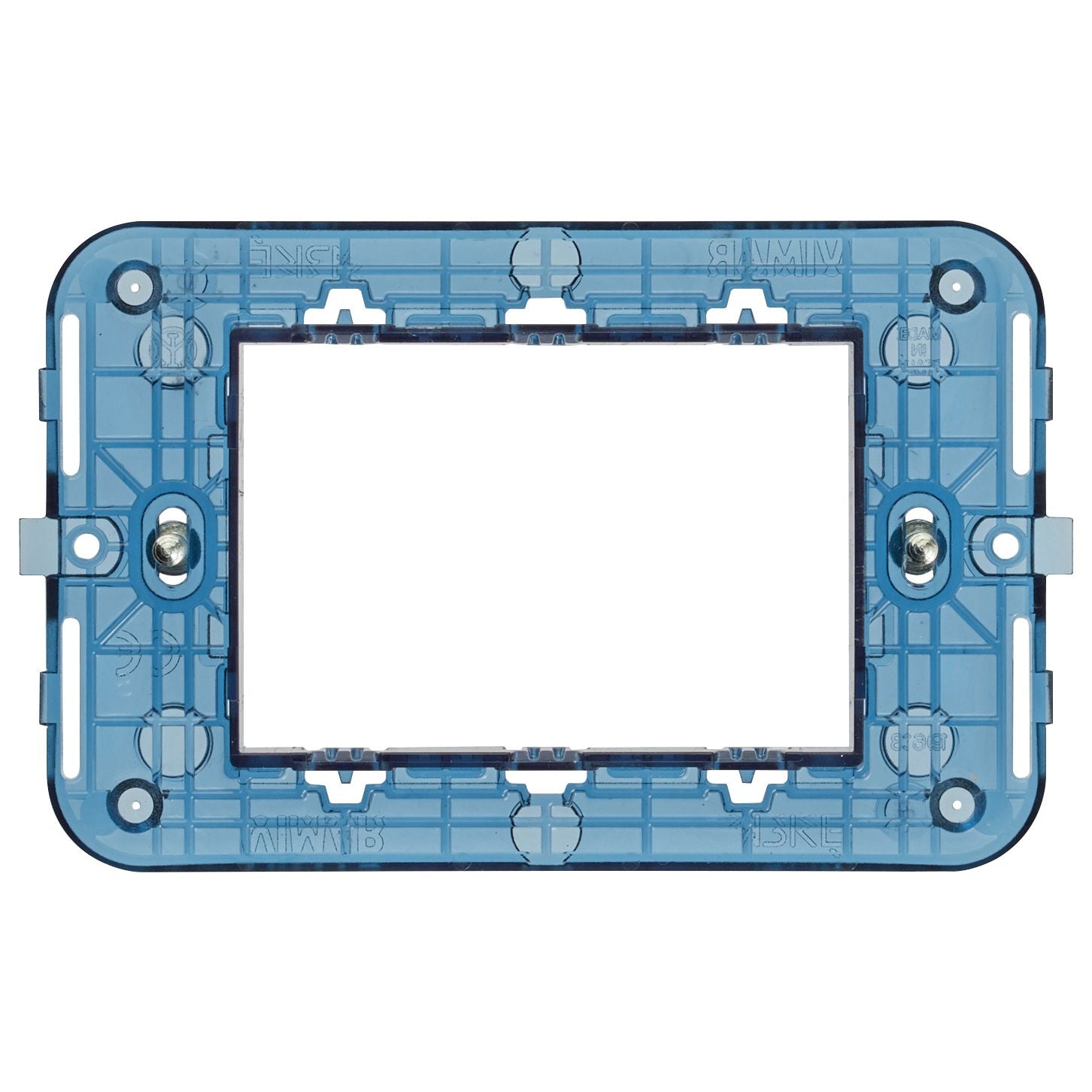

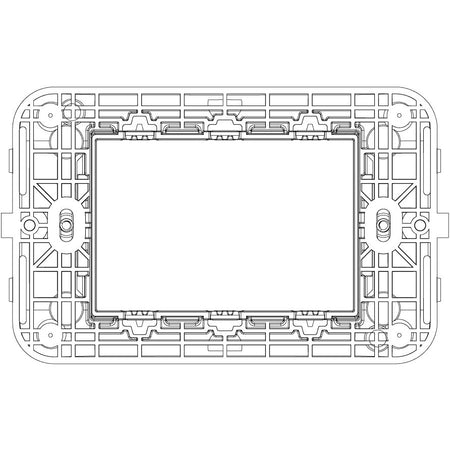

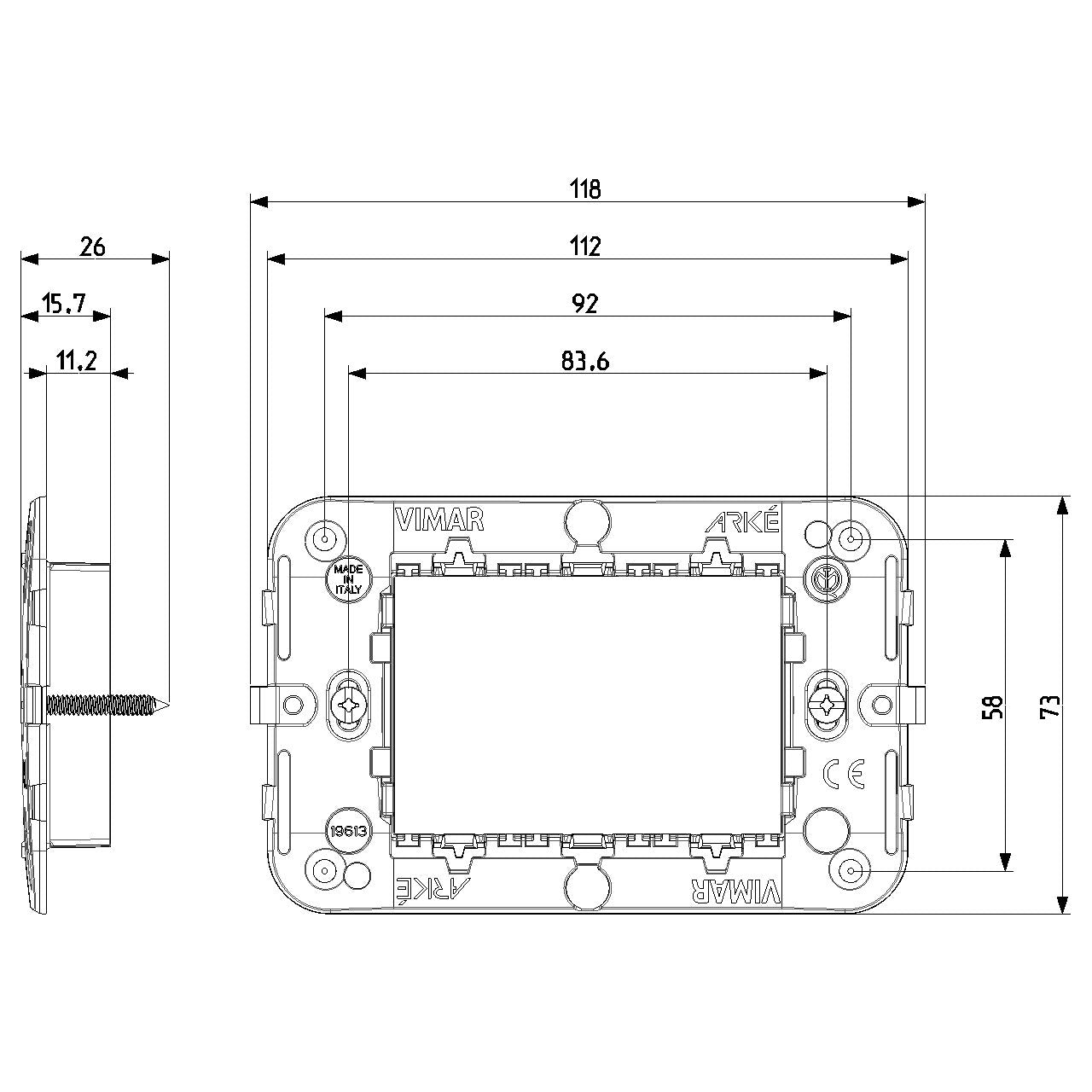

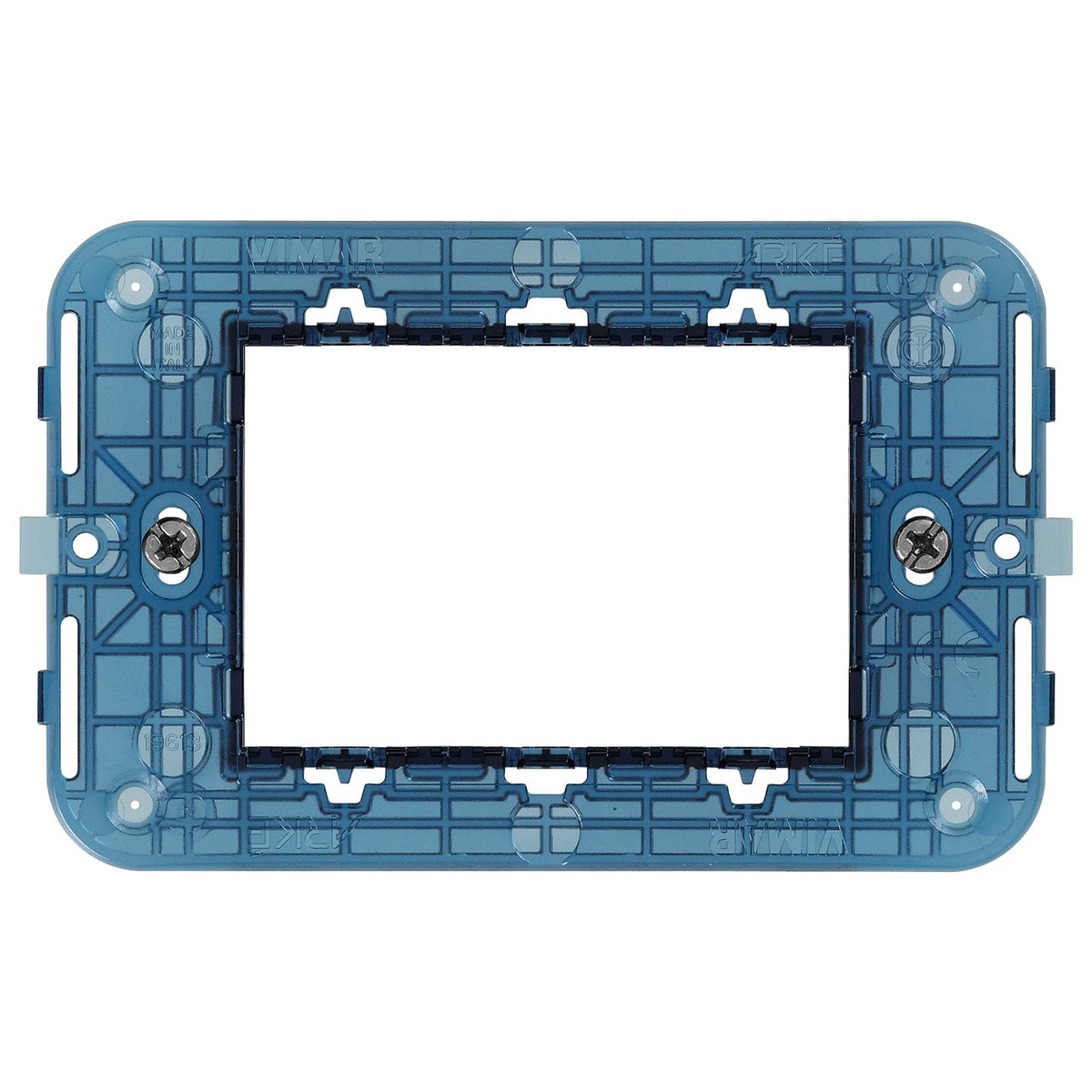

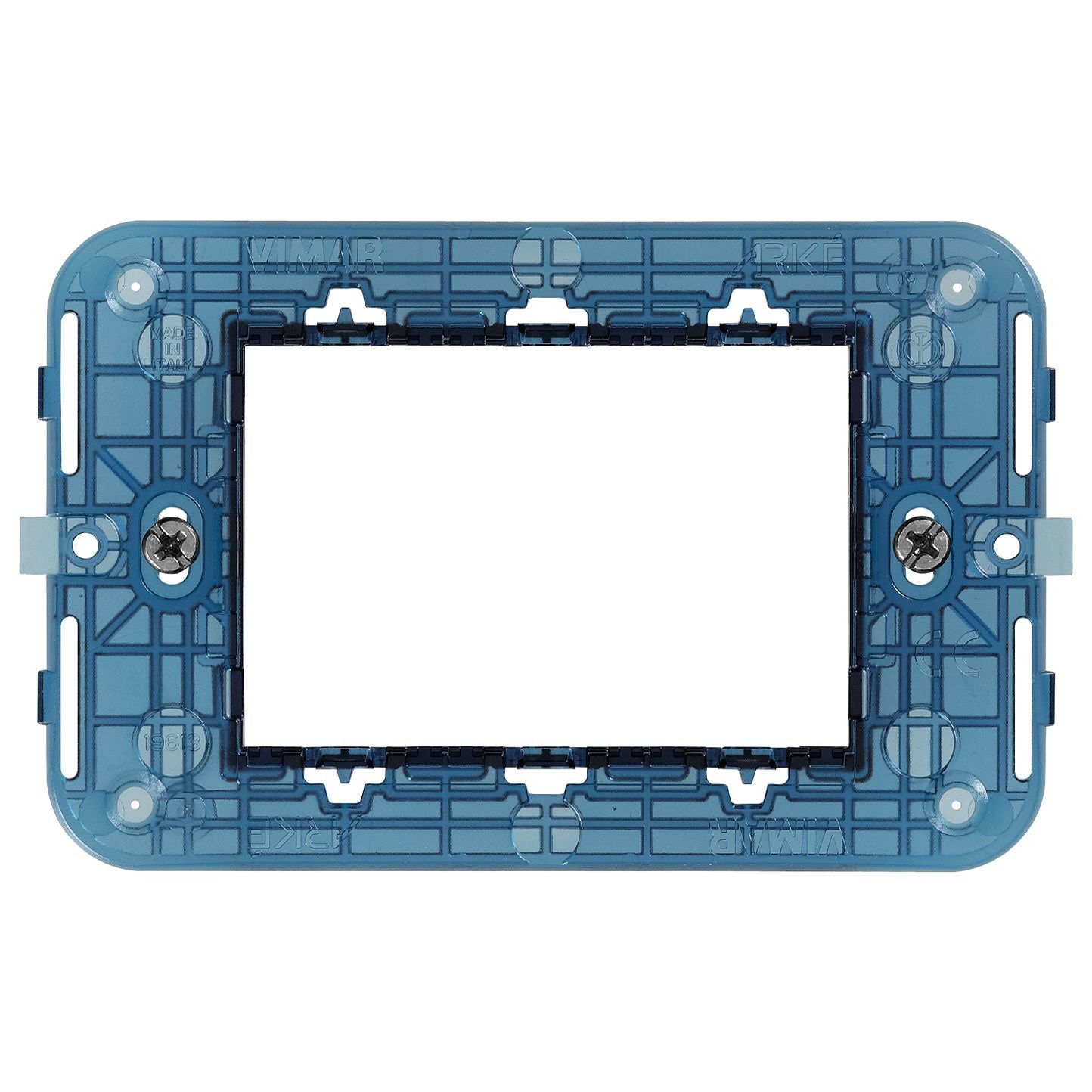

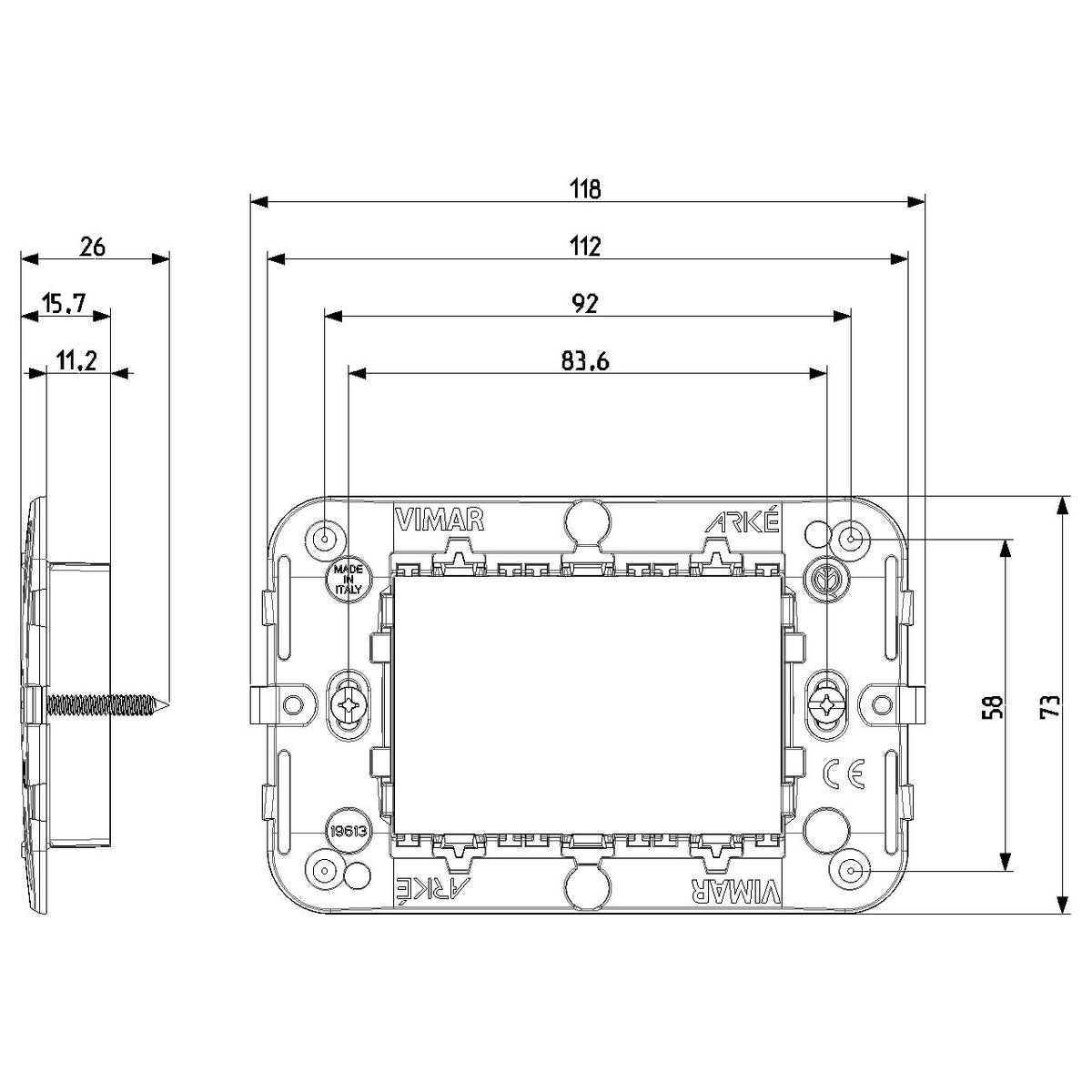

The Vimar VM19613 is a 3-module mounting frame with screws for ARKÉ installations in 3-module mounting boxes. It serves as the flush-mount support that holds Vimar modular inserts in position behind a matching ARKÉ cover plate.
It installs horizontally or vertically; in horizontal orientation it supports a 3-module layout. Modules are mounted from the front side, which keeps the assembly serviceable when you need to pull a plate for inspection or troubleshooting.

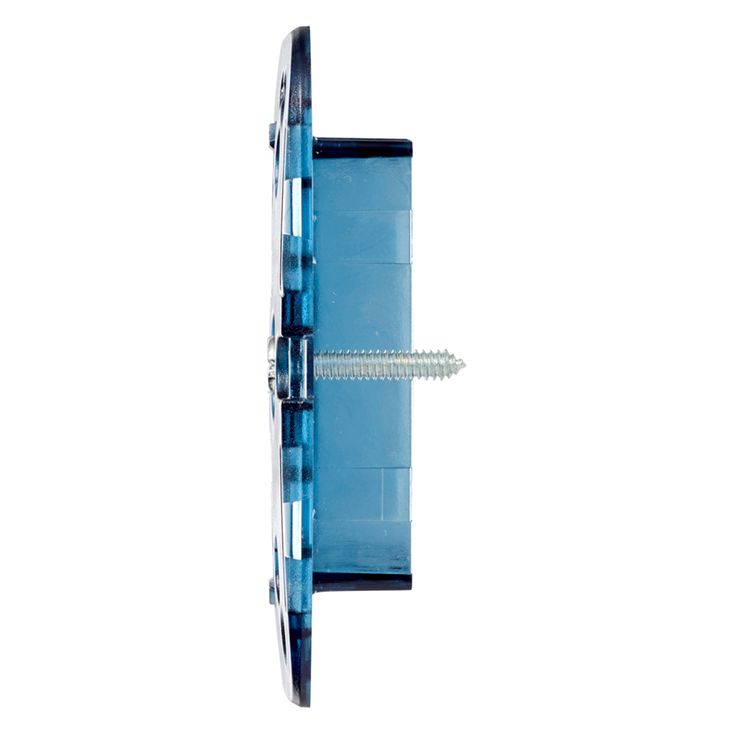

The frame is made from thermoplastic with an untreated surface and mounts with screws. It is not suitable for 60 mm round junction boxes, so confirm your backbox format before ordering.
Key features
- 3-module mounting frame for 3-module mounting boxes
- Includes mounting screws
- Flush-mounted holder for modular domestic switching devices
- Horizontal and vertical mounting direction
- Front-side mounting method for the module inserts
- Thermoplastic body with untreated surface protection
- Not suitable for 60 mm round junction boxes
Compatibility and fit
This support is meant for Vimar ARKÉ modular devices and 3-module ARKÉ cover plates used with 3-module mounting boxes. If your boat uses 60 mm round boxes or a different plate system, the frame will not match the cutout and screw pattern.
It is a practical match for interior panels and cabinetry faces where you want a clean, flush-mounted ARKÉ station for switches, outlets, or other modular inserts.
Installation and setup
Secure the frame to the mounting box using the supplied screws, then mount the modular inserts from the front side and finish with the cover plate. Keep wiring routed so modules seat fully and the plate can tighten down flat without pinching conductors.
On-board considerations
This is a mechanical mounting part and does not seal the opening by itself, so any splash protection comes from the enclosure and the device/plate system you are building. It suits refits and new builds where you are standardizing on ARKÉ hardware and want a serviceable 3-module layout in a flush-mounted box.
