Raymarine Rear Mount Kit, For Axiom 7, Rear Brackets, Bolts, Thumbnuts

Overview

The Raymarine R70528 is a rear mounting kit for fitting an Axiom 7 multifunction display into a helm, dashboard, or electronics panel where a low-profile installation is preferred. It is a mechanical mounting kit, not an electronic accessory, and it holds the 7-inch display from behind the panel using 2 metal brackets, 4 studs, and 4 thumb nuts.

This kit is useful when the display needs to sit cleanly in the console rather than on a trunnion bracket. On a boat, that can make the helm easier to wipe down, reduce exposed hardware, and keep the navigation screen integrated with the rest of the electronics layout.

Key features

• Made for Raymarine Axiom 7 multifunction displays.
• Rear mounting format supports a clean panel installation at the helm or dashboard.
• Includes the rear hardware needed to secure the display from behind the mounting surface.
• Uses metal brackets with studs and thumb nuts to hold the display in position.
• Suited for console layouts where exposed trunnion-style mounting is not preferred.

Installation and fit

Before installation, confirm that the display being fitted is an Axiom 7 and that the panel has enough rear access for the brackets and fastening hardware. Rear mounting works best on a flat, rigid mounting surface that allows the display to sit squarely in the cutout.

This kit is a good match for refits, helm cleanups, and electronics upgrades where the owner wants the Axiom 7 to look built into the console. It is especially practical on center consoles, pilothouse dashboards, and sailboat nav stations where space around the display is limited.

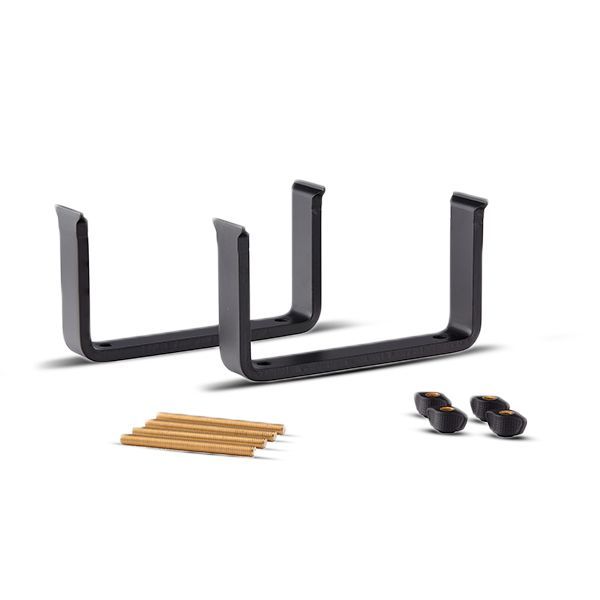

What’s included

• 2 metal rear brackets
• 4 studs
• 4 thumb nuts
