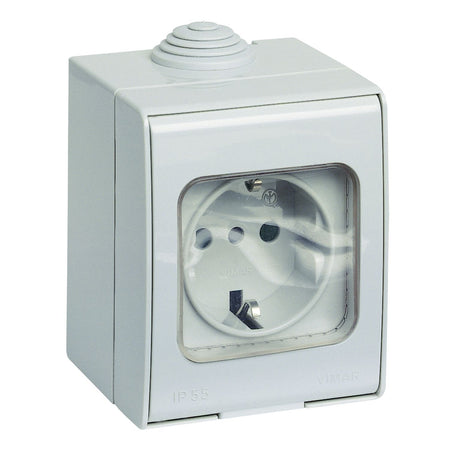

Vimar Linea Classica SICURY Socket Outlet, Italian P30 Standard, IP55, 2P+E, 16A 250V, Surface-Mount Box, Grey Housing

Overview

The Vimar VM12331 is an IP55-rated Italian P30 2P+E socket outlet for 16 A, 250 V~ AC circuits.

It is meant for boats that use Italian-standard shore power and need a receptacle that can be mounted in exposed panels, lockers, and service areas where spray and washdowns are part of normal life. The P30 layout uses both lateral and central earth contacts to maintain a proper protective earth connection.

SICURY contact protection uses an internal shutter that closes when the plug is removed, which helps reduce accidental contact with live parts during routine use and maintenance.

Key features

• Italian standard P30 socket pattern with lateral and central earth contacts (2P+E)
• Electrical rating: 16 A, 250 V~
• IP55 ingress protection for locations exposed to splashes and water jets
• SICURY shutter mechanism helps prevent accidental contact with live parts when unplugged
• Plastic construction with fully insulating materials

Compatibility and fit

This outlet is for Italian P30 plugs and will not accept other national plug types unless they share the same contact geometry. Confirm the plug standard used on your shore lead and onboard appliances before ordering.

IP55 protection depends on the full installation, including the correct enclosure, cover, and cable sealing. Plan the mounting location so the outlet is protected from standing water and direct stream impact from deck washdowns.

Installation and setup

Wire it as a standard 2P+E shore-power receptacle: line and neutral to the current-carrying terminals and earth to the grounding terminal. Use marine-grade conductors, strain relief, and cable glands that match your enclosure so movement and vibration do not load the terminals.

After installation, verify polarity and earth continuity, then test the outlet under load. On AC systems, work should be carried out with shore power isolated and protected by the correct breaker for the circuit.

Use on board

This style of outlet is commonly used at service points where a handheld tool, vacuum, or charger gets plugged in, such as inside a cockpit locker, at a deck service panel, or in a covered console. It is also a straightforward swap for refits where the boat already uses Italian P30 hardware and you want to keep compatibility.

Maintenance and care

Rinse salt residue from the exterior as needed, and periodically inspect the sealing surfaces and the shutter action so the outlet continues to close cleanly when unplugged. If the mounting area is repeatedly soaked, re-check gaskets and cable seals at the next service interval.
