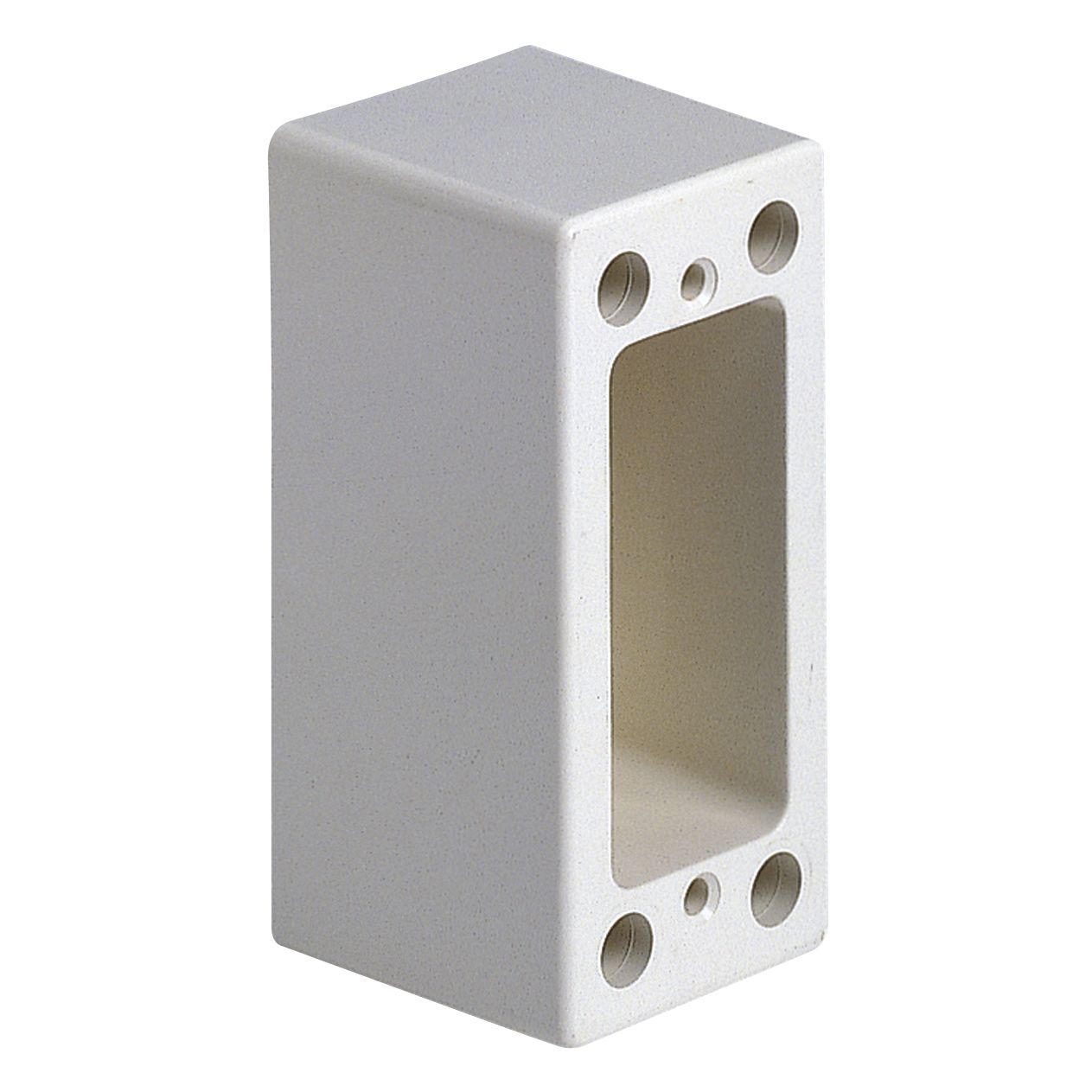

Vimar 8000 Series 1-Module Surface Mount Box with Backplate, 40mm Depth, IP20, Ivory Finish

Overview

The Vimar VM09956 is a 1-module surface mounting box with backplate, 40 mm depth, for one 8000 standard module installation, in an ivory finish. The box measures 79.5 mm long by 36.5 mm wide and is rated IP20 for protected interior locations.

Use it when you need a clean surface mount on a bulkhead or headliner and there is no room or no desire to recess a box into the panel. The cover screws on, which helps it stay put on boats that see vibration.

This enclosure is intended for dry, indoor-type areas on board. Keep it out of direct spray and washdowns, and plan a different enclosure where water protection is required.

Key features

• Accepts one 8000 standard module (1M) when used with the appropriate mounting frame and cover plate.
• 40 mm depth for surface installs where wiring needs extra space behind the module.
• Overall size: 79.5 x 36.5 x 40 mm (L x W x D).
• Wall or ceiling mounting for flexible placement on bulkheads and headliners.
• IP20 enclosure rating for interior spaces that stay dry.
• Halogen-free plastic housing with an untreated surface finish.
• Ivory color matched to RAL 9001.
• Working temperature range: 0 to 60 C.
• Screw-fastened cover for a secure closure.

What’s included

• Surface mounting box body
• Backplate (bottom)

Compatibility and fit

This box is for 8000 standard 1-module devices. It is used with the matching mounting frame and cover plate chosen for the specific switch, socket, or accessory you are installing.

Devices with codes starting 08064 or 08065 are not supported by this box.

This is the enclosure only. Electrical ratings, circuit protection, and marine compliance depend on the installed module and the way the circuit is built on the boat.

Installation and setup

Surface mounting keeps the panel intact, but plan wire routing first so you have enough slack for terminations once the module is seated in the mounting frame. Keep bends gentle and avoid pinching conductors at the box edge.

On a boat, mount the box to a flat, solid surface so the finished plate sits square. If the mounting surface is thin, adding backing material behind the screws helps prevent looseness over time.

Materials and protection

The plastic body is halogen-free and the enclosure is IP20, so it belongs in protected spaces. In salty environments, keeping the installation dry and easy to wipe down helps the connected device stay clean and trouble-free.

Use on board

This type of box is a good match for refits where a single Vimar module is being added without cutting into a bulkhead, such as at a nav station, cabin entry, or inside a dry locker. It also works well when you want the module to sit proud of the surface for easier access to wiring behind the device.
