Attwood Marine LightArmor HPX LED Underwater Light, 12/24V, 6 in, 12 LED, 5000 lm, Sapphire Blue Light, Surface Mount
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

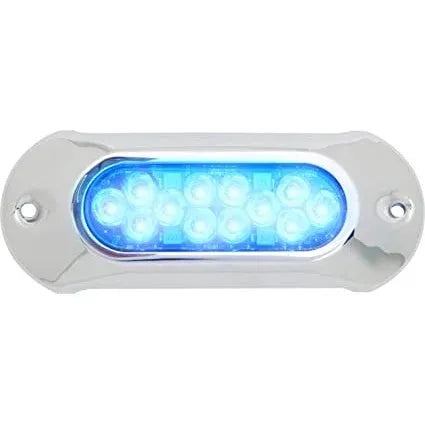

The Attwood Marine 66UW12B-1 is a surface-mount underwater LED light with 12 blue LEDs in a 6 inch housing. It is part of the LightArmor HPX range and uses a wide 80 degree beam, a 3 foot sheathed wire lead, and a maximum operating depth of 98.4 feet.
This light is meant to stay below the waterline and suits transom installations where you want underwater lighting without cutting a large thru-hull opening. The sealed electronics, reverse-polarity protection, impact-resistant lens, and active overheat protection all matter on boats that live with salt, washdowns, and steady vibration.
Key features
- Surface-mount underwater light with 12 blue LEDs
- 6 inch body for larger transom lighting layouts
- 80 degree beam spread for broad light coverage behind the boat
- Fully sealed waterproof electronics with reverse-polarity protection
- Heat-sink cooling system with active overheat protection
- Impact-resistant lens for underwater service
- 3 foot sheathed wire for routing power through the transom
- Maximum operating depth of 98.4 feet
Installation and fit
This is a surface-mount unit, so it fits boats where a low-profile underwater light makes more sense than a thru-hull body. On the 6 inch version, mounting-hole spacing is 5.25 inches, the wire clearance hole is 9/16 inch, and installed height from the mounting surface is about 0.56 inch. Those measurements are worth checking around trim tabs, steps, transducers, and any tight rigging space at the stern.
The light is for underwater use only and should be mounted below the waterline. A location at least 10 inches below the waterline is recommended, with the wire pass-through and fasteners sealed correctly while the rear cooling ridges stay clear.
Use on board
This model is a good match for center consoles, cruisers, and sportfishing boats that need fixed transom lighting in blue. It works best where you want a broad underwater wash at the stern and have room for a surface-mounted fixture rather than a recessed installation.
