Vimar Ceiling IR Presence Detector, 220-240V, 360°, 3-2000 Lux
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

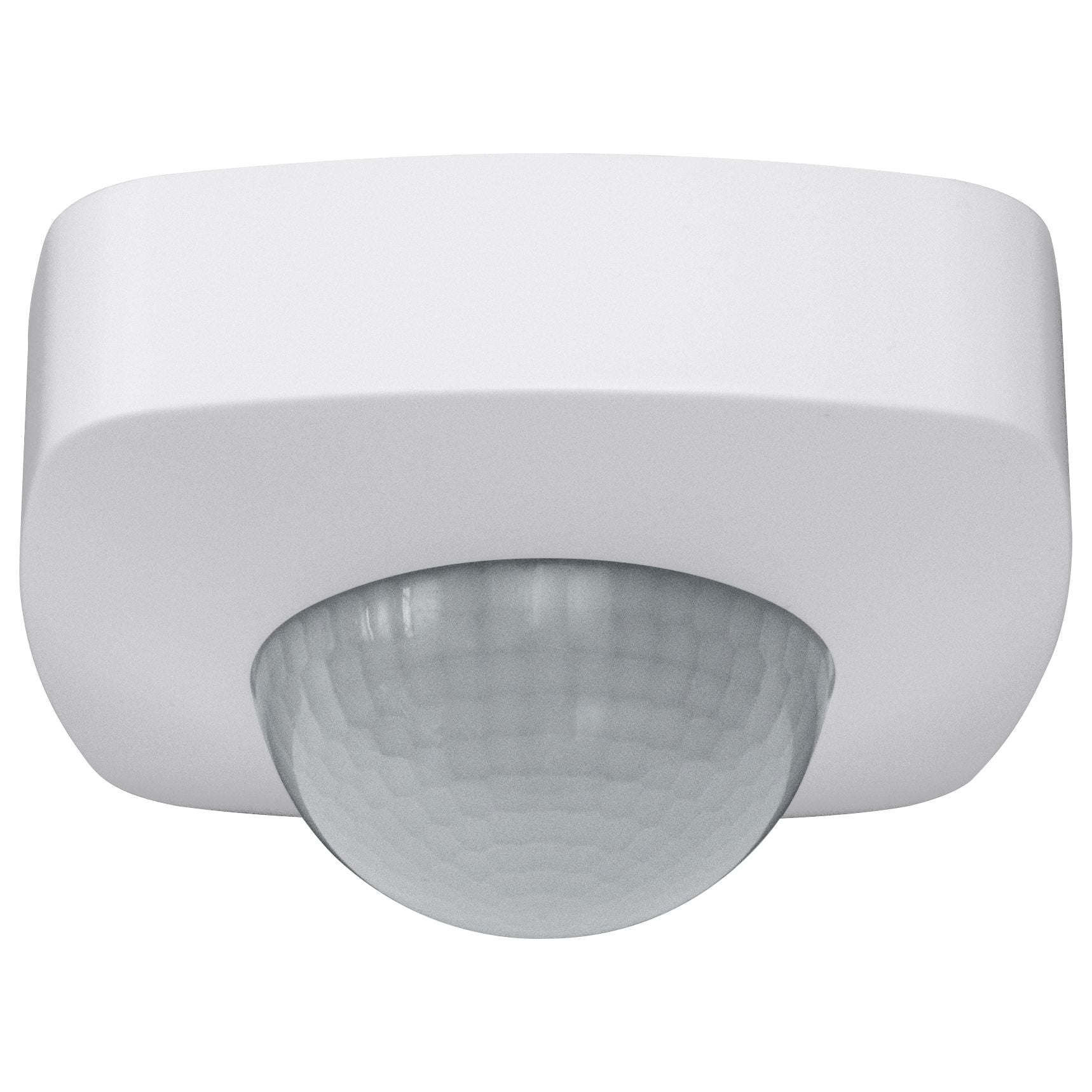

The Vimar VM02690 is a ceiling-mounted infrared presence and motion detector that switches 220-240V AC lighting circuits automatically. It watches a 360° field and lets you set the ambient-light threshold from 3 to 2000 lux and the on-time from about 10 seconds to about 30 minutes.
It is rated IP20 for indoor use and draws about 0.5 W. Nominal detection range is up to 20 m at temperatures below 24°C, with a typical mounting height around 3.0 m for broad room coverage.
On board, it fits well for hands-free lighting in cabins, heads, companionways, and interior service spaces. It can switch common lamp types directly: up to 2000 W incandescent/halogen, 10-1000 W CFL, and up to 100 W LED.
Key features
- 220-240V AC, 50/60 Hz supply for vessel AC systems
- 360° infrared presence and motion sensing with two detection zones (small movements and entry detection)
- Adjustable light level threshold from 3 to 2000 lux
- Adjustable time delay from about 10 seconds to about 30 minutes
- Nominal detection range up to 20 m (below 24°C)
- Switching capacity: 2000 W incandescent/halogen, 10-1000 W CFL, 100 W LED
- IP20 indoor rating; operating temperature from -20°C to +40°C
- Thermoplastic body with a matte white finish (similar to RAL 9003)
Compatibility and fit

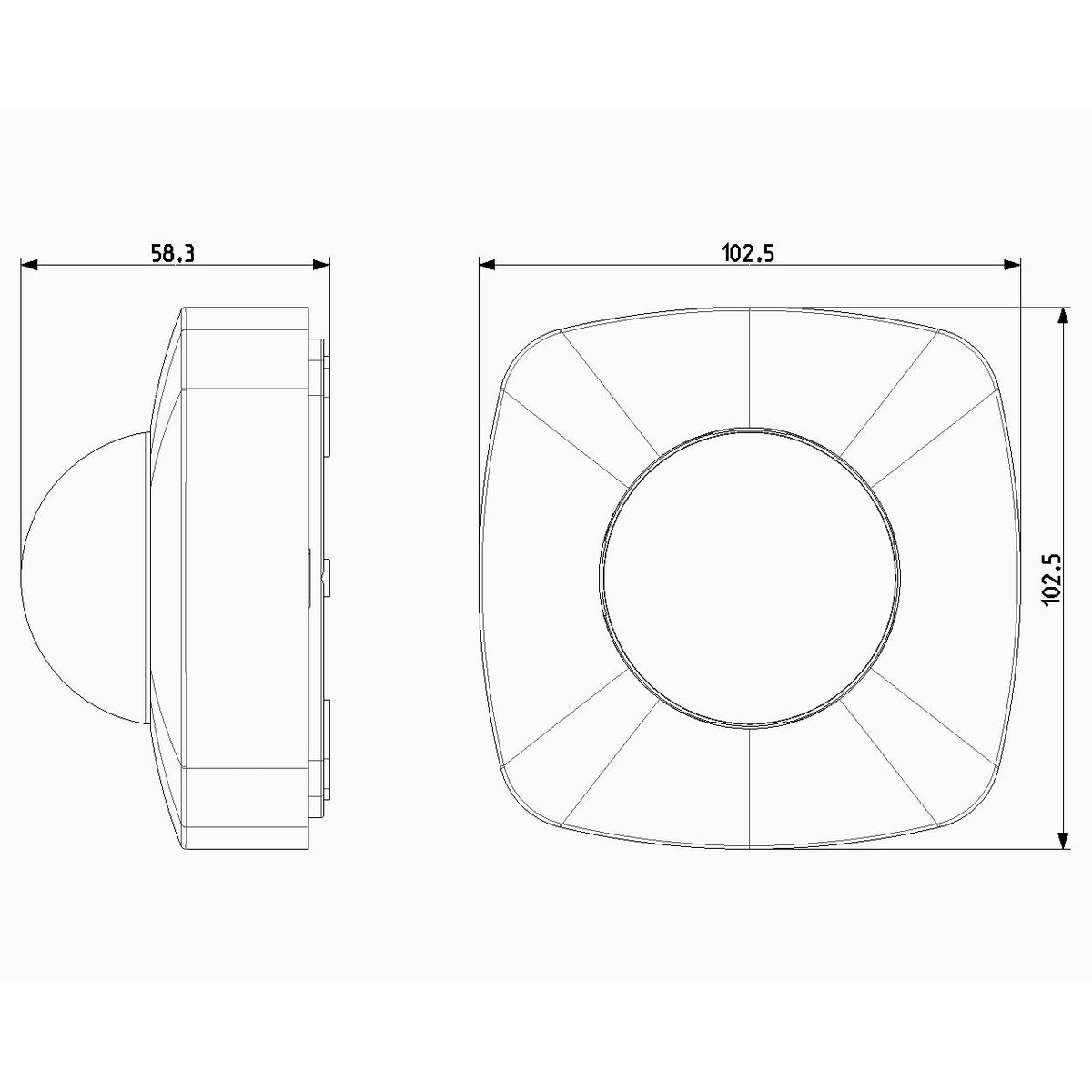

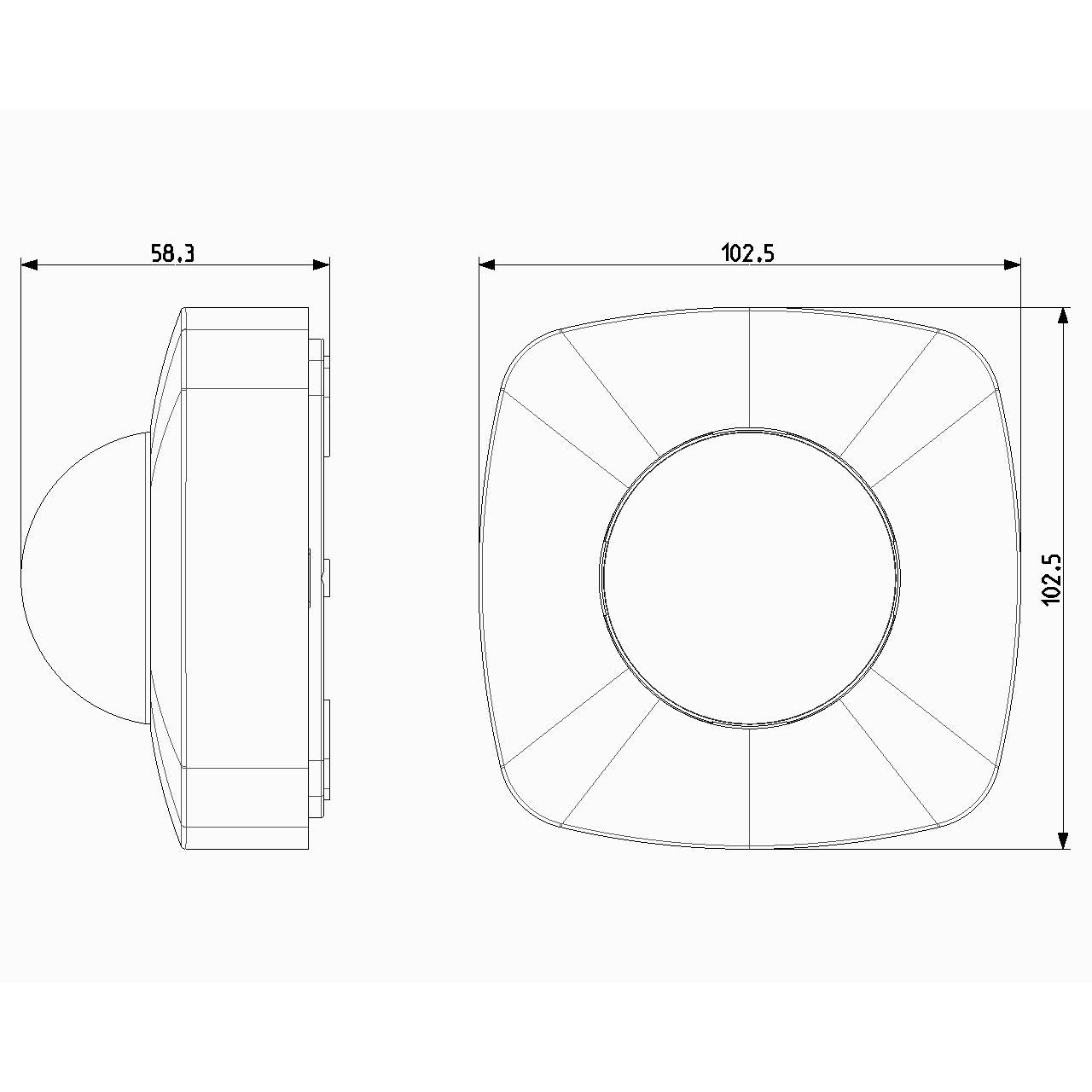

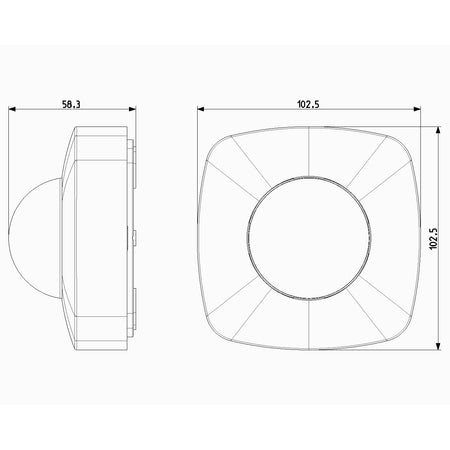

This is a mains-voltage device intended for 220-240V AC circuits, not 12V or 24V DC lighting. The unit measures 102.5 mm high with a 58.3 mm depth (built-in depth 58.3 mm), so it is worth confirming clearance above headliners or overhead panels at the planned mounting point.
Installation and setup
Ceiling placement matters more than most people expect on a moving boat. Mount it where it has a clear view of the area and away from vents or heat sources that can create rapid temperature changes in the sensor’s field. Set the lux threshold so the light only comes on when the space is actually dim, then set the time delay to match how the space is used.

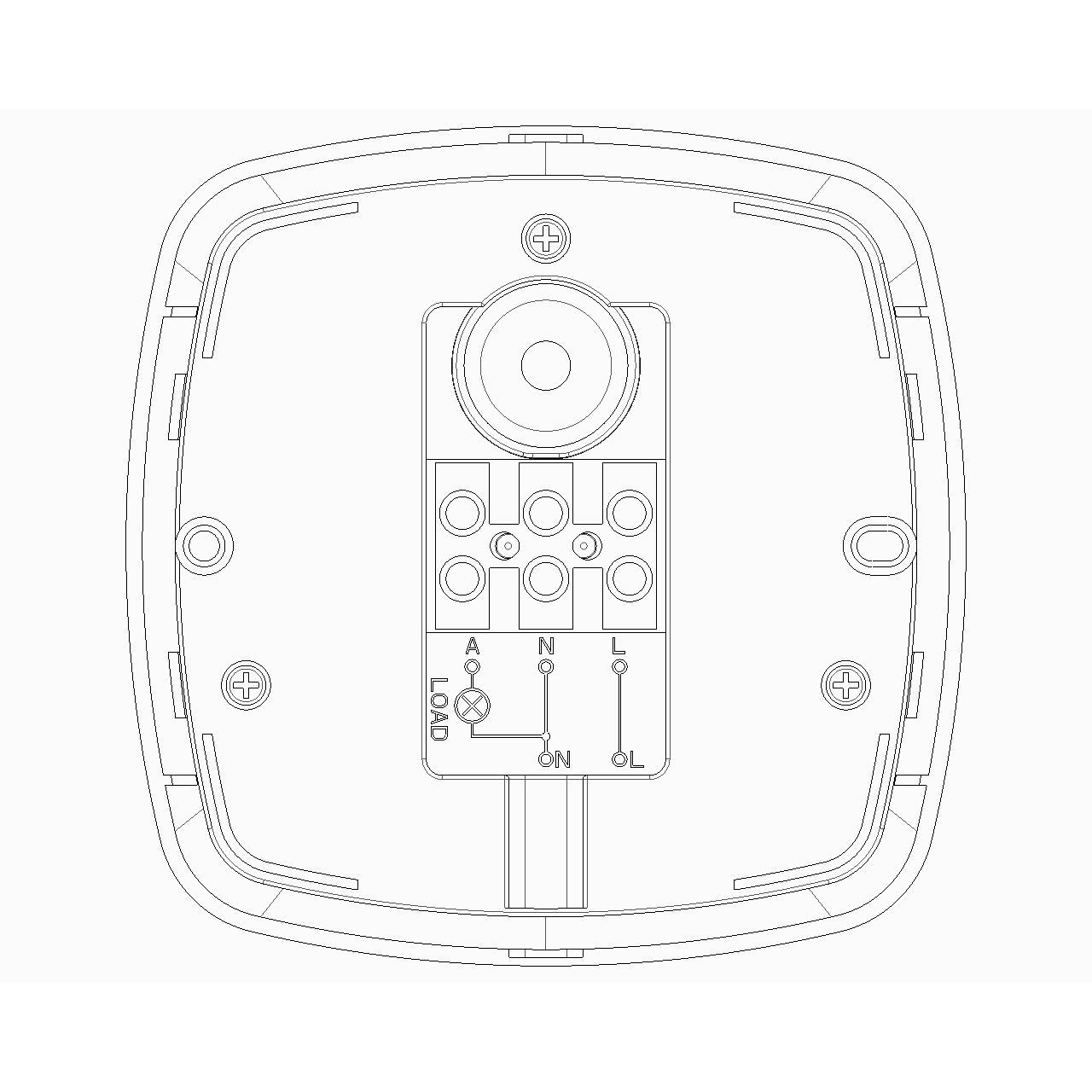

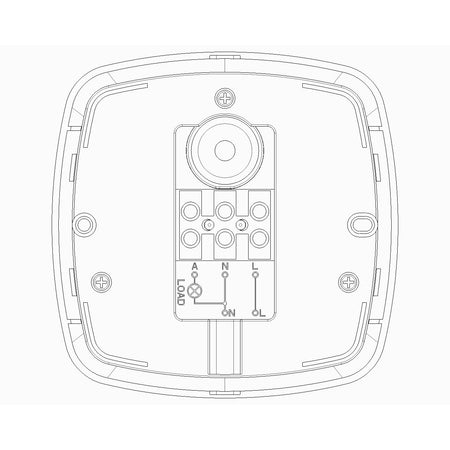

Electrical and system integration
The detector switches the load directly, so keeping within the stated lamp ratings is important, especially with LED drivers and multiple fixtures on one circuit. For larger LED loads, using the detector to control a properly rated relay or contactor keeps the switching electronics out of the high-load path while preserving the same automation behavior.
Use cases on board
This sensor makes sense on boats with 230V-class AC lighting where you want lights to follow traffic through interior areas without relying on wall switches. Because it is IP20, it belongs in dry, protected spaces rather than exposed decks, cockpits, or anywhere that sees washdowns or direct spray.
Maintenance and care
Keep the lens clean so it can detect small movements consistently. A quick wipe with a soft, dry cloth is usually enough, and it helps to avoid placing it where it will be coated with galley grease, engine-room mist, or heavy dust.
