Vimar Eikon Evo 7M LED Lamp, For Eikon Evo Cover Plate, 120-230V, 80 lm, IP40
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

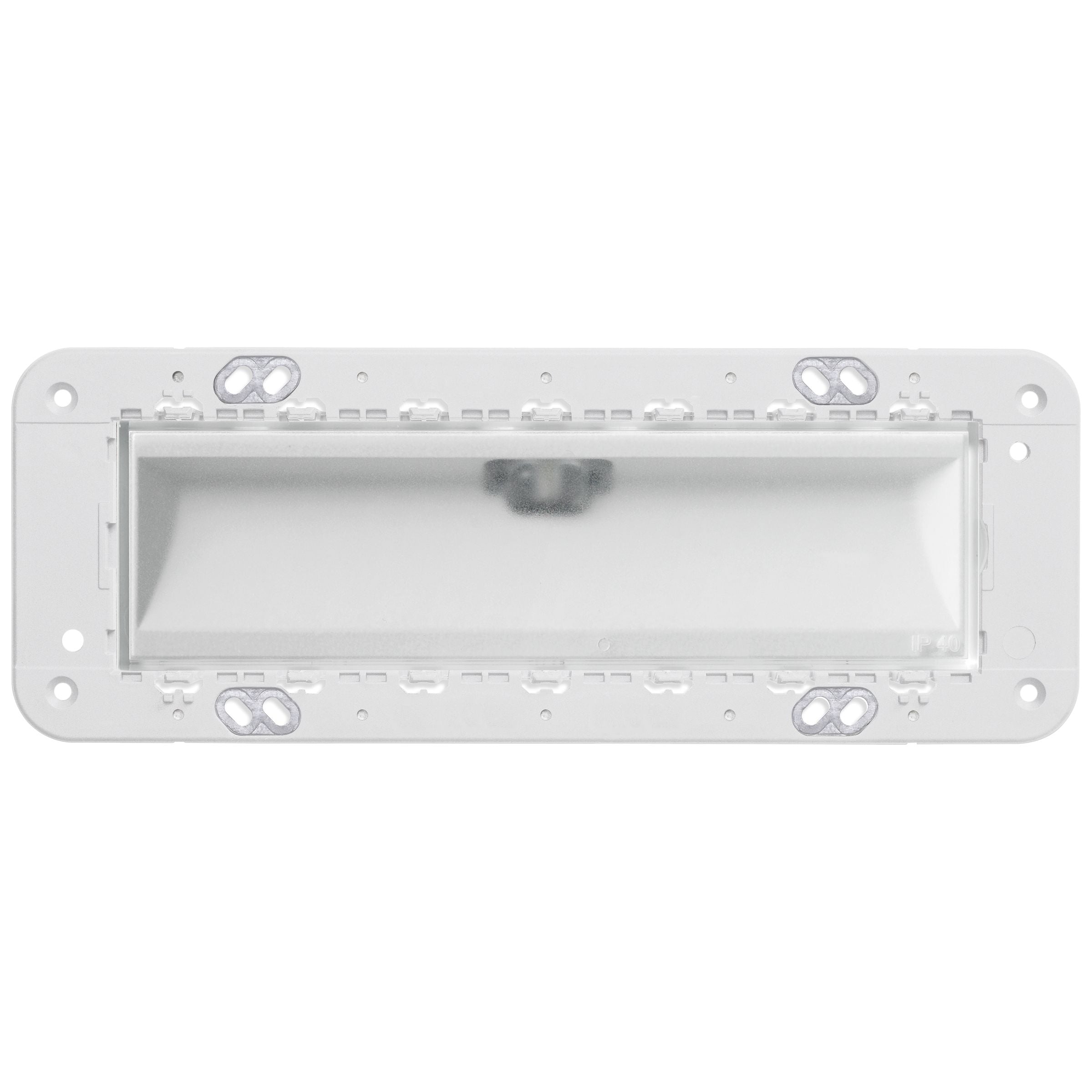

The Vimar VM02671 is a 7-module Eikon Evo LED lamp made for flush-mounted installation on 120 to 230 V AC, 50 to 60 Hz circuits.
It uses a non-exchangeable white LED that draws 3 W and produces about 80 lumens, with a cool-white appearance in the 5000 K to 6300 K range. A built-in selector lets you set brightness to full output or a reduced level (about 30%) for night lighting.
It is rated IP40, so it belongs in interior areas that stay dry and out of direct spray, such as cabins and passageways rather than exposed cockpits or washdown zones. To finish the install, it is completed with an Eikon Evo 7-module cover plate.
Key features
- 120 to 230 V AC, 50 to 60 Hz supply for shore-power or inverter-fed AC lighting circuits

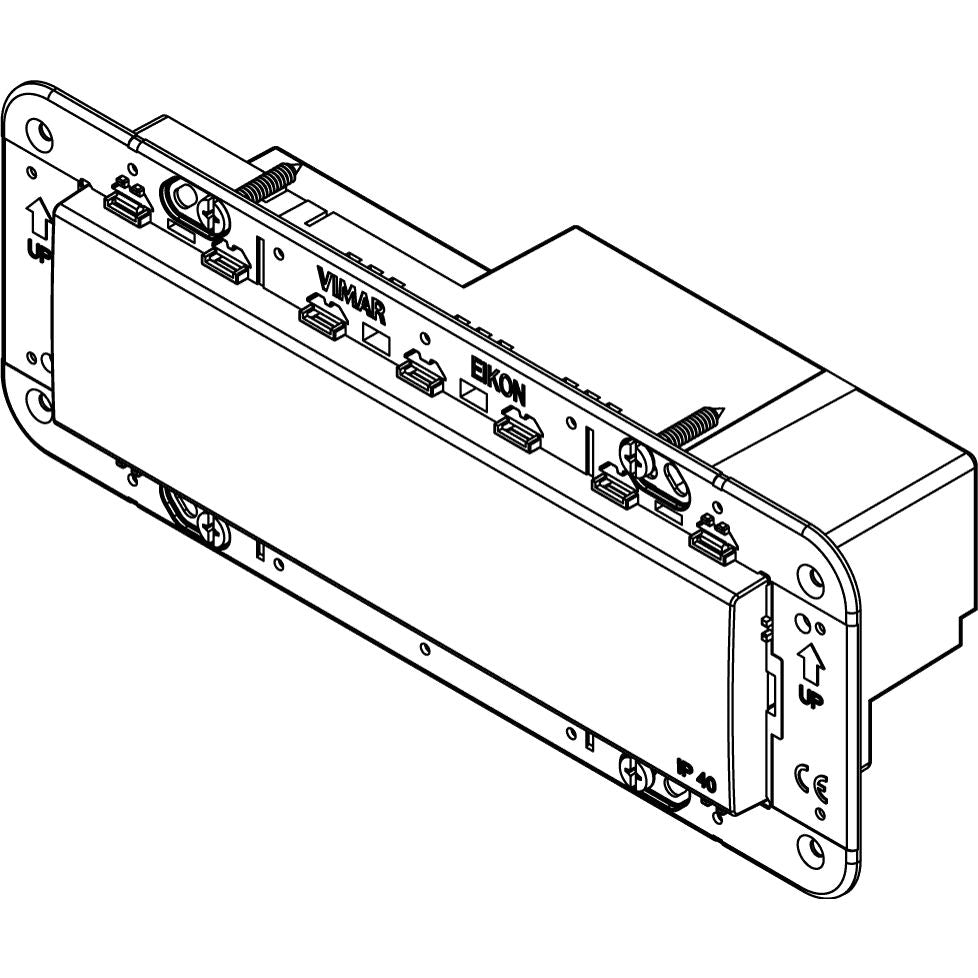

- 7-module format with mounting frame for 6/7-module flush mounting boxes, secured with screw fastening
- White LED output around 80 lumens at 3 W, with color temperature in the 5000 K to 6300 K range
- Two-step brightness selector on the unit (100% or about 30%)

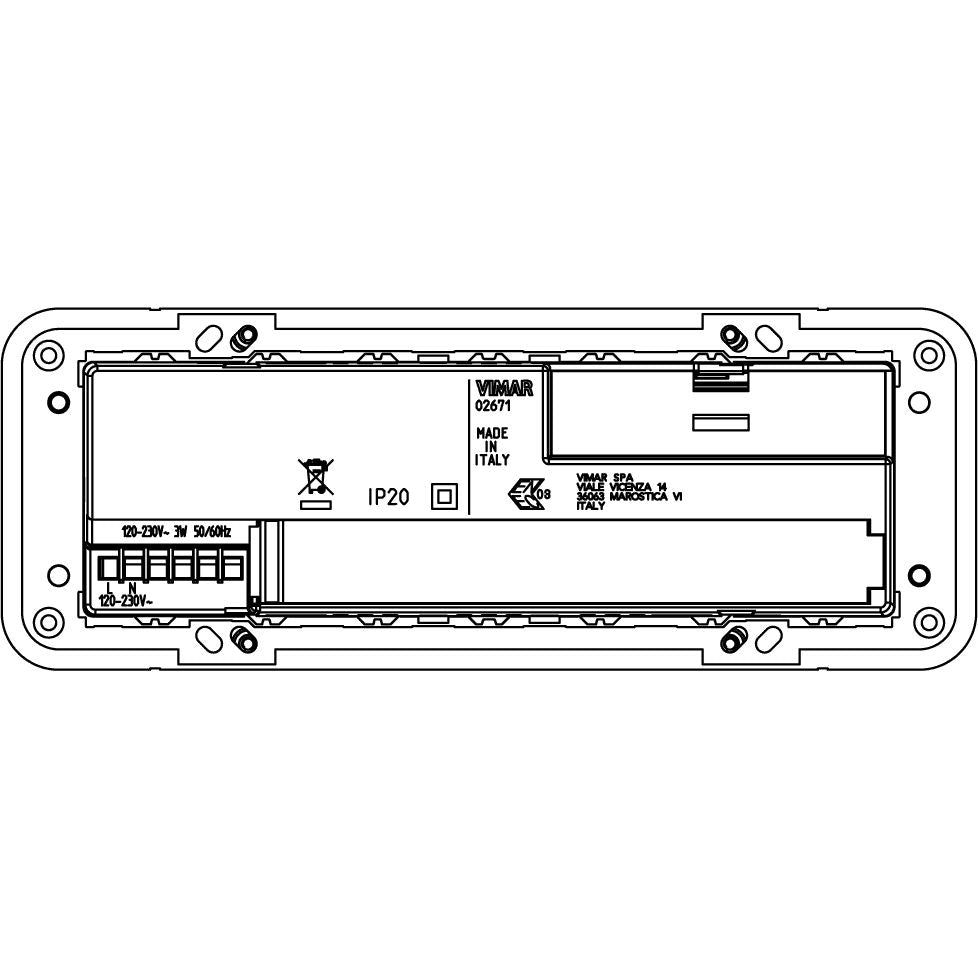

- IP40 protection for interior installs; protection can drop to IP20 when fitted inside hollow walls
- Thermoplastic construction with a matte white finish (RAL 9016)
- LED is non-exchangeable and not compatible with external dimmers
Compatibility and fit
This lamp occupies 7 modules and mounts in 6/7-module flush mounting boxes. Plan on pairing it with an Eikon Evo cover plate sized for a 7-module opening so the front sits flush and clean in the bulkhead.
Electrical and system integration
This is an AC device (120-230 V~). It is not intended for 12 V or 24 V DC circuits, so it should be fed from your vessel’s AC distribution through the appropriate lighting breaker.
Installation and setup
Wiring is straightforward for an electrician familiar with marine AC systems: secure the mounting frame, terminate conductors, and set the on-board selector to the brightness level you want. Because it is IP40, choose an installation spot that stays dry and avoids direct spray.
Use on board
On boats already fitted with Vimar Eikon Evo switchgear, this module works well as a locator light near the companionway, a courtesy light along an interior passage, or a low-level night light by bunks. It suits refit projects where matching the existing Eikon Evo plate layout matters more than high lumen output.
Maintenance and care
Wipe the front surface with a soft cloth. Skip solvent cleaners that can dull thermoplastics over time.
Availability note
This model is marked as will be discontinued, so it is often used as a like-for-like replacement or to keep a consistent Eikon Evo layout across the boat.
