Vimar LED Driver, 120V 60Hz, 350/500/700mA, IP20, MASTER Dimmer Compatible
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

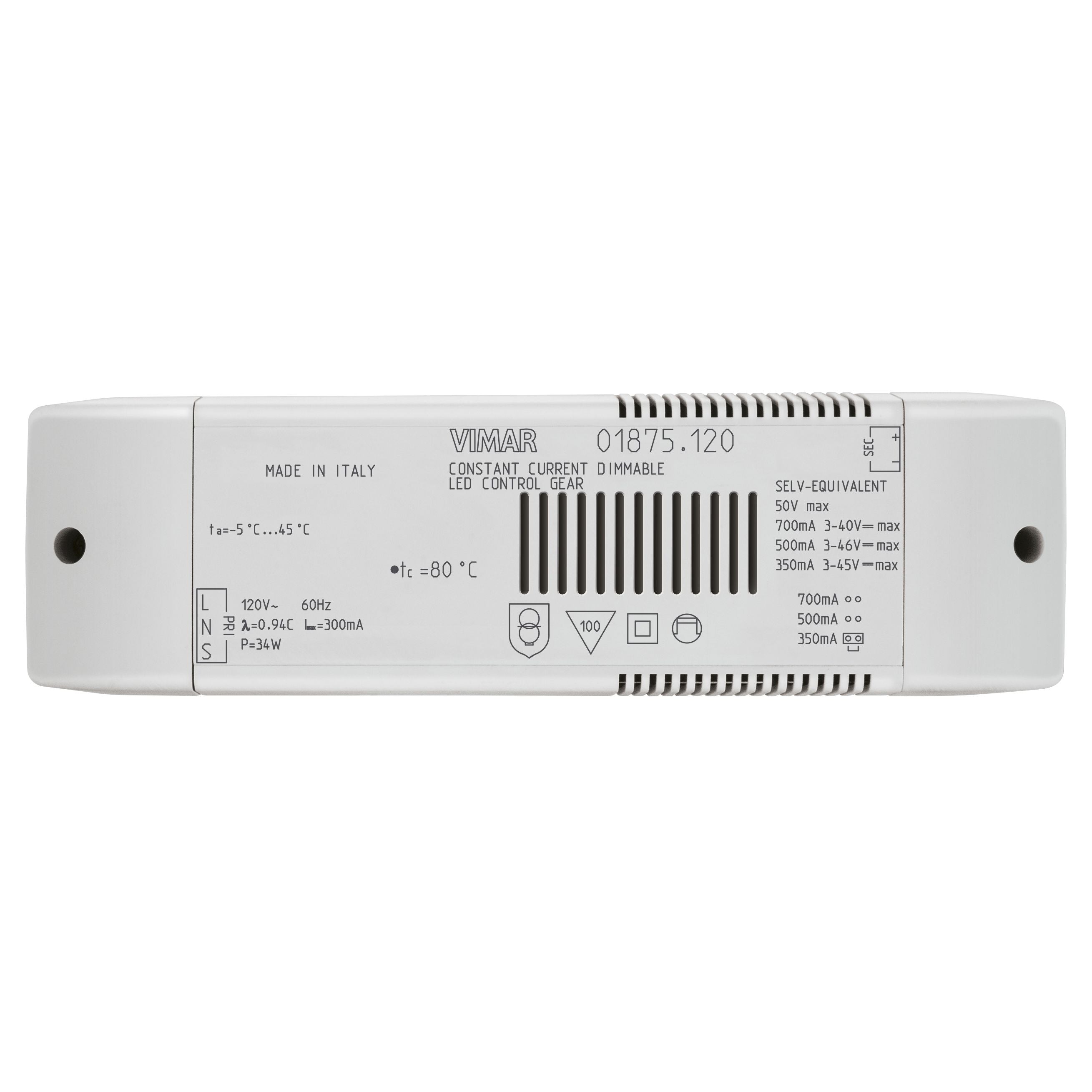

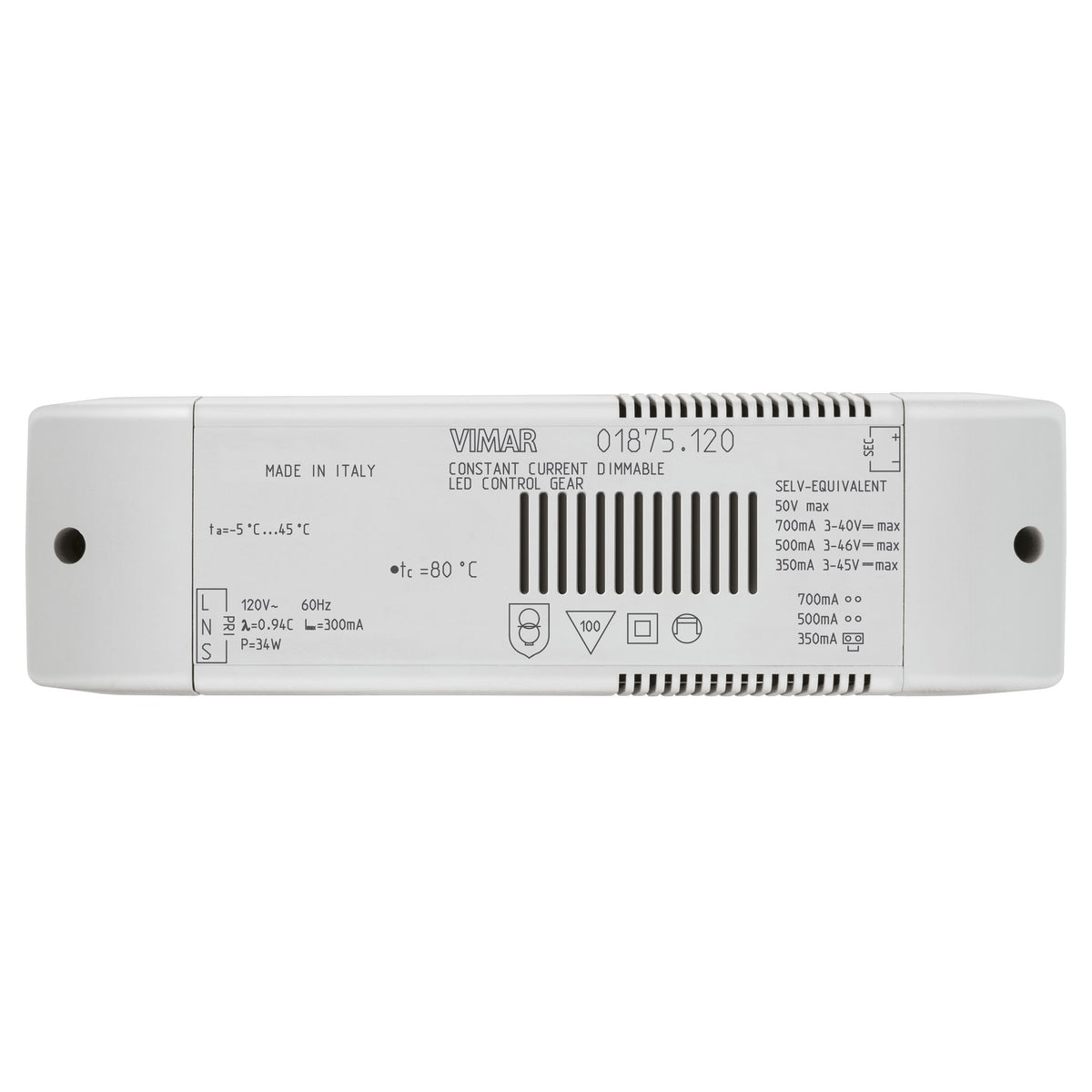

The Vimar VM01875.120 is a constant-current LED driver that runs from 120 V AC, 60 Hz and supplies 350 mA, 500 mA, or 700 mA (selectable) to low-voltage LED modules and strips wired in series. Output voltage can rise as high as 50 V as it regulates current, with maximum load up to 15 W at 350 mA, 22 W at 500 mA, or 27 W at 700 mA.
It supports phase-cut dimming when used with compatible multiload MASTER dimmers, and it can also be switched on and off at full brightness using the synchronism input. The housing is IP20 and intended for protected, dry interior spaces; it is not meant for areas where it can be exposed to drips, spray, or washdowns.

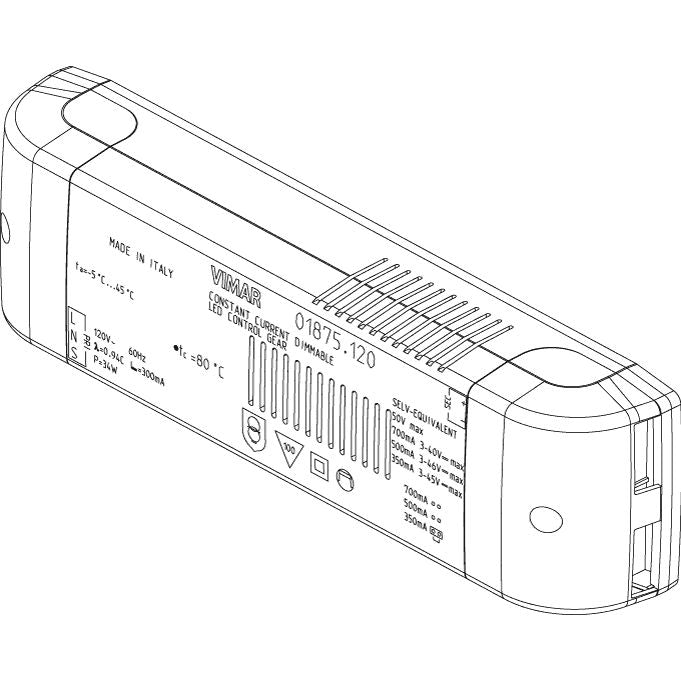

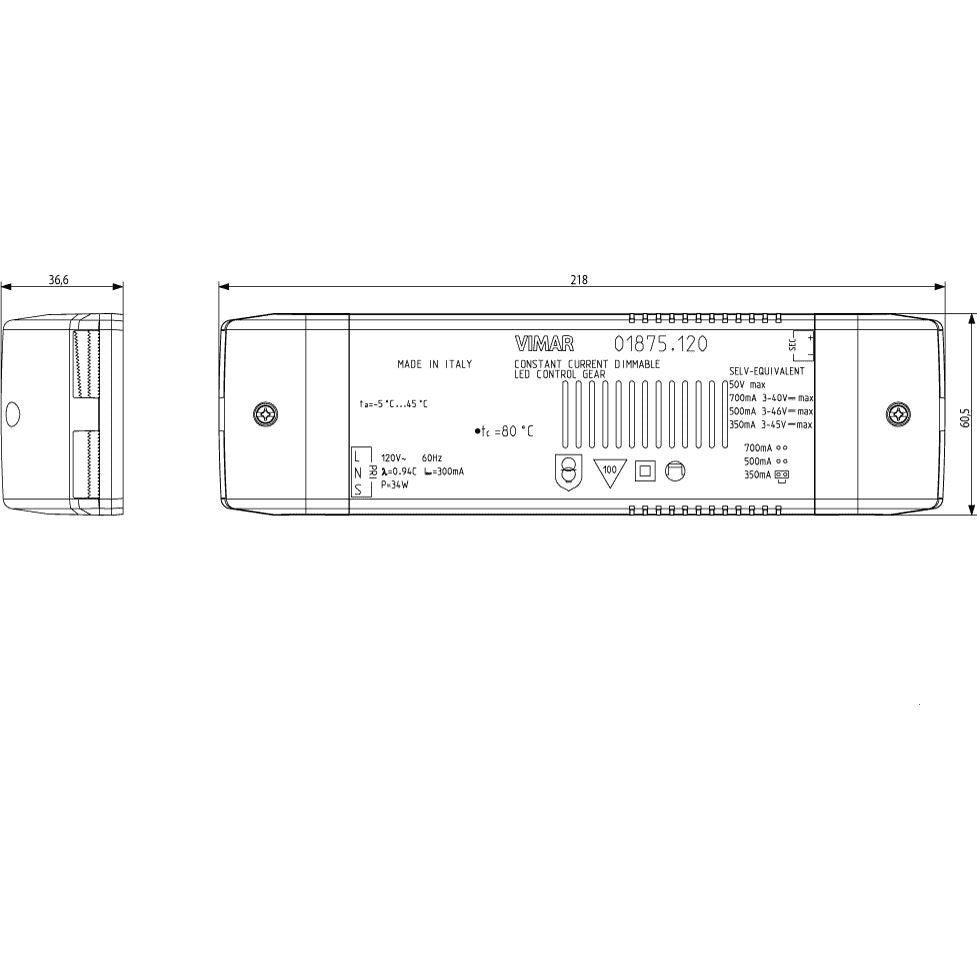

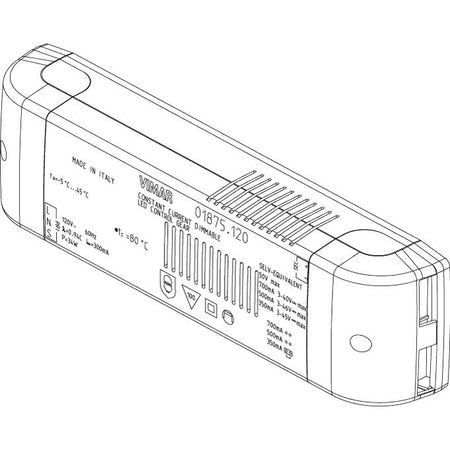

Class II insulation and galvanic isolation between the mains side and the LED side help keep the installation electrically separated. The enclosure measures 224 x 60 x 36 mm and is built for screw mounting inside cabinets, behind panels, or other sheltered voids.
Key features
- 120 V AC, 60 Hz input with selectable constant-current outputs of 350 mA, 500 mA, or 700 mA (jumpers on the secondary side).
- Up to 50 V output with maximum load ratings of 15 W (350 mA), 22 W (500 mA), or 27 W (700 mA).
- Dimmable with multiload MASTER dimmers configured for leading-edge control; on/off control is also possible via the synchronism input.
- LED load connection is series-only, using dedicated + and - output terminals.
- Built-in 1 A high-breaking-capacity fuse, plus thermal, short-circuit, and overload protection.
- IP20, internal-use construction with Class II insulation and 4 kVrms galvanic isolation between primary and secondary.
- Standby consumption under 0.5 W and active PFC (power factor up to 0.94 at full load).
- Operating temperature range: -5 C to +45 C (indoor).
- 224 x 60 x 36 mm body with screw fixing and terminal layout for L, N, synchronism (S), and LED output.
Compatibility and fit
This driver is meant for constant-current LED loads that are rated for 350 mA, 500 mA, or 700 mA. Because the output is current-regulated rather than a fixed 12 V or 24 V, it should be paired with LED modules or strips specified for one of those currents and intended to be wired in series.
Total LED load needs to stay within the wattage limit for the selected current setting. The 50 V maximum output also sets the upper limit for how many LEDs can be placed in a single series string.
Installation and setup
Mount the unit in a dry, sheltered location with space around it for ventilation. Keep it out of areas that see condensation, drips, spray, or washdowns.
Select the required output current using the on-board jumpers before applying mains power. Wire 120 V AC supply to the L and N terminals, and connect the LED load to the + and - terminals, keeping the LED modules in series as required for constant-current operation.
Electrical and control integration
For dimming, the synchronism terminal is used with compatible multiload MASTER dimmers set for leading-edge control. A single master dimmer can control up to 10 power supplies, with up to 100 m of cable from the control device to the last driver in the run.
On the LED side, the recommended maximum cable length to the LED modules is 10 m when using 1.5 mm2 conductors. For simple on/off control at full brightness, a switch can be wired between phase and the synchronism input.
Use on board
This driver fits boats that have a 120 V AC distribution from shore power, a generator, or an inverter and need a constant-current supply for interior LED modules. It works well behind cabin headliners, inside joinery, and in other protected spaces powering salon, stateroom, or accent lighting zones where phase-cut dimming is part of the control plan.
If your lighting project lives in damp lockers, engine spaces, or exposed deck areas, plan on a sealed driver rated for that environment. This model is for protected interior installs where IP20 construction is appropriate.
