High-Performance Chirp-Ready Transducer for Superior Marine Navigation

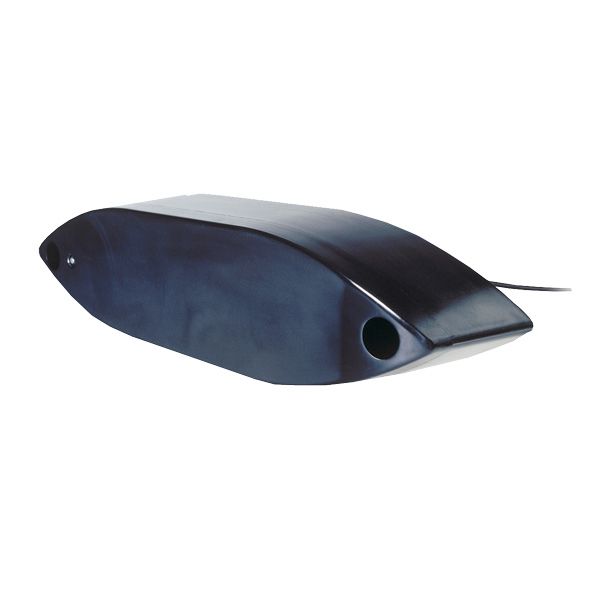

The Furuno R109LH Transducer is a powerful, externally mounted transducer designed for serious offshore anglers and commercial fishermen. With its advanced Chirp-ready technology and high-power output, this transducer delivers exceptional target resolution, precise bottom discrimination, and superior bait and game-fish separation. Equipped with a robust urethane housing and fairing, it ensures optimal performance even in demanding marine conditions.
Dual-Frequency Precision for Enhanced Detection
Operating at both low and high frequencies, the R109LH provides broad bandwidth coverage, making it an ideal choice for deep-sea fishing and bottom tracking. Its low-frequency range of 38 to 75 kHz allows for exceptional depth penetration, reaching up to 1,829 meters (6,000 feet). The high-frequency range of 130 to 210 kHz delivers crisp details, with an 8° to 4° beamwidth, ensuring precise fish-target discrimination and bottom contour clarity at depths of up to 457 meters (1,500 feet).
Technical Specifications
- Power Output: 2 kW
- Low-Frequency Range: 38 to 75 kHz
- High-Frequency Range: 130 to 210 kHz
- Total Bandwidth: 117 kHz from a single transducer
- Beam Angle (Low Frequency): 19° to 10° port-starboard beamwidth
- Beam Angle (High Frequency): 8° to 4° beamwidth
- Maximum Depth (Low Frequency): 1,829 m (6,000')
- Maximum Depth (High Frequency): 457 m (1,500')
- Hull Compatibility: Suitable for all hull materials
- Hull Deadrise: 0° to 22°
Durable Construction for Reliable Performance

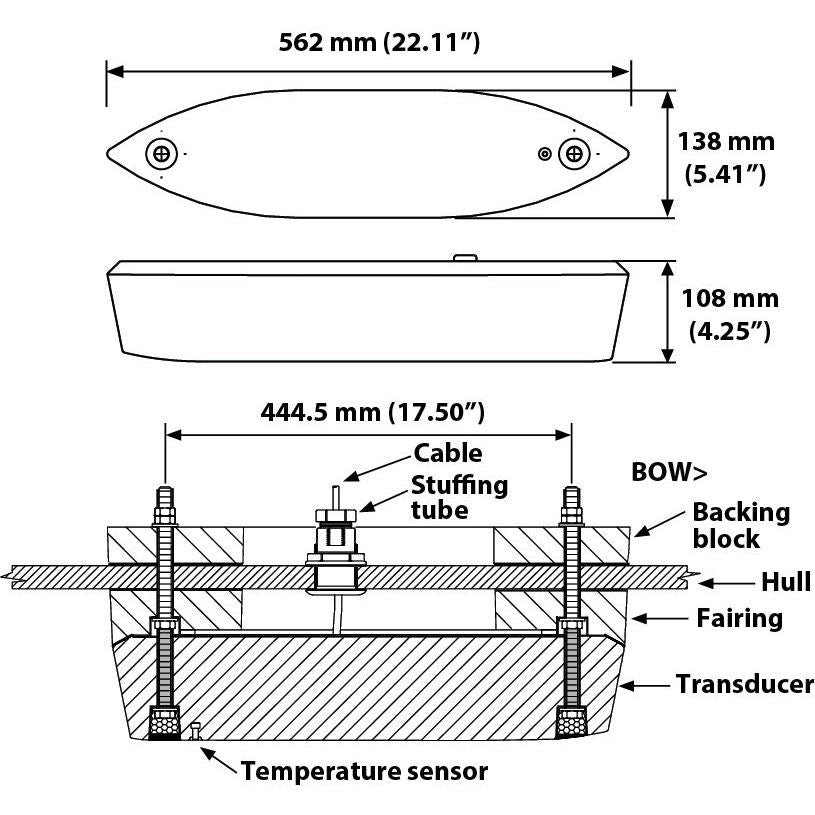

Built with a high-strength urethane housing and fairing, the Furuno R109LH transducer is designed for long-term durability and resistance to harsh marine environments. The fairing ensures stable mounting and minimizes drag, enhancing hydrodynamic performance for accurate sonar readings.
Key Features
- Exceptional Depth Capability – Penetrates depths of up to 6,000 feet with low-frequency operation.
- Wide Frequency Range – Covers popular fishing frequencies, including 50, 60, and 200 kHz.
- Chirp-Ready Technology – Enhances resolution and target separation for more precise fish detection.
- Versatile Mounting Compatibility – Works with all hull materials and accommodates deadrise angles up to 22°.
- Fairing Included – Ensures optimal performance and minimizes turbulence for accurate readings.
What's in the Box
- Furuno R109LH Transducer
- Fairing
- Mounting hardware
The Furuno R109LH is the ultimate choice for anglers and marine professionals who require high-performance sonar capabilities for deep and shallow water applications. Its powerful Chirp technology and durable construction make it an invaluable tool for enhancing your marine navigation and fishing success.
