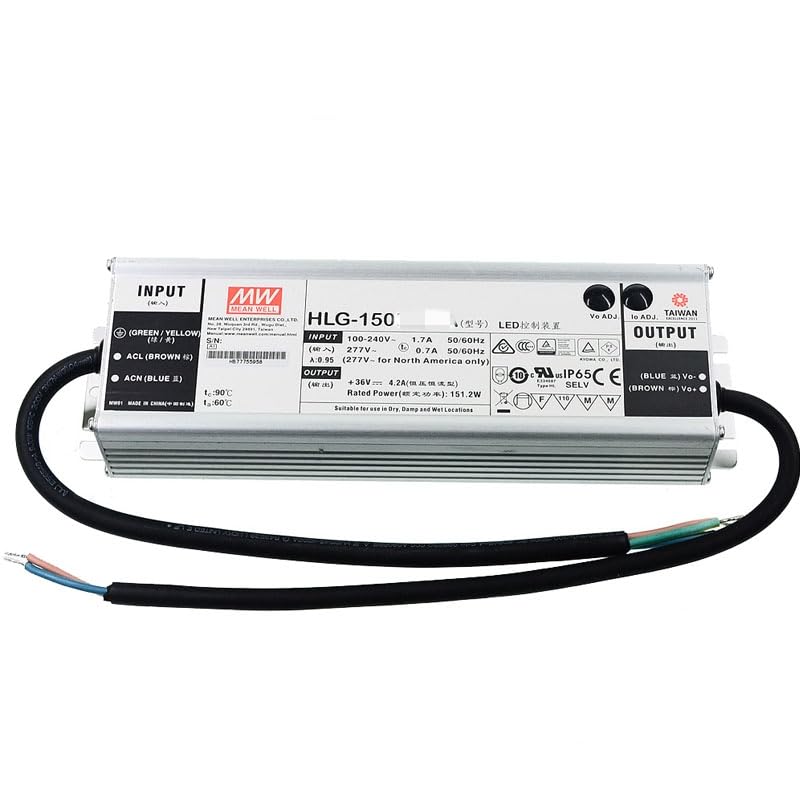

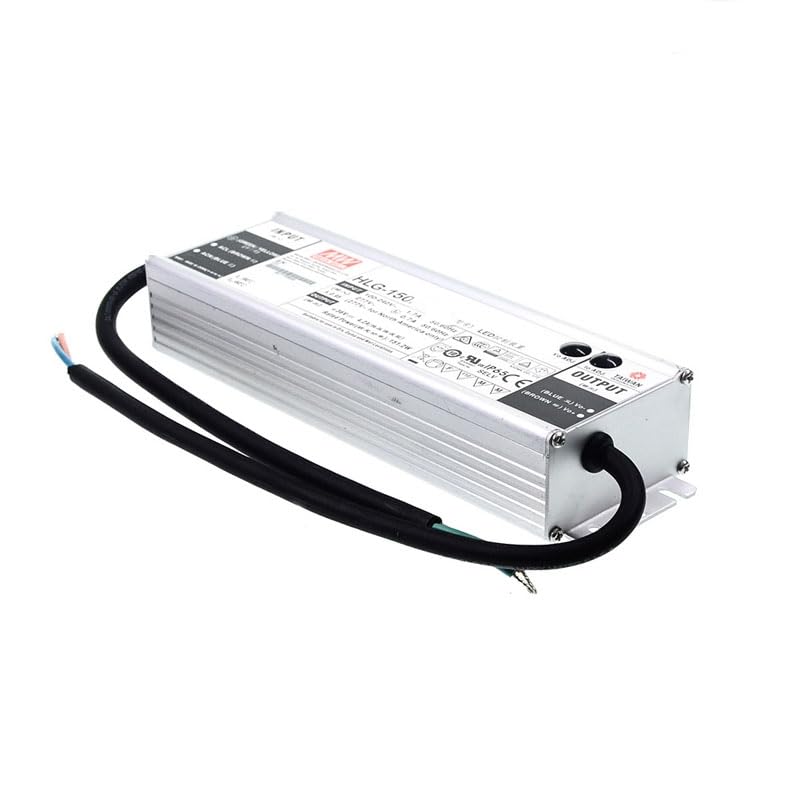

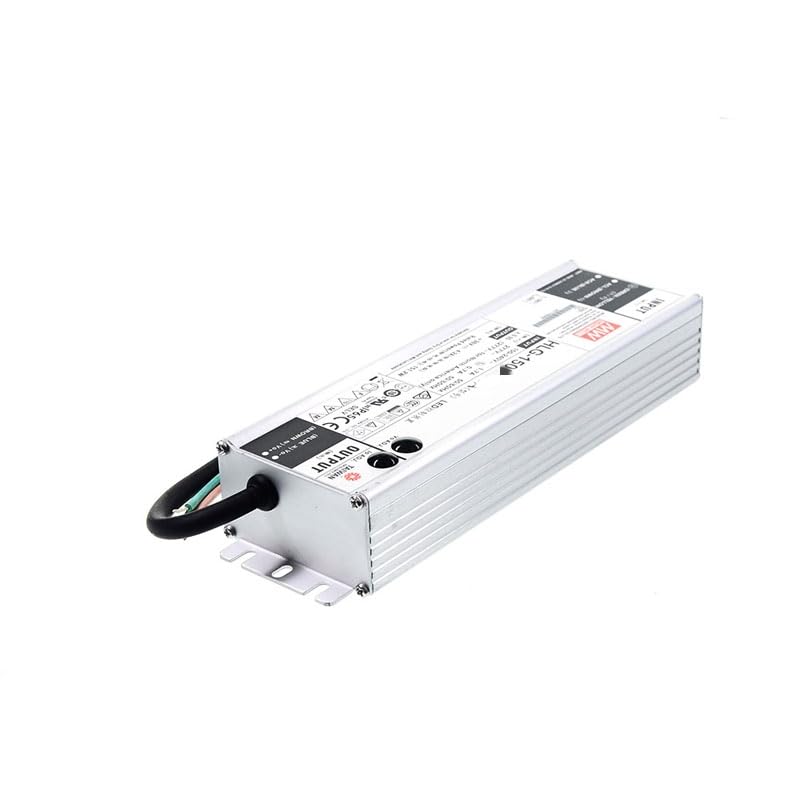

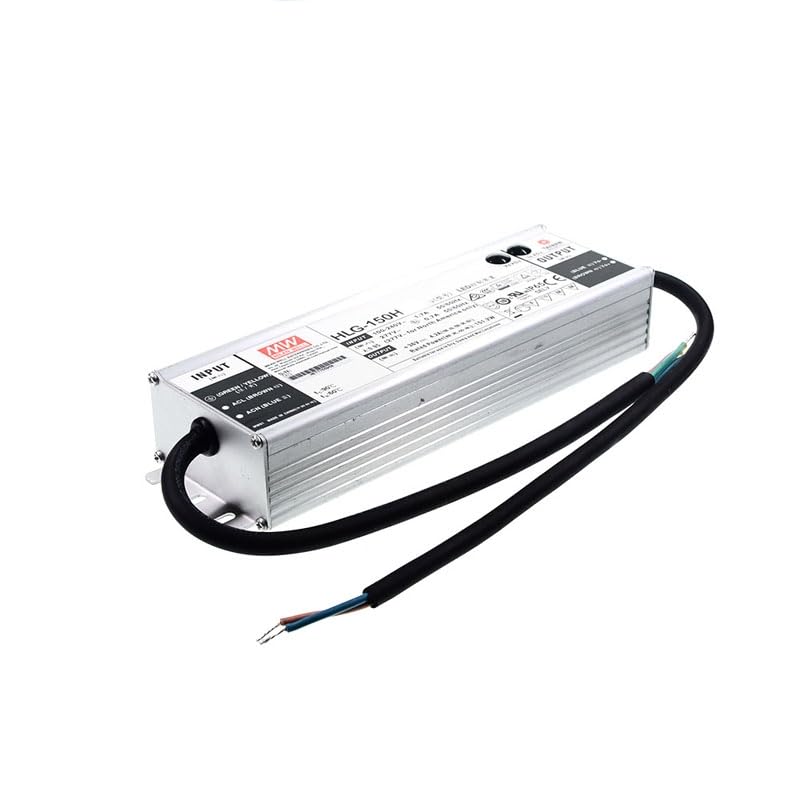

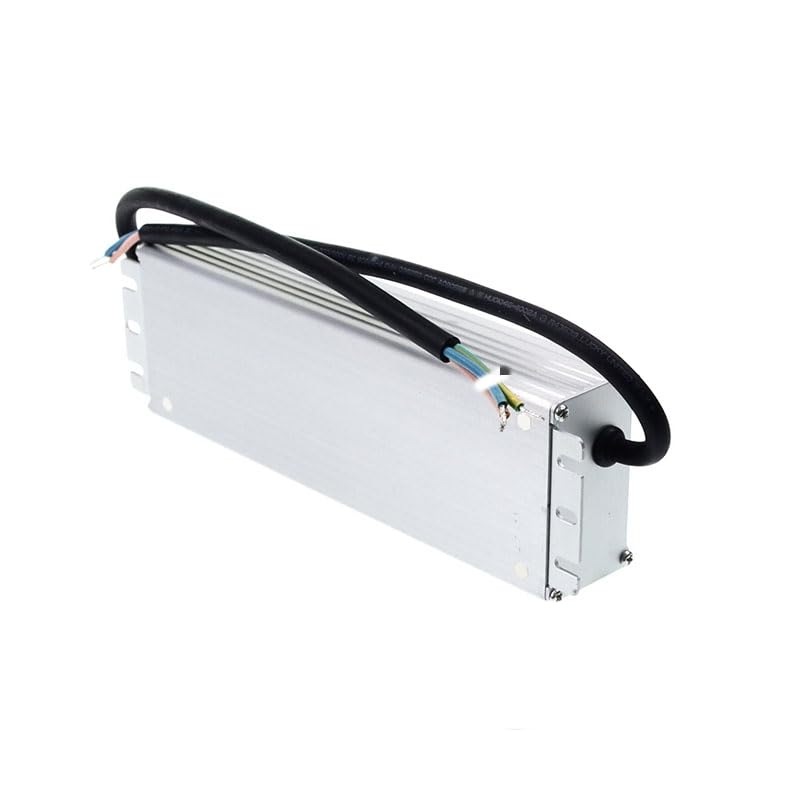

Mean Well - LED Driver - 150W - 24V, 6.3A, IP65

The MEAN WELL HLG-150H-24A is a high-performance LED power supply designed for industrial applications, offering reliable and efficient power conversion. With a robust IP65-rated metal enclosure, this power supply ensures durability and stability in challenging environments. It features a constant current and constant voltage operation mode, making it compatible with a wide range of LED products and AC control systems.

Key Features

• Output Specifications:
• Output Voltage: 24V DC
• Output Current: 6.3A
• Output Power: 151.2W
• Input Specifications:
• Input Voltage Range: 90-305VAC / 127-431VDC
• Dimming Capability: Compatible with dimmer switches for adjustable brightness control.
•

• Efficiency and Stability:
• Built-in power factor correction (PFC) function for enhanced performance.
• High conversion rate (91.5%-94%) for energy efficiency.
• No AC flicker for stable and reliable operation.
• Durability:
• Operating Temperature Range: -40°C to +90°C.
• Natural air-cooled for heat dissipation.
• IP65-rated metal enclosure for protection against dust and water.
• Protections: Includes short-circuit, overload, over-voltage, and over-temperature protection for safe operation.

Specifications

• Dimensions:
• Length: 228 mm (8.976 inches)
• Width: 68 mm (2.677 inches)
• Height: 38.8 mm (1.528 inches)
• Weight: 1.15 kg
•

• Mounting Style: Chassis mount for secure installation.

Highlights

• Dual-mode operation: Constant Current (CC) and Constant Voltage (CV) for versatility.
• Metal casing ensures excellent heat dissipation and durability.
• Compatible with industrial AC control systems and constant voltage LED products.
• Reliable multi-protection system enhances safety and longevity.
• PSE-certified for industry-standard compliance.

The MEAN WELL HLG-150H-24A LED Driver is a robust and efficient solution for powering industrial LED systems, ensuring stable performance, energy efficiency, and durability in demanding environments. Perfect for use in LED lighting, signage, and other applications requiring reliable power supplies.
