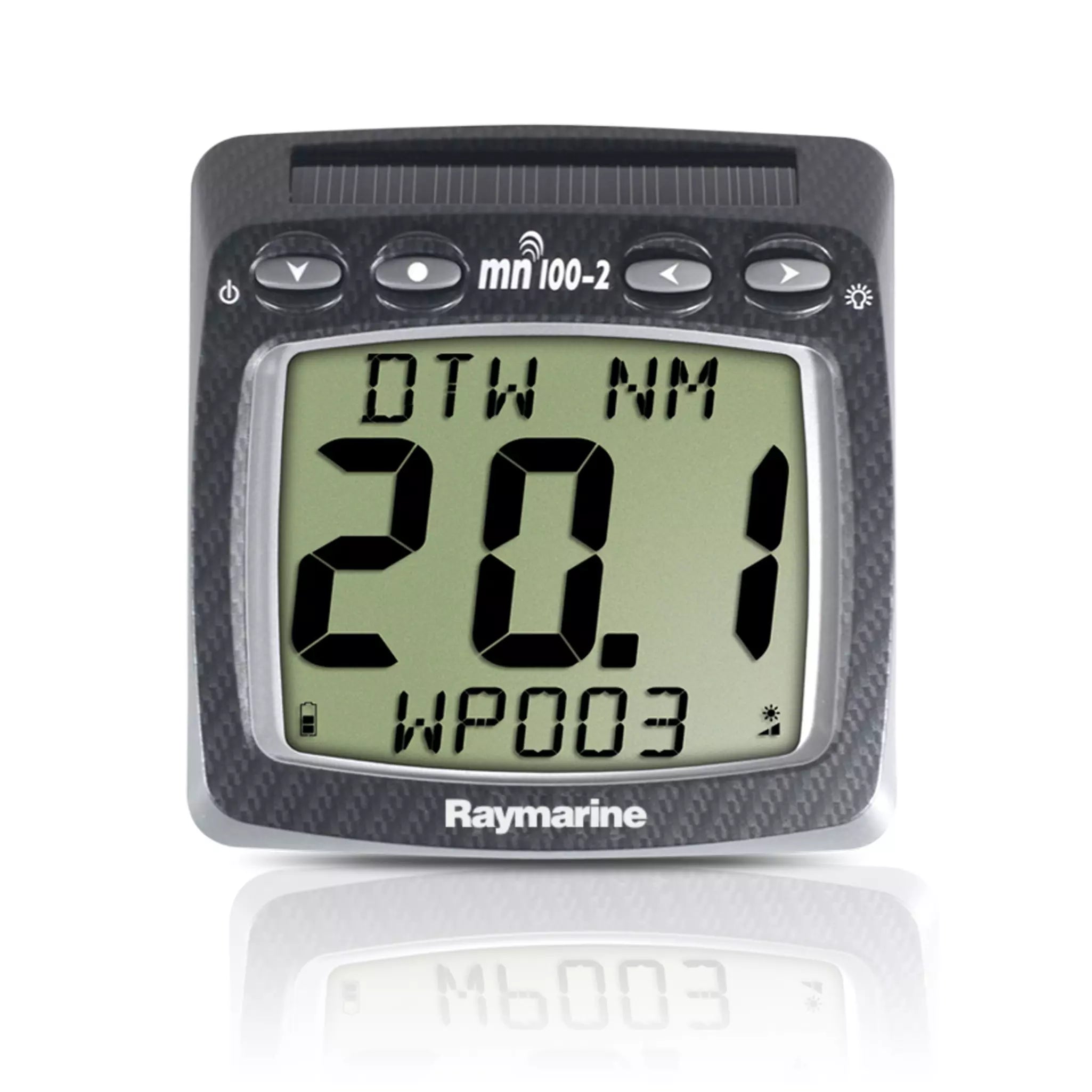

Raymarine T110 Wireless Multi Digital Display, Solar Powered, 300 Hours Autonomy, 38mm Readout, 10m Submersible

Overview

The Raymarine T110 is a wireless multi digital display for Raymarine Wireless instrument systems, giving sailors a clear single-data readout without running display wiring through the cockpit, cabin, or mast area. It receives instrument data over a wireless link and uses solar power with up to 300 hours of autonomy, making it a practical fit for boats where simple installation and low day-to-day maintenance matter.

The large 38 mm, 1.5-inch digital readout is easy to check from the helm, rail, or companionway. The display can show one data type at a time, including supported sailing and navigation data such as wind, speed, depth, heading, race timer, waypoint information, and GPS-related values when the required sensors, transmitters, and data feeds are part of the system.

For night sailing and early starts, the T110 includes three backlight levels. Its waterproof construction is rated submersible to 10 m, and the display weighs only 230 g, which helps when mounting on smaller sailboats, racing boats, or cockpits where every fitting and cable run needs to be considered carefully.

Key features

• Wireless data reception reduces the need to route instrument cables to the display location.
• Solar powered operation with up to 300 hours of autonomy supports long periods on board without routine charging.
• 38 mm, 1.5-inch digital characters help keep key instrument data readable from typical helm and cockpit positions.
• Displays any one supported data type at a time, including wind, boat speed, depth, heading, timer, waypoint, and GPS-related information when the system is equipped for those data sources.
• Three backlight levels make the display easier to use during night watches, dawn starts, and low-light cockpit conditions.
• Waterproof housing is rated submersible to 10 m for exposed marine mounting areas subject to spray, rain, and washdowns.
• Lightweight 230 g body suits sailboats where added weight and visible wiring are kept to a minimum.
• NMEA compatibility with other manufacturers is available when used with the optional T122 wireless interface.

Variants

This product is offered in two frequency configurations for different regional wireless requirements.

The frequency changes between variants. The display function, solar powered operation, large digital readout, backlighting, waterproof rating, and wireless instrument role remain consistent across the T110 range.

• T110-916: 916MHz frequency. This version is specified for the Americas, Asia, and Australasia.
• T110-868: 868MHz frequency. This version is specified for Europe.

Installation and setup

The T110 is well suited to cockpits and sailing stations where a wired instrument display would mean extra holes, cable runs, or work behind panels. Because it receives data wirelessly, placement can focus more on visibility and access to the buttons, while still keeping the display in a spot that suits the boat layout.

System setup depends on the rest of the Raymarine Wireless instrument network. The display needs the appropriate wireless sensors, transmitters, or interface modules in the system before it can show specific data such as wind, depth, speed, or NMEA-fed navigation values.

Use on board

This display is a strong match for sailboats, club racing boats, cruising boats, and refit projects where clean installation and readable cockpit data are priorities. It is especially useful when one key value needs to be shown clearly at a time, such as depth while entering a channel, wind angle while trimming sails, or boat speed during a race start.

For mixed-brand instrument setups, the optional T122 wireless interface is the key consideration when NMEA data from other equipment needs to be brought into the Raymarine Wireless system.
