Johnson Pump - Ultima Bilge - Hose Dura Ports

Advanced Technology for Superior Bilge Water Management

Introducing the Johnson Pump Ultima Bilge Pump, the latest innovation in marine bilge pumps designed to provide reliable and efficient water removal. Featuring the cutting-edge Ultima "field effect" sensing technology integrated directly into the pump body, this sleek and compact unit is built to deliver years of unerring service. Available in multiple capacities, the Ultima Bilge Pump ensures your vessel remains dry and safe, no matter the conditions.

State-of-the-Art Design and Functionality

The Johnson Pump Ultima Bilge Pump is engineered for maximum efficiency and ease of use. Its compact, all-in-one design includes an integrated Ultima Switch, which eliminates the need for a separate float switch. This pump is available in capacities ranging from 600 to 1250 GPH, making it suitable for a variety of marine applications. The easy-to-install Dura-Port discharge ports prevent stress cracking caused by over-tightened hose clamps, and the included straight and 90-degree smooth elbow Dura-Ports offer flexible installation options.

Key Features and Benefits:

• Integrated Ultima Switch: Sensing technology built into the pump body for seamless operation
• No Mercury: Environmentally friendly design
• Easy Maintenance: Removable clip-on basket and impeller cover for easy clean-out
• Auto or Manual Mode: 3-wire device allows for automatic or manual override operation
• Energy Efficient: Extremely low power consumption
• Durable Construction: Water-cooled motor and stainless steel shaft for long service intervals
• Versatile Installation: Includes straight and 90-degree smooth elbow Dura-Ports

Technical Specifications

• Capacities:
• 600 GPH
• 800 GPH
• 1000 GPH
• 1250 GPH
• Voltage: 12 V DC
• Capacity at 3 ft (0.9 m) head (13.6 V): 44 l/min (700 GPH)
• Capacity straight (13.6 V): 64 l/min (1000 GPH)
• Amperage: 3.2 A
• Fuse Size: 5 A
• Connection: 3/4" or 1-1/8"
• Pump Body: ABS
• Shaft Seal: Lip Seal
• Shaft: Stainless steel (SS2343)

Product Dimensions

• Length: 142 mm (6 inches)
• Width: 82 mm (3.2 inches)
• Height: 105 mm (4.1 inches)
• Weight: 0.66 kg (23.3 oz.)

Durable and Reliable Construction

Constructed from high-quality materials, the Johnson Pump Ultima Bilge Pump is designed to withstand the harsh conditions of the marine environment. The ABS pump body and stainless steel shaft ensure long-lasting durability, while the water-cooled motor provides efficient cooling for extended service intervals.

Product Variations to Suit Your Needs

The Johnson Pump Ultima Bilge Pump is available in four variations to meet different capacity and size requirements:

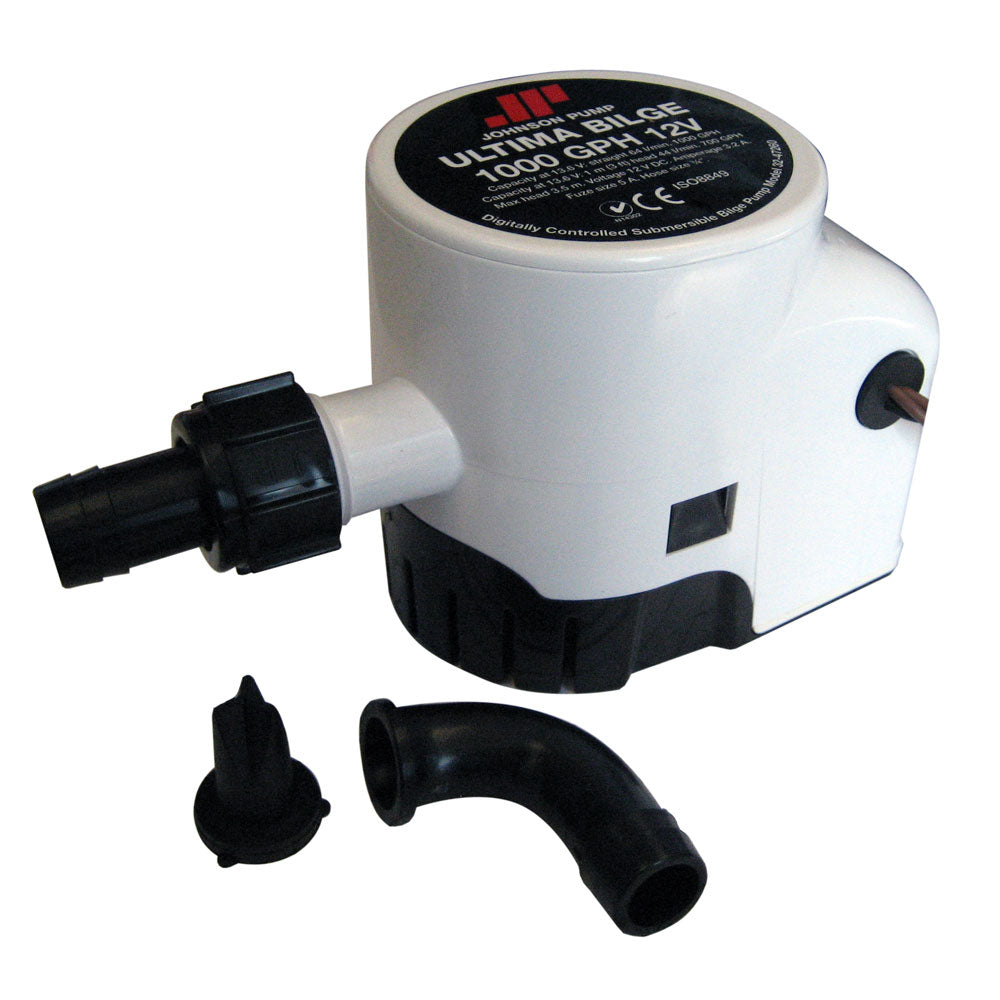

1. 1000 GPH / Size 3/4" (Model: 32-47260-003): Ideal for general bilge pumping needs with high capacity.

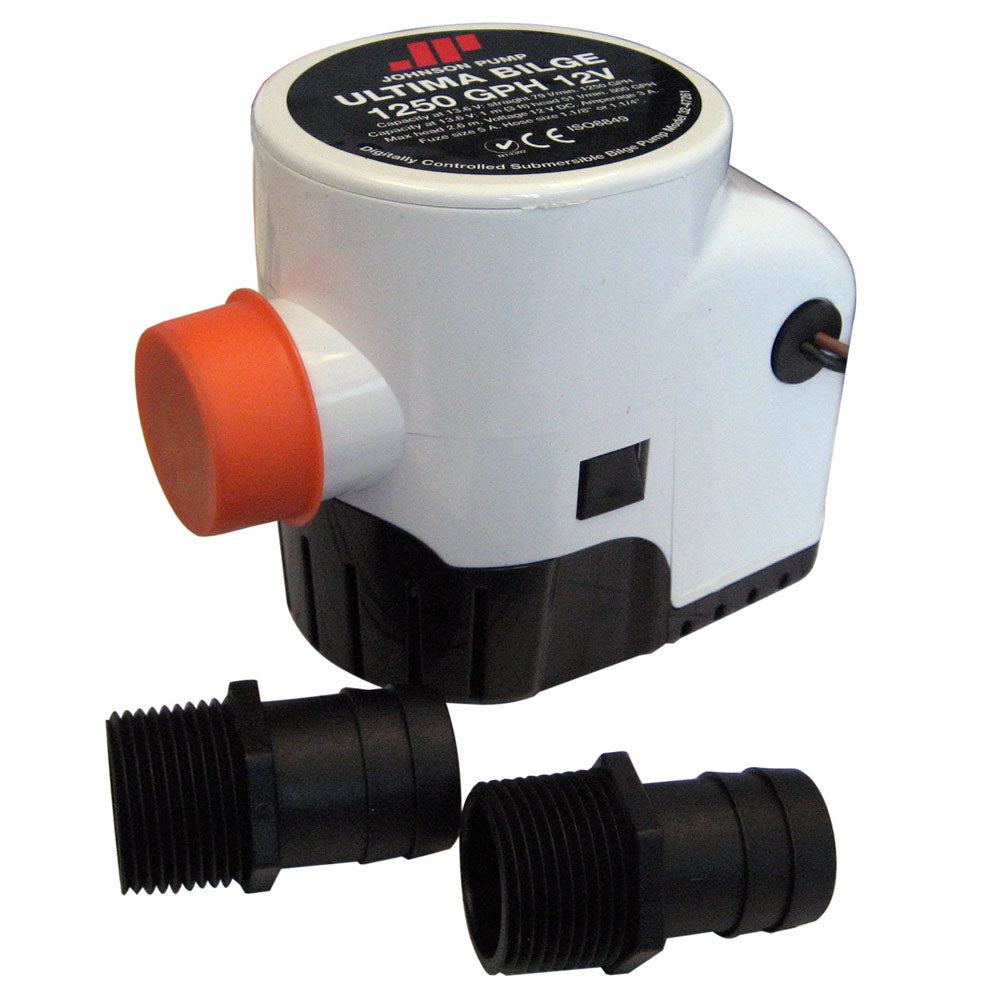

2. 1250 GPH / Size 1-1/8" (Model: 32-47261-002): Suitable for larger systems requiring higher capacity.
3. 600 GPH / Size 3/4" (Model: 32-47258-003): Perfect for smaller vessels or less demanding applications.

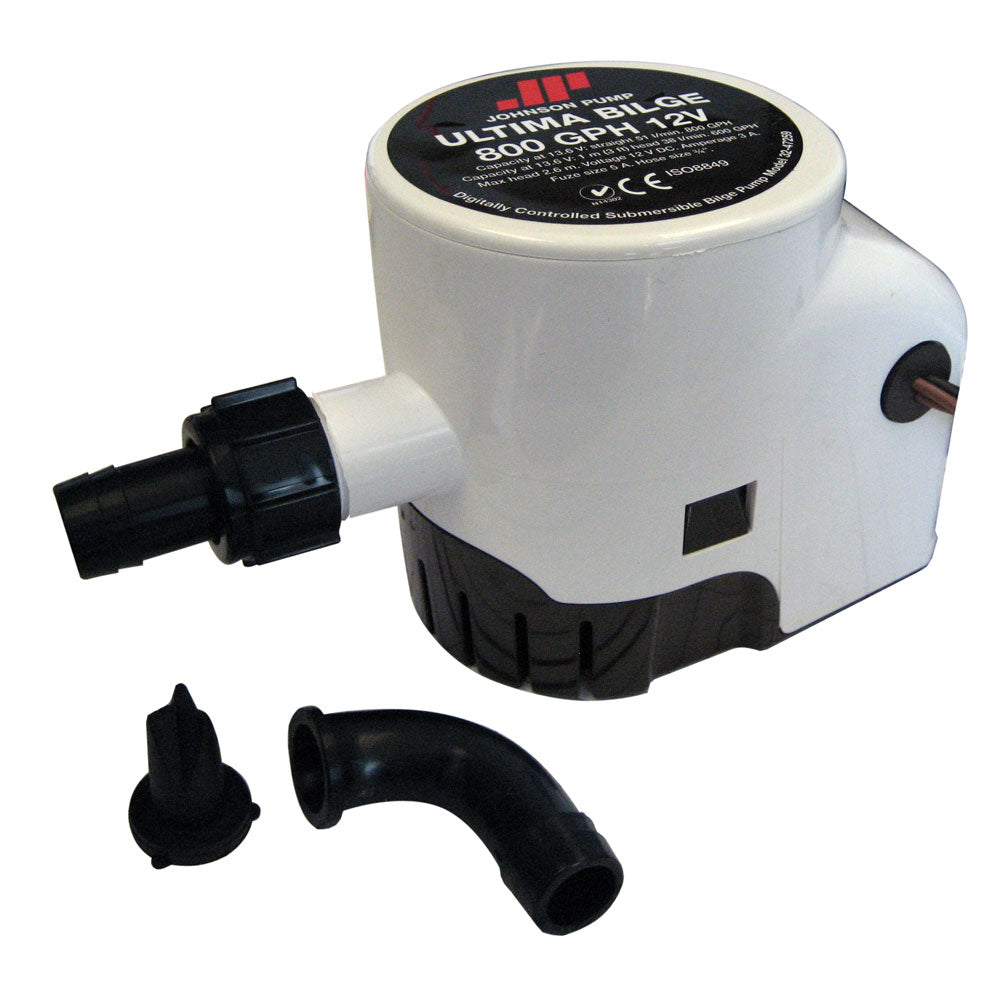

4. 800 GPH / Size 3/4" (Model: 32-47259-003): Balanced option for medium-sized boats.

Why Choose Johnson Pump Ultima Bilge Pump?

The Johnson Pump Ultima Bilge Pump combines advanced technology, durable construction, and user-friendly features to deliver exceptional performance in any marine environment. Whether you're navigating rough seas or maintaining your vessel at the dock, this bilge pump ensures your bilge system operates efficiently and reliably. Choose the model that best suits your needs and experience the convenience and reliability of Johnson Pump products.

The Johnson Pump Ultima Bilge Pump is an essential component for any marine vessel, providing reliable and efficient water removal to keep your bilge dry. Its high capacity, durable construction, and easy installation make it the perfect choice for maintaining the safety and functionality of your boat.

Invest in the Johnson Pump Ultima Bilge Pump and ensure your vessel remains protected against bilge water challenges. Choose from the available capacity options to match your specific requirements and enjoy the benefits of a high-performance pump designed for marine environments.
