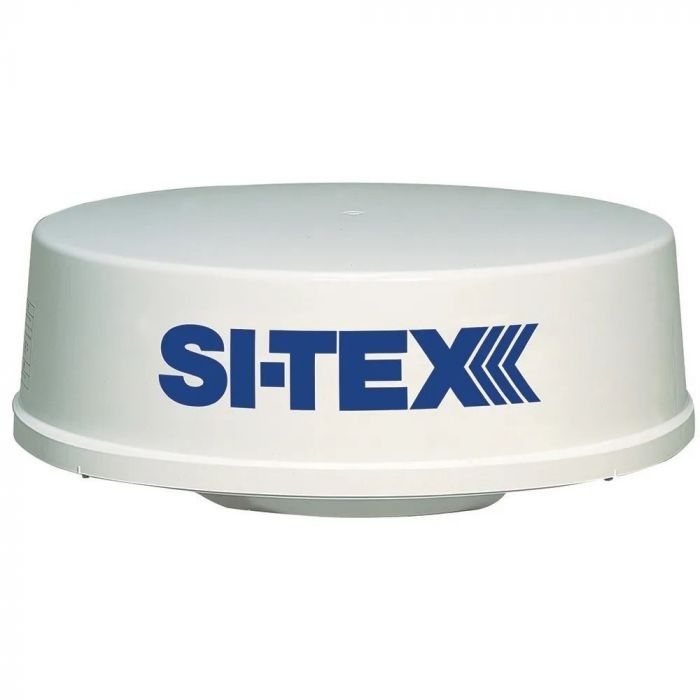

SI-TEX - T760 7" Color Radar - With 4Kw 18" Dome 10M Cable
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Marine Radar with High-Performance Detection
The Sitex T760 7” Color Radar is designed for superior marine navigation, offering powerful detection capabilities and advanced tracking features. With a high-performance 4kW radome scanner and a user-friendly 7-inch color LCD touch display, this radar ensures optimal visibility and control in various maritime conditions. The multi-speed antenna rotation enhances tracking accuracy, while integrated AIS and MARPA functionalities provide real-time situational awareness for safer navigation.
Cutting-Edge Radar Technology
Equipped with an X-band 9410 MHz radar system, the Sitex T760 delivers exceptional range and accuracy. It features a high-resolution 7-inch color display with an intuitive touchscreen and rotary encoder dial for seamless operation. The radar supports optional RGB video output, enhancing flexibility for different marine applications.
Precise Target Tracking and AIS Integration
This radar supports 50-target AIS tracking and 10-target MARPA tracking as standard features. The auto/manual acquisition mode ensures that moving targets are detected efficiently within a 20NM range. CPA/TCPA alarms provide early warnings for potential collision risks, while the system also supports guard zones for enhanced safety.
Radar Performance and Specifications
- Maximum Detection Range: 24NM (T-760) / 48NM (T-761)
- Range Scale: 0.0625 - 24NM (T-760) / 0.0625 - 48NM (T-761)
- Range Resolution: Less than 30m
- Minimum Detection Range: Less than 40m
- Bearing Accuracy: Less than 1 degree
- Beamwidth: T-760: Horizontal 5.2°, Vertical 25° | T-761: Horizontal 4.0°, Vertical 25°
- Power Supply: DC12/24V (-10% to +30%), Approx. 50W

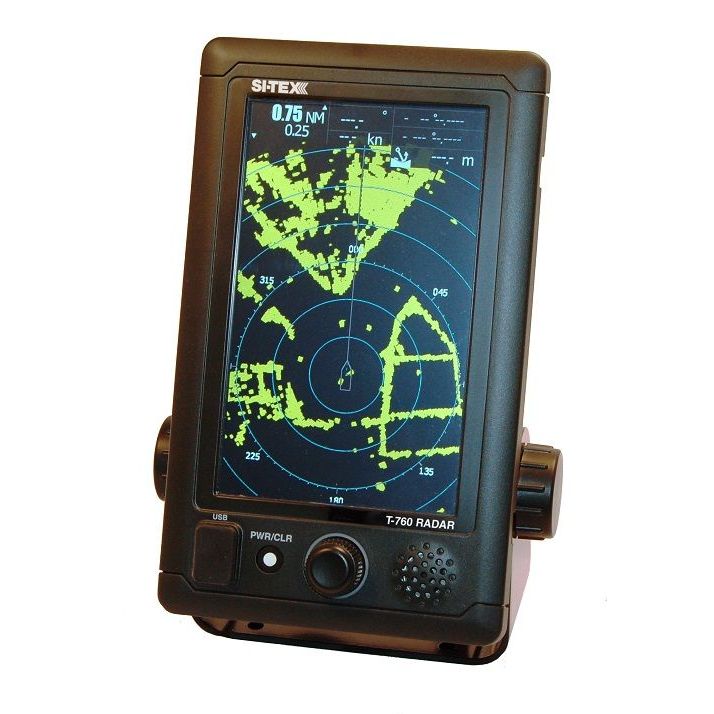

User-Friendly Display and Controls
- Screen Size: 7” wide LCD (800x480 pixels)
- Anti-Sea/Rain Clutter: Auto/Manual adjustments
- Trail Indication: Multiple settings from 15 seconds to continuous tracking
- Offcentering: Up to 2/3 radius of PPI
Target Tracking and Safety Features
- Auto/Manual Target Acquisition with auto new target detection
- ATA Tracking Capacity: 10 targets
- AIS Target Capacity: 50 targets
- Vector Mode & Length: Adjustable True/Relative Vector (1 to 60 min)
- Alarms: CPA/TCPA warnings, new target detection, lost target alerts
