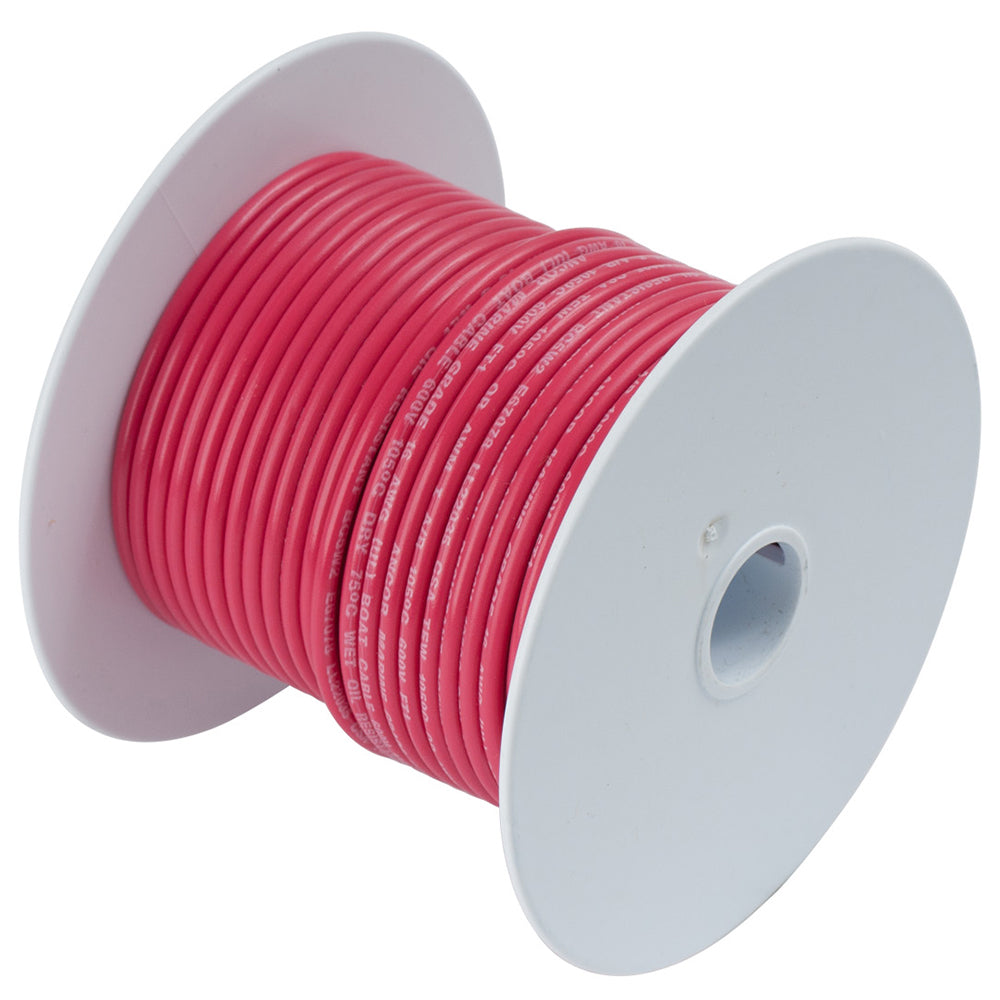

Ancor 25' Red #10 Primary Wire (108802)
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Ancor's 10 AWG 25' Red Tinned Copper Wire (108802) Ancor Marine Grade wire products are the most durable and long-lasting, meeting or surpassing UL 1426, ABYC, and US Coast Guard Charter boat (CFR Title 46) criteria. Each has 600 volts, 105 deg C dry, and 75 deg C wet, rating superior vinyl insulation and remains flexible even at subzero temperatures (-40 deg F/C). You can assure its proper operation from a reputable producer of the most rugged and dependable electrical equipment capable of withstanding difficult maritime situations.
Key Features:
- Made of tinned copper stranding for enhanced corrosion and electrolysis resistance
- Ultra-flexible (Type 3) stranding resists vibration and bending.
- It is resistant to saltwater, battery acid, oil, gasoline, and ultraviolet light.
- High-quality design extends longevity.
- Made from high-quality materials
- Carefully built to meet your unique sailing requirements.
Specifications:
- Brand: Ancor
- SKU: 1-108802
- UPC: 091887108651
- Weight: 11.05 LBS
- Color: Red
- Length: 25'
- Manufacturer Part Number (MPN): 108802
- Wire Gauge: 10 AWG
- Size: 5 mm²
MARINE GRADE™ 10 AWG (5MM2) WIRE SPECIFICATIONS
| Nominal O.D. | 7/32" (5.6mm) |
| Wt./1000' | 44 lbs. (20 kg) |
| Stranding | 105 of 30 AWG |
| Cir. Mil Area | 10,500 |
| Square mm | 5.26 |
| Ohms/1000' | 0.98 |
This product replaces:
- 639-108802, 91887108651
