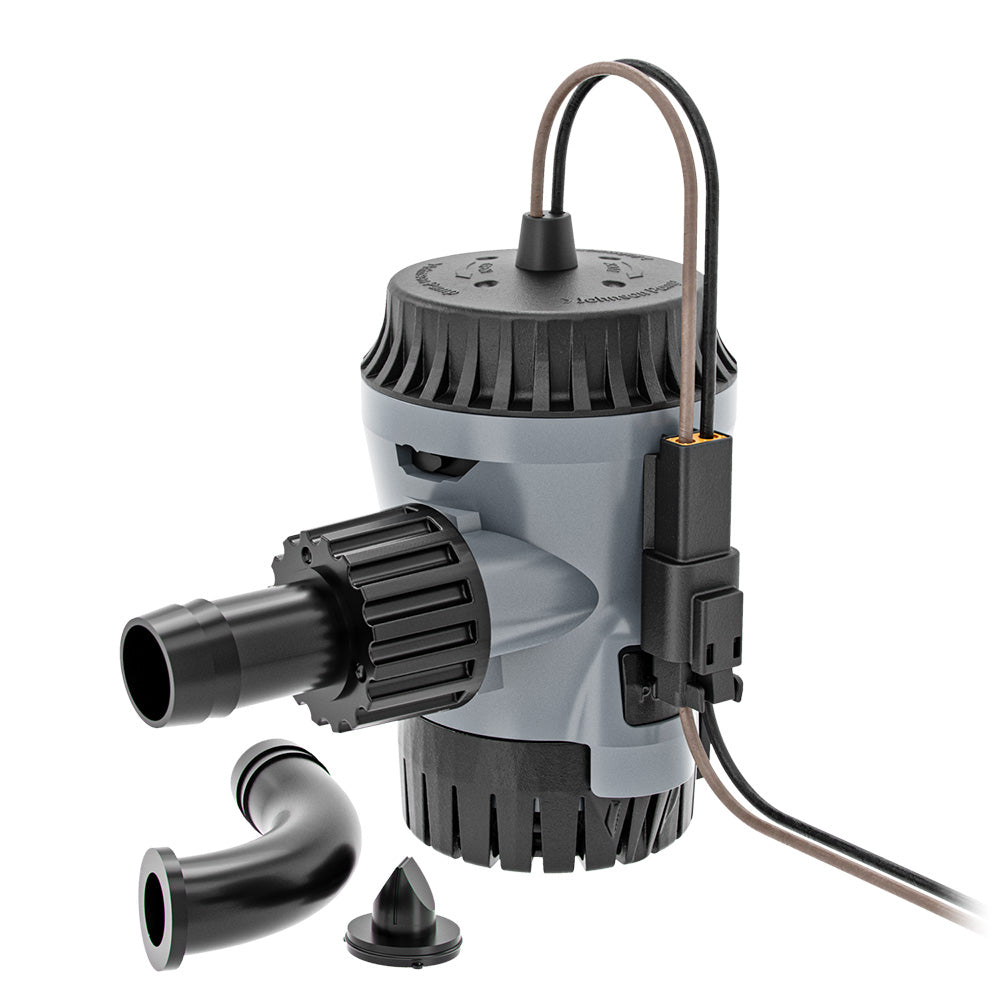

Johnson Pump - Aqua Void Automatic Bilge Pump - 12V
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Experience Hassle-Free Boating with the Aqua Void Bilge Pump
Introducing the Johnson Pump Aqua Void Automatic 500 GPH Bilge Pump, the ultimate solution for efficient and reliable bilge pumping. Featuring an innovative quick-change motor connection and reinforced click-in basket, it simplifies cleaning, installation, and maintenance while ensuring exceptional performance. With a durable, energy-efficient motor, the Aqua Void delivers worry-free boating in any condition.
Innovative Quick-Change Motor Connection
The Aqua Void sets a new standard with its groundbreaking motor connection, enabling effortless cartridge motor changes or capacity upgrades for unmatched convenience.
Enhanced Efficiency and Flow Rate
Powered by an advanced motor and high-flow impeller, the Aqua Void offers increased efficiency and a higher flow rate while conserving energy—ideal for small and medium-sized boats to keep bilges dry and vessels safe.
Robust and Reliable Construction
Known for reliability, Johnson Pump Marine has built the Aqua Void to withstand tough marine conditions. Its thermoplastic housing, water-cooled motor, and 316 stainless steel shaft ensure lasting performance.
Key Features
- High-Flow Impeller Design: Efficient water removal.
- Quick-Change Motor Connection: Easy cartridge motor changes without tools.
- Switchless Automatic Operation: Detects water with low-amp resistance.
- Durable Thermoplastic Housing: Ensures longevity.
- Compact Profile: Fits tight bilge spaces.
- Versatile Discharge Ports: Straight or 90-degree dura port options.
- Water-Cooled Motor: Features 316 stainless steel shaft and lubricated bearings.
- Reinforced Click-In Basket: Simplifies cleaning and inspection.
Benefits
- High Efficiency: Rapid bilge water removal.
- Hassle-Free Maintenance: Quick cartridge motor changes or upgrades.
- Automatic Monitoring: Detects water through low-amp draw impeller spin.
- Compact Design: Fits small spaces.
- Corrosion Resistance: Durable construction for extended life.
- Multi-Directional Hose Routing: Reduces stress cracking and backflow.
Competitive Advantages
- Most Efficient in Its Class: Delivers the highest flow rate for its GPH capacity.
- Unique Cartridge Motor: Includes a harness connection, eliminating wire cutting and splicing.
- Extended Service Life: Provides 100 days of use before significant battery drawdown.
- Ease of Installation: Simplifies setup and upkeep for all users.
Specifications
- Capacity: 500 GPH (600 GPH straight capacity at 12V)
- Voltage: 12V, Current Draw: 2.7A, Fuse Size: 3.5A
- Hose Connection: 3/4 inch
- Materials: ABS housing, 316 stainless steel shaft, PC-ABS motor cartridge
- Dimensions: 2.75 x 4.69 x 5.24 in (70 x 119 x 133 mm)
- Weight: 11.2 oz (0.32 kg)
Variants
- 500 GPH Model: Perfect for standard bilge pumping needs.
- 800 GPH Model: Higher capacity for demanding applications.
Why Choose the Johnson Pump Aqua Void Automatic Bilge Pump?
The Aqua Void offers superior performance, ease of use, and reliability. Its innovative features, robust design, and high efficiency ensure a dry, safe bilge area. Upgrade your bilge pumping system with the Aqua Void for worry-free boating.
