Humminbird - HELIX 9 CHIRP MEGA MSI+ Fish Finder

Discover Underwater Clarity

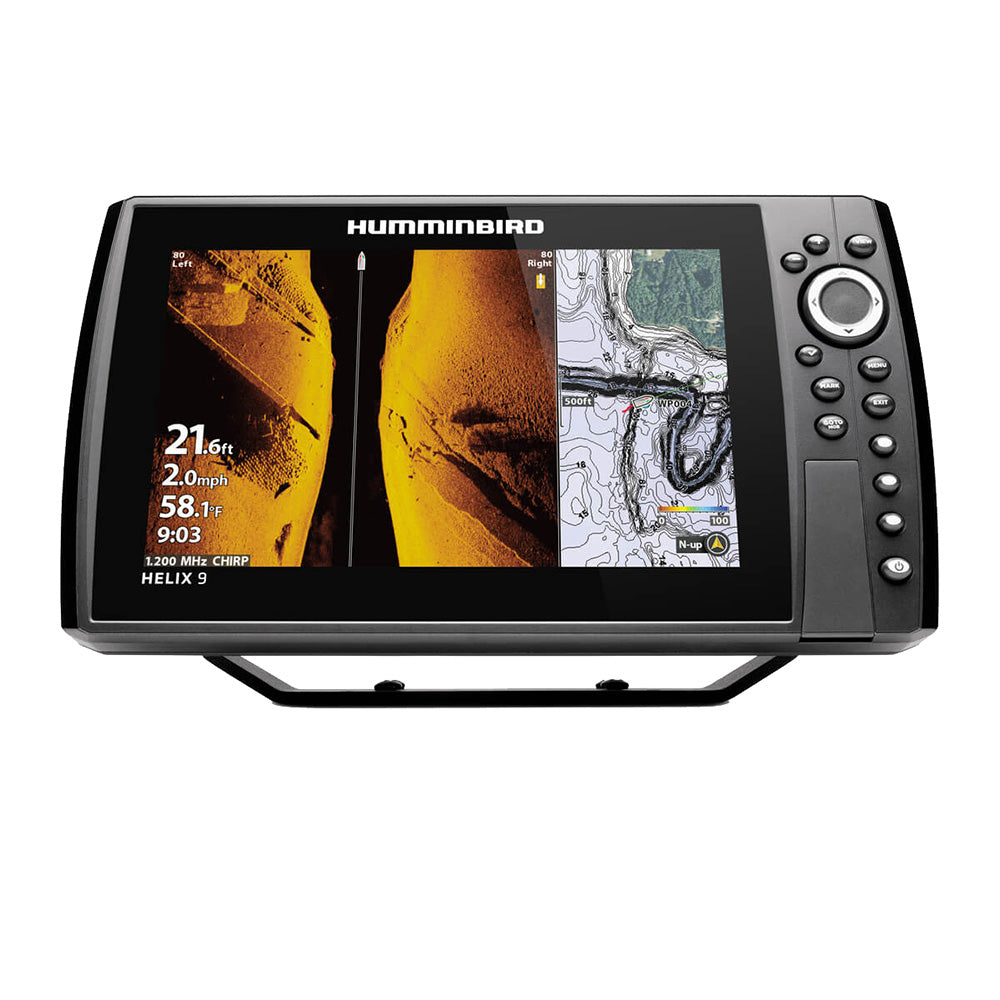

The HELIX 9 CHIRP MSI+ GPS G4N CHO redefines your marine navigation experience with its powerful features and superior sonar imaging. This state-of-the-art fishfinder/chartplotter combination boasts a 9" high-definition display, delivering crystal-clear visuals of what's beneath your boat. Designed for avid anglers and boating enthusiasts, the HELIX 9 offers MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar, ensuring you never miss a detail underwater. With internal GPS and Humminbird Basemap, this model provides unmatched accuracy and functionality.

Key Features

• Control Head Only Model: Perfect for those seeking compatibility with Minn Kota trolling motors with built-in MEGA Imaging, or for adding to an existing Humminbird Ethernet network. This model does not include a transducer, offering flexibility for specific rigging needs.
• Keypad Control: Effortlessly navigate and control your device using the intuitive keypad, designed for reliability in all conditions.
• MEGA Side Imaging+: Unlock detailed, side-to-side views up to 200 feet with 20% more clarity and 60% greater range than standard side imaging.
• MEGA Down Imaging+: Experience unprecedented clarity down to 200 feet, revealing more fish and structure with 20% more detail and 60% more depth capability.
• Dual Spectrum CHIRP Sonar: See highly detailed fish arches and clear views of the bottom structure. Offers two search modes: Wide Mode for maximum coverage and Narrow Mode for detailed focus.
• Internal GPS and Humminbird Basemap: Navigate confidently with detailed maps of over 10,000 lakes and coastal coverage of the U.S. Identify critical markers, contours, and points of interest with ease.
• Premium Chart Compatibility: Expand your view with optional LakeMaster® and CoastMaster™ charts, plus Navionics® compatibility.
• AutoChart Live: Create real-time maps of your favorite fishing spots, complete with depth contours, bottom hardness, and vegetation.
• One-Boat Network Compatibility: Integrate seamlessly with Minn Kota and Cannon products for enhanced control and functionality.
• Ethernet Networking: Build a comprehensive fishing system with high-speed Ethernet, connecting multiple devices for synchronized operation.
• Bluetooth: Wireless control of Talon and Raptor anchors, as well as Cannon downriggers. Receive updates and notifications directly on your screen.
• NMEA 2000 Networking Built-in: Connect additional sensors for comprehensive data on boat performance, weather, and water conditions.

Technical Specifications

• Display Size - Diagonal: 9 inches
• Display Pixel Matrix: 1024H x 600V
• Sonar-Standard: Dual Spectrum CHIRP / MEGA Down Imaging+ / MEGA Side Imaging+
• Sonar-Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
• Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
• Live Sonar Coverage: 20 degrees x 120 degrees
• CHIRP Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
• Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
• Memory Card Slot: Dual Micro SD
• Power Draw: 2.4 Amps
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 8000 Watts
• Power Output RMS: 1000 Watts

Dimensions

• Standard Mount Size: 12.00 in W x 7.0 in H x 4.13 in D
• Optional In-Dash Mounting Kit Size: 12.00 in W x 6.63 in H x 1.32 in D

What's Included

• Control Head
• Screen Cover
• Power Cable
• Gimbal Mounting Bracket

Variations List

• 411950-1CHO: With Transducer No
• 411950-1: With Transducer Yes

Discover the ultimate in marine electronics with the HELIX 9 CHIRP MEGA MSI+ GPS G4N CHO. Whether you're exploring new waters or optimizing your favorite fishing spots, this device offers the clarity, control, and connectivity to elevate your experience.
