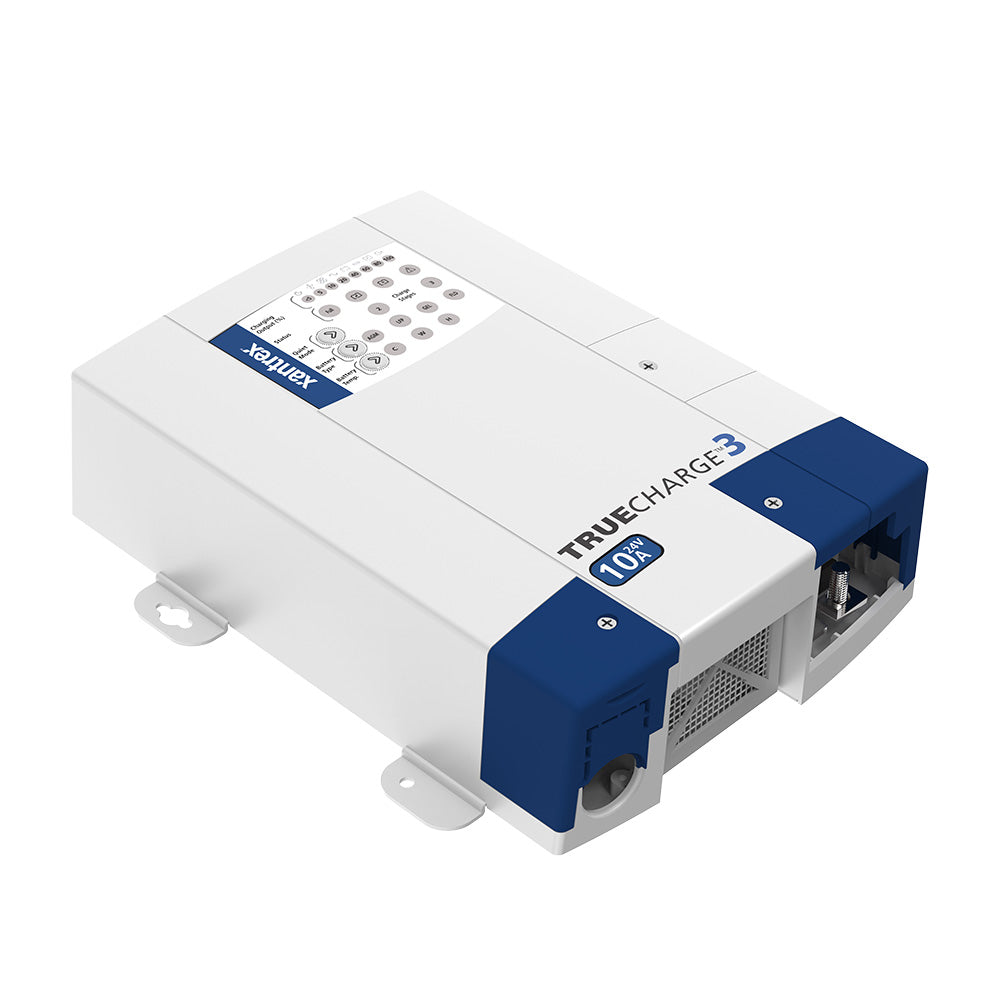

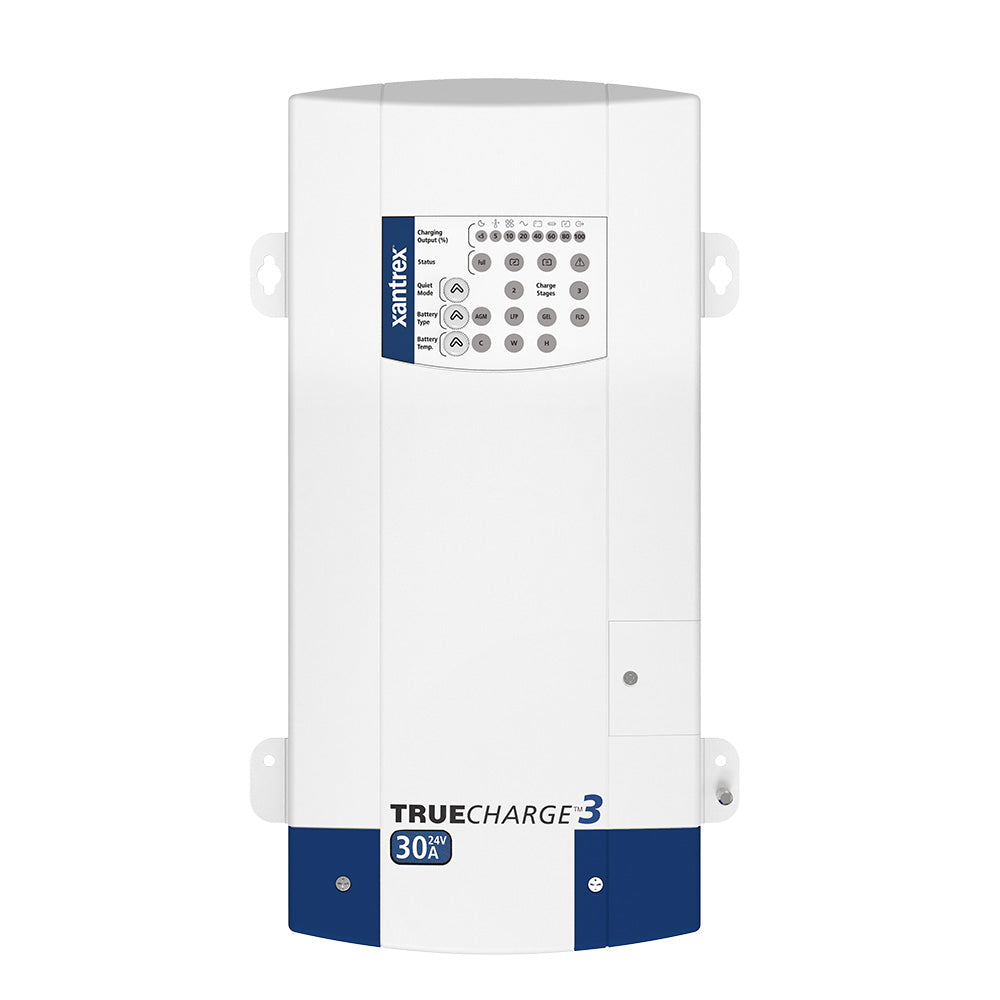

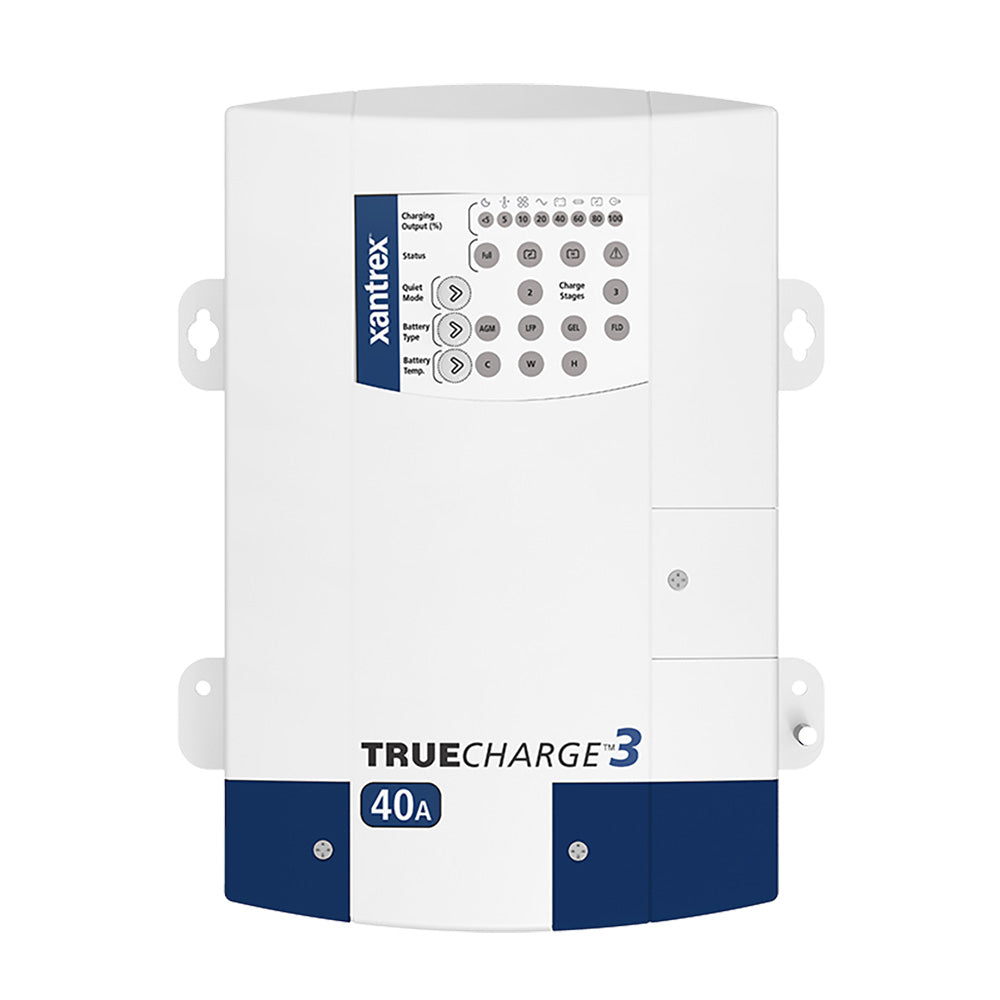

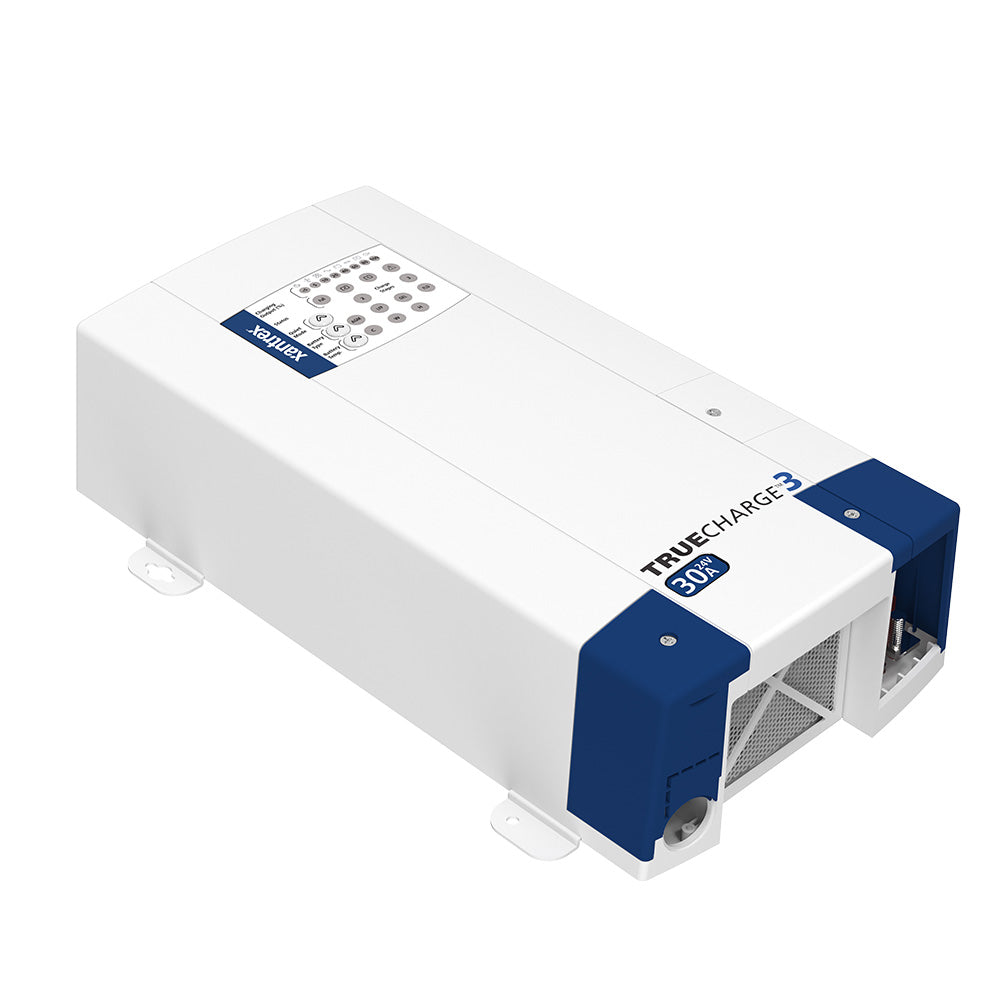

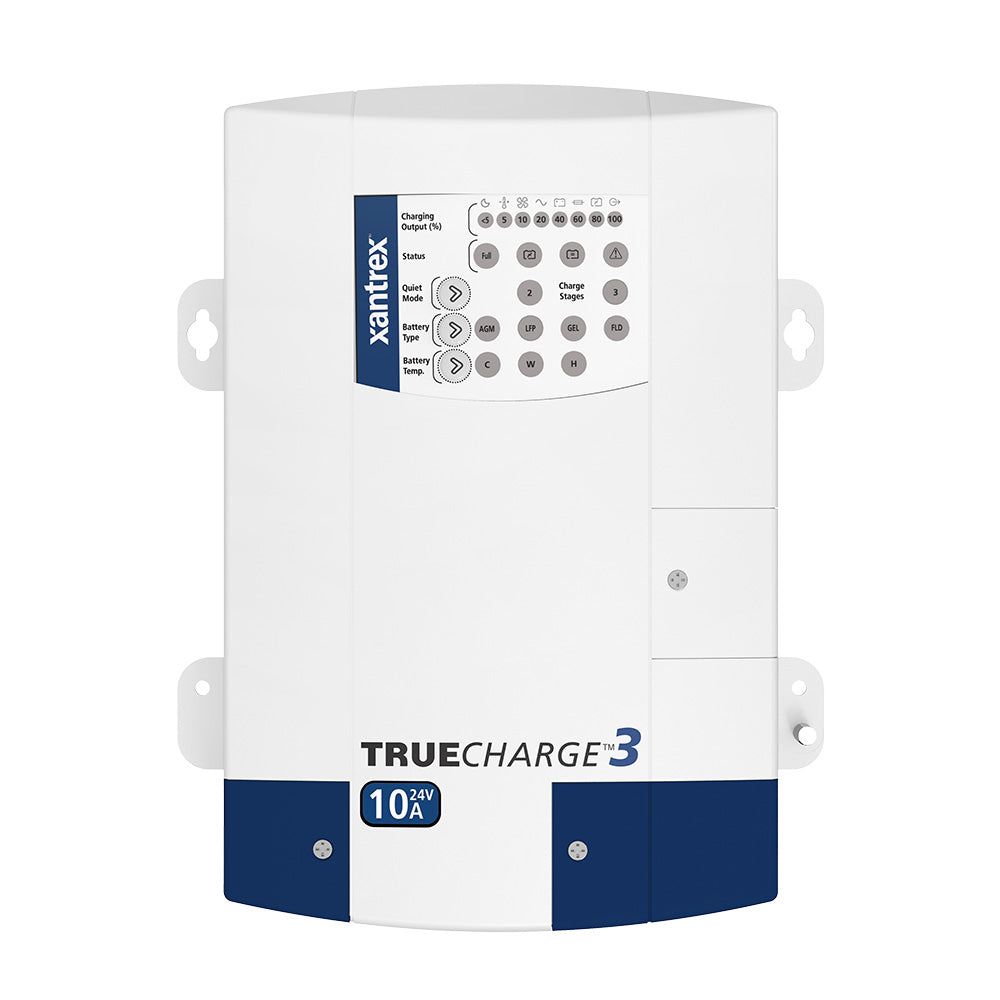

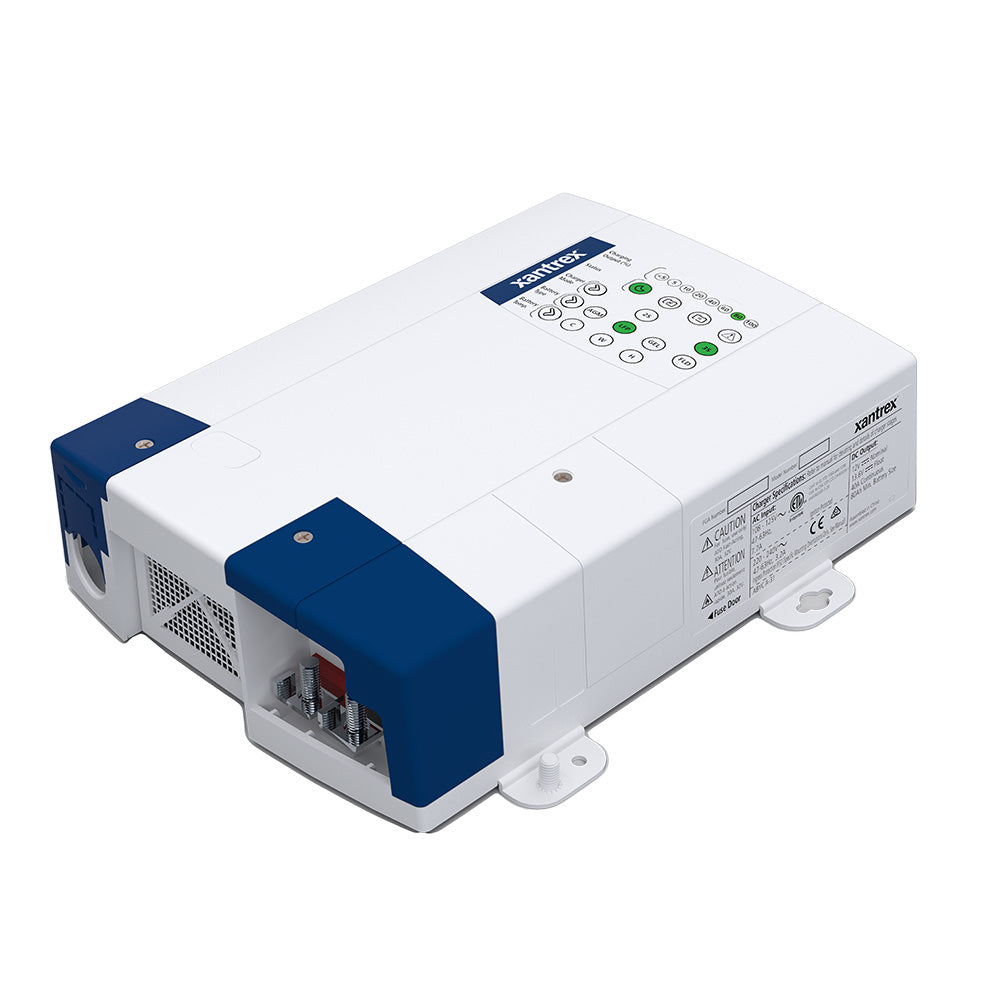

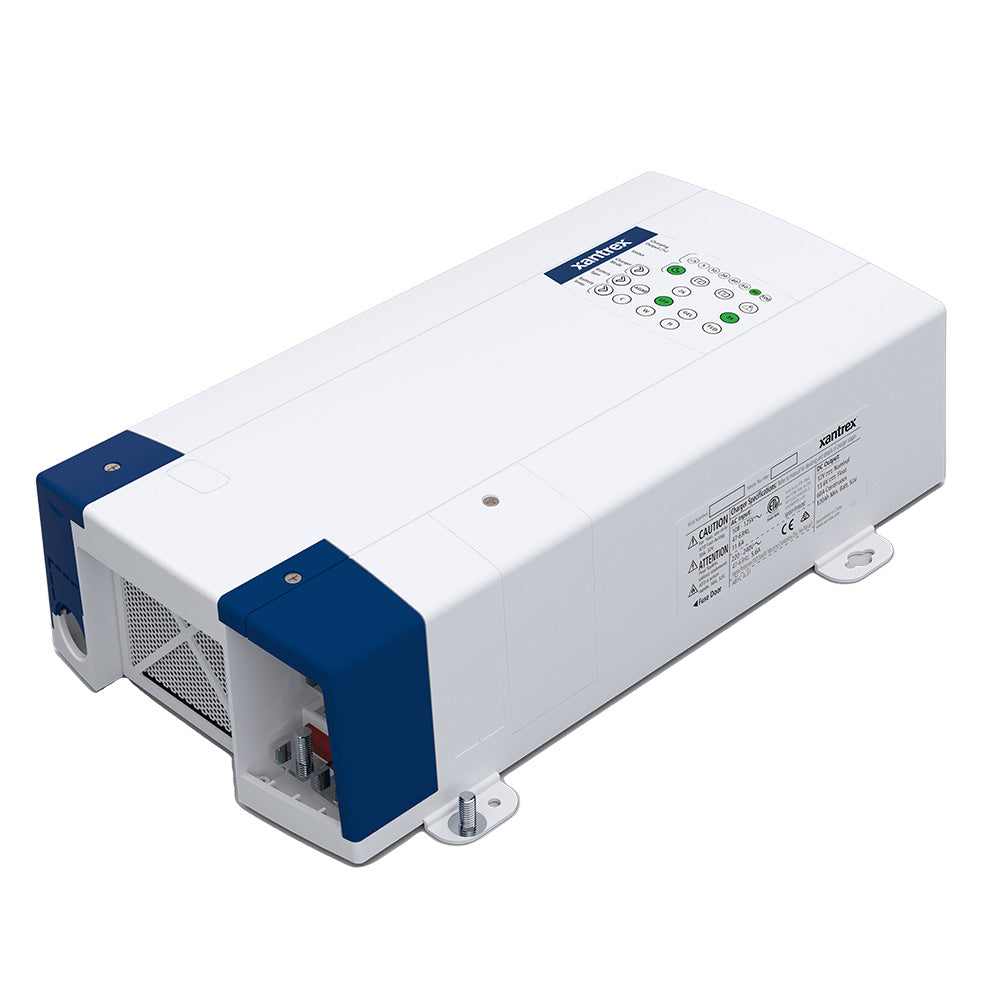

Xantrex - TRUECHARGE 3 Bank Battery Charger

Advanced Charging Solutions for Marine Environments

The Xantrex TRUECHARGE™3 Battery Charger is a state-of-the-art charging solution designed for both recreational and commercial marine applications. With its compact design, industry-leading features, and compatibility with various battery types including lithium-ion, the TRUECHARGE™3 ensures your vessel's batteries are charged efficiently and safely. This charger is built to withstand the challenging conditions of marine environments, providing you with dependable power wherever you go.

Enhanced Performance and Versatility

The TRUECHARGE™3 Battery Charger is packed with features that optimize battery performance and extend battery life. Its multistage charging algorithms, combined with advanced protection features, make it a top choice for marine power management.

• Microprocessor-Controlled Charging: Ensures precise and efficient battery charging.
• Multistage Charging Algorithms: Supports two and three-stage charging, including a battery-equalization feature.
• Battery Compatibility: Suitable for flooded, gel, AGM, and lithium-ion batteries.
• Parallel Stacking: Enables the connection of multiple chargers for increased output (remote panel required).
• Low Voltage Charging: Capable of charging batteries drained to extremely low voltages.
• Quiet Mode: Reduces noise during operation.

Key Features at a Glance

• Multistage Charging: Bulk, absorption, and float stages for optimal charging and battery maintenance.
• Power Factor Corrected Charging: Uses less shore power, freeing up AC power for other devices and appliances.
• Protection Features: Includes reverse-battery polarity protection, over-temperature protection, DC over-voltage protection, and more.
• Flexible Mounting Options: Drip-proof design allows for multiple mounting positions.
• Global Compatibility: Accepts 90–265 Vac, 47–63 Hz input for use worldwide.

Technical Specifications

• Output Current (nominal): 10A
• Output Voltage (nominal): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc
• DC Output Connections: Three
• AC Input Voltage: 90–265 Vac; 47–63 Hz
• Temperature Compensation: Three settings
• Charger Efficiency: > 80%
• Battery Type: Gel, Flooded, AGM, LiFePO4
• Minimum Recommended Battery Bank Size: 20 Ah

Product Dimensions

• Dimensions: 70 x 170 x 250 mm (2.8 x 6.7 x 9.8 inches)
• Weight: 2.2 kg (4.8 lb)

General Specifications

• Operating Temperature Range: 0–60°C (32–140°F)
• Storage Temperature: -40–80°C (-40–176°F)

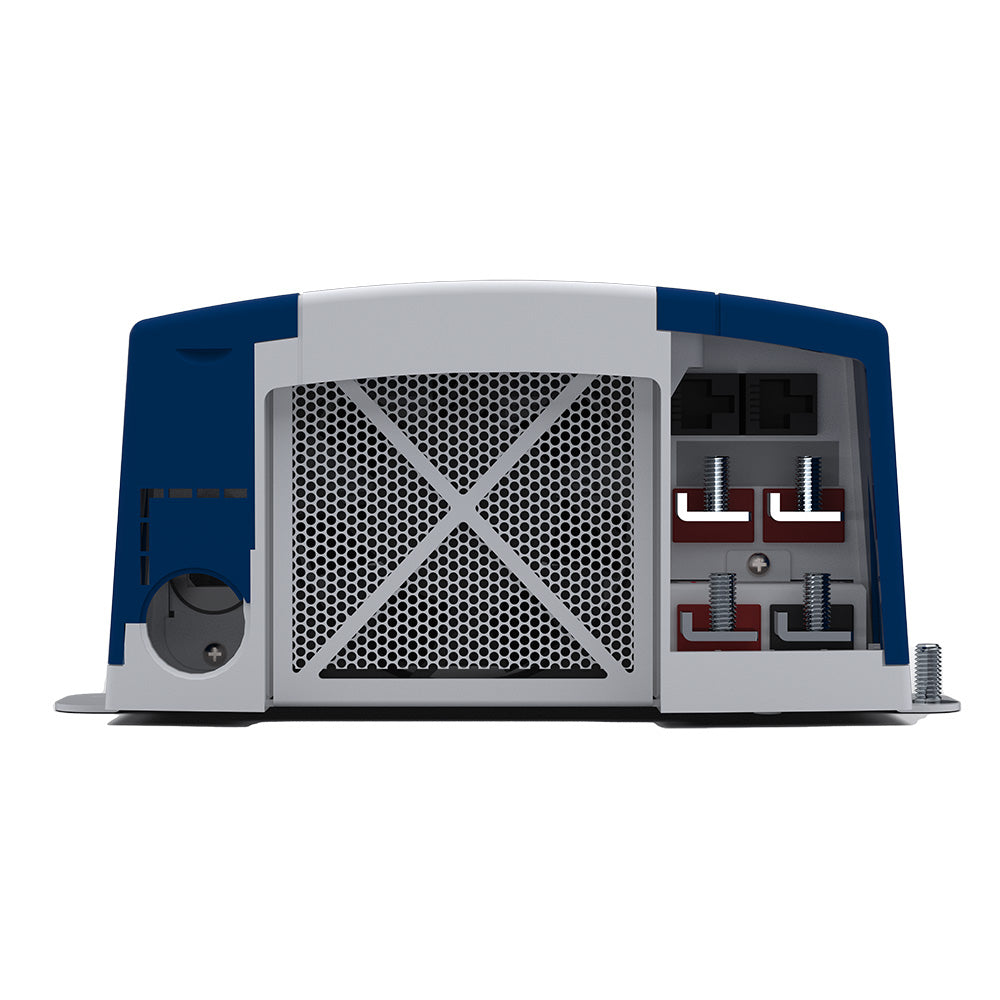

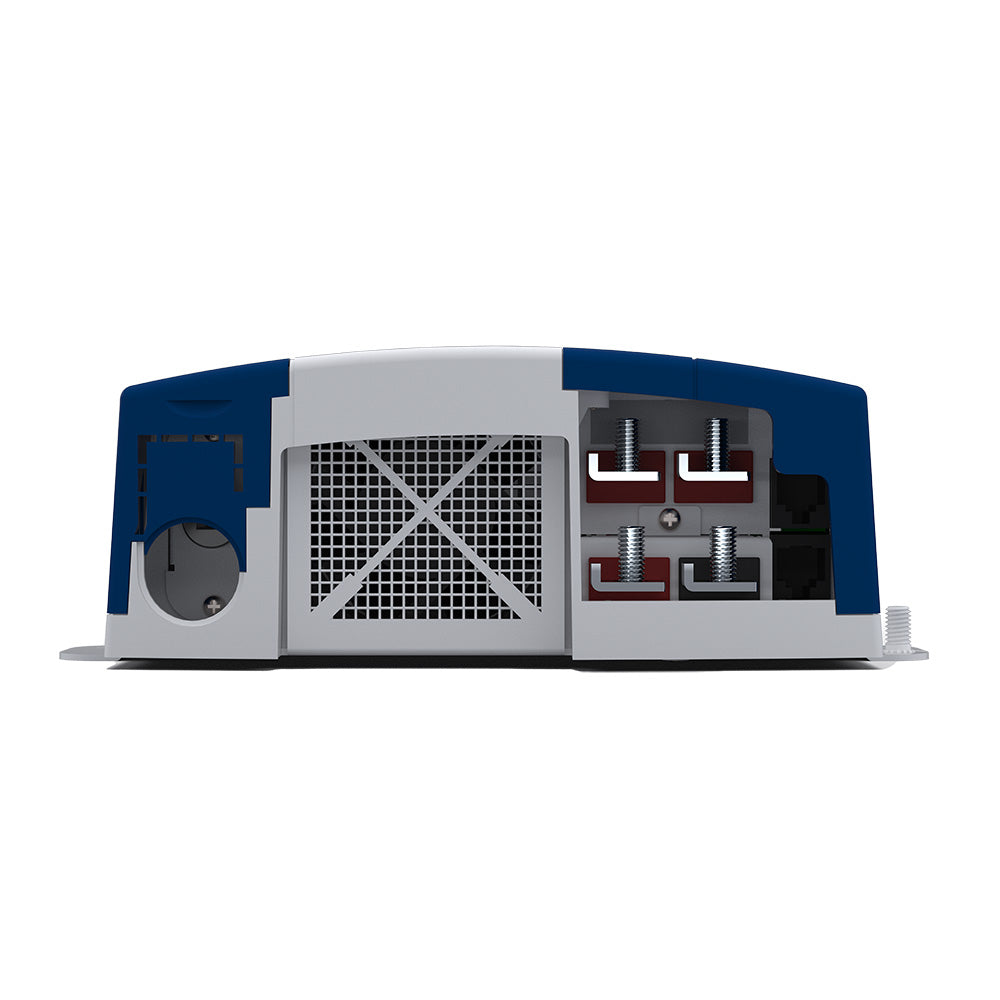

• Battery Connection: Three positive terminals and one negative terminal

Regulatory Approvals

• Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.

Variations for Customized Fit

Choose the model that best fits your power requirements:

• 804-2410-10: Amperage 10A / Voltage 24V
• 804-1220-10: Amperage 20A / Voltage 12V
• 804-2420-10: Amperage 20A / Voltage 24V
• 804-2430-10: Amperage 30A / Voltage 24V
• 804-1240-10: Amperage 40A / Voltage 12V
• 804-1260-10: Amperage 60A / Voltage 12V

Reliable Marine Power with Xantrex

Equip your vessel with the Xantrex TRUECHARGE™3 Battery Charger and ensure your batteries are always charged efficiently and safely. With its advanced features, robust construction, and compatibility with multiple battery types, this charger is an essential component for any serious mariner. Choose the model that fits your needs and experience the reliability and performance of Xantrex marine power solutions.
