Airmar - SS60-20-8G 50/200khz 20D Tilted Element Transducer - With Garmin 8-Pin

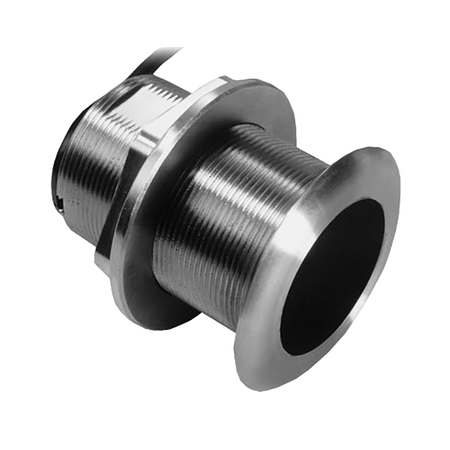

Stainless Steel Thru-Hull Transducer for Superior Marine Performance

The Airmar SS60-20-8G is a high-performance stainless steel thru-hull transducer designed for center-console and trailered boats. With its low-profile design, it minimizes drag while maintaining exceptional sonar capabilities. The fixed 20° tilted element ensures optimal performance on hulls with a deadrise between 16° and 24°, delivering precise and accurate depth readings without the need for a fairing block. Engineered with a built-in temperature sensor, this transducer provides valuable data for enhanced navigation and fishing applications.

Advanced Sonar Technology for Clearer Readings

Equipped with dual-frequency operation at 50/200 kHz, the SS60-20-8G delivers reliable sonar imaging for a wide range of marine environments. The wide 45° beam at 50 kHz provides excellent depth penetration, while the narrower 12° beam at 200 kHz offers superior target resolution in shallow waters. Whether navigating coastal areas or offshore waters, this transducer ensures crisp and accurate sonar returns.

Durable Stainless Steel Construction

Built with a stainless steel housing, the SS60 is highly resistant to corrosion and harsh marine conditions, ensuring long-lasting durability. Its nearly flush-mounted design extends only 5 mm (3/16") outside the hull, reducing drag and preserving the vessel’s running performance. The robust construction and streamlined profile make it an excellent choice for demanding marine applications.

Easy Installation with Tilted Element

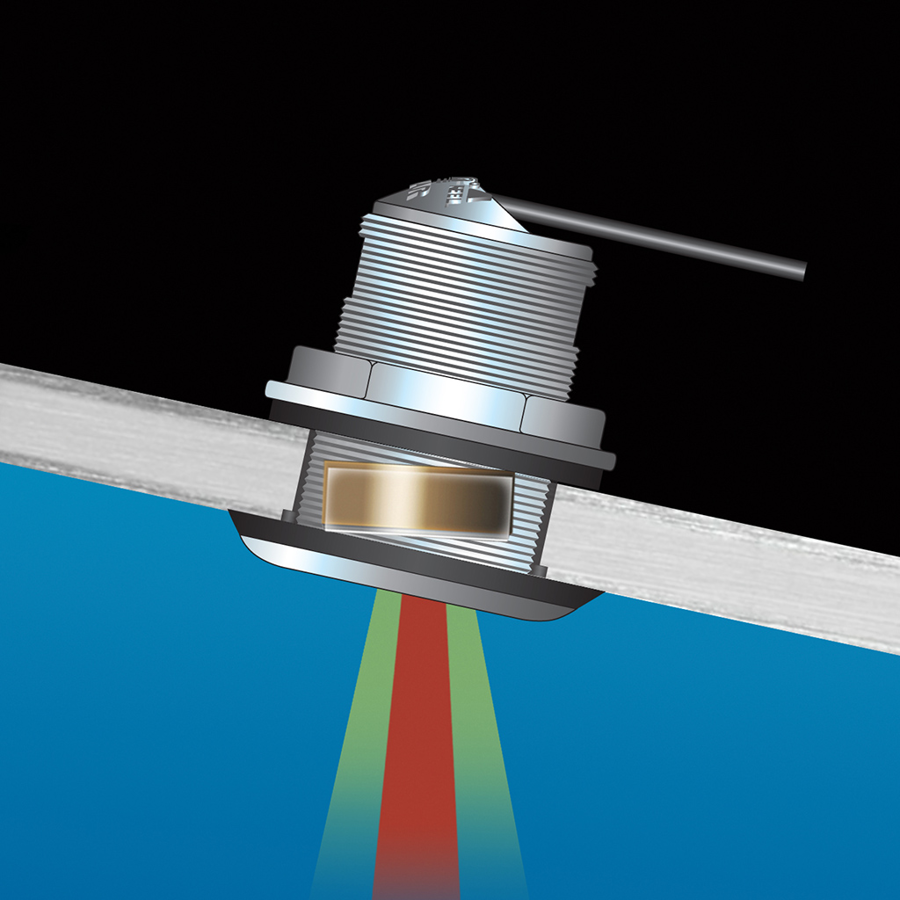

The SS60-20-8G features an intuitive installation process, with an arrow on the cap indicating proper orientation toward the keel. This ensures precise placement for optimal sonar performance. The built-in tilted element compensates for hull deadrise, maintaining a vertical beam for more accurate depth readings.

Technical Specifications

• Frequency: 50/200 kHz
• Beam Width: 45° at 50 kHz / 12° at 200 kHz
• Tilted Element: 20° fixed tilt for hulls with a 16° to 24° deadrise
• Housing Material: Stainless steel
• Temperature Sensor: Built-in
• Boat Size Compatibility: Up to 8 m (25’)

Highlights

• Low-profile thru-hull transducer minimizes drag
• Stainless steel construction for corrosion resistance
• Dual-frequency operation for enhanced depth and resolution
• Built-in temperature sensor for real-time water temperature readings
• Easy installation with an alignment cap for proper keel orientation
• Trusted by the U.S. Coast Guard for reliable sonar performance

This high-quality marine transducer is ideal for boaters seeking accurate depth readings, enhanced sonar performance, and durable construction to withstand the rigors of the open water.
