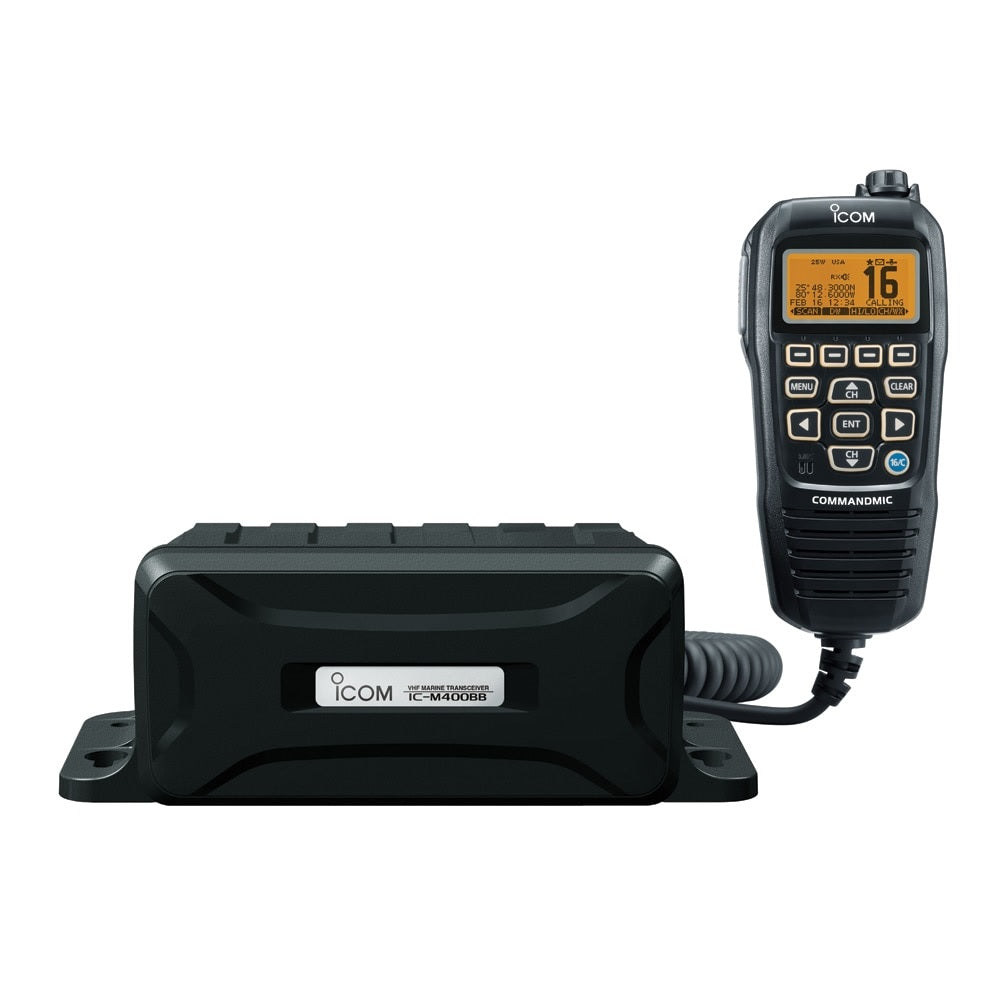

Black Box Transceiver - Icom Quality. Small Footprint.
Space-saving, two-piece configurationThe IC-M400BB consists of a two-piece, black box configuration. All function control including DSC operation, can be made from the COMMANDMICIV™ , HM-195B/SW, and the RF unit, IC-M400BB, can be installed in an out-of-sight place.
New intuitive user interfaceThe new menu system is shared with Icom's latest models. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons.
Active noise cancellingThe built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.
10W Loud Audio, Public Address and FoghornThe IC-M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.
Built-in Class D DSCThe built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.
Common NMEA InterfaceWhen connected to an external GPS receiver, current position and time are shown on the COMMANDMIC™ display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.
AIS Target Call with MA-500TRWhen connected to the optional MA-500TR Class B AIS transponder, the AIS target call function allows you to set up an individual DSC call from the MA-500TR.
Additional features include- MarineCommander™ compatible
- AquaQuake™ water draining function
- IPX7 submersible protection both for IC-M400BB and HM-195B/SW (1m depth for 30 minutes)
- Dual/tri-watch function for monitoring Ch.16 and/or call channel
- Priority and normal scan
| General | |
|---|---|
| Frequency Range Tx Rx Ch. 70 |
156.025-157.425MHz 156.050-163.275MHz 156.525MHz |
| Usable channel groups | INT, USA, CAN and WX channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Power supply requirement | 13.8V DC nominal (11.7-15.9V DC) |
| Current drain (at 7.4V DC) Tx (at 25W output) Rx (Max. audio) |
5.5A Max. 3.5A Max. |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Antenna Impedance | 50O (SO-239) |
| Dimensions (W H D) IC-M400BB HM-195B/SW |
216 79 125mm; 8.5 3.11 4.92 in 67.5 144.5 37mm; 2.66 5.69 1.46 in |
| Weight (approx.) IC-M400BB HM-195B/SW |
830g; 1.83 lb 400g; 14.1 oz |
| NMEA in/out formats | RMC, GGA, GNS, GLL, DSC, DSE |
| Transmitter | |
|---|---|
| Output power (Hi/Low) | 25W, 1W (High, low) |
| Max. frequency deviation | ± 5.0 kHz |
| Frequency tolerance | ±10ppm |
| Spurious emissions | Less than -70dBc (at 25W) |
| Receiver | |
|---|---|
| Sensitivity Main Ch. 70 |
0.22µV typical (at 12dB SINAD) -5dBµ emf typ. (1% BER) |
| Squelch sensitivity | Less than 0.32µV |
| Adjacent Channel Selectivity Main Ch. 70 |
More than 70dB More than 73dBµ emf (1% BER) |
| Spurious response Main Ch. 70 |
More than 70dB More than 73dBµ emf (1% BER) |
| Intermodulation Main Ch. 70 |
More than 70dB More than 68dBµ emf (1% BER) |
| Hum and noise ratio | More than 40dB |
| Audio output power Internal speaker |
More than 2W (HM-195B/SW) More than 10W (RX Speaker) |
Measurements made in accordance with TIA/EIA 603 and IEC 62238 (Ch. 70 receiver specifications).
Applicable IP Rating
| Ingress Protection Standard (IC-M400BB and HM-195B/SW) | |
| Water | IPX7 (Waterproof protection |
