Advanced Solid-State Rate/Gyro Compass for Precision Navigation

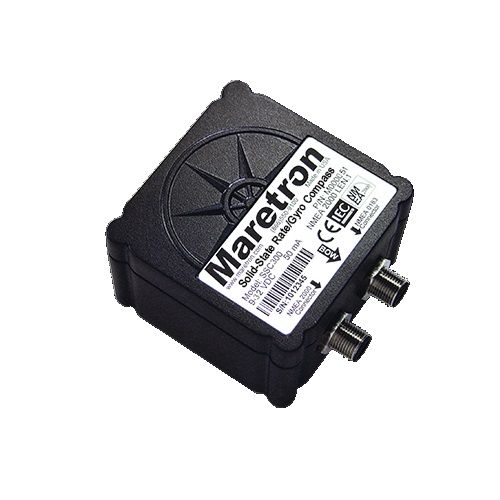

The Maretron SSC300-01 is an advanced solid-state rate/gyro compass designed to deliver superior heading accuracy and vessel attitude data in marine environments. Utilizing second-generation Maretron technology, this electronic compass ensures high-precision navigation, even in dynamic conditions. The SSC300-01 provides heading accuracy better than 0.7° in static conditions and maintains reliability through ±45° of roll and pitch. It is the perfect solution for autopilot integration, radar overlay applications, and navigation system enhancements, offering seamless connectivity with both NMEA 0183 and NMEA 2000 networks.
High-Performance Sensor Technology
Equipped with a three-axis magnetometer, three-axis rate gyro, and three-axis accelerometer, the SSC300-01 employs advanced stabilization algorithms to deliver precise and stable readings, even in challenging sea conditions. It continuously outputs heading, pitch, and roll data, ensuring that captains and navigators have real-time insights into vessel movements.
Rugged and Waterproof Design
Built for harsh marine environments, the SSC300-01 features an IP67-rated waterproof enclosure, providing reliable protection against water ingress and external elements. Whether installed on commercial vessels, recreational boats, or professional marine applications, the durable construction ensures long-lasting performance.
Seamless Connectivity and Integration
The Maretron SSC300-01 is certified for NMEA 2000® networks and compatible with NMEA 0183 interfaces, allowing flexible connectivity with a wide range of navigation systems, chart plotters, autopilots, and marine displays. It can be used with Maretron's N2KView® vessel monitoring system and DSM150/DSM250 color graphics displays, enhancing onboard situational awareness.
Key Features
- Better than 0.7° heading accuracy in static conditions
- Better than 1.5° heading accuracy in dynamic conditions
- Better than 1°/second rate of turn accuracy
- Provides pitch and roll accuracy within 1°
- Uses a three-axis magnetometer, rate gyro, and accelerometer for precise stabilization
- Simultaneous NMEA 0183 and NMEA 2000 output
- IP67 waterproof enclosure for marine durability
- Automatic deviation calibration and advanced digital filtering
What's in the Box
- SSC300 Solid-State Compass
- 2 Mounting Brackets
- 4 Mounting Bracket Screws
- 4 Mounting Screws
- SSC300 User’s Manual
- Warranty Registration Card
- FA-CF-ST
This high-accuracy electronic compass is an essential tool for modern marine navigation, offering reliable data for improved steering, tracking, and control, even in the most demanding conditions.
