Reliable and Durable Marine Hatch for Secure Ventilation

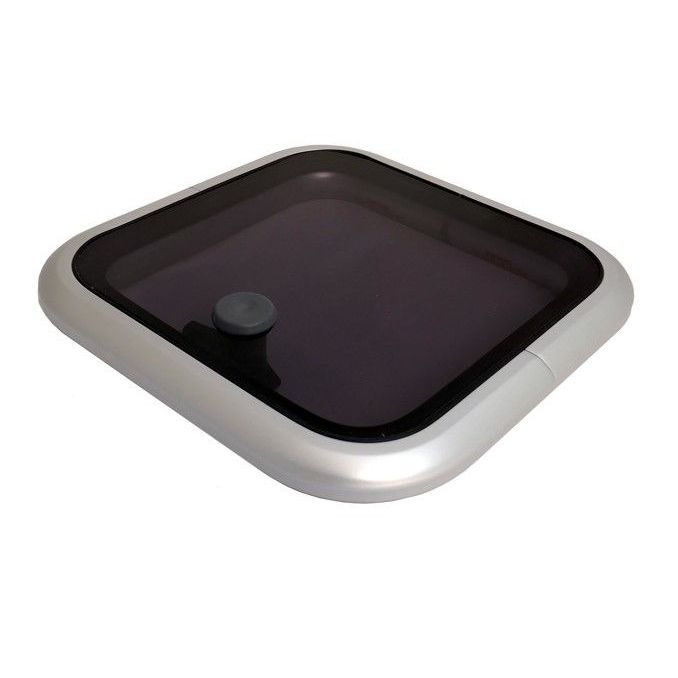

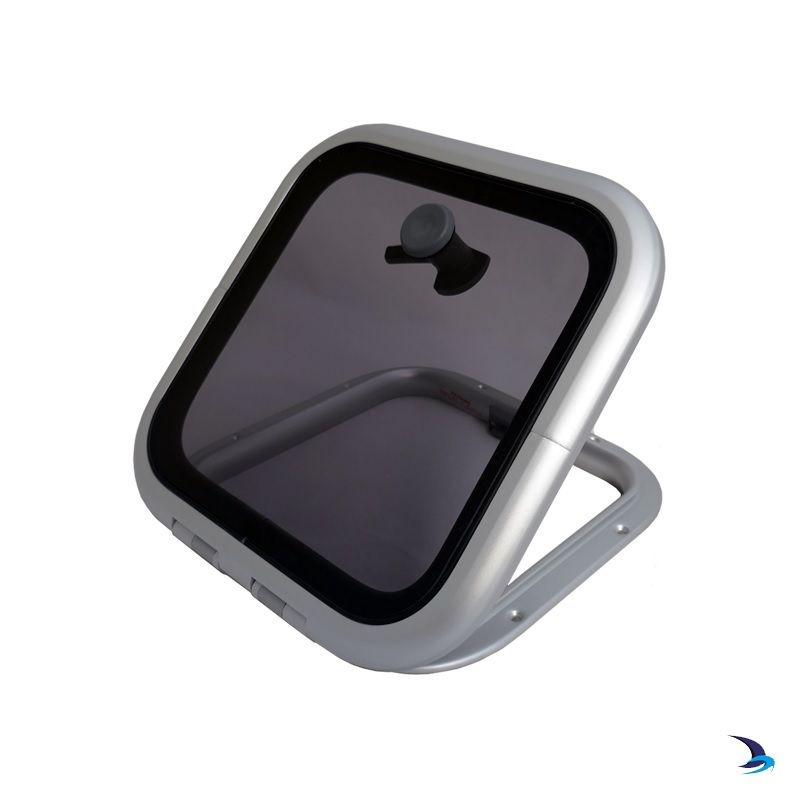

The Lewmar Size 10 Ocean Series Hatch Flat Base is designed for superior durability and performance in marine environments. Built to withstand harsh conditions, this hatch provides a secure, watertight seal while allowing ample ventilation. Engineered for a flat surface installation, it ensures a seamless fit with a tolerance of +/- 1mm, making it an excellent choice for boaters looking for both functionality and reliability.
With a smoke grey acrylic window, the hatch offers enhanced UV resistance, reducing glare while maintaining visibility. Its robust construction ensures long-lasting performance, even in demanding marine conditions.
Technical Specifications

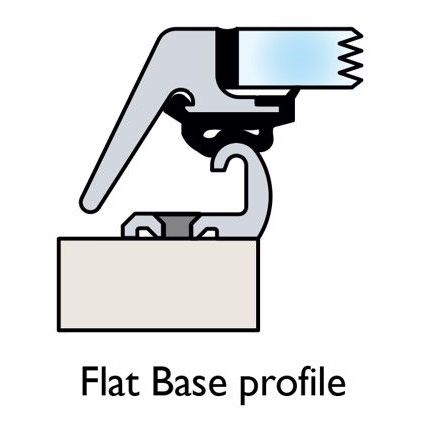

- Designed for installation on flat surfaces with a maximum tolerance of +/- 1mm
- Hinge fastening size: M6 (1/4")
- Lower frame fastening size: 5mm CSK screw No.10 UNC 2 BA
- Acrylic window thickness: 3/8"
- Hatch weight: 5.77 lbs
- Not compatible with Trim Kits or Roller Shades
Product Dimensions
- Length: 12 3/4"
- Width: 12 3/4"
- Height: 1 9/16"
- Corner Radius: 2 15/16"
- Hinge Length: 3/16"
- Hinge Width: 5 7/16"
- Cut-Out Length: 10 1/16"
- Cut-Out Width: 10 1/16"
- Cut-Out Radius: 1 9/16"
Finishes
- Acrylic Window Color: Smoke Grey
Highlights
- Sturdy and lightweight marine-grade construction
- Smoke grey acrylic window for UV protection and reduced glare
- Secure and watertight design for optimal weather resistance
- Easy installation with standardized fastening sizes
- Ideal for marine applications requiring a flat base hatch
This hatch is an excellent choice for boat owners looking for high performance, durability, and ease of installation in marine environments.
