Egis - Panel Mount Circuit Breaker - 285 Series

The Ultimate in Electrical Safety for Marine Applications

The Egis 40A Panel Mount Circuit Breaker - 285 Series is designed to provide superior protection for your marine electrical systems. With its robust construction and advanced features, this circuit breaker ensures the longevity and safety of your vessel's electrical circuits, making it an essential component for any marine setup.

Key Features and Benefits

• Dual Functionality: Combines automatic circuit protection and manual on/off switching in one compact and reliable solution.
• High Voltage Rating: Supports 12V, 24V, 36V, and 48V DC applications, providing enhanced protection compared to traditional fuses.
• Sealed Construction: Dust and water intrusion protection ensures reliable operation throughout the life of the installation.
• High Electrical Endurance: Delivers 6,000 cycles at full current, ensuring long-lasting performance.
• High Interrupt Current Capability: Safely protects circuits connected to large parallel battery banks with significant available power.
• 4-Year Warranty: Confidence in the product's ability to meet and exceed user expectations.

Applications

• Marine Electrical Systems: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and damage.
• Circuit Isolation and Maintenance: Provides convenient switching and integral circuit protection for easy maintenance of load circuits, ideal for mounting adjacent to battery systems.

Technical Specifications

• Continuous Current: 40 Amps
• Maximum Voltage: 48V DC
• Cycling Endurance: 6,000 cycles
• Interrupt Current @16 VDC: 5,000 Amps
• Interrupt Current @28 VDC: 3,000 Amps
• Ingress Protection Rating: IP67

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture, with a high temperature rating for all installation locations, ensuring reliable operation in harsh environments.

Panel Mount Flange

Provides rear and front panel installation options for versatile and secure mounting.

Stainless Steel Hardware / KEPS Locking Nuts

Ensures corrosion and vibration resistance, making it suitable for marine and harsh environment applications.

Made in the USA

Crafted with high-quality components and proudly manufactured in the USA, ensuring top-tier reliability and performance.

Product Variations

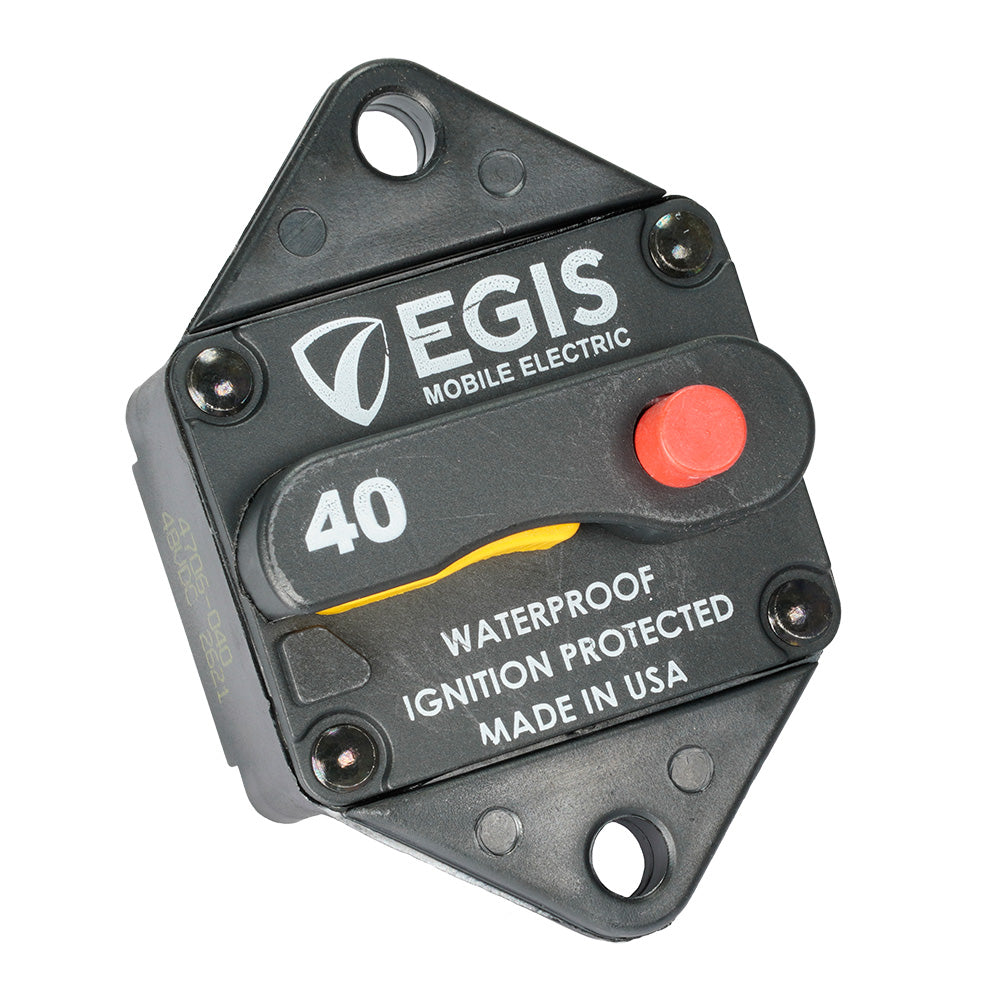

40A Panel Mount Circuit Breaker (4706-040)

• Amperage: 40A
• Ideal For: Standard marine applications requiring reliable circuit protection.

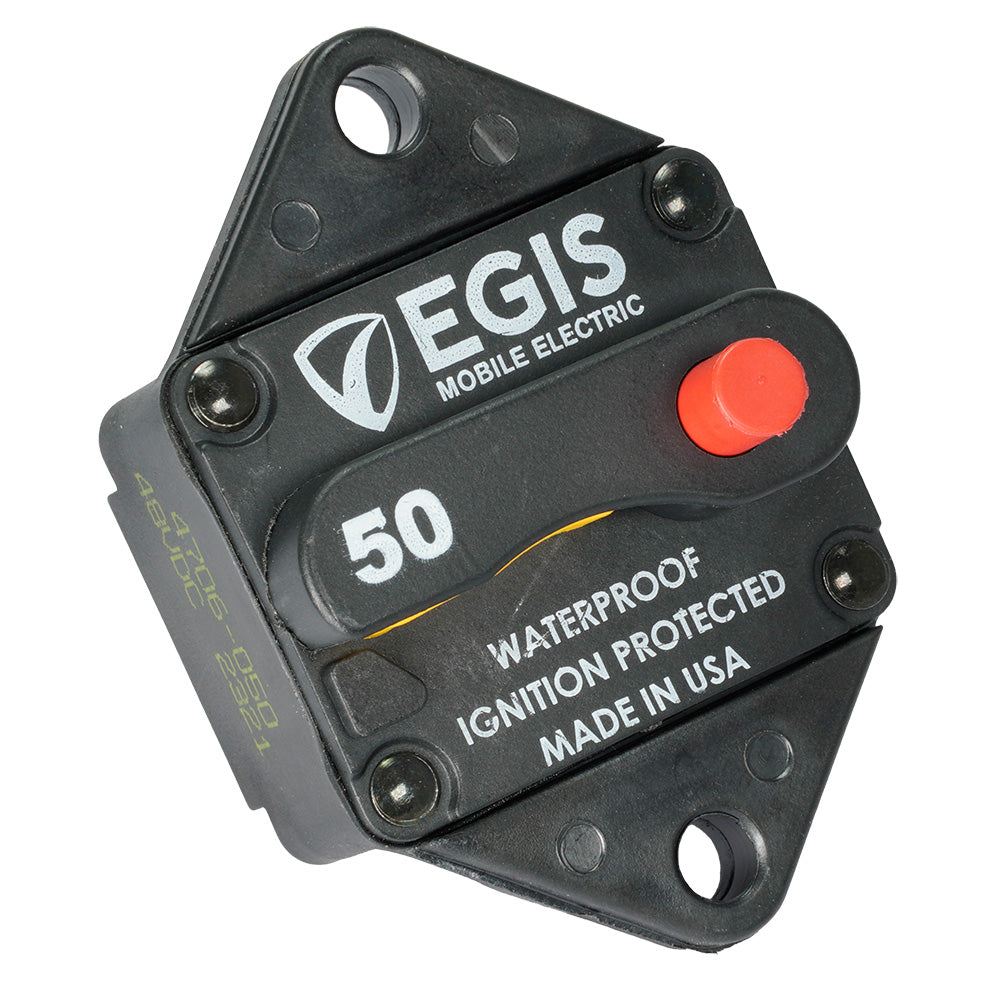

50A Panel Mount Circuit Breaker (4706-050)

• Amperage: 50A
• Ideal For: Higher load applications needing enhanced protection.

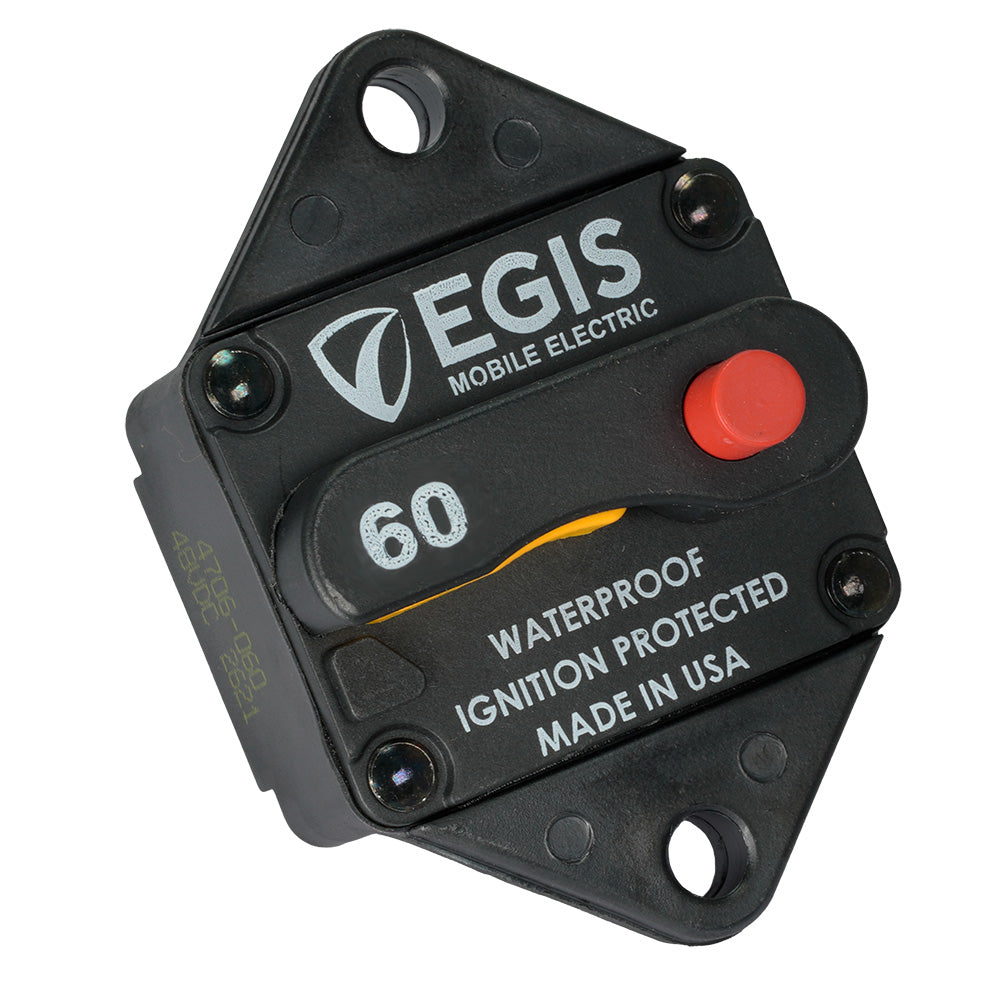

60A Panel Mount Circuit Breaker (4706-060)

• Amperage: 60A
• Ideal For: Applications with significant power demands and safety requirements.

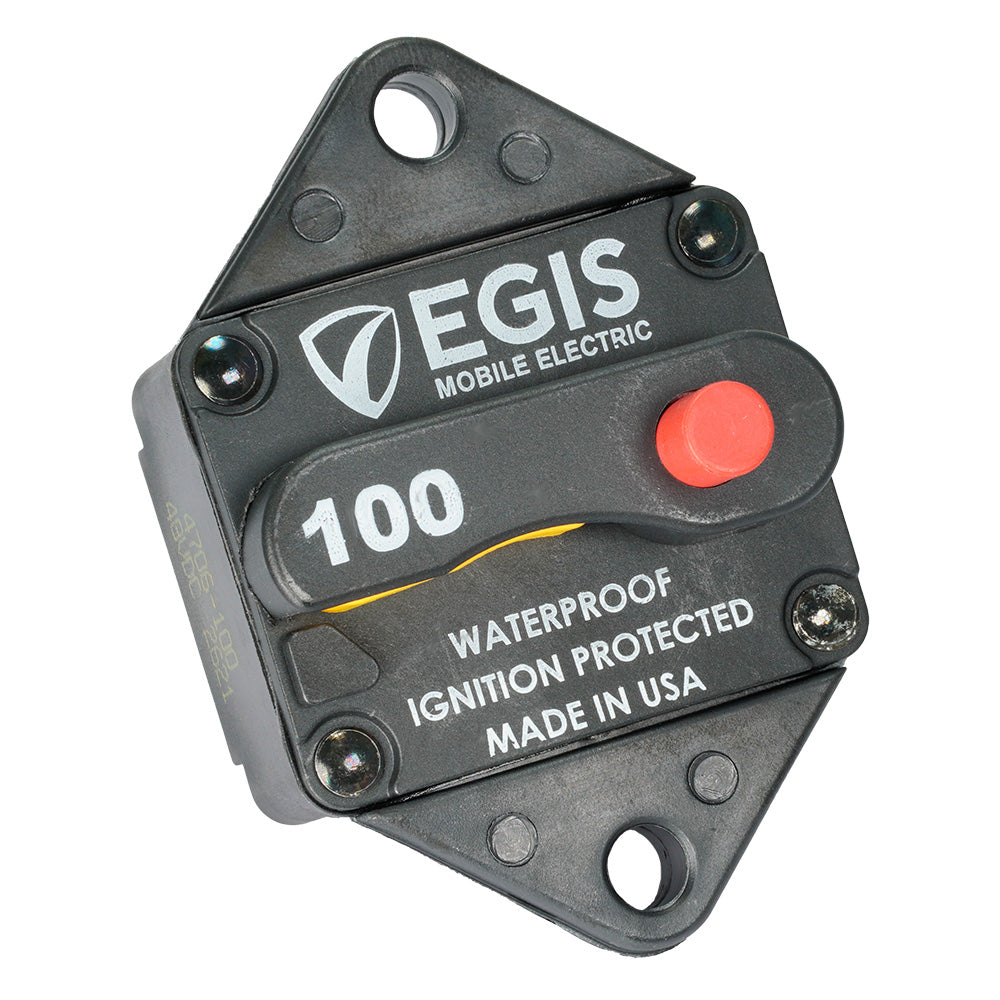

100A Panel Mount Circuit Breaker (4706-100)

• Amperage: 100A
• Ideal For: Heavy-duty marine electrical systems requiring robust circuit protection.

Dependable Marine Circuit Protection

The Egis 40A Panel Mount Circuit Breaker - 285 Series offers unparalleled protection and reliability for marine electrical systems. With its advanced features and robust construction, this circuit breaker ensures the safety and efficiency of your vessel's electrical circuits. Choose Egis for top-quality, dependable marine circuit protection.

• 1264231_qbp823236.pdf
