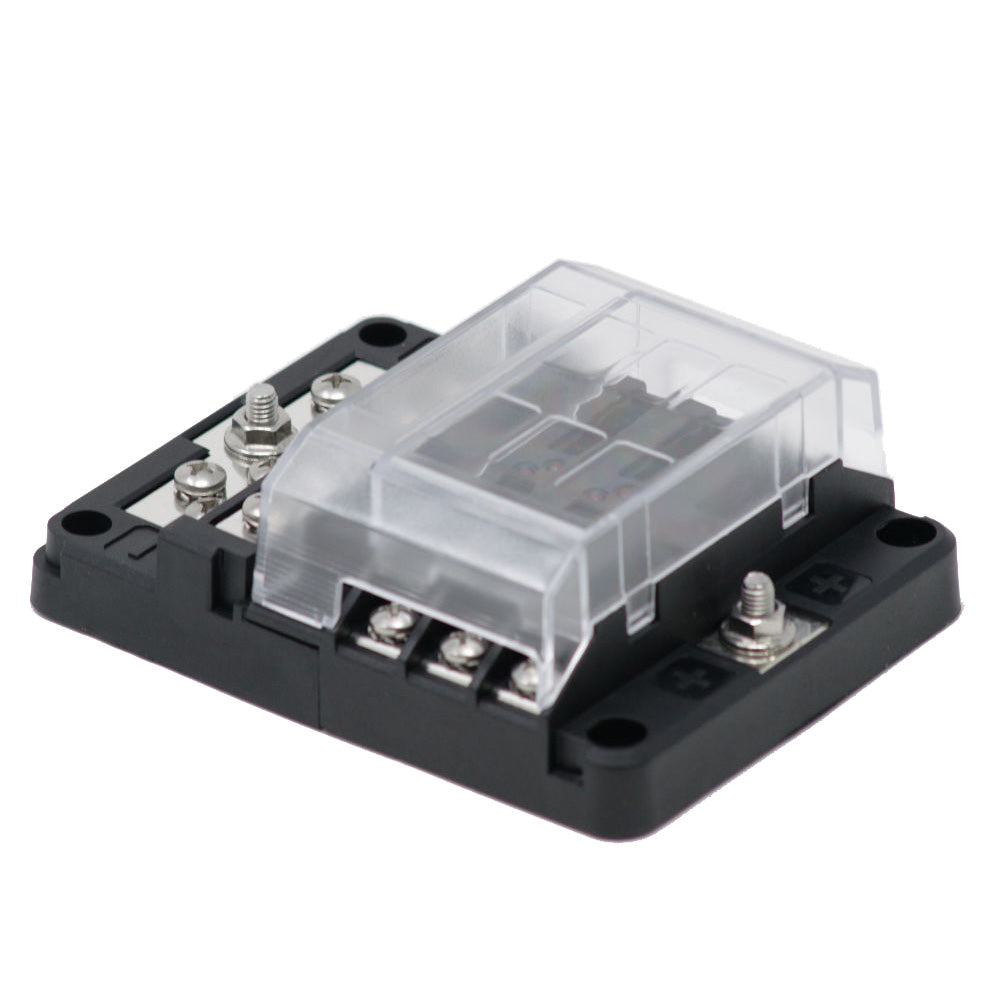

Egis Mobile Electric - RT Fuse Block - With Ground LED Indication

The Ultimate Solution for Marine Electrical Systems

The Egis RT Fuse Block 6 Position with Ground & LED Indication is an essential addition to any marine electrical system, offering unparalleled reliability and ease of use. Designed to withstand harsh environments, this fuse block combines innovative features with robust construction to ensure the safety and efficiency of your vessel's electrical circuits.

Key Features and Benefits

• Modular Design: Can be configured in seven unique ways, reducing the need for multiple part numbers and simplifying inventory management.
• LED Fuse Diagnostics: Blown fuse LED indication for each output circuit provides clear visibility of faulty circuits, speeding up troubleshooting and remote diagnostics.
• Ground Block Included: Features a 12-position ground return block with multi-level low amp terminal screws, enhancing mounting flexibility and ease of use.
• Bullet-Proof Construction: High-temperature materials and stainless steel self-locking hardware ensure durability and corrosion resistance, making it suitable for installation anywhere on the vehicle.
• Spare Fuse Locations: Two locations per 6 circuits for spare fuses or test resistors, facilitating easy maintenance and system evaluation.

Applications

• Remote Diagnostics: LED indicators for blown fuses improve the ability to diagnose issues remotely, reducing downtime and maintenance efforts.
• Marine and Harsh Environments: Designed with stainless steel self-locking hardware and optional weather-proof labels, making it ideal for demanding marine applications.
• Comprehensive Circuit Protection: Accepts ATO style fuses ranging from 1 to 40 Amps, providing reliable protection for branch circuits.

Specifications

• Maximum Current (Entire Block): 100 Amps
• Maximum Current (Per Circuit): 30 Amps
• Max Output Wire Size: #10 AWG
• Voltage Range: 0-36 VDC
• Number of Fuse Positions: 6
• Compatible Fuse Types: ATO / ATC / ATF

Spare Fuse Locations

Provides two spare locations per 6 circuits for test resistors or spare fuses, ensuring easy maintenance and system evaluation.

Stainless Steel Self-Locking Hardware

Constructed with 100% non-ferrous corrosion-resistant materials, all attachment screws and nuts are self-locking, ensuring secure and reliable connections.

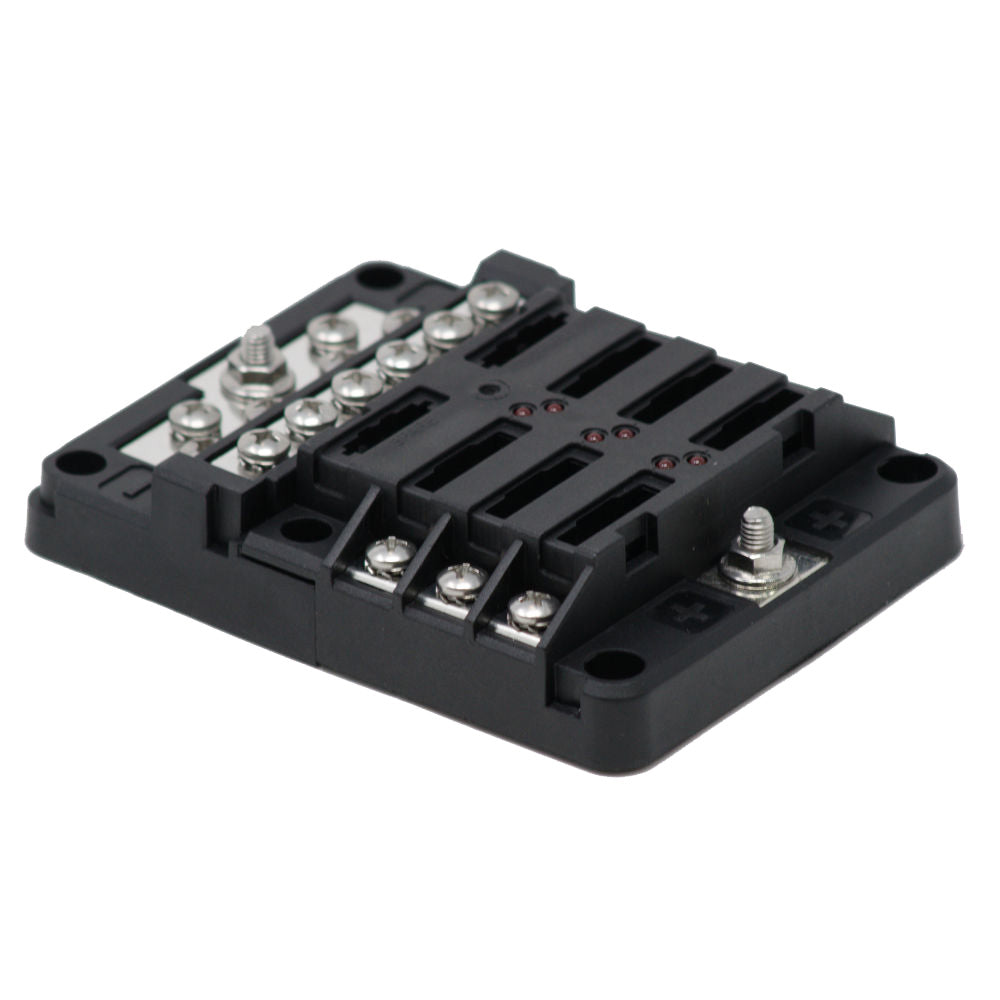

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear and immediate indication of faulty circuits, simplifying troubleshooting and maintenance.

Cover/Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground, ensuring safety and reliability.

Ground Block Included

Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting flexibility.

Ground Block Separates

The ground block section optionally separates from the fuse block section, providing increased deployment options for challenging installations.

Product Variations

6 Position Fuse Block (8025)

• Number of Positions: 6
• Ideal For: Standard applications requiring robust and reliable circuit protection in marine environments.

12 Position Fuse Block (8026)

• Number of Positions: 12
• Ideal For: Expanded circuit protection needs, providing additional flexibility and capacity for complex electrical systems.

Dependable and Flexible Circuit Protection

The Egis RT Fuse Block 6 Position with Ground & LED Indication is the ideal solution for managing your marine electrical systems. With its advanced features, durable construction, and easy installation, this fuse block ensures the safety and efficiency of your electrical circuits. Choose Egis for unmatched reliability and performance in your marine installations.
